S3 88 rear brake pipe routing pics please?

P

Phil Maddox

Member

Posts

34

Location

Stafford

• Aug 7, 2024

• #1

Hi, Does anybody have pics on how they routed the rear brake pipe from the PDWA valve to the rear axel ? I have a new chassis and while the front pipes are straight forward I cant seem to find any reference to the pipe run from front to back. TIA



boguing

Well-Known Member

Full Member

Posts

10,491

Location

A bit sarf of Dorking

• Aug 10, 2024

• #2

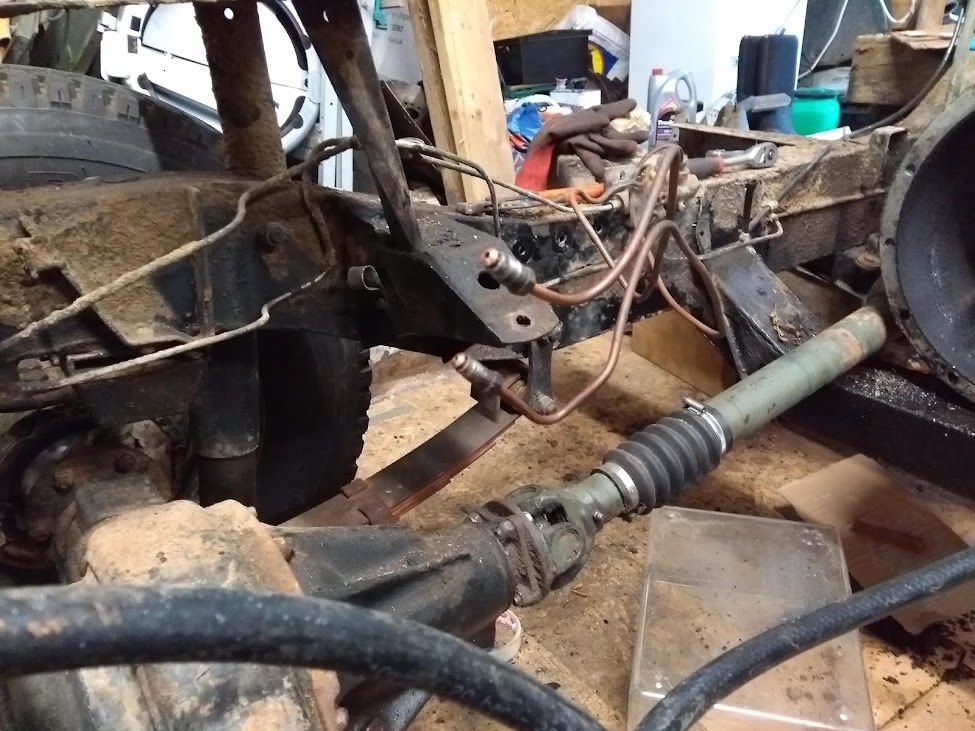

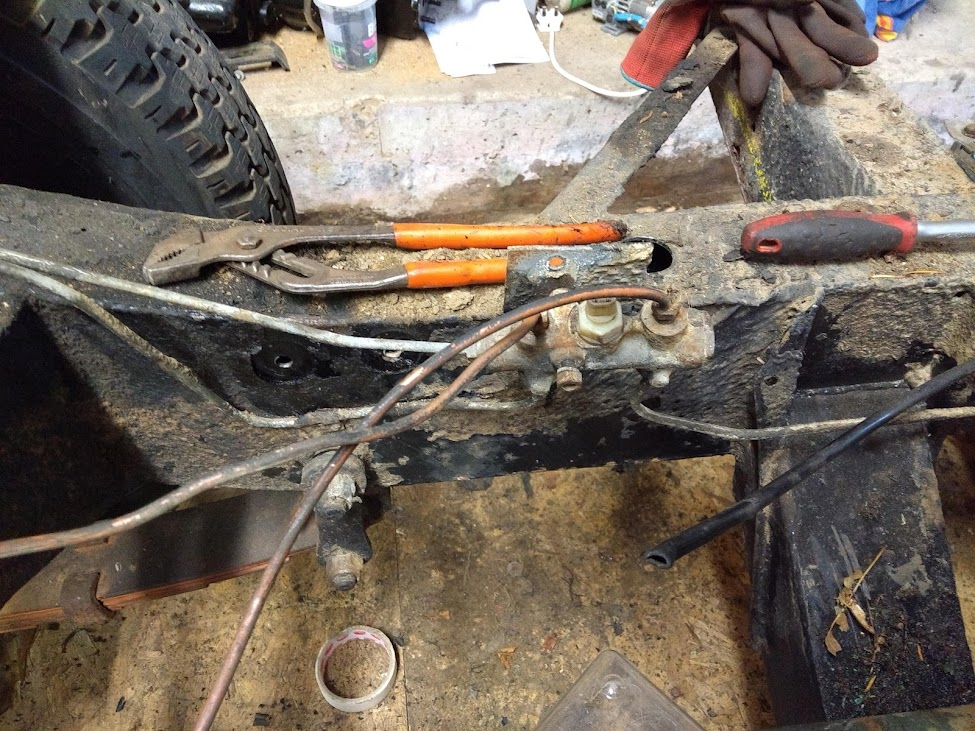

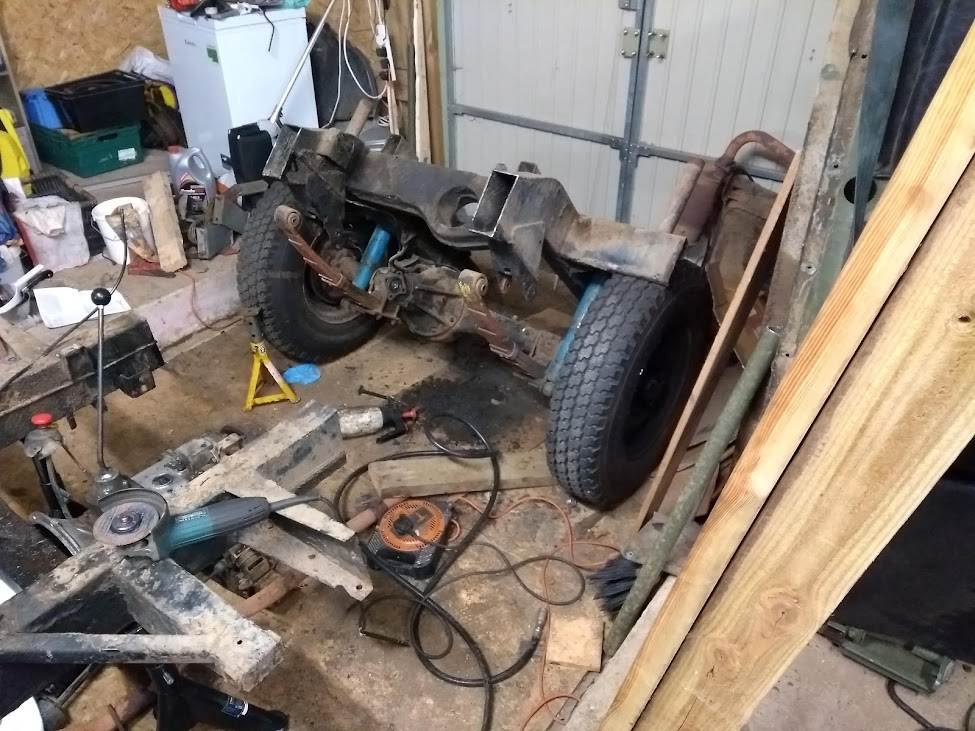

Think it's all on these - zoom on the cut chassis one for how it gets over the back axle.



P

Phil Maddox

Member

Posts

34

Location

Stafford

• Aug 10, 2024

• #3

boguing said:

Think it's all on these - zoom on the cut chassis one for how it gets over the back axle.

View attachment 323545

View attachment 323546

View attachment 323547

Click to expand...

Thanks. Very helpful
