RR 97 DSE chain tension check

Discussion in 'Range Rover' started by Pettur, Oct 10, 2018.

< Previous Thread | Next Thread >
  1. Pettur

    Pettur Member

    Joined:
    Jan 15, 2018
    Posts:
    11
    Likes Received:
    0
    Location:
    Norway
    Hi

    I suddenly got a nasty rattling sound from the front of my vehicle, and it made me guess it might be the timing chain that is stretched or the tensioner that is not working properly.

    Is there a way to inspect it, and to conclude that the timing chain is the problem?
    It is quite a big job and a costly one to change it, so it would be nice to be certain.
    Right now i don't dare to use the car, as the chain could slip if it is loose.

    Any other tips?

    Best regards
    Petter

  2. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,687
    Likes Received:
    6,461
    Location:
    Preston Lancs.
    First of all check if the crank vibration damper is loose. It breaks away from the rubber and rattles. You can certainly check the cam chain by removing the cam cover lower chain is not accessible.

  3. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,761
    Likes Received:
    487
    Location:
    Near Poitiers SW France
    I agree, check the crank vibration damper, common failure item.

  4. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,687
    Likes Received:
    6,461
    Location:
    Preston Lancs.
    Damper if it's failed is STC3345 but you may not wish to buy one from Land rover at their prices. Look around.

  5. Paul D

    Paul D Glass rep for South Yorkshire LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,855
    Likes Received:
    2,413
    Location:
    Doncaster
    Please excuse the butting into a thread ...

    Which engine is in a '97 DSE then? I was under the impression, gained a few years ago, that they used 300Tdi engines!!

  6. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,761
    Likes Received:
    487
    Location:
    Near Poitiers SW France
    BMW M51 6 cylinder 2.5 litre. It's the only diesel that has ever been fitted to the P38.

  7. Paul D

    Paul D Glass rep for South Yorkshire LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,855
    Likes Received:
    2,413
    Location:
    Doncaster
    Right thanks .. can't remember who told me they had 300 engines ... ;)

  8. Pettur

    Pettur Member

    Joined:
    Jan 15, 2018
    Posts:
    11
    Likes Received:
    0
    Location:
    Norway
    And you remove the belts, the pulleys and the vibration damper to check if it is the vibration damper that is shot?

    Will it cause any other problems with the car if I drive it in this condition? Parked in the street is not the nicest spot to work on it.

    P

  9. stemac33

    stemac33 Active Member

    Joined:
    Apr 22, 2012
    Posts:
    298
    Likes Received:
    59
    Location:
    Accrington, Lancs

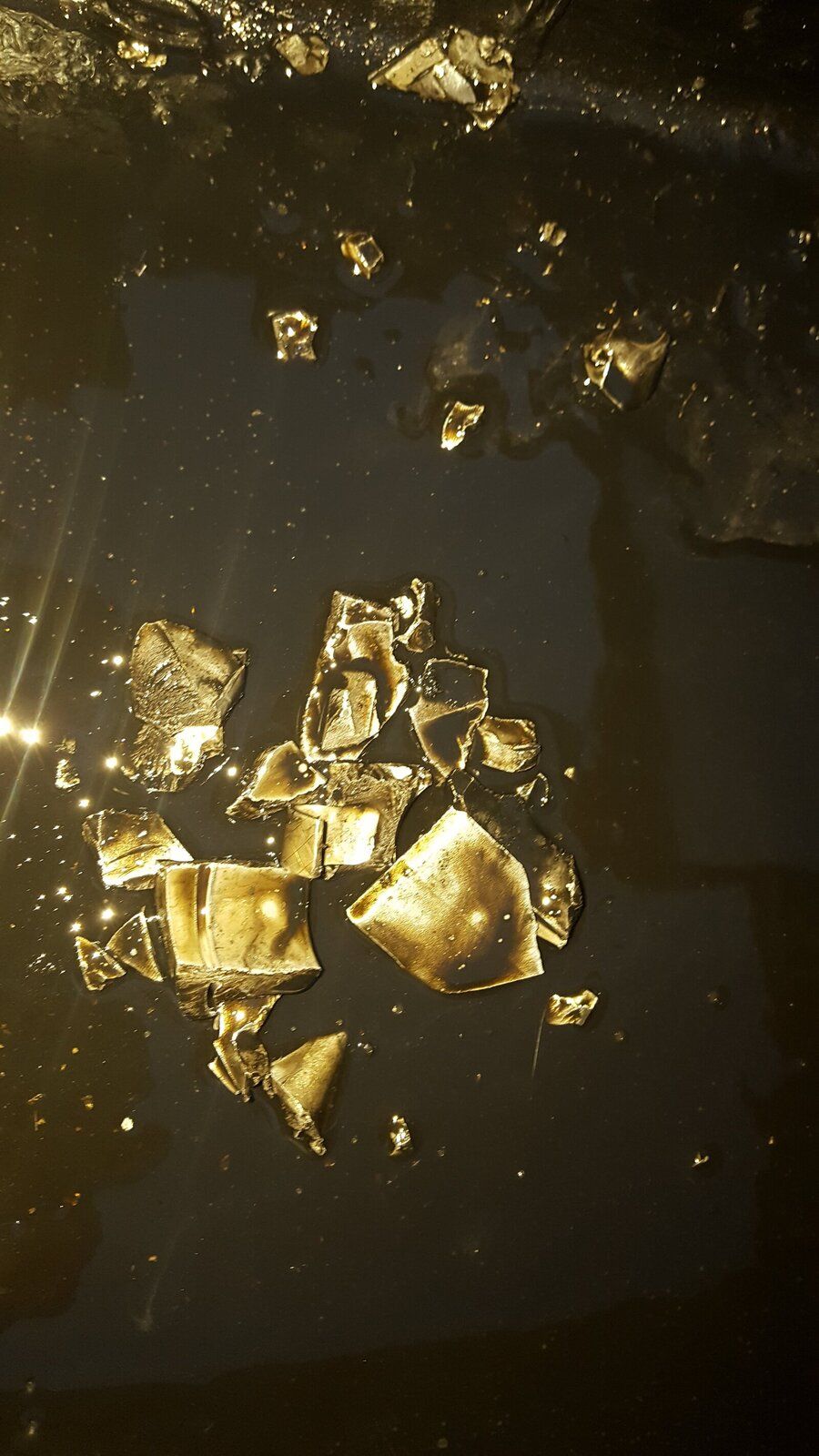

    My tensioner went they other week. 20181001_065841.jpg
    Found this in sump and no 1 piston gone. Don't drive it even cranking can cause the chain to jump and cause major damage. Ended up changing the engine as it was beyond repair.

  10. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,761
    Likes Received:
    487
    Location:
    Near Poitiers SW France
    Pessimist.

  11. stemac33

    stemac33 Active Member

    Joined:
    Apr 22, 2012
    Posts:
    298
    Likes Received:
    59
    Location:
    Accrington, Lancs
    Better safe than sorry

  12. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    50,687
    Likes Received:
    6,461
    Location:
    Preston Lancs.
    True, but in the vast majority of cases a rattle at the front does not result in a piston in the sump. ;):D

  13. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,383
    Likes Received:
    1,460
    Location:
    Buckinghamshire, UK. ('95 DT)
    A guy was on the other day asking how to fit one in a P38. Maybe that's what you were remembering? Wammers was saying only an idiot would put one in a P38 IIRC.

    Paul D likes this.
  14. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,761
    Likes Received:
    487
    Location:
    Near Poitiers SW France
    Wammers is right;)

    Paul D likes this.
  15. Bagshot

    Bagshot Active Member

    Joined:
    May 14, 2016
    Posts:
    205
    Likes Received:
    50
    Location:
    Cornwall
    +1 .. Why would you..?

  16. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,383
    Likes Received:
    1,460
    Location:
    Buckinghamshire, UK. ('95 DT)
    Because the engine was shot but he happened to have a 300Tdi unit sat next to it in the shed. Now, arguably he could have swapped it for an M51 or sold it and bought an M51 but the unit was solid and working and he seemed in a rush. Wonder if he managed it?

  17. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,046
    Likes Received:
    1,809
    Location:
    Geroutavit.....
    Well he certainly showed no signs of being swayed.

    Good on him.
