Disco 2 Right rear seems to drop, but not bag leak.

Discussion in 'Land Rover Discovery' started by MJI, May 15, 2018.

< Previous Thread | Next Thread >
  1. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester
    Slow traffic it starts to tilt to the right, also sometimes on the straight as higher speeds

    Yet start up it is level. ORM level, Newish bags

    Manual control via Hawkeye works.

    Also cornering seems to eventually relevel it.

    No faults on SLABS

    Can make cornering interesting when it can't make its mind up.

  2. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    7,754
    Likes Received:
    4,261
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    Just when you've convinced yourself that it isn't the bags, it's the bags!
    You say "newish" when were they changed?
    My advice? Get a new set of bags on the car before you delve any deeper into the suspension system, otherwise you could end up over-analysing everything and just tearing your hair out getting nowhere.

    Last edited: May 16, 2018 at 10:45 AM
    Billy110 likes this.
  3. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester

    They were new in January

  4. Spong

    Spong Well-Known Member

    Joined:
    Feb 3, 2014
    Posts:
    1,041
    Likes Received:
    705
    Location:
    Surrey / Hants border
    Conti, Dunlop or Guanzhou Air Suspension and prophylactic MFG Co.?
    Bit expensive to fit a new set on the offchance, but at least you would have spare set on the shelf, if it wasn't the bag after all.

  5. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester
    Dunlop and I do not suspect pipe leak as still up overnight, unlike the originals

  6. Hellastony

    Hellastony Active Member

    Joined:
    Aug 9, 2012
    Posts:
    173
    Likes Received:
    50
    Location:
    Essex and Pelion, Greece
    Does it have ACE? If so remove R14 relay, and see if it still does it. If it does its suspension. Removal of R14 stops the ACE working, and puts it into locked bars mode, in case it is this. If it stops check the connections to /or the accelerators themselves.

    Tony

    Billy110 likes this.
  7. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    7,754
    Likes Received:
    4,261
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    I can assure you Tony that @MJI is an ACE ace. However while he will no doubt thank you for your input, I fail to see how the ACE system could have an effect such as you talk of on the Self Levelling Suspension.

  8. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester
    Actually I will run Hawkeye on the G meters just in case as I replaced the ECU and did not recalibrate as it worked fine.

    Just in case it is trying to push that end down

    ACE is strong enough to lighten inside front on hard corners

  9. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester
    -0.68 was lowest seen, 0.5something highest on upper

    Parked on flat -0.02 upper -0.06 lower at one stage

    Upper went to -0.11 when it sagged at right rear

    Will recalibrate at near to work Tesco as flat

  10. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester
    Still the same

    Drops about 25mm or so, gap bigger both left wheels over right so very odd.

    Could it be broken tail or a something on front right spring?

  11. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester

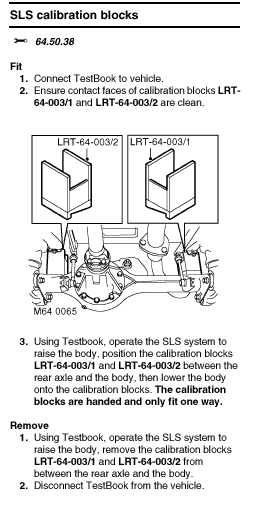

    Both coils look OK, stationary right is half inch lower than left. Calibration wants blocks.

    I do not have the chassis blocks so want to recalibrate without them. I do have a jack and 2 axle stands.

    Another thing, is when I turned off the ignition before measuring the left dropped about 25mm

  12. Rangie Disco Sportsman

    Rangie Disco Sportsman Member

    Joined:
    Apr 29, 2018
    Posts:
    52
    Likes Received:
    15
    Location:
    Somerset
    If you unbolt the bump stops you can just use accurately sawn blocks of wood to calibrate.

    Billy110 likes this.
  13. MJI

    MJI Well-Known Member

    Joined:
    Mar 13, 2014
    Posts:
    5,233
    Likes Received:
    1,144
    Location:
    Worcester

    Thanks

    Any ideas what size?

  14. Rangie Disco Sportsman

    Rangie Disco Sportsman Member

    Joined:
    Apr 29, 2018
    Posts:
    52
    Likes Received:
    15
    Location:
    Somerset
    I can measure them when I next go to the workshop professor googles will be sure to have it somewhere though

  15. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    13,353
    Likes Received:
    5,091
    Location:
    Oxfordshireness

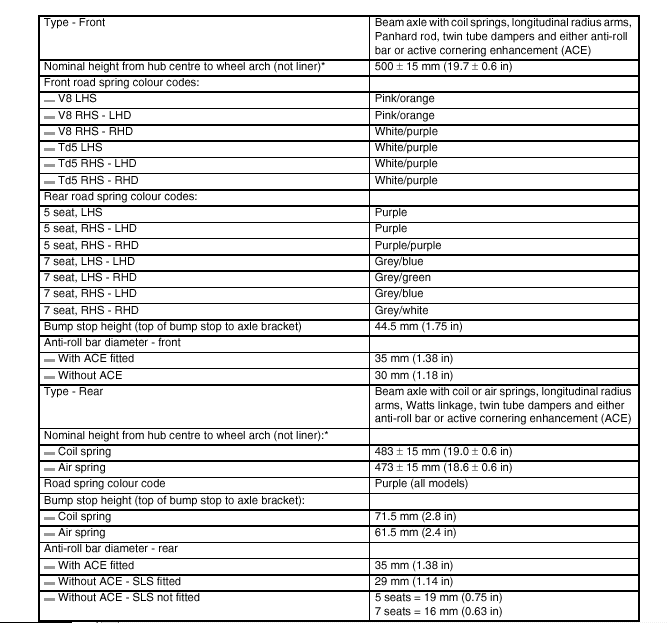

    I use a tape measure ctr wheel to wheel arch. If you search the block number you may find the heights on the web.


    Cheers
