Rear seatbelt mounts

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
gR@HaM

gR@HaM

Well-Known Member
Posts
1,095
Location
Cheshire
Ever got a bit carried away with a grinder?

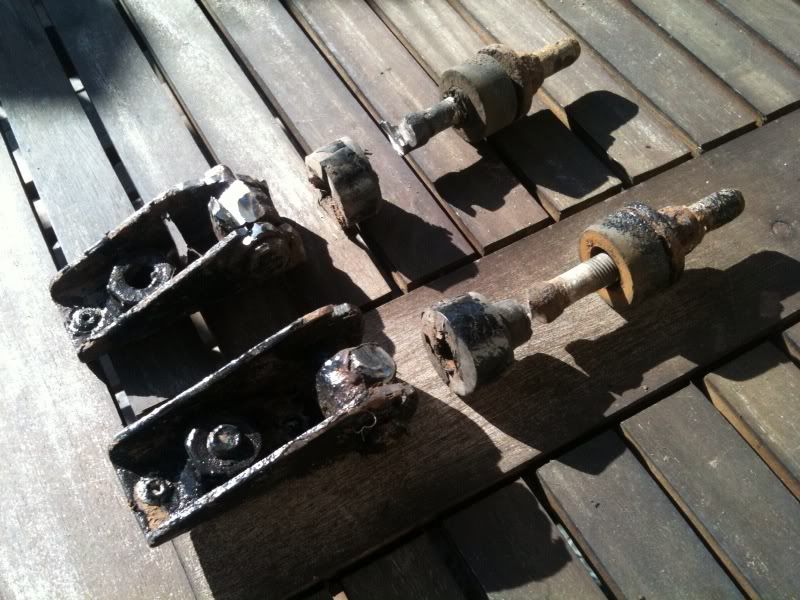

Was rather enthusiastic at the weekend whist working on the rear end and thought it be clever to chop off the rear seat belt mounts (go through boot floor and fix to chassis).


Called a landy parts specialist yesterday to find that they supply all the bits seperate - bolts, bushes brackets - which totals over £100 for the pair :doh: :eek:
Just got off the phone to Craddocks, apparently LR don't supply these brackets anymore and the guy said that he recommends going to B&Q picking up some eye bolts and welding 'em to chassis.

Anyone made their own brackets, if so any photos would be very much appreciated :)
tbh I'd rather fit OE parts, can't find anything on fleabay at the moment - but if anyone knows of any for sale..
Thanks in advance

Norledge said:


1 - 390774 £14.11
2 - 577259 £1.44
3 - RTC611 22p
4 - RTC601 22p
6 7 8 and 9 come as a kit - STC1393 £10.93
Click to expand...

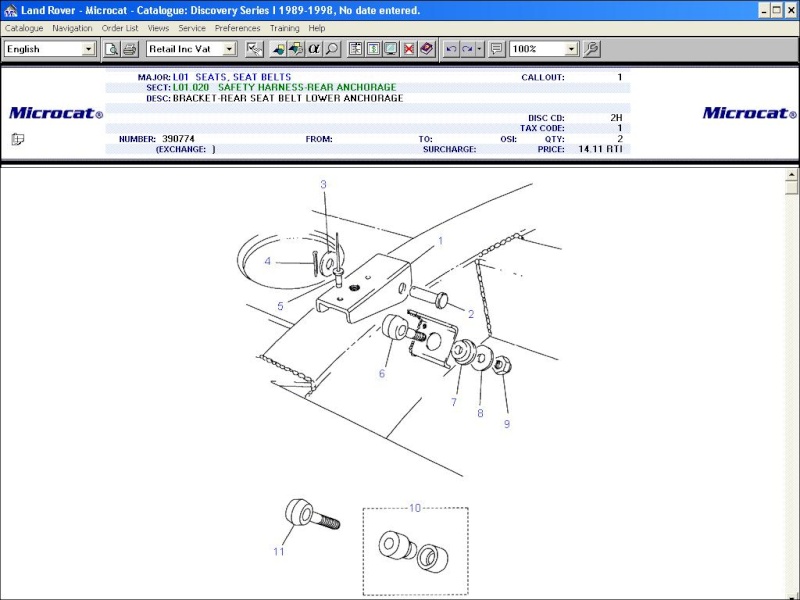

Thanks Norledge that was a great help. Am at airport as away with work this week but thanks to your microcat pic was able to get this sorted by calling LR with works phone whilst discussing the diagram and part numbers on my iPhone. Ooh the wonders of new technology :)

Apparently parts 10&11 have now replaced the kit STC1393.
I highly recommend LR Chester (James Edwards) parts desk, the guy was very helpful and even said if he can't get hold of the parts he knows someone else for any non-genuine bits :D :D

WHO WHAT WHERE WHEN?????
I guess your saying I should have checked the fs section for discos being broken, or is there someone in particular you mean? Thanks :)

Personally I would have had a look on eBay - nobody will be advertising the bits you want, but there are plenty of 'breakers' selling bits and pieces - messaging one and asking if they could pull those brackets off for you would have been my technique.

But if there was someone advertising on this forum... :D
