Rear screen relay

Discussion in 'Defender 90 / 110 / 130' started by tottot, Feb 9, 2018.

< Previous Thread | Next Thread >
  1. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,595
    Likes Received:
    256
    Location:
    west wales
    Trying to get power to rear screen on my 1990 90,has not worked for years. Fuse is good,switch is good.
    Where is the screen relay? My old book of lies does not even show it on the wireing diagram.

  2. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,108
    Location:
    Derbyshire
    Is there one? Wasn't sure if it was direct Switch to window.

  3. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,595
    Likes Received:
    256
    Location:
    west wales
    Any know which is the rear window relay? Is it one in the row below fuses or is it hidden somewhere else?

  4. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,108
    Location:
    Derbyshire
    just looked at my old loom and there is a relay after all, it's hidden behind the binnacle.
    Hrw and wipers are on a separate harness/ loom which was added to order, mine is all stilll cable tied up as it was when removed and the relay is in this area.

  5. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,595
    Likes Received:
    256
    Location:
    west wales
    Thanks Discokids,will take a look, mine must be dead as there is no click anywhere.

  6. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,108
    Location:
    Derbyshire
    I'll stick a pick up later to give you an idea.

  7. Discokids

    Discokids Well-Known Member

    Joined:
    Dec 11, 2012
    Posts:
    2,811
    Likes Received:
    1,108
    Location:
    Derbyshire

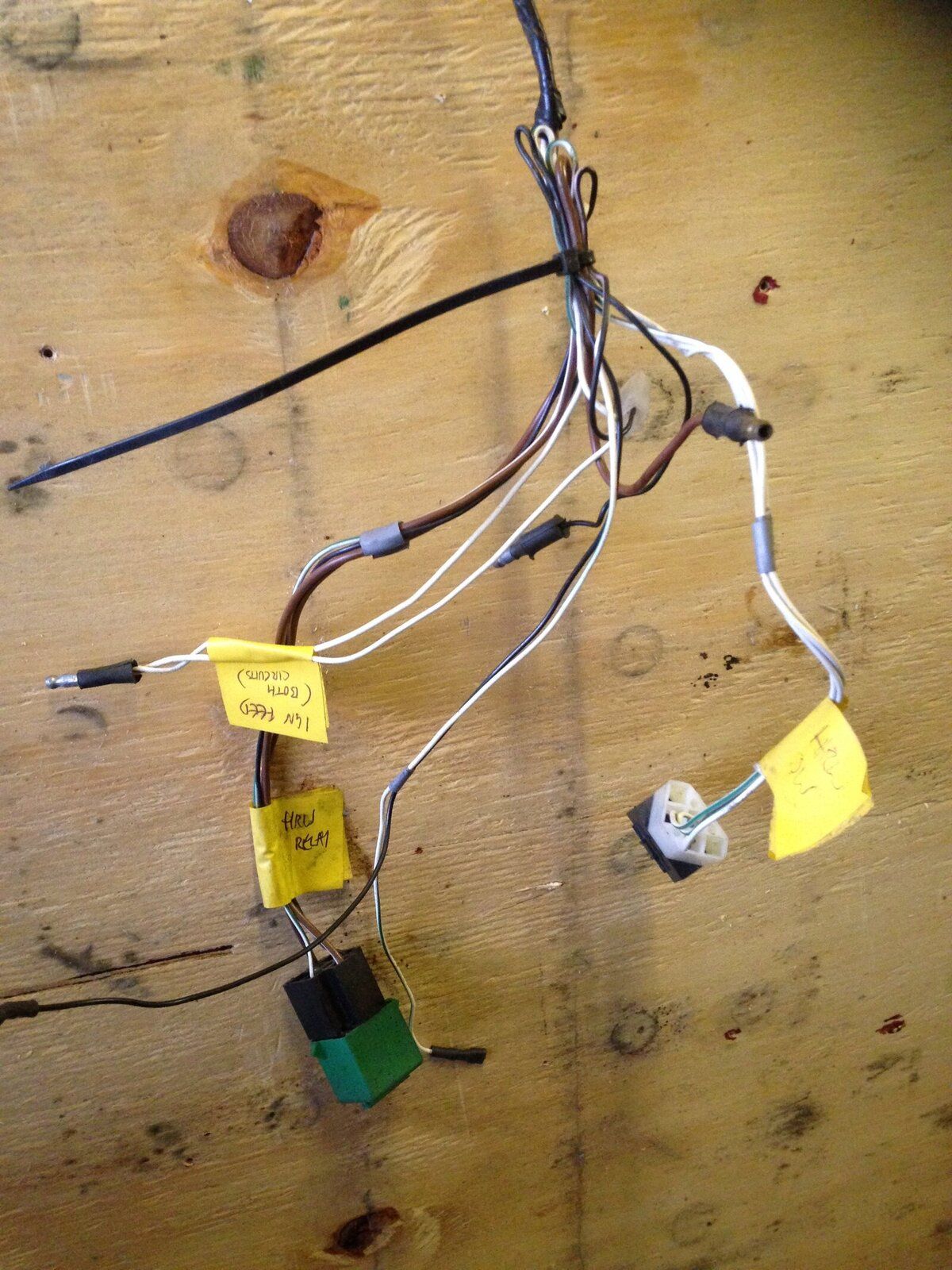

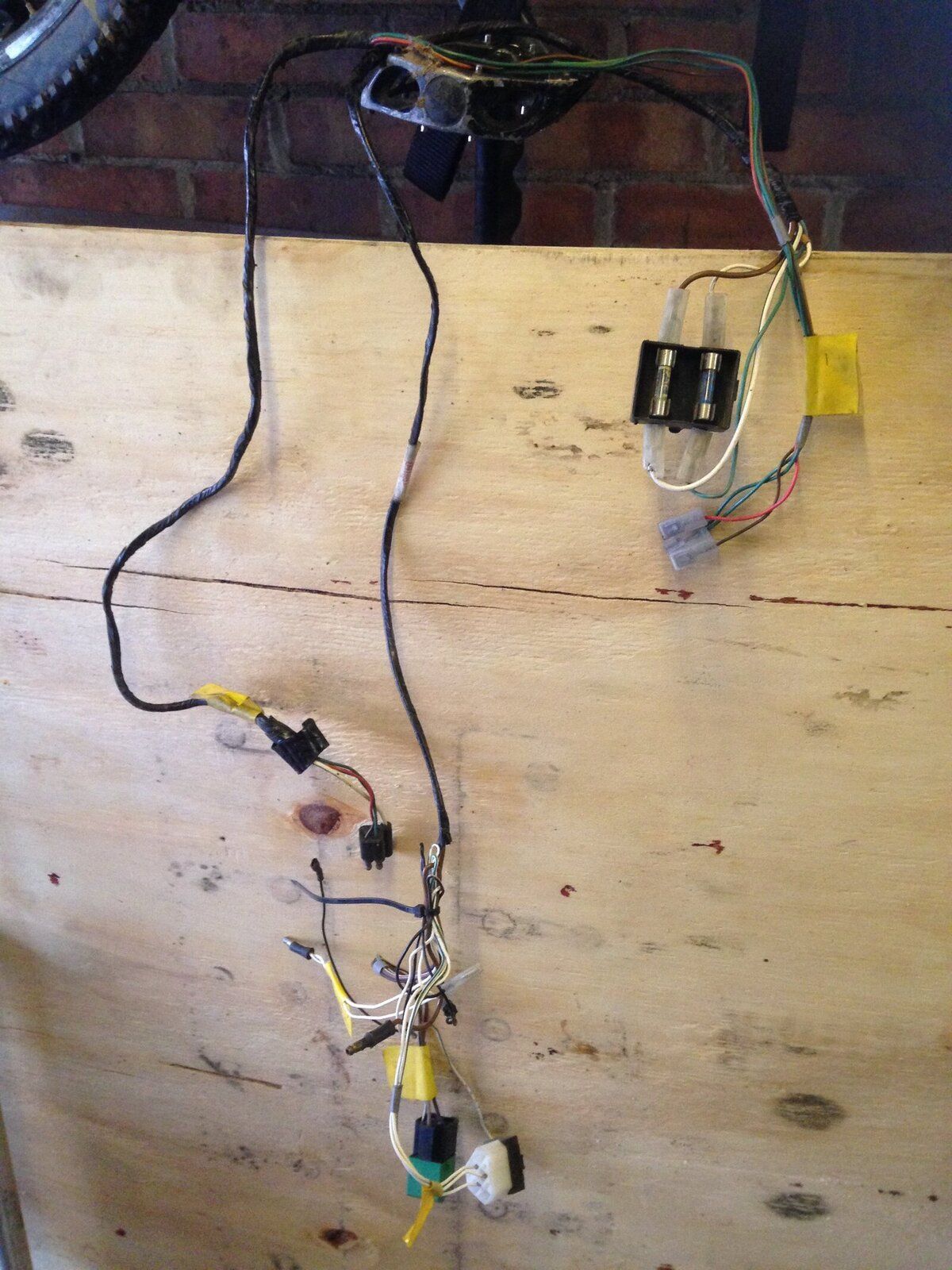

    A few pics of the rear wash / wipe / hrw sub loom.

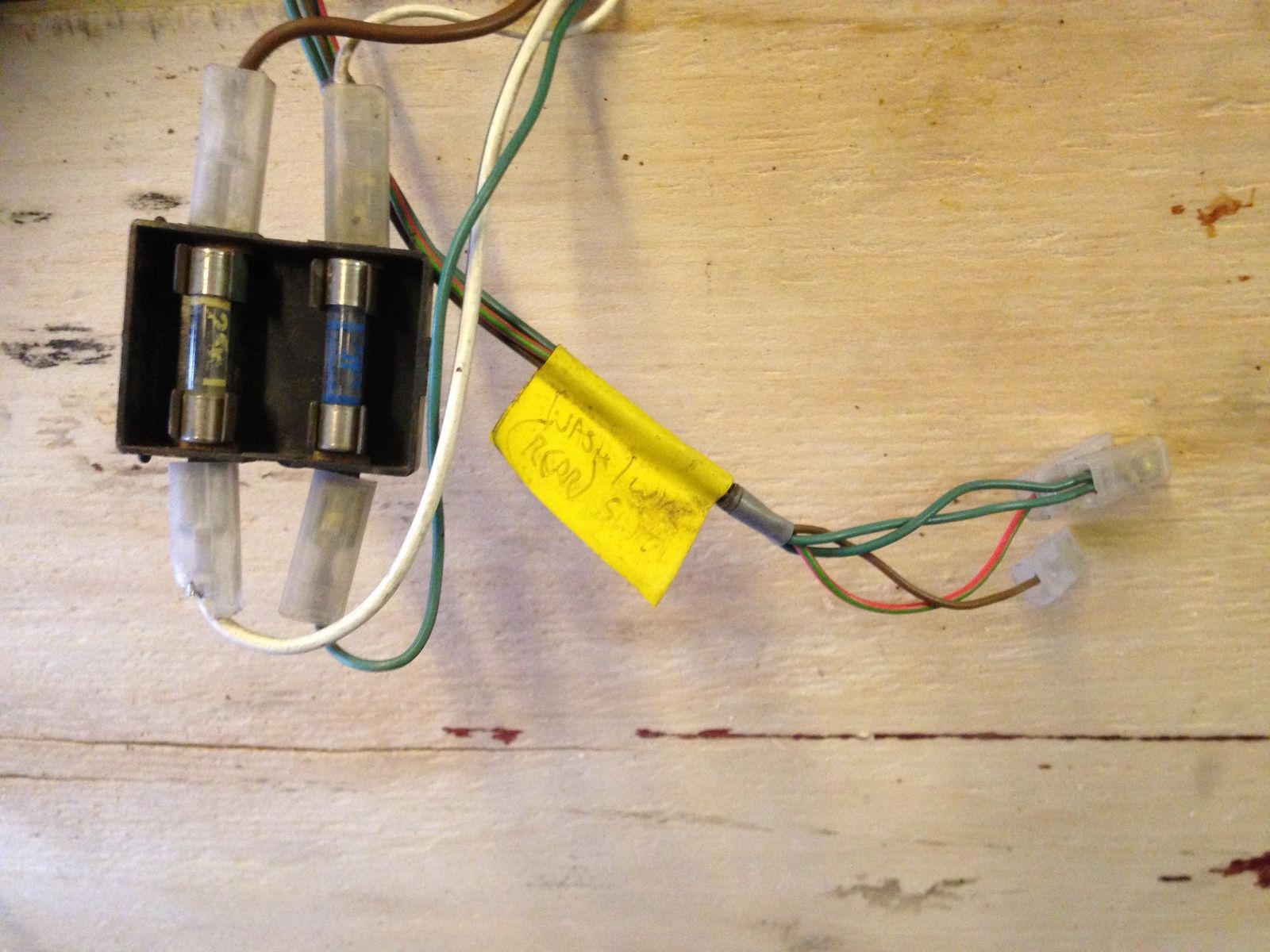

    Fuses + wipe wash sw

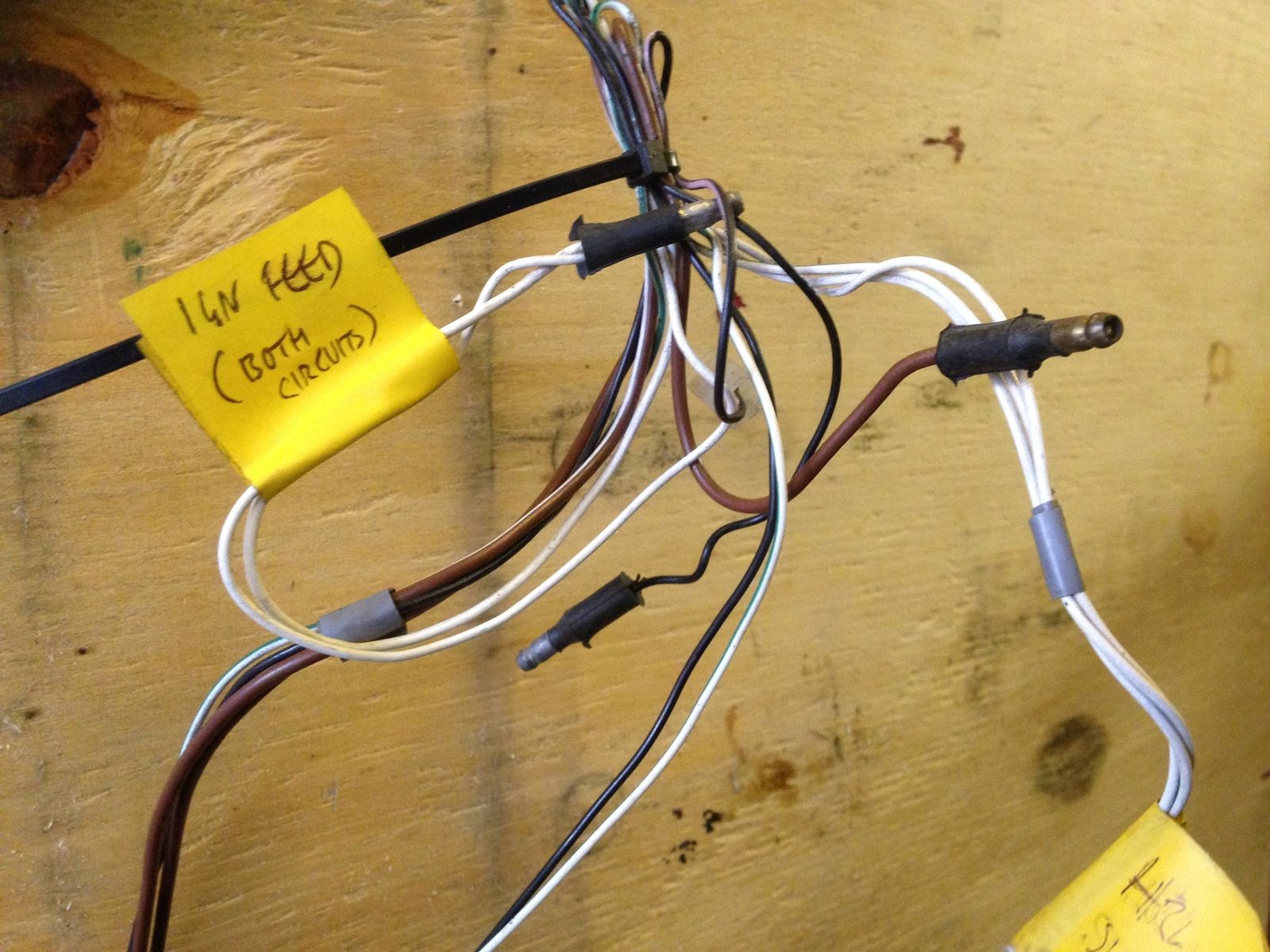

    Junction of four lots of cable

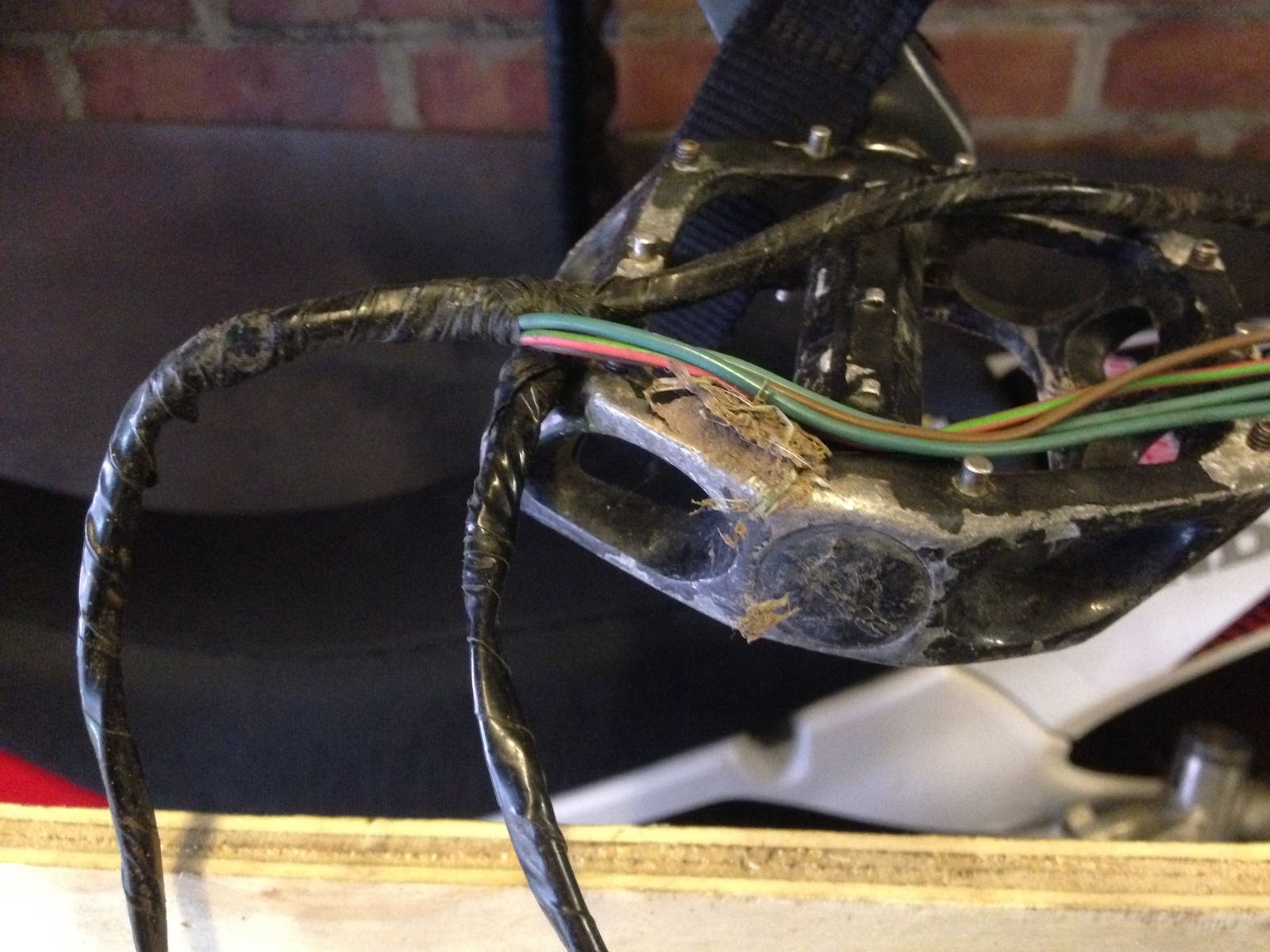

    Plug to rear of car (chassis loom)

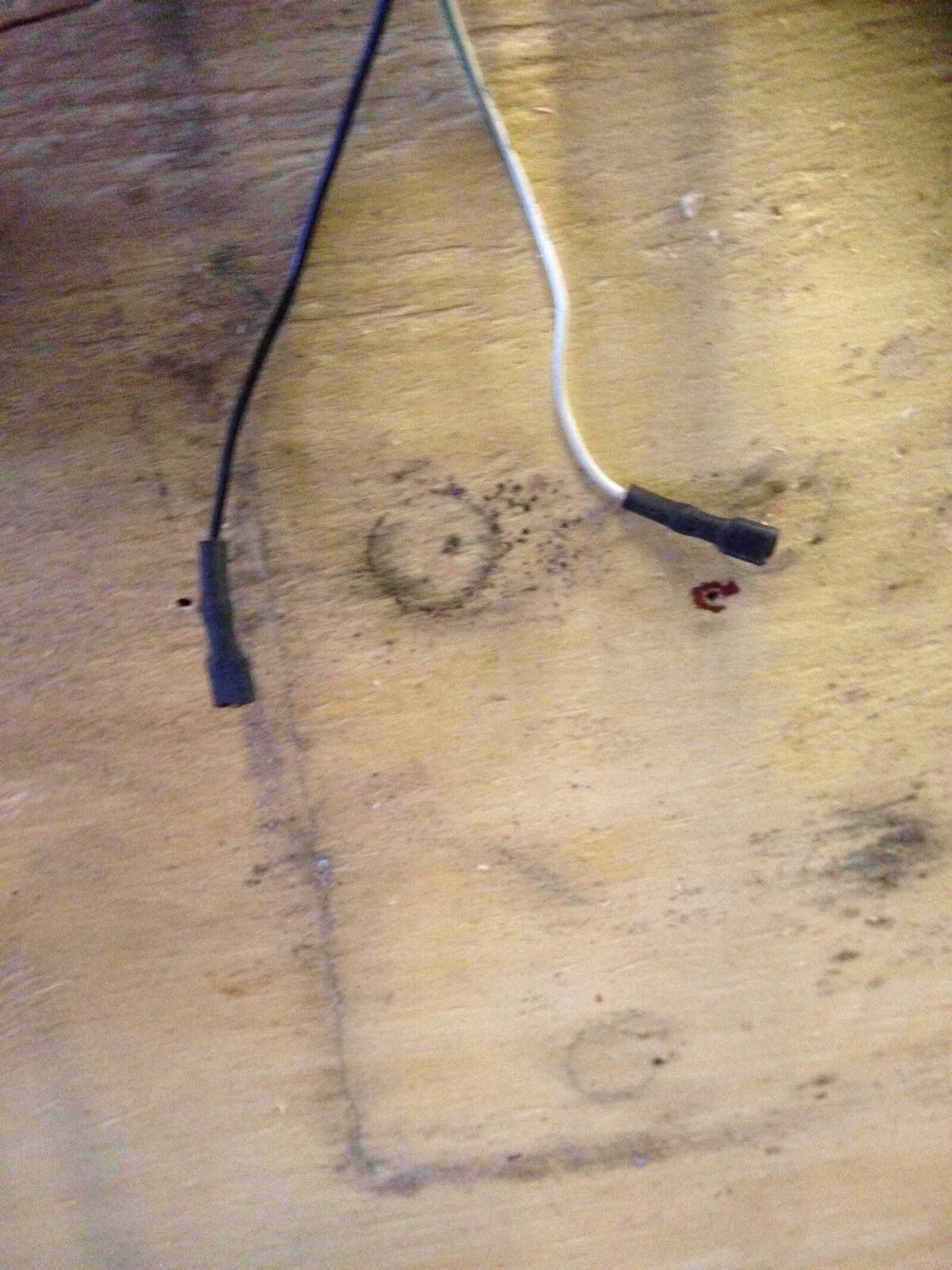

    IMG_5507.JPG IMG_5508.JPG

    Hrw Warning light

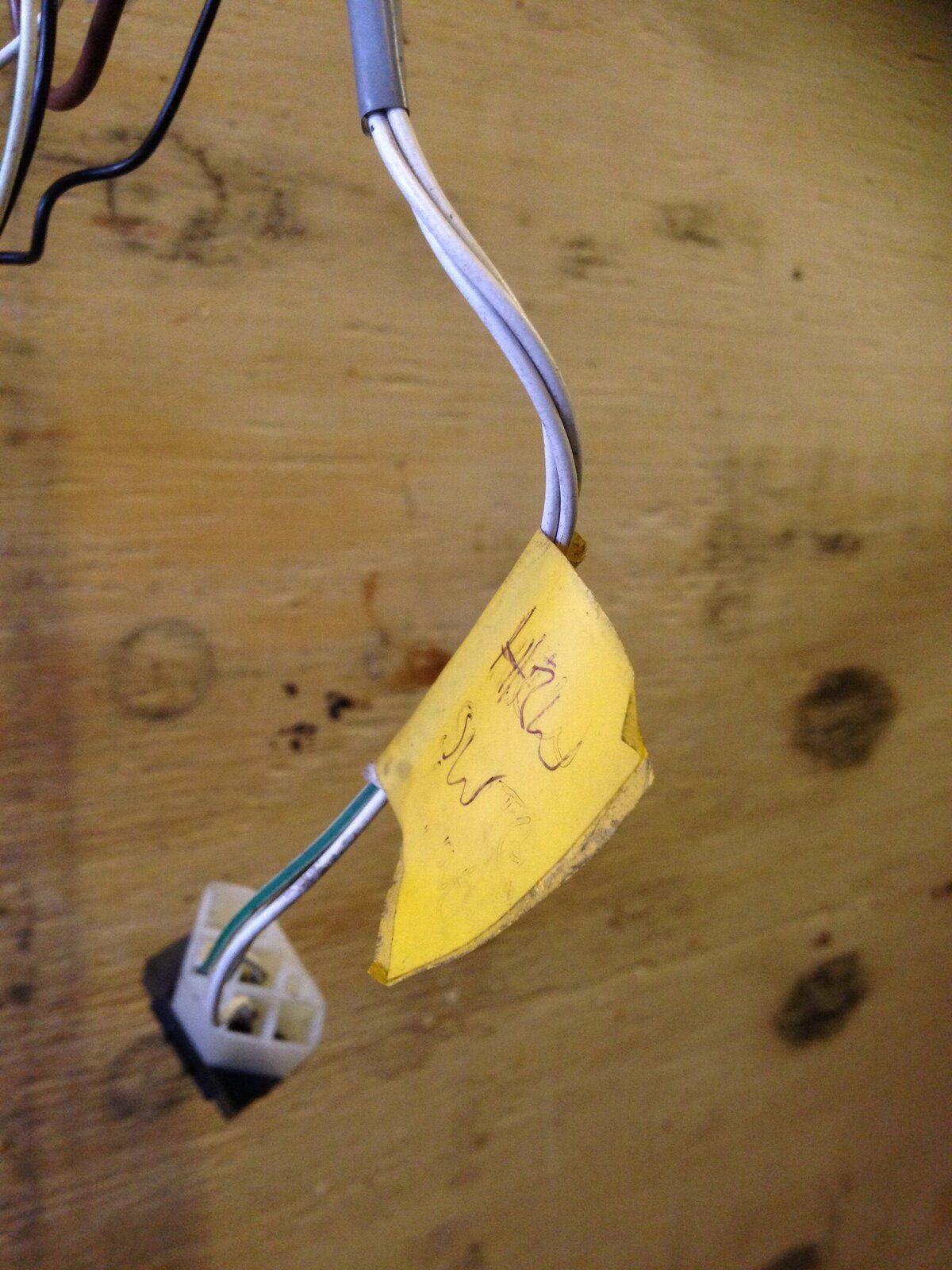

    Hrw sw

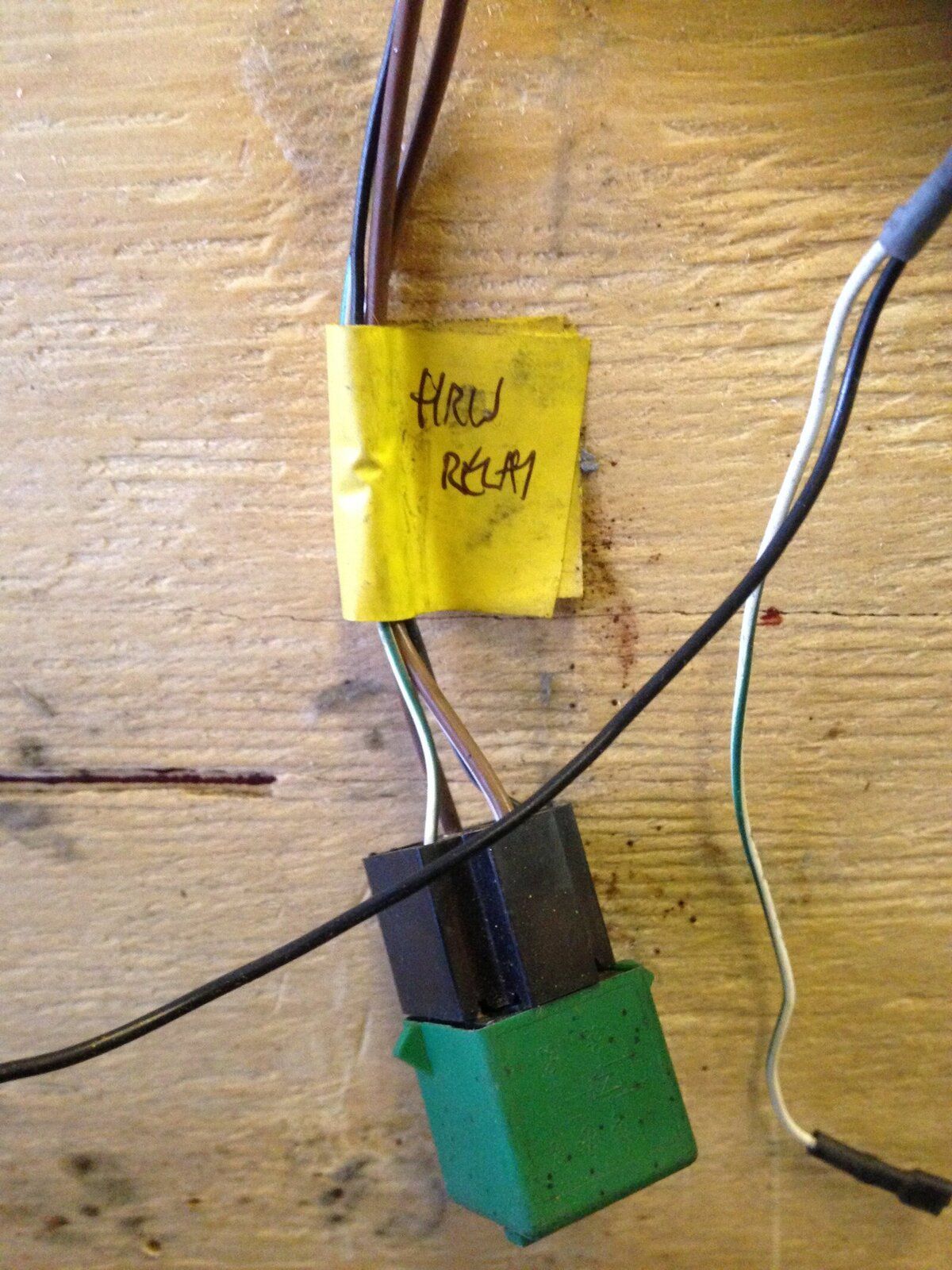

    Hrw relay

    Bullet connectors to plug into main loom.
    N = perm unfused live
    W = ign switched unfused live
    B = earth (for relay and warning light, possibly wash pump, NOT hrw element or wiper motor, these earth locally )

  8. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,595
    Likes Received:
    256
    Location:
    west wales
    Thanks for that mate,will have a look when I get a [ dry ] mo and let know how I get on.:)

  9. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,595
    Likes Received:
    256
    Location:
    west wales
    Had a look today and found the HRW relay. Tests show no power getting to it, all though there is power going through the switch.Did not find a box with glass fuse's.
    Have yet to check ignition feed.
