Rear dicky seat

Hi all.
I know this may have been asked before but i am trying to fit a seat in my 1990 defender i have the side facing seat but not sure how all the brackets go as was given in a box i have guessed but if i hold in position the seat doesnt seem to fold up .
Anyhelp be great thanks

What brackets have you got. A picture of all of them laid out would be useful, to see if you have everything you need. is it a Defender 90?

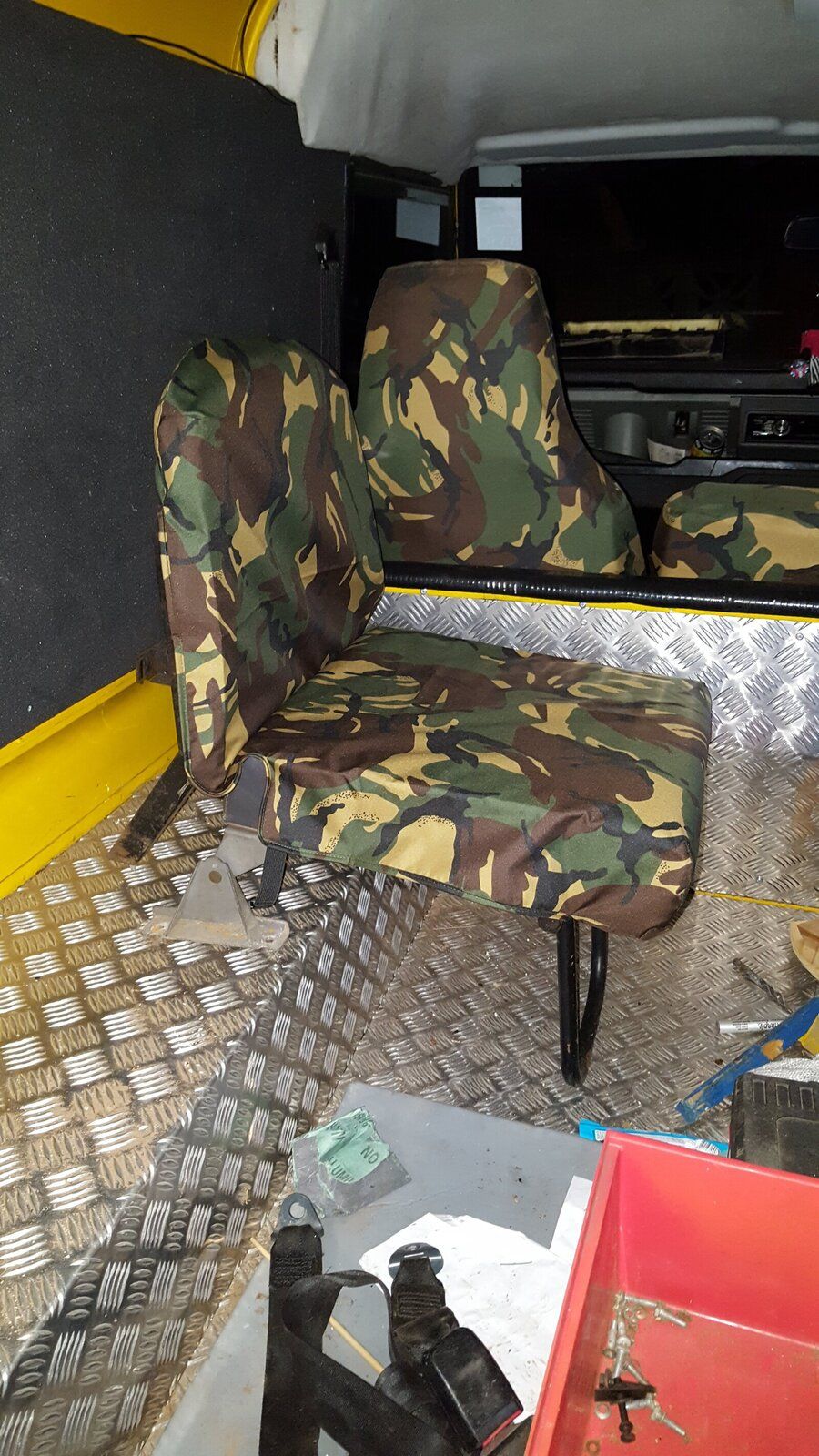

Hi yes defender 90 . The brackets are attached i have 4 in total 2 on the seat base and 2 on the seat back not sure if you can see much from this photo.
Cheers

Attached to the seat, but not to your landy yet I hope. The black ones, which attach to the backrest of the seat, bolt through the side of the tub. Did you get any bolts and rectangular plated nuts to go with your brackets? Once they are in place the pivot brackets will move further back.You also need tubular steel seat belt mounts which bolt through the wheel arch with spreader plates and to the rear crossmember via another tubular mount. Did you get these? It won't pass an MOT without them if you put the seats in. I'm on holiday and just on my mobile, but will try and sort some pictures. HTH

Thanks for reply unfortunatly all i got is the 4 brackets the 2 seat pieces and a seat belt he said it was all there so im a few bits short by the sounds of it . I hunted through google for ages and couldnt find anything about fitting so have been guess work .

Oh and yes nothing bolted to the landy as of yet wanted to get it right first . Cheers

Hi @Landytd

Maybe looking at this may help.

http://www.allbrit.de/UNI.cfm?PAGE=769789&SPRACHE=EN

Cheers

Hi
Il check it out now .

Thanks all help is gratefull

Thats helped alot as from that i can see my btoom brackets are on wrong and can see the other bits Al203 said i need ao shud make it easier to source thanks both.

You may have seen this already , I only quickly scanned it , but as you say a little info more info cannot hurt.

http://forums.lr4x4.com/topic/98977-fitting-inward-facing-rear-seats/

Cheersw

Brilliant stuff this has all been very helpfull hopefully now i can get it fitted properly .

Thanks for both your help much apreciated .

[URL=http://s1373.photobucket.com/user/copperslip/media/P1120671_zpsj0uj6ulz.jpg.html][/URL]
This picture should be showing the seat belt mounting steel tube. in the tub above it you can see the holes for the back rest bolts.

Hi
Thanks for the picture il have a look into the bar il pop to my local breakers see what i can get my hands on rather do it once and do it wright .

Many thanks

[/URL]
This is the tubular bracket that goes under the wheel arch, bolting to the black tube above and to the rear crossmember. They are like hens teeth to find

I see basicly to keep the strength up . Would explain why i didnt get one if difficult to find .

Thank you

I think that is basically no3 on this page.
http://www.allbrit.de/UNI.cfm?PAGE=770585&SPRACHE=EN

Cheers

Yes, being bolted through the aluminium isn't strong enough. The belts have to go go through the tubular framework to the chassis. I had the underneath one galvanised.

Spot on, neilly, that's the one.

Well thanks to you both i can now can sort out my problem . Really happy with all the answers i have got from here been a great help .
Thankyou.

Welcome,

Let us know how you get on and do not be a stranger........

Cheers
