Rear Crankshaft Oil Seal

P

pornstarmax

Active Member

Posts

400

• Mar 22, 2010

• #1

So I've removed gearbox to replace clutch (if you remember I posted about JUDDERING WHEN SETTING OFF) to see a large amout of black nasty oily sludge in bell housing of both gearbox and engine.

Thanks for advice that it was caused by rear main seal. So next task is to replace that...

So question is this

Do I remove the 2 retaining halves to get at the seal or do I take off the the bearing cap?

And its split at top spring at 90 Degrees...

Thanks

M



Dazz

New Member

Posts

309

Location

North Wales.

• Mar 22, 2010

• #2

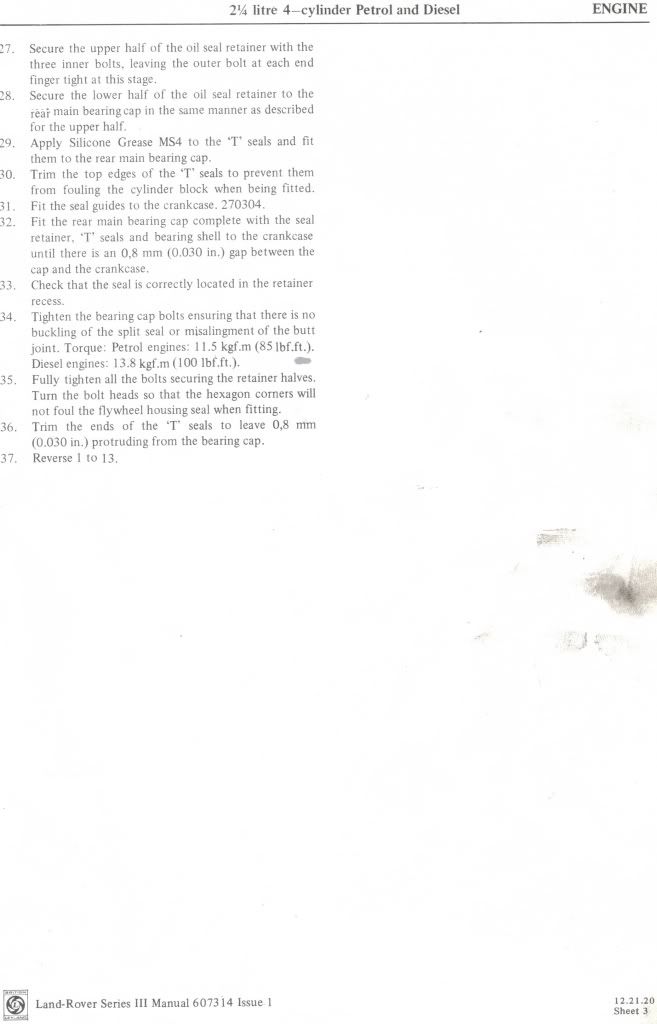

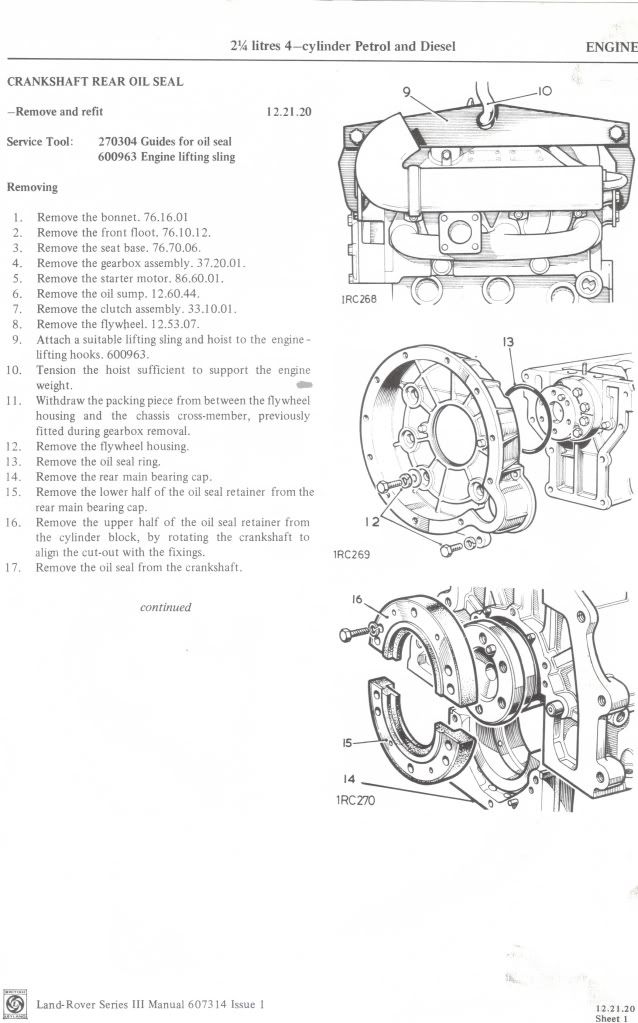

This is easier than explaining, hope it helps.



Last edited: Mar 22, 2010

P

pornstarmax

Active Member

Posts

400

• Mar 22, 2010

• #3

WOW nice1 thanks - what manual are you using I was on Haynes and is a little "lacking"....



Dazz

New Member

Posts

309

Location

North Wales.

• Mar 22, 2010

• #4

Original Landrover issue workshop manual which I bought with my first three weeks wages in 1973 when I started work for the local British Leyland dealer.



P

pornstarmax

Active Member

Posts

400

• Mar 22, 2010

• #5

Thanks again - just found one on t'interweb on its way now - I think "don't makeum like used too" is appropriate!!!
