Range Rover P38A and L322 Cooling System Schematics.....

Discussion in 'Range Rover' started by Saint.V8, Nov 14, 2014.

< Previous Thread | Next Thread >
  1. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    14,699
    Likes Received:
    1,022
    Location:
    Surrey - Near the middle, close to some green bits
    For reference only....read RAVE for full system description and operation!!

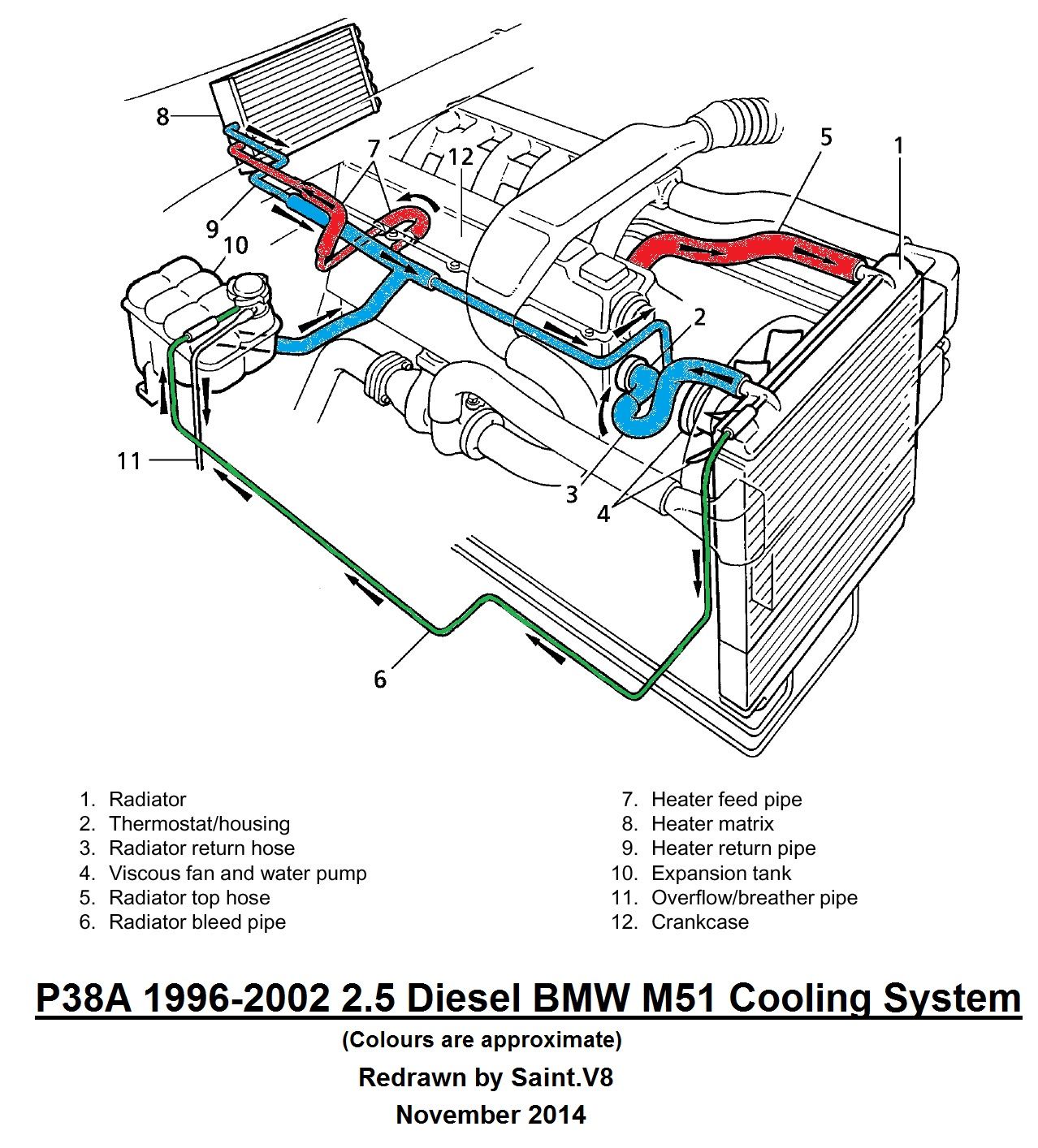

    DIESEL P38A
    [​IMG]

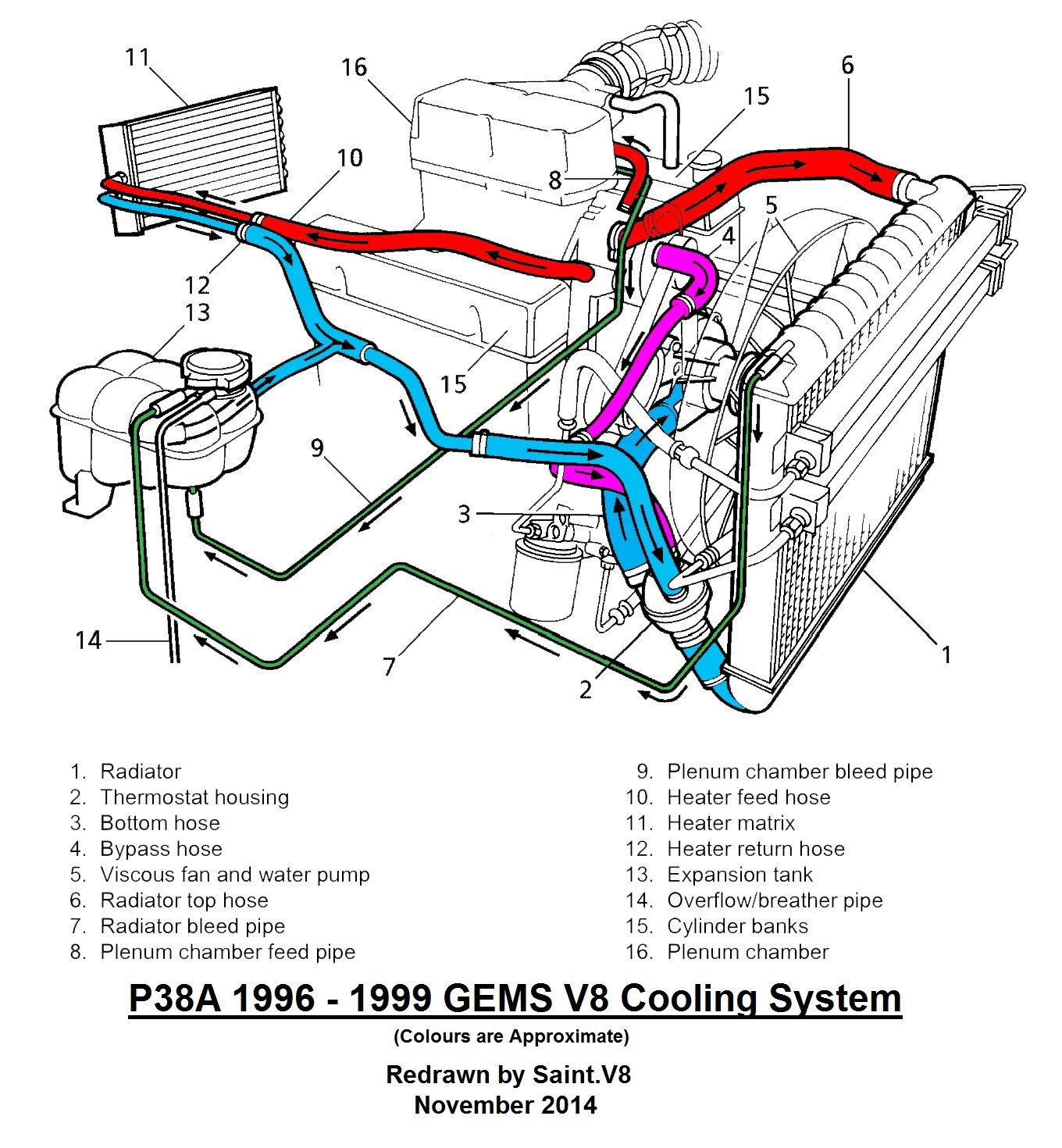

    GEMS P38A
    [​IMG]

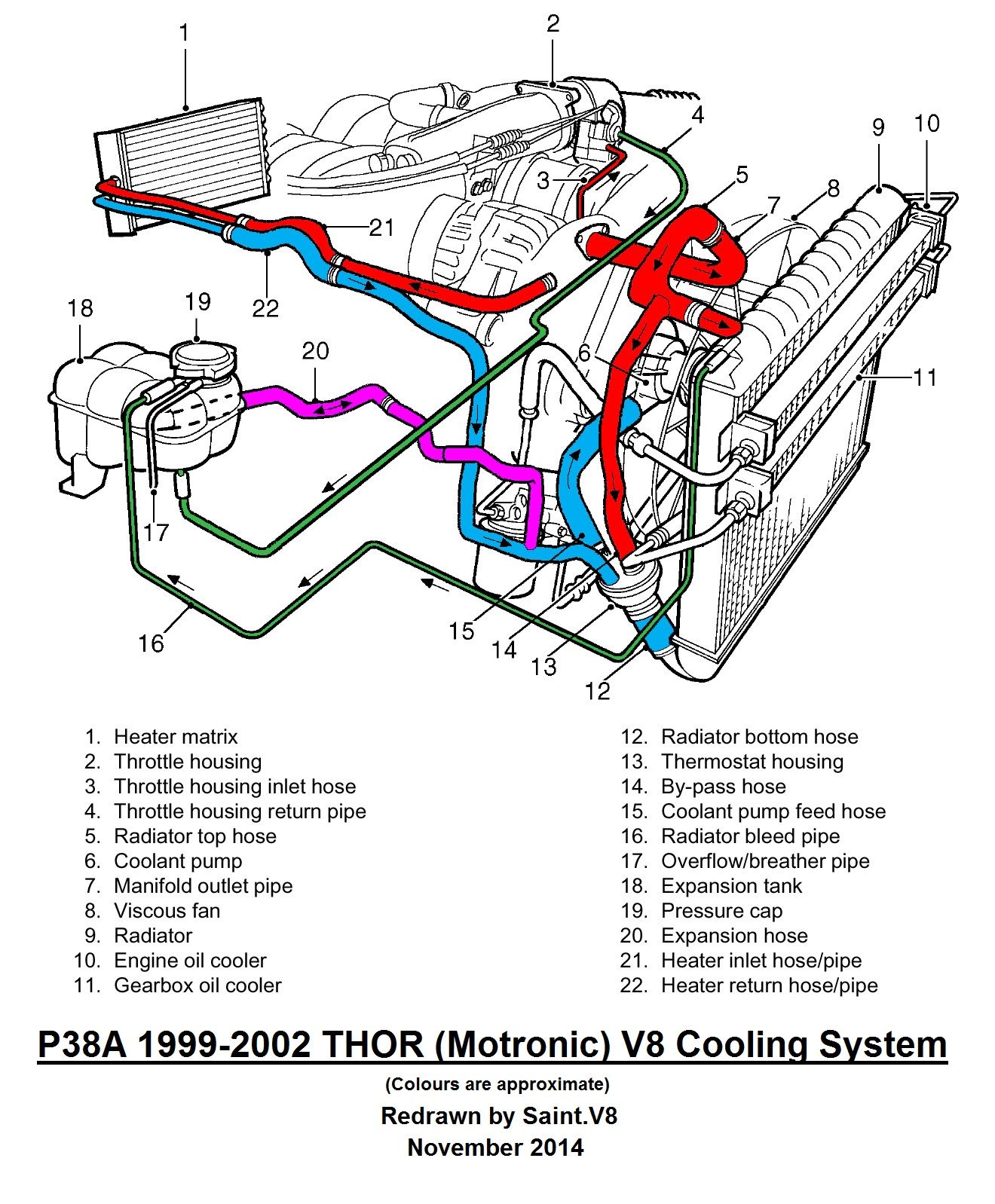

    THOR P38A
    [​IMG]

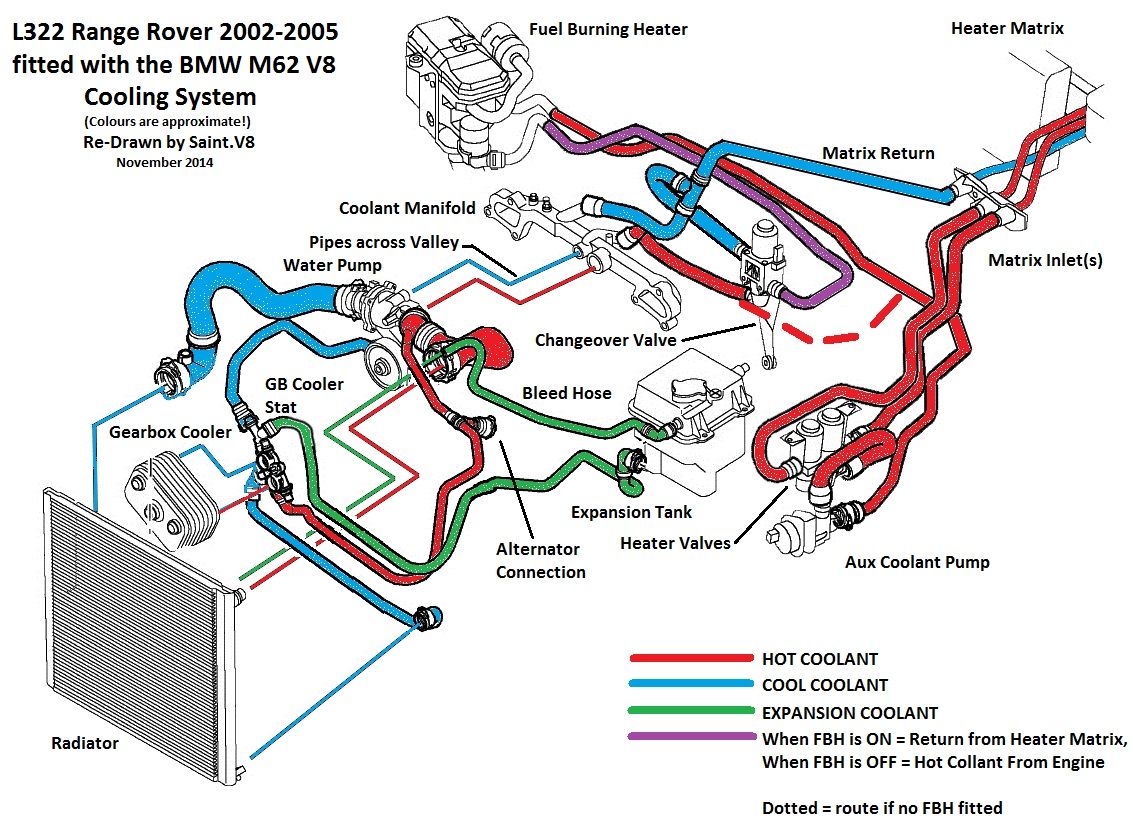

    L322 M62 2002-2005
    [​IMG]


    Attached Files:

    Last edited: Nov 14, 2014
