Rain water leak in boot

Hi, I'm pretty sure this rain water leak started when I fitted an after market towbar. It came with new "D" plates which replaced the originals and I thought the rain water was ingressing from the 4 bolt holes either side of the bumper. However I have sealed the "D" plates yet it still gets in to the box section the bumper is bolted to and then leaks in to the spare wheel well.

Any ideas?

Thanks, John.

A Hello my name is blah, I have a blah, I have heard this forum is the shizzle and y'all are total geniuses (or some other grovel comment here)....

My Range Rover is doing X, Y Z any help is appreciated...tea and posh biscuits waiting......

What Range Rover, What year, What towbar?????

op2:

sounds like u need some rtv

saint.v8 said:

a hello my name is blah, i have a blah, i have heard this forum is the shizzle and y'all are total geniuses (or some other grovel comment here)....

My range rover is doing x, y z any help is appreciated...tea and posh biscuits waiting......

What range rover, what year, what towbar?????

Click to expand...

:d

:nothingtoadd:

basher79 said:

sounds like u need some rtv

Click to expand...

Is rtv similar to sfm?

gold rover said:

Is rtv similar to sfm?

Click to expand...

wtf might be more appropriate

Hey so like I have a jeep, think it is a range rover? The blue ones with an engine? So anyway my jeep keeps cutting out on me, I put in £15 of fuel a week which was how much I put in my scooter. So anyway, why does my jeep cut out?

johnc10 said:

Hi, I'm pretty sure this rain water leak started when I fitted an after market towbar. It came with new "D" plates which replaced the originals and I thought the rain water was ingressing from the 4 bolt holes either side of the bumper. However I have sealed the "D" plates yet it still gets in to the box section the bumper is bolted to and then leaks in to the spare wheel well.

Any ideas?

Thanks, John.

Click to expand...

The lads are taking the P a little, stick around it gets better. Oh and by the way try useing the search box at top of the page.

Bix said:

Hey so like I have a jeep, think it is a range rover? The blue ones with an engine? So anyway my jeep keeps cutting out on me, I put in £15 of fuel a week which was how much I put in my scooter. So anyway, why does my jeep cut out?

Click to expand...

Simples dude, quit using it and it won't cut out no more.

gold rover said:

Simples dude, quit using it and it won't cut out no more.

Click to expand...

This is true, and if you leave a window open with a plank up to it, they make good chicken sheds

Datatek said:

This is true, and if you leave a window open with a plank up to it, they make good chicken sheds

Click to expand...

Don't forget a few cross steps. Don't want the chucks slipping off. H&S rules OK.

wammers said:

Don't forget a few cross steps. Don't want the chucks slipping off. H&S rules OK.

Click to expand...

:hysterically_laughi:hysterically_laughi

Just in case anyone has the same issue as i did of my boot spare wheel well filling up with rain water to just below the level of the EAS compressor when it rained after i fitted the westfalia OEM towbar...

Basically the new towbar comes with a self adhesive gasket to seal between the towbar and the back panel which i fitted with the new towbar however after a week and some fairly heavy rain i had a large amount of water in my boot and i think the gasket provided is just too thin.

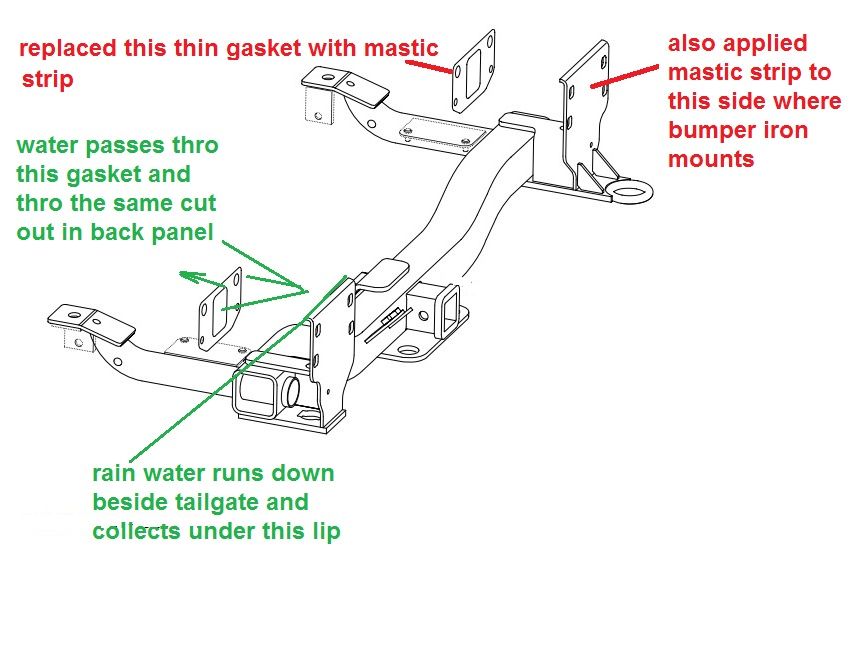

On the attached pic you can see a lip that folds around the top of the back panel which acts as a funnel for most of the water that runs down either side of the tailgate and then directs it quite efficiently in through the bolt holes and the square cut out in the back panel and into the boot.

My solution, which may have been overkill but i did not want to remove the towbar again, was to use some mastic sealing strip that they use to seal caravans on both the side where the towbar meets the back panel and also in between the towbar and the bumper iron mounting plate and fortunately no more water in the boot.

I literally covered the complete mating area with mastic strip and then poked through the bolts holes.

Hopefully helps somebody in the future


Mastic Sealing Strip - 5 Metres 19mm Width - Premier Camping

Thanks for posting this. I spotted it posted elsewhere and rechecked the 8 bolts and found one of them leaking in. I originally asked the tow bar manufacturer had they had any issues with leaks and they said no! I thought I'd used enough sealant on my second attempt to refit it but obviously not.

Mine still leaked after this, i ended up getting a a big dollop of body sealer on my finger and wiped it along and under the lip that rolls around the top of the rear chassis and then it finally sealed. i tested the theory before going for the sealer by wiping some thick grease along it first but just go for the sealer, it can't do any harm.

Well look who's back......

Hi, hope you are well

holidaychicken said:

Mine still leaked after this, i ended up getting a a big dollop of body sealer on my finger and wiped it along and under the lip that rolls around the top of the rear chassis and then it finally sealed. i tested the theory before going for the sealer by wiping some thick grease along it first but just go for the sealer, it can't do any harm.

Click to expand...

Oi, where you been???

holidaychicken said:

Mine still leaked after this, i ended up getting a a big dollop of body sealer on my finger and wiped it along and under the lip that rolls around the top of the rear chassis and then it finally sealed. i tested the theory before going for the sealer by wiping some thick grease along it first but just go for the sealer, it can't do any harm.

Click to expand...

Oh your back from the dark side? Thought you had been kidnapped ,not a reply to my pm Im sulking.
