problem encountered after new rear crossmember

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Vagrent

Yaaaar
Posts
18,109
Location
Poiret West Sussex, Chichester.
Hi all
I have encountered a problem...I have had new rear crossmember fitted and new bulkhead out riggers. The man who welded it is a superb welder and a landy nut, so I trust his work.
I have fitted the rear tub, bulkhead and when I went to fit the roof that's when I found alignment issues, ie the roof to windscreen was very out.
And as you would expect the doors will not fit when held up in place:doh:

I am not sure it the rear x member is 'up' by 10mm thus making the tub not sit right and making the doors not fit.
Or, the b/head o/riggers not quite right thus making the b/head not square.

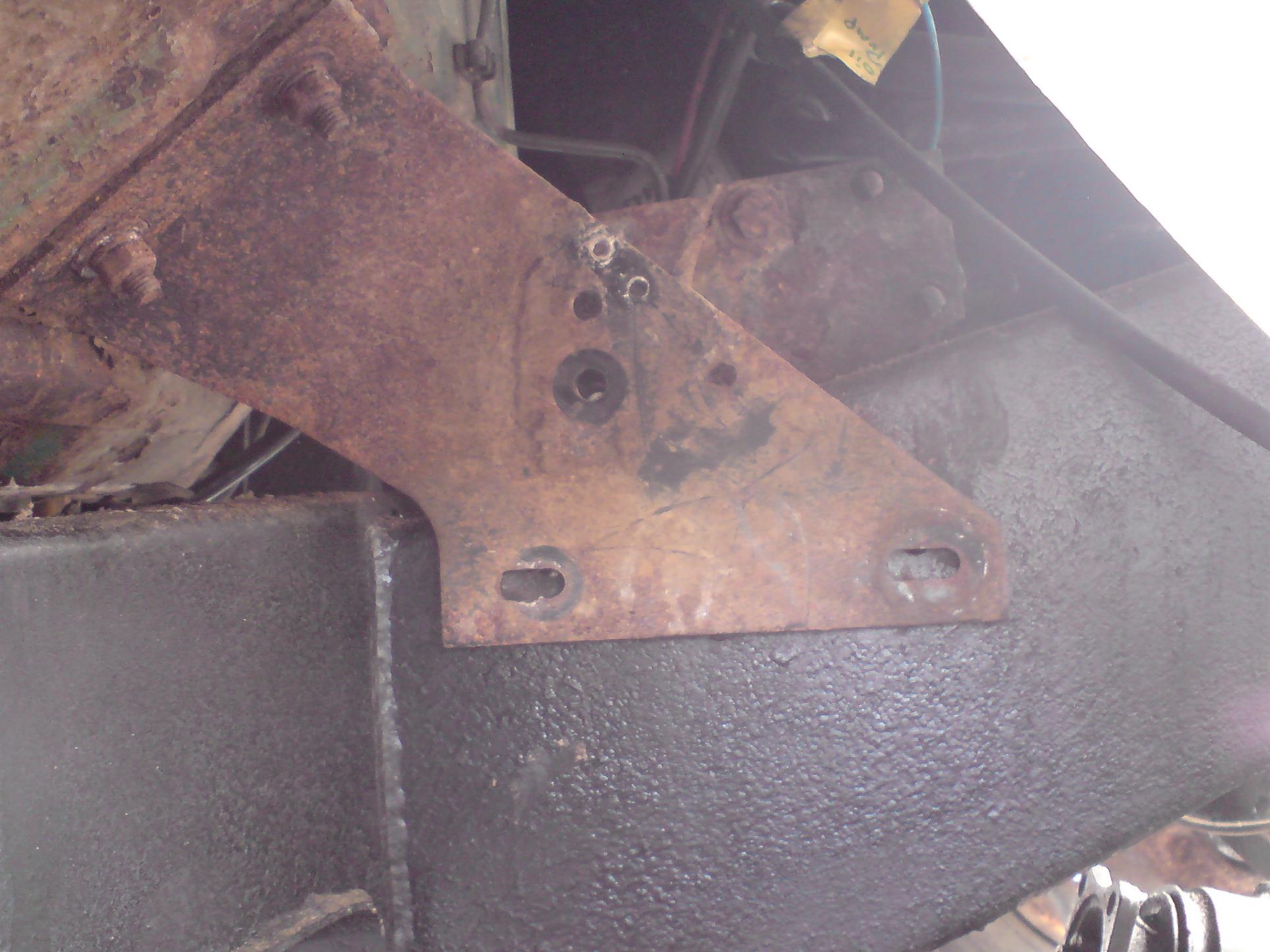

I have discovered that if I remove the 4 long bolts on either side of the chassis fixing the b/head, and applying the help of a ratchet strap I can 'square up' the bulkhead and align the doors, if i re-drilled the mounting bracket then that would hold b/head square.
But I feel I may have further issues with the attachment of the wings.

What are your feeling on this 'issue'? do you reckon my method of squaring up the landy will work?


Attachments

  • DSC02238.jpg
    227.6 KB · Views: 2,345
  • DSC02240.jpg
    219.3 KB · Views: 389
cheers guys.
I already tried to remove the shims, that got me a bit of play, not enough though.
Glad to hear someone else has, encountered and passed this 'hiccup' makes me feel a whole lot better:D
Was worried for a sec, thought I'd have to take it all apart and get it re welded, what a palavah:doh:

It worked fantastically!
Now the doors close like they used to..not very well./.BUT.. they close:D AND they its all square(ish) again:biggrin1:
And to celebrate I re fitted the dash,doors and got it running. yay:p
Those 3 things, especially the dash, made me swear:mad:
But I feel satisfied now, and can endure a whole 4 days back at work ready for more next weekend:rolleyes:
