Peugeot 2.7 Range Rover sport

Discussion in 'TDV6/8' started by Dimma.davies, Sep 20, 2017.

< Previous Thread | Next Thread >
  1. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    Hi I'm newbi i have searched the forum but couldn't find an answer hope this has not been posted that meny times before , I have just bought my very first Land Rover Range Rover sport 2005 tdv6 I owned it for about a week and engine has started knocking, I'm looking for another engine I have been told a Peugeot 2.7 hdi engine fits is this true , understand that it would need lots of parts swapping over , I do apologise if this has been posted before but I could not find a post
    Hope someone could advise me

  2. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    hi and welcome

    may i ask have u established what is causing the noise first as it may be a simple repair

    many others who have replaced engines are using the jaguar 2:7 engines and swapping over the ancillaries

    if u bought it from a garage i would seriously reject the landy , quickly in order u can get ur money back and buy a decent one

    hope that's of some use to u

  3. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    plus the Peugeot engine won't fit , it's a front wheel drive and the block is different

    u need the ajd v6 engine not the DT17

    the engine is part of Ford Duratorq family

    Last edited: Sep 20, 2017
  4. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    Hi thanks for the reply it's a bit of a story I bought the sport of Copart described as cat d light body damage with the bonnet jammed closed I viewed the sport turned it on but did not Rev the engine thought all was ok got it home ran funny as in few taps and knocks thought it was fuel problem, came to it few mornings ago engine came to immediate stop restarted it then the fun started smoke banging clunking from bottom of the engine oil poring out of right bank
    It's my fault I should of tested it better but I let my hart rule my head now i have ended up with lovely looking Range Rover with broken engine I called out my local mechanic he's fase said it all he said bottom end gone quit comen he said in these. Il go with what you say il look for a jaguar engine , looks like I have big winter project ahead
    Oh well we live and learn

  5. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    thks for the info and u indeed have a fun project ahead

    ref the engines it seems it's 2007 onwards that were destroying the cranks , also oil pump covers can break if not replaced , surprised though by a 2005 , might have never been looked after or got damaged somehow in the accident

    know a recon engine are around £5k but seems people are buying a second hand jag, test it with the engine running then breaking the jag for parts

    will find u a link of others that have done the transfer

  6. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    have a look on here

    http://www.rrsport.co.uk/forum/

    a good forum that can at least give u further advice and possibly location of another engine ,

    plse let us know how u get on , inc pics as we all like pics , lol

  7. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    Yeah I think it's not been looked after think il will put some care into it try get it back to good condition
    Thanks for the link il have look into that I've been looking at an engine on eBay il try put some pics up now .
    Ps try not to be put off buy all the black il make it look more respect full when it's finished lol

  8. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
  9. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent

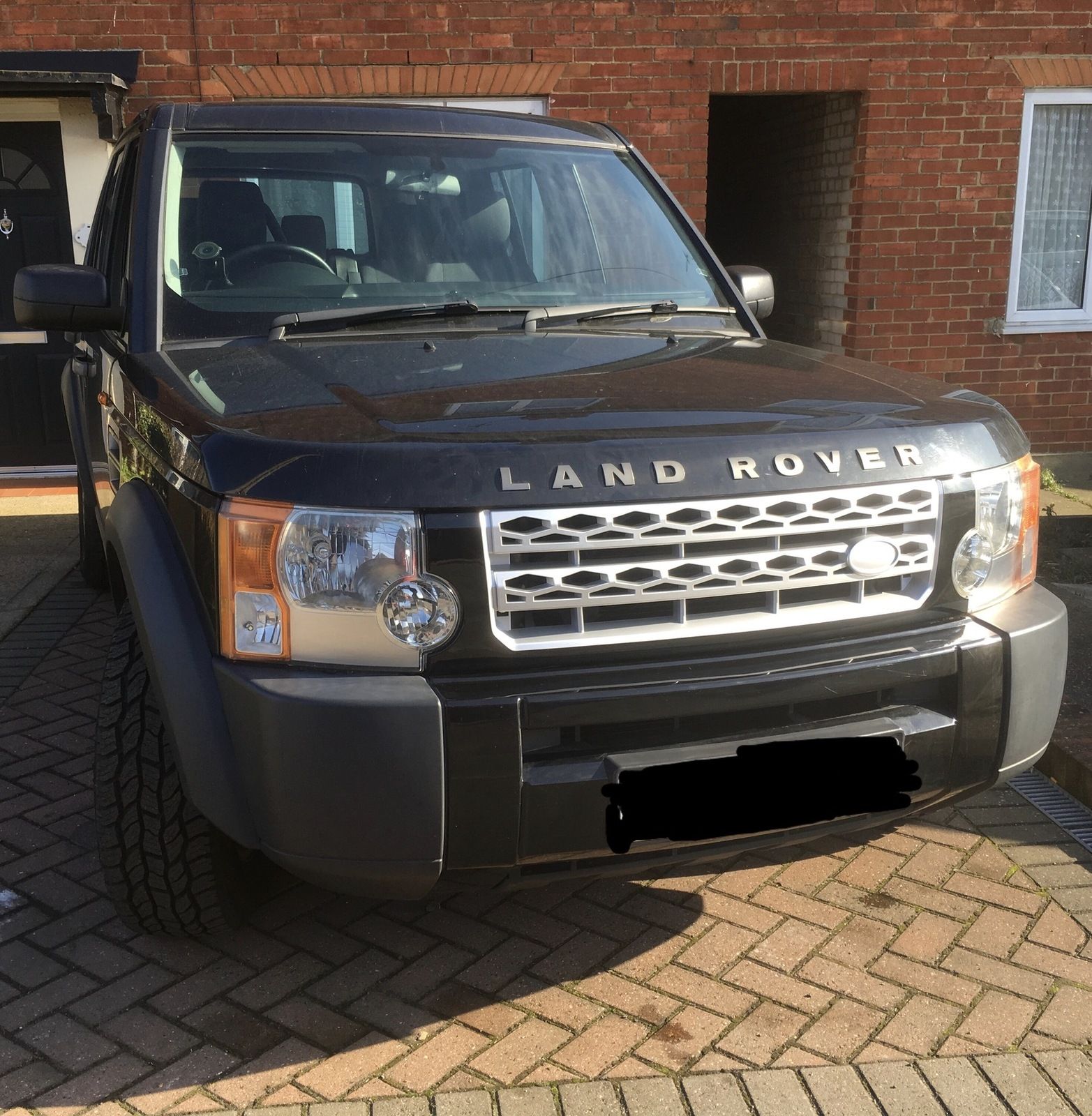

    that looks nice , here's a pic of mine , i fitted a new grill to break up all the black , prefer black cars as well

    it came with chrome door handle and wing mirror covers which i took off,

    side steps can hinder off road use, rock sliders are more practical, i intend to use mine what it was made for, nothing extreme but will indeed get it off road

    as we share the same chassis etc if u have probs please don't hesitate to post on here , there's a few of us that are happy to help

    plse let us know how u get on ,


  10. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    Yeah I need to brake the black up I would rock bars where I live up in the hills
    yours looks nice with the grill , iv managed to find engine on eBay for £2200 with 3 months warranty , I'm going to be putting it in my home garage next week and start the body removel I have a twin post ramp
    I'm just going to take my time stripping it ,box and bag label everything , il post pictures of my progress, thanks for your help no doubt il need advice as this is my first landrover, just thinking is there a hanes manual for the sport or would the disco 3 be the same

  11. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    hi , may i ask where ur getting the engine from plse, reason being there are indeed some unsavoury places around

    then if u put the name up on here someone else may know them, great you've got a two post ramp, making like considerably easier

    ur not tempted to buy a second hand jag , with the engine running so u can hear it and test to ensure it's all ok, then sell the parts from the rest of the jag to recoup some money

    don't forget to check out the disco 3 forum as others have done engine rebuilds

    ref the haynes manual the running gear is the same as mine but will be better to get a sport version, seeing there will be a variations, they do indeed do a sport haynes manual , maybe halfords will be the best bet

    https://haynes.com/en-gb/land-rover/range-rover-sport/2005-2009

    great ref the pics and many thks , will be an interesting thread,

    don't forget ask away and always happy to help

  12. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    It's called on eBay metal monster junk one word I seen it late last night had another proper look at his feed back very bad I think il have a look into a jag complete and a look on the disco 3 forum like you say , I have a Peugeot 205 track car i have done lots of engine rebuilding on that but never done a diesel v6 would like to do it tho as you say you know it's right but then it's increasing the jobs is a few nerves when engine goes back in on my Peugeot it's about 2 hours engine out on rangrover a lot longer lol if something was not right , il have a surch now for a jag complete

  13. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    hi

    is this the company , if it is they are one of the sponsors from the disco 3 forum ,

    found them very good and if something for an unknown reason went wrong u would have a come back

    i've bought a lot of items from them and found them very good

    give them a call and talk to harriet , tell them u belong to the disco3 forum and she will sort out a decent price for u ,

    however i've always preferred to buy a car where u can at least hear the engine running , by the sounds of it u know what ur looking for

    if i may say though , i've done a buyers guide in what to look for, is in the discovery section, read the bit about the engine side, belts to be done 105,000 miles or 7 x years , which ever comes first

    when u start the engine up listen for any rattle, can be signs of the timing chain tensioner

    assume ur replace all the belts , inc the rear belt , inc tensioner , oil pump cover , also change the turbo studs for bolts , check cyl compressions , check cross over pipe that is at the rear of the engine

    i blanked both my egrs , from. 2007 onwards u need a software update to put the mil light out

    u know what ur doing but can at least point u in the right direction in what to do to the engine before it goes back in, saving u time etc

    great idea if u do a post on the disco3 forum, someone may know of an engine going and also a massive amount of info from people who have also rebuilt engines , will say hi over there as well when i see ur post

    hope that's of some use to u

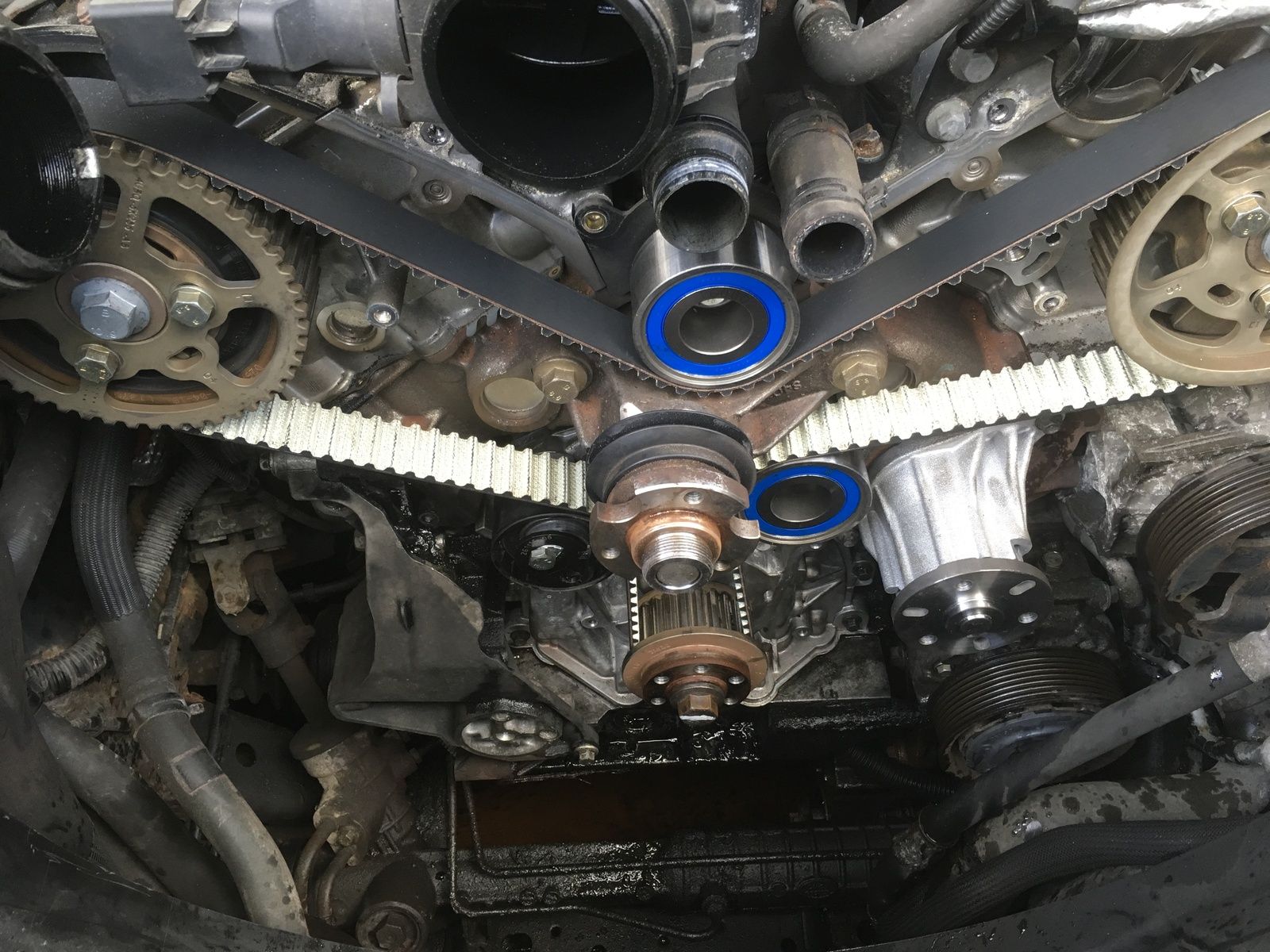

    here's my engine when the belts were changed

    before i forget , i bought a diagnostic reader which is key for these cars , mine is an iid from gap, they cost £420 and u can use it via ur ipad , they can virtually do the same as a T4 that land rover use , reflashing ecus, fault codes , altering settings , the list goes on in what they can do


  14. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    Hi did you send a link it's not come though I'm going to sign up to the disco 3 forum been reading up a bit on the engines and been looking parts I think I'm going to take a chance and rebuild my engine providing there is no extrem damage to block and heads turbo , but saying that if an engine dose pop up I'd probably buy it , you done a tidy job on your timing belt , I have a delfie diognostics kit on lap top it's got landrovers on there up to 2015 , was looking at my car ramp today I'm going to put new concrete under the posts using a g40 mix really strong don't won't the rangerover on my head lol the old Concret is old and cracked it's ok on little Peugeot s but would not trust it on rangeerover ,

  15. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    hi mate

    great call ref ur post ramp seeing the landy weights 2.7 tons , G40 is that like a resin u inject into the floor as u push threaded rod into the floor ,

    have seen some put done steel pads under the posts , raw bolting the plate to the floor then the posts so they can't move and spread the weight , but of course u know what ur doing

    haven't heard of that diagnostic reader before

    here's the link u need

    https://www.disco3.co.uk/forum/,

    as mentioned a few on there have rebuilt their engines and can advise u of the best place to get all the parts and also any pitfalls etc to look out for

    for ur interest this is the link to the gap iid diagnostic if u decide to get one, it will also allow u to set all ur suspension up and a fantastic bit of kit

    https://www.gap-diagnostic.com/shop/iidtool-bt/

    hope that helps

  16. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    Hi the guy with the concrete said it's what they use in garages must be super strong
    , iv. Been looking around on the disco 3 sites they have so much more detail I seen a video on you tube on taking body off and engine out rebuild jeezz it looks like a huge job there are cam chains in the head, pipes electric s all over lol it put me off a bit lol , had my mate up last night he seams to think it's top end knocked but regardless engine out
    how long do you recon it would take to get body off
    Yeah I see what you mean now with diognostic kit cus of the suspension .
    Bit worried that when engine out il find more thigs wrong with it but that's probably best as I can fix them just my low budget for the fix finger s crossed should be ok

  17. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    hi

    like u say all depends on what's needed , a decent recon engine is £5k , imagine ur looking at least a grand but very difficult to tell without taking it apart first

    if u post a thread in the D3 forum u will get some very indepth knowledge , ref engine and how long it takes to remove the body , there are threads there in how to remove the body

    with the body off is an ideal time to underseal and wax the chassis and check over everything whilst u can access everything so easily

    trouble is at the end of the day with the damage you've also got u could spend £5k before even breaking sweat, what happens if u get the engine out and its beyond repair ,

    before starting everything , maybe sitting down first and price everything up, see what the current value is all fixed up and weigh up the options if it will be viable , as it's going to be a big job but with ur experience at least u can do everything urself

    it's all down to the cost of parts and ur time that u have to factor in , but certainally won't tell u how to suck eggs, lol

  18. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    by the way , can't quite make it out ,may i ask what's the reg number plse , many thks

  19. Dimma.davies

    Dimma.davies Member

    Joined:
    Sep 20, 2017
    Posts:
    15
    Likes Received:
    1
    Location:
    North Wales uk
    Iv sinend up and put post up my username is same as this site dimma.davies iv asked for help on parts companies
    I'd say be good if I can get prices on crank shaft
    Pistons, shells full engine and gasket sets
    Be a good start
    Reg Is MW55 SSU
    Some times I need help sucking eggs lol

  20. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,014
    Likes Received:
    6,763
    Location:
    Swanley , Kent
    lol ;)

    just replied to u over on the forum , thks for the reg and the mot history looks ok

    ouch , didn't realise the crank had gone, now ur talking money , can't see u getting change out of £3k for the rebuild but others on the d3 forum will know better of costs

    might be better buying a second hand S type jag for the engine ,but is abit of an unknown without looking at the damage done to ur engine and costs

    great you've got the post ramp and will indeed make life considerably easier

    imagine it's not going to be an overnight project , wonder if u will need something like an iid diagnostic to set it all up again after being apart ??
