P38 Oil leak - Help with parts id (Pic included)

Hi

I have an oil leak, no shock I'm sure.

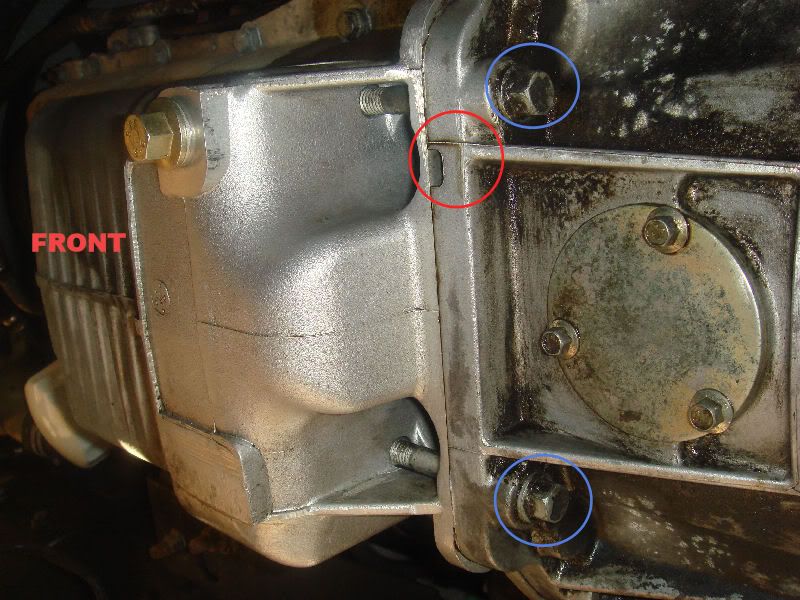

I've included a photo which shows circled in red where one oil leak is coming out from. I'm thinking of just pinching the bolts (circled blue) up, but don't know what they would be called in Rave?



Any other advice is welcome, I'm not a mechanic in case you never figured that out .

P.S. Would this be engine oil leaking from this gap or transmission fluid?

Thanks in Advance

Depends if it's engine oil or transmission fluid. Favourite would be engine oil and rear main oil seal failing. Pinching the bolts will do no good whatsoever.

wammers said:

Depends if it's engine oil or transmission fluid. Favourite would be engine oil and rear main oil seal failing. Pinching the bolts will do no good whatsoever.

Click to expand...

I'm thinking is more likely to be engine oil, i guess changing this seal you have suggested is a big job?

Thanks

chrish22 said:

I'm thinking is more likely to be engine oil, i guess changing this seal you have suggested is a big job?

Thanks

Click to expand...

Gearbox out i am afraid.

Agree with Wammers.Gearbox out, drop the rear bearing cap, replace the crucifix seal for good measure, put sealant on the mating face of the bearing cap and fit a new crank rear oil seal. If the oil seal journal is grooved where the seal runs fit a shaft repair kit from here M Barnwell Services Ltd - The UK's leading distributor of Fluid Sealing Products

Irishrover said:

Agree with Wammers.Gearbox out, drop the rear bearing cap, replace the crucifix seal for good measure, put sealant on the mating face of the bearing cap and fit a new crank rear oil seal. If the oil seal journal is grooved where the seal runs fit a shaft repair kit from here M Barnwell Services Ltd - The UK's leading distributor of Fluid Sealing Products

Click to expand...

Cheers for the replies, I gotta be first to admit I'm out of my depth here. Don't suppose you work for a garage and wanna do the work do you?

Or a rough idea on labour time would be good so I don't get ripped off by a garage.

Thanks

At a guess...a full day**. If it's an auto, it would pay to check the condition of the "flywheel" flex plate for cracks whilst the box is out.

** Assuming they have a 4 post lift.

Good news is that the seals will cost you next to nothing, but the labour will bring tears to your eyes!!!

Irishrover said:

If it's an auto, it would pay to check the condition of the "flywheel" flex plate for cracks whilst the box is out.

Click to expand...

And if it's a manual it'll be a good idea to check the DMF for too much play.

mcapinha said:

And if it's a manual it'll be a good idea to check the DMF for too much play.

Click to expand...

At my age, can' do anything "Manual" nowadays, have to rely on Automation !!
:crazy::violin::5bbeatdeadhorse5::bolt:

It is a 4.0, auto box



Guys and recommendations for independents would be appreciated.

My nearest and best charges £60 an hour.

Thanks

Your location would be a help for starters.

of course it would (doh!), northamptonshire.

although with the likely costs i suppose I'd travel to london, midlands, oxford way to get the right people at the right price on it!

give stu vougese39 a pm he likes working on range rovers,he does a mobile service and will come to you or you could take it to him in leicester,he knows his stuff on land rovers/range rovers

To ensure that the labour cost is kept to a minimum, don't fall for an outfit that will do it "On your drive". It will take at least 50% longer than if it's lifted up in the air on a 4 post lift and a transmission jack used to remove the g/box.
Gravity is a strange thing...the removal is easy, it's the refit that is the problem.
There is also a good independant in Birmingham, P38 and New RR specialist...Jameson 4x4, Summer Lane...been around for years and "**** hot" on them.

You have a choice to make. A main dealer cannot charge more than the standard time for the job. Don't know what that is, but around 6 1/2 hours i would think. An independent maybe less per hour but can charge as many hours as it takes him. So if he has not got the proper gear it may take 8-10 hours. So it's looking like £500.00 + either way to fit a £5.00 seal. Happy days.
