P38 Air Suspension Pin Stuck

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Andrewp38

New Member
Posts
1
Location
Fraserburgh, Scotland
Hello all, first post here
Today I attempted to remove and replace the front air suspension bag from my 1996 P38.
I managed to disconnect the top of the bag with no problem whatsoever however the bottom of the bag which is secured to the axle with the r pin is another story!
The r pin is stuck in place and will not budge!

I have tried soaking it for a few hours with WD40 but no avail, I fear I may snap the pin

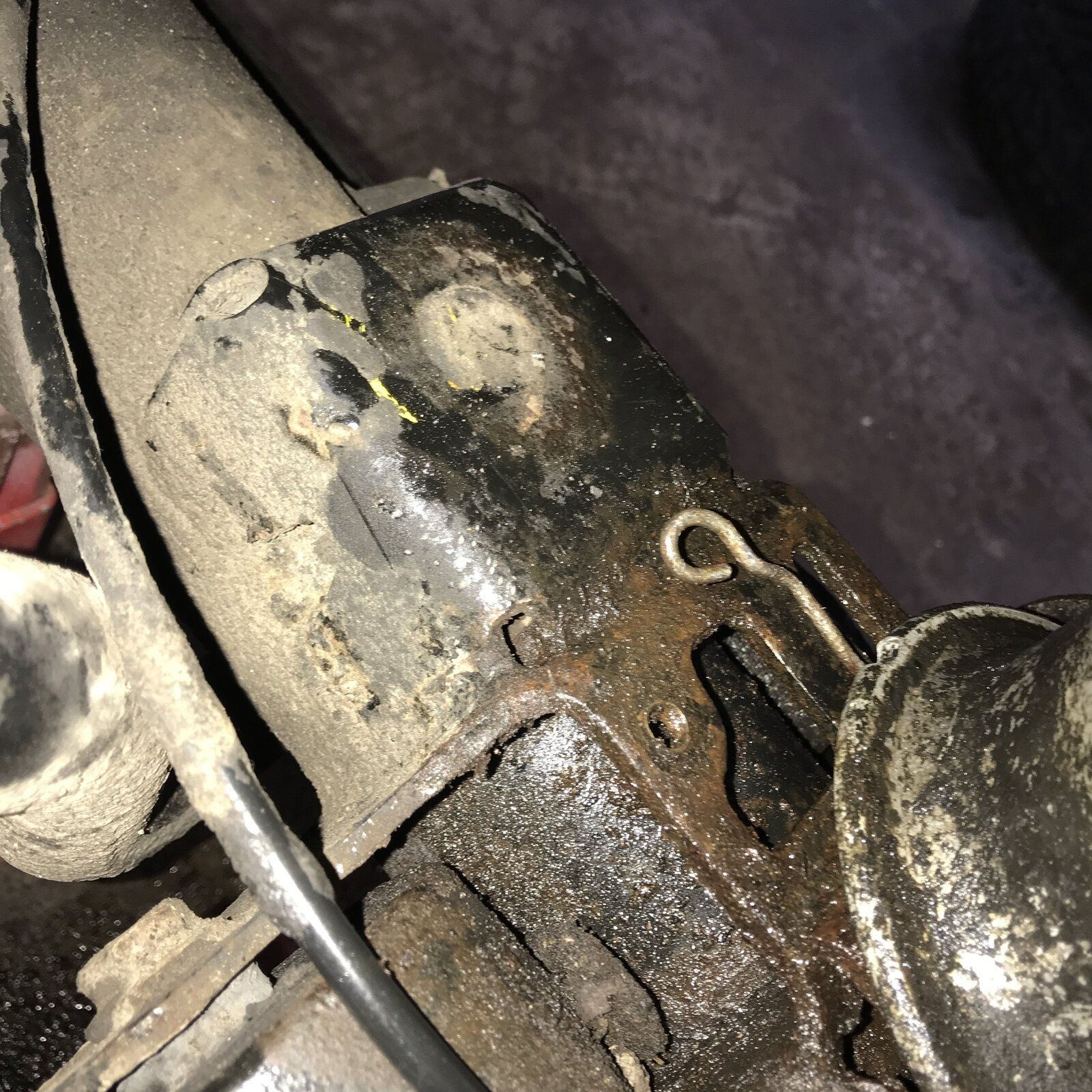

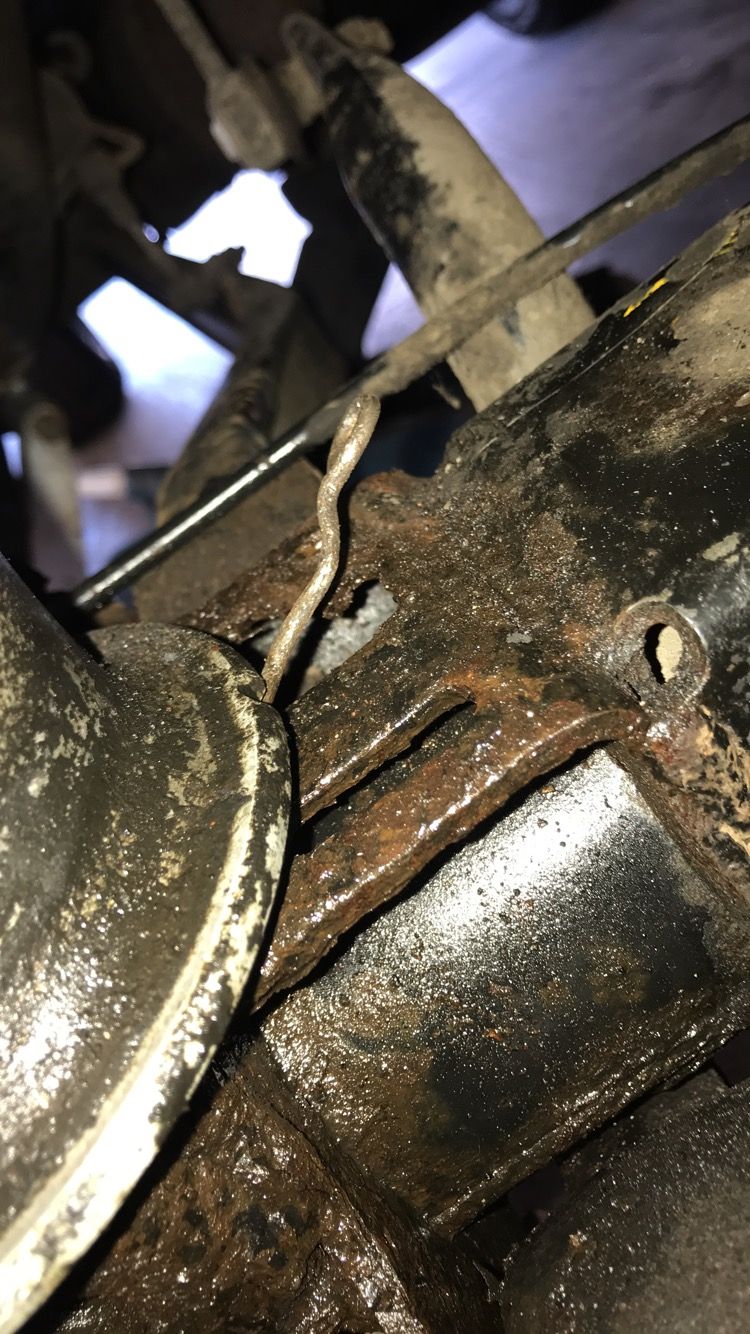

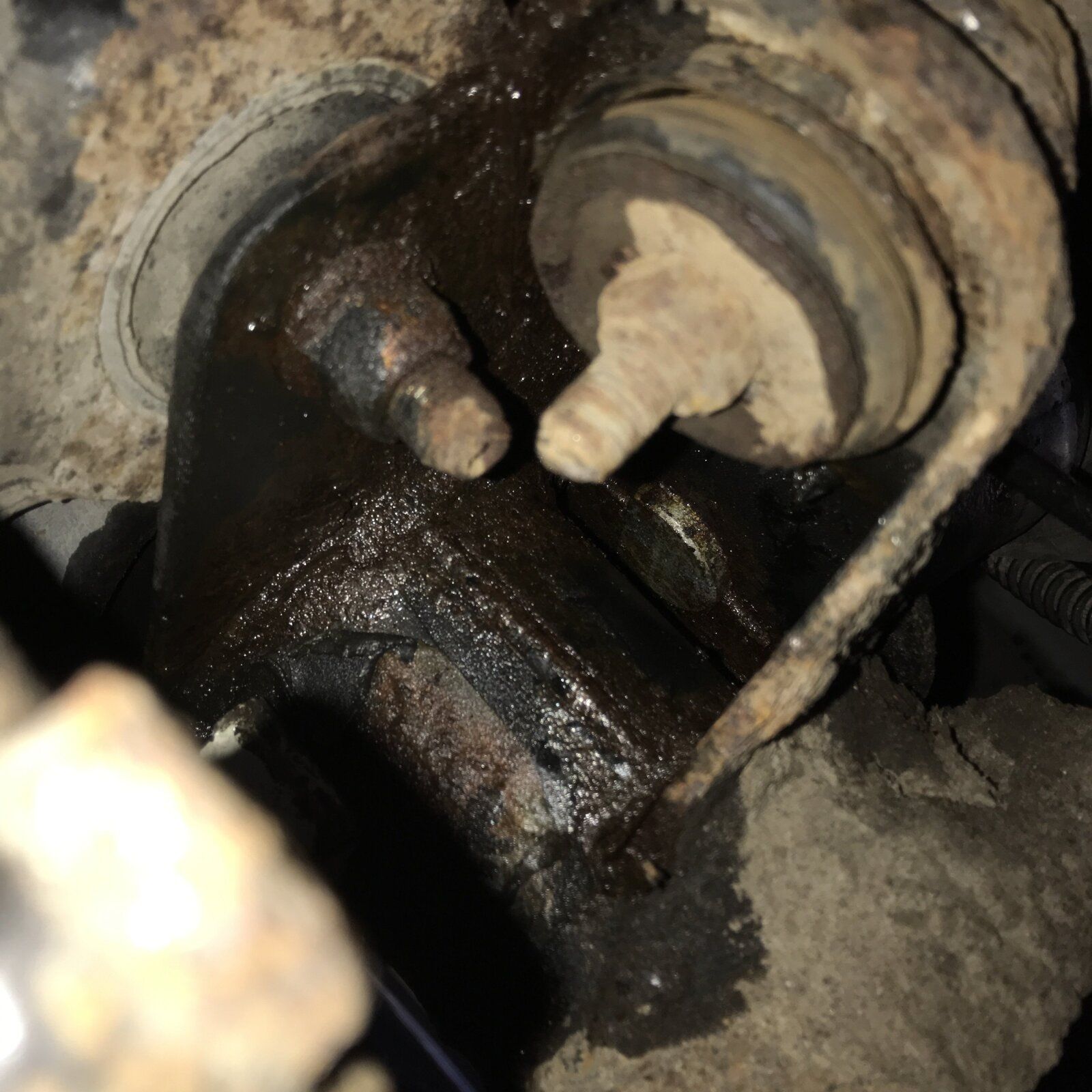

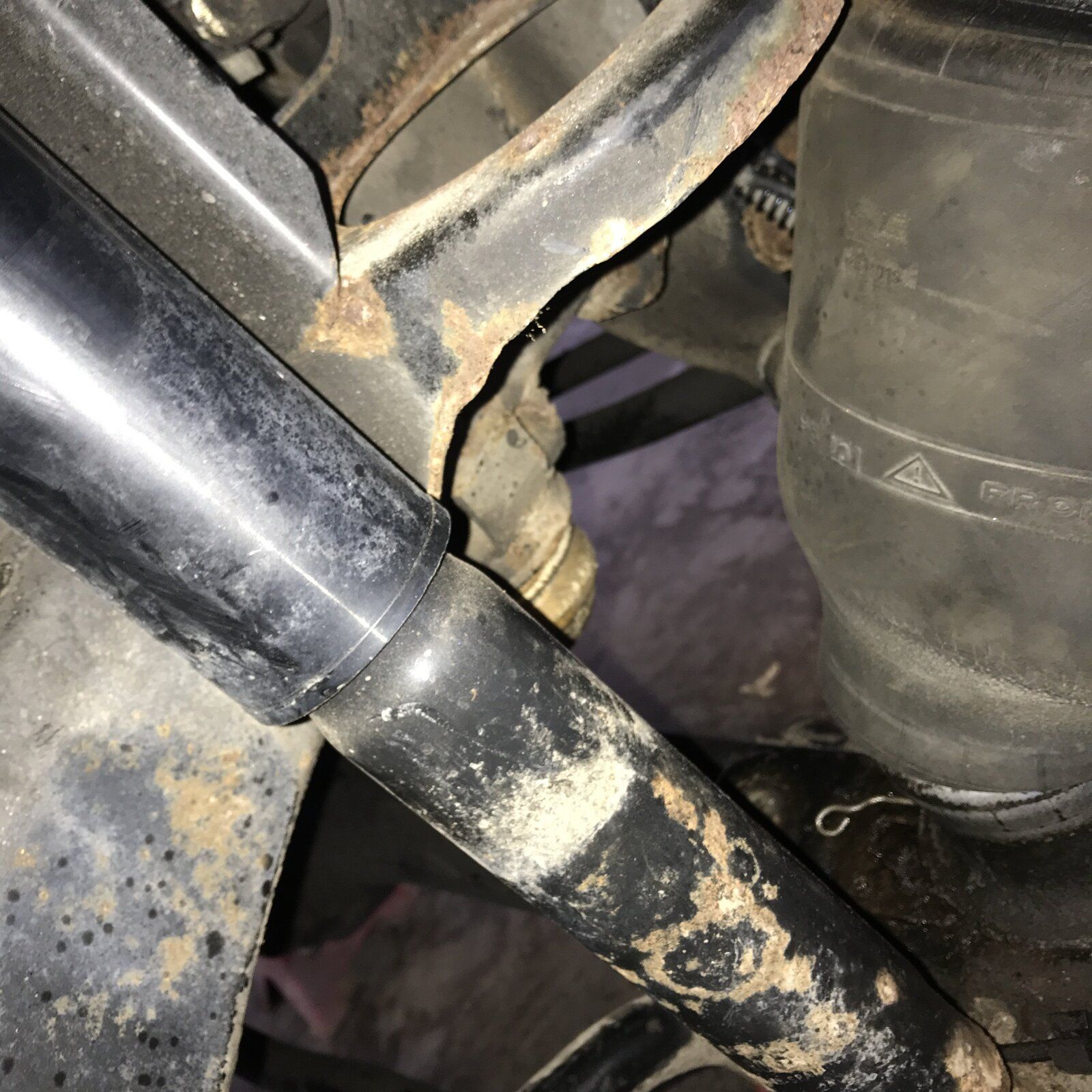

As you will see in the pictures, the pin has bent with trying to move it.

Does anyone have any suggestions or ideas that may help?

Thanks
Andrew


Attachments

  • 9940B5ED-013F-417C-B97E-1A81E7D81C18.jpeg
    212.7 KB · Views: 132
  • 6F714655-C106-41EB-B8F6-9A0C6FBD12A2.jpeg
    502.4 KB · Views: 125
  • 9E4D9298-B8EA-46C9-AC3C-2002B4D4718B.jpeg
    274.4 KB · Views: 117
  • CBFA7556-ED74-4469-8E7A-767CD1B117ED.jpeg
    360.7 KB · Views: 111
get some mole grips on it and try twisting it and hammer the mole grips to remove it new one are cheap and u shold fit them with new air bags.if you have to detroy the plastic base to the airbag its no biggie

Last ones I did needed the mole grips and hammer job .
After the compulsory blood blister/pliers job !
Some times it's a nail bar and Bf&I
