Oil squirt washers

saxmanuk · Apr 28, 2021

Refitting the piston oil squirts back into my block after strip down. When I removed them they 100% had no washers.
The Manual says they do for a 200tdi - not for a 300tdi.

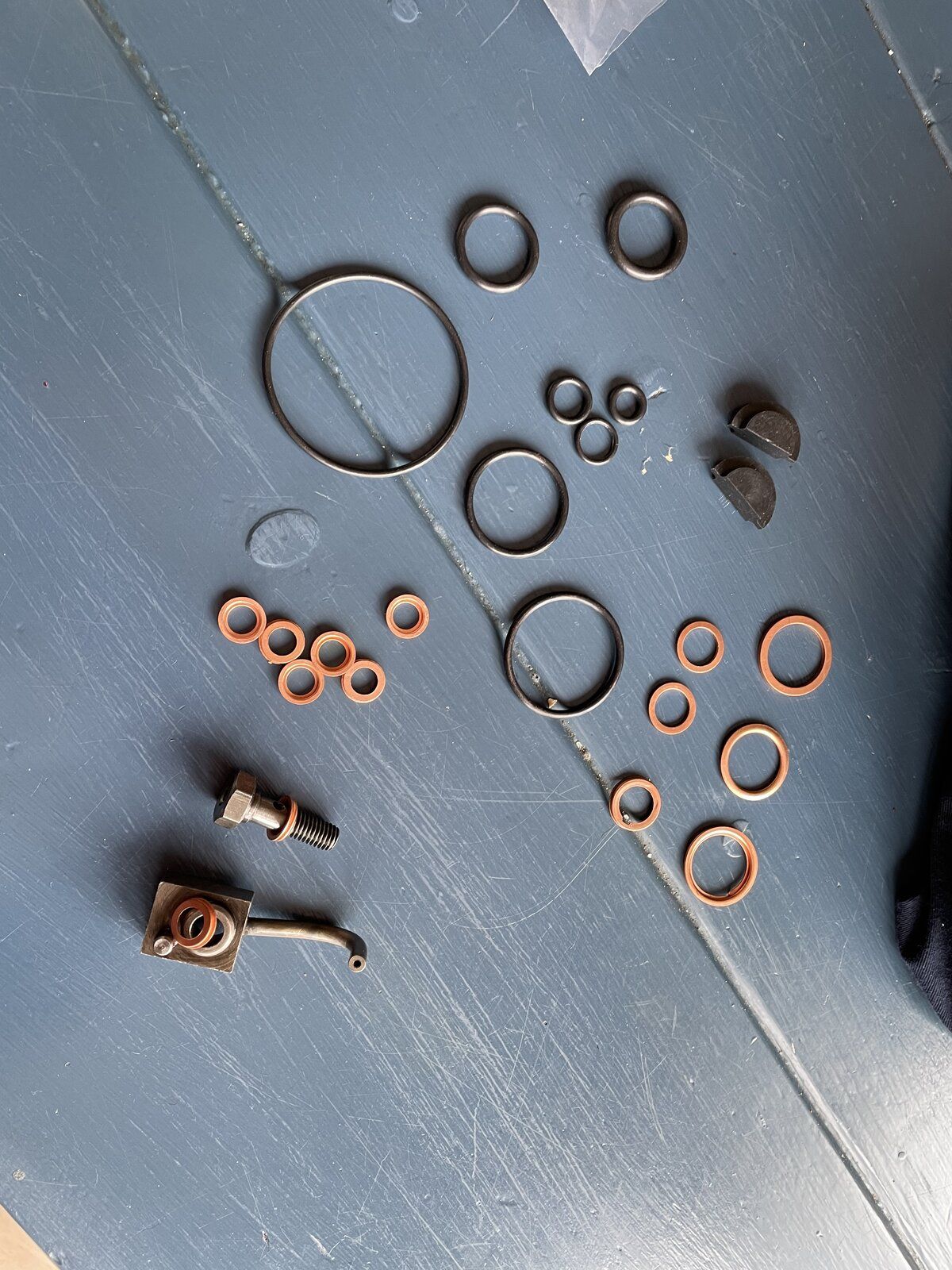

The ESR1557 kit has the attached washers ( see pic)
The ones that look like the right ones don’t fit on neither the squirt nor the banjo bolt. And in fact none do.
Do I need them as they squirt seem to be chamfered to fit the hole in the block anyway!
anyone know what all the washers are for ? Especially the ones that come in 3. the rubber ones I know about.
thanks !

Flossie · Apr 28, 2021

I've built 3 200tdi's all had washers there on strip down and refitted when built up.

Flossie · Apr 28, 2021

Oh, and I've also had lots of cooper washers left over everytime.
Annoyingly, injector washers aren't in the kit or a sump plug washer.

Blackburn · Apr 28, 2021

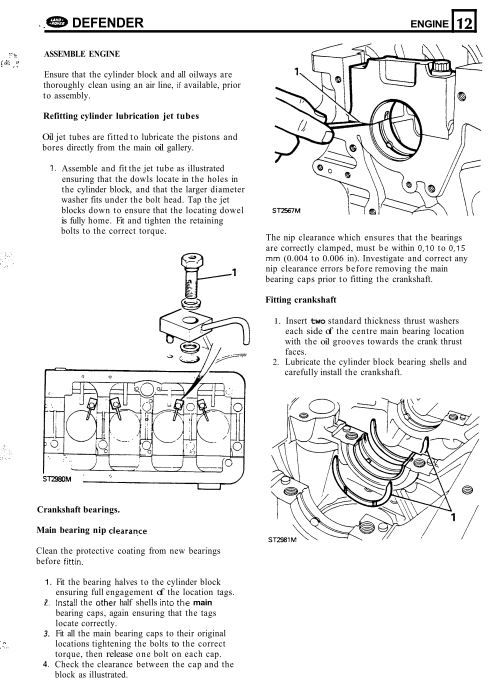

The defender 200tdi manual shows washers fitted which look similiar to what you have

lynall · Apr 28, 2021

saxmanuk · Apr 30, 2021

Blackburn said:
The defender 200tdi manual shows washers fitted which look similiar to what you have

Yep that’s what I thought but they don’t fit. I have ordered the part numbers from the parts book so will update when they arrive today hopefully. Could be a crap gasket kit as there are 4 bolt and 4 squirt washers with different numbers. The ones in the kit are all the same

saxmanuk · Apr 30, 2021

lynall said:

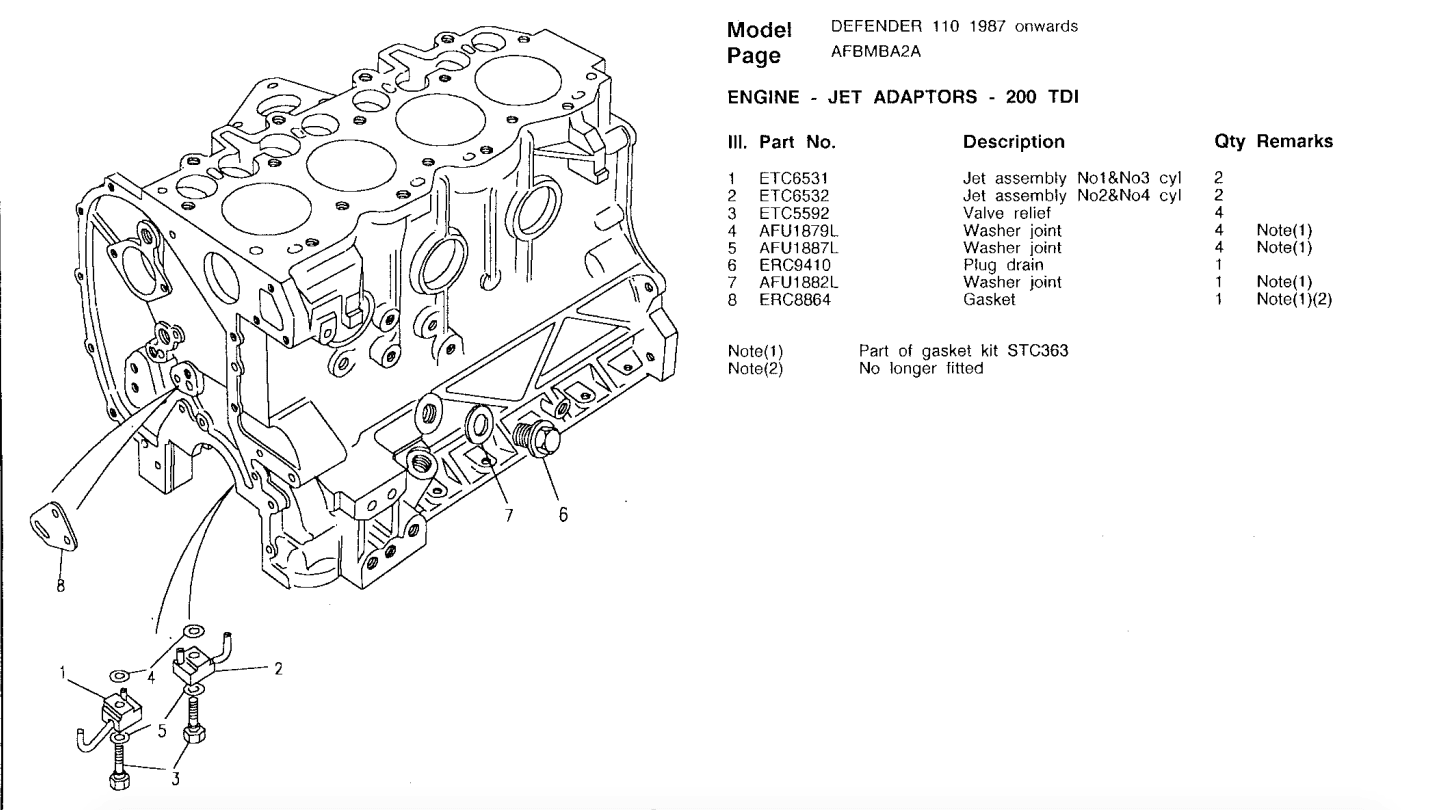

View attachment 236918

Thanks. Have ordered some for testing

saxmanuk · May 4, 2021

Update on this. Washers have turned up
The Afu1879L and afu1887L are not in the stc1557 gasket kit. The 8 in the kit shown above post are slightly different.
Anyway! They don’t seem to fit exactly. I am guessing they are collapsing copper washers that just push against the recess in the block and the banjo to the squirt. 300tdi didn’t have these so am wondering if I will actually fit them. They were definitely not on when I dismantled. Photos below of the block recess and the squirt with washers and banjo. I wonder if the chamfered edge will actually seal with the copper washer in between the squirt and the block. Confused !

Edit.
I have fitted one oil squirt and torqued down to 17nm and removed to look at. pic below. The copper washers collapsed as thought. Still not 100% sure the bottom washer will actually seal against the block. Anyway. Here goes

saxmanuk · May 4, 2021

On better news. Block is now ready for the build !

lynall · May 4, 2021

Them washers look like they have seated nicely, I would be happy with them.
