:welcome2:hi all again, u might of noticed i have a few posts on this site, but i got a P38 2.5 DT that seems to be suprising me with all these problems over the last few weeks.

anyway, this one is becuase i have found that i have an oil leek. checking the dipstick everymorning and have noticed im loosing about 1mm in the stick every day.
i have posted some pics of where i have found leeky oil. mainly front passenger corner. i think its the oil cooler pipes but i have not idea how to handle them, i have only worked on small petrol hatchbacks......206's rovers e.g......so really needing help here.

take a look at the pics and see what you think.
Mike.


Attachments

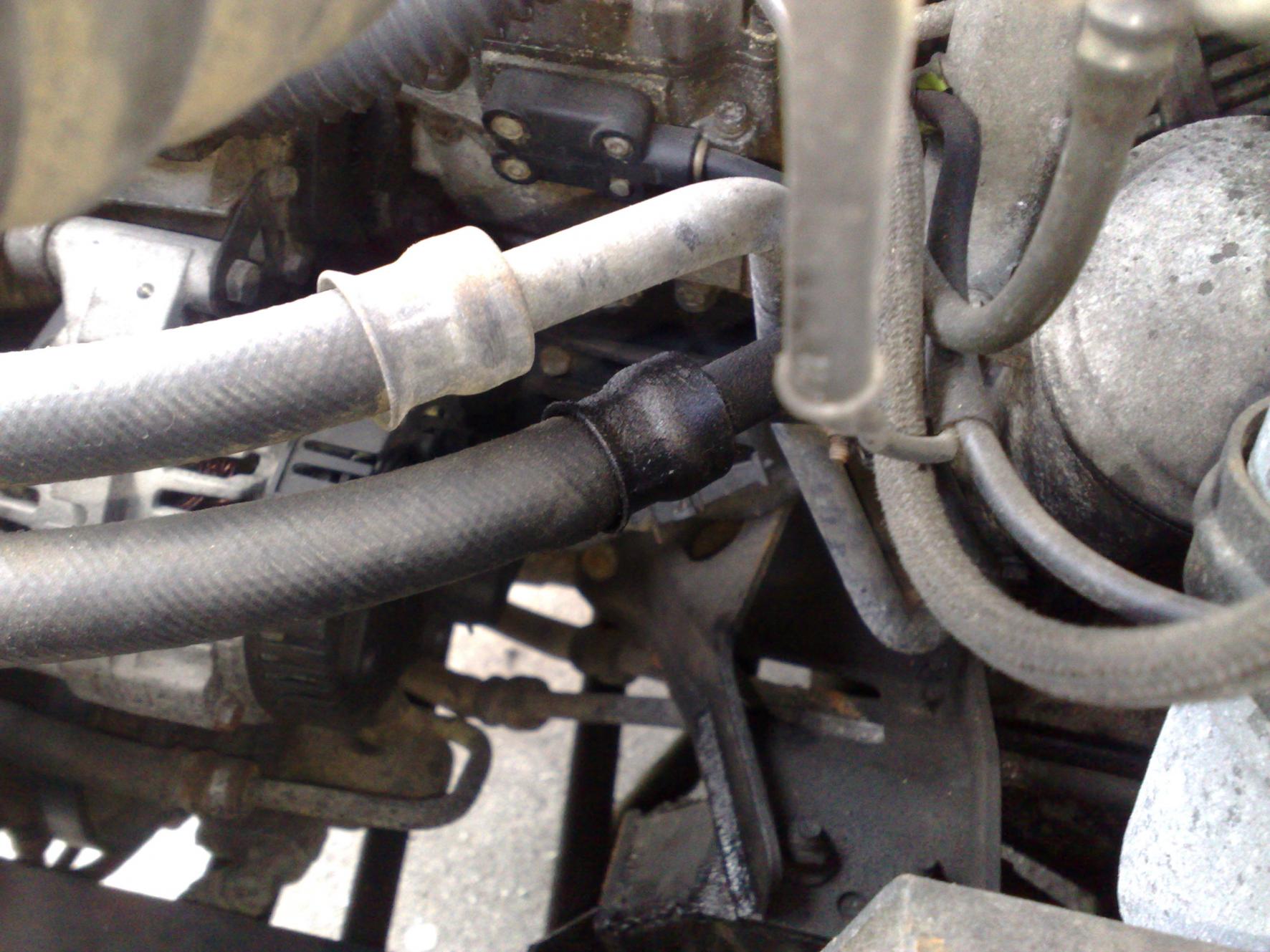

  • oil pipe near big filter.jpg
    oil pipe near big filter.jpg
    232.3 KB · Views: 133

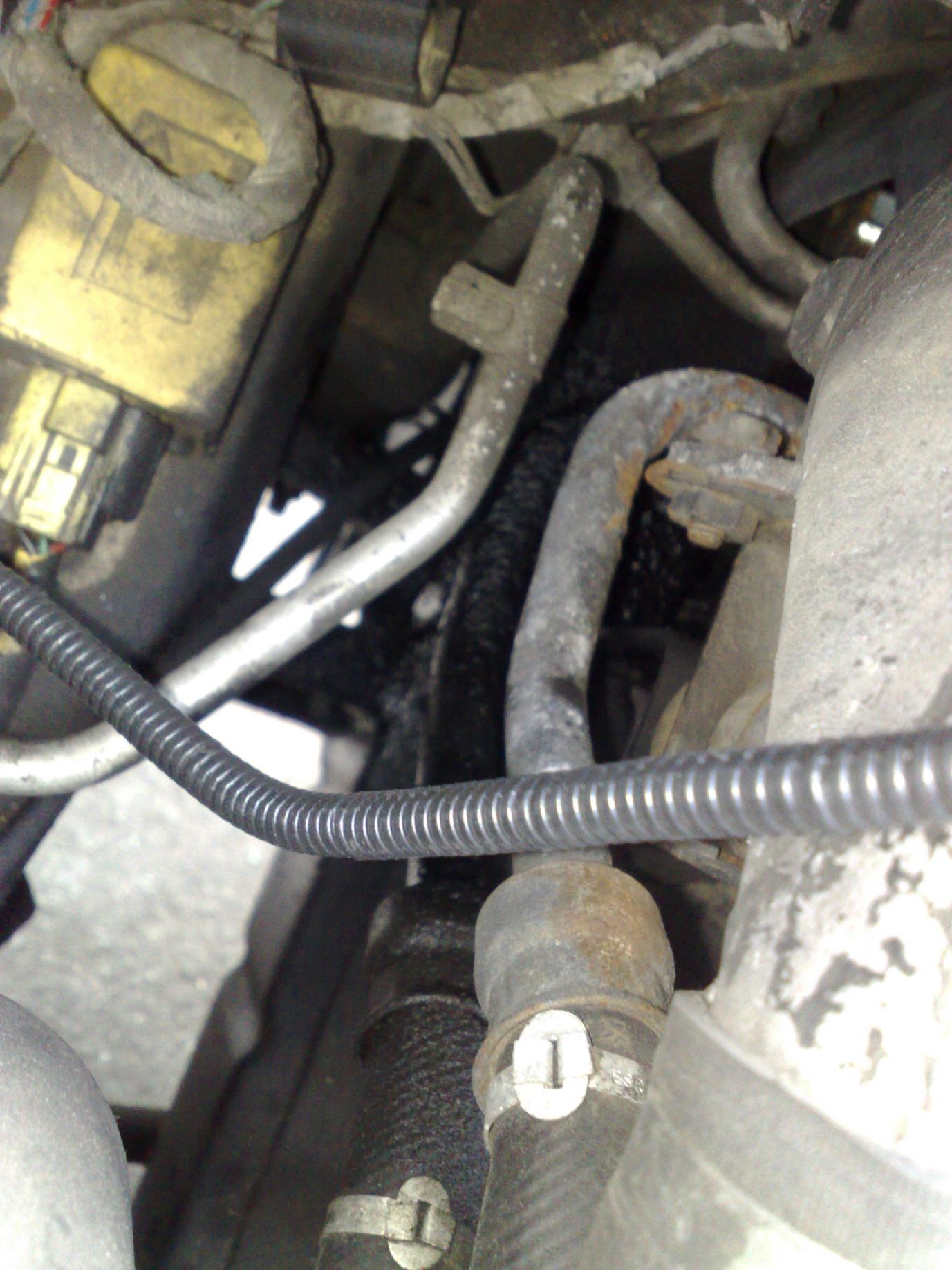

  • nearside corner.jpg
    nearside corner.jpg
    229.6 KB · Views: 163

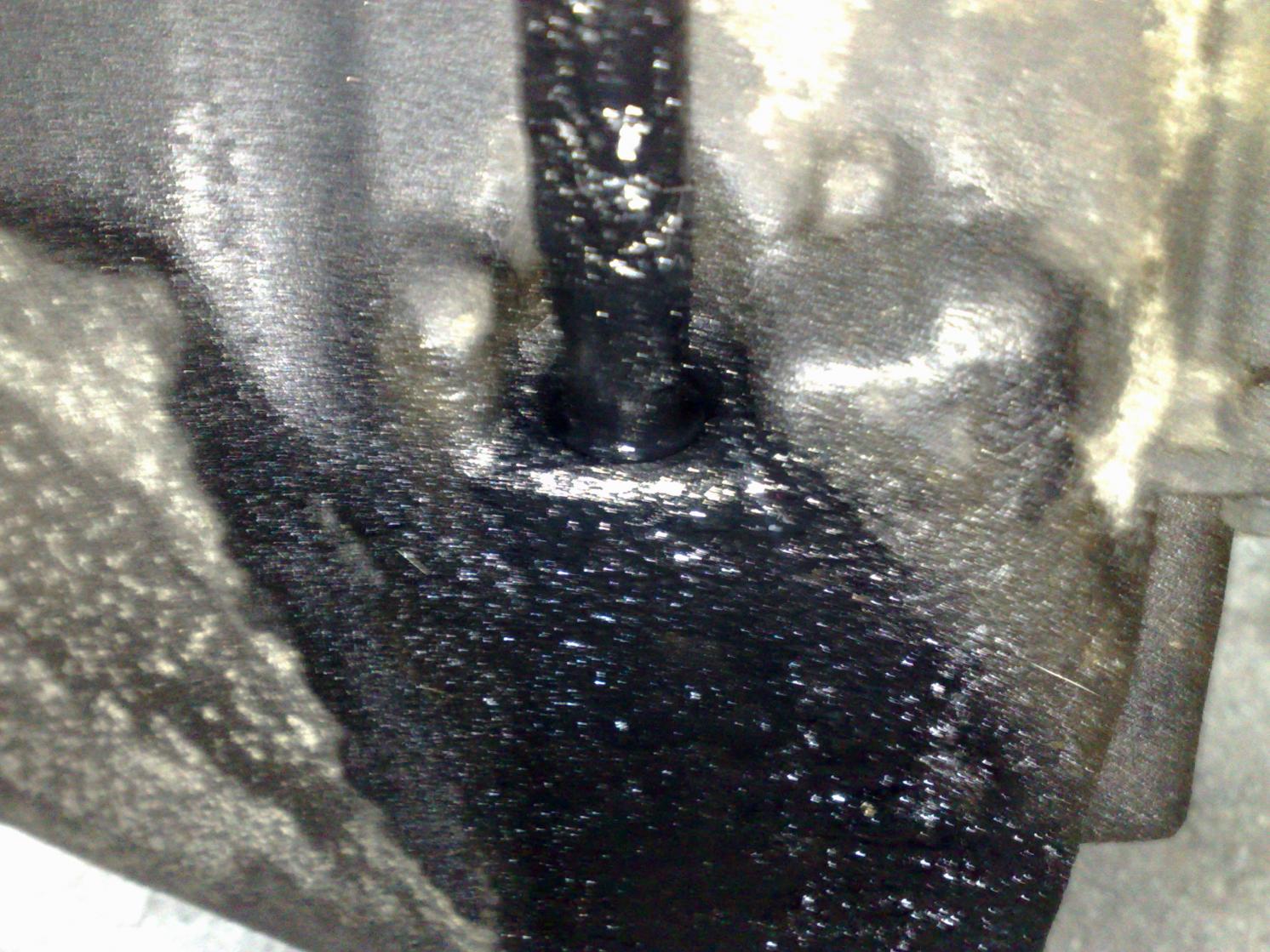

  • hose bottom passenger side of engine.jpg
    hose bottom passenger side of engine.jpg
    246.3 KB · Views: 144
  • nearside corner below.jpg
    nearside corner below.jpg
    244.8 KB · Views: 138
burnie said:
hi mikey looks like u need new cooler pipe bernie:confused:
Click to expand...

its only 1 pipe that seems to be leaking, any idea how much and how to change these????
there is also a pipe going into the engine, bottom of engine passenger side windscreen end that seems to be leaking. cant see where it goes.

Get a cooler as well as the pipes on the cooler usually strip the threads when you undo them.........dont ask me how i know:rolleyes:
Not a difficult job just a bit messy but well worth while.

everlatesparky said:
Get a cooler as well as the pipes on the cooler usually strip the threads when you undo them.........dont ask me how i know:rolleyes:
Not a difficult job just a bit messy but well worth while.
Click to expand...

thanks, jus let me confirm this, the hoses go from oil filter to cooler, and im guessing the cooler is near the rad????

found 1 on ebay cooler and pipes £158 is that good???

oh just wrote that reply and found some had already put it, thats the cooler i was looking at, lol. will replace it soon.
i take it i need to empty oil from engine first.....needs new oil anyway. pretty black and sticky. last owner didnt care for it much. i want to get it perfect.

S'about right.
Cooler is under intercooler.
Bit of stripping down to do....clean out the intercooler while its out.....lots of parrafin or a good degreaser but make sure its bone dry when you put it back on.













Is it done yet??:D

sorry if i sound a real novice but as i said i dont work on deisel engines.......how many rads has this thing got????

perfect time to learn about deisels i suppose when me own 1 balls up. lol

Don't worry about the rads. Look at other threads, if the metal part of the cooler pipes is not too rusty, cut the rubber pipes off, buy a length of suitable oil resistant hose, some jubilee clips and fit the new tube. Other P38 owners have done this and it worked fine, it's only relatively low pressure. I used the same technique on my race car with no probs.
