Disco 2 Oil Leak

Discussion in 'Land Rover Discovery' started by Intestinalworm, Jan 4, 2020.

< Previous Thread | Next Thread >
  1. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    2003 Discovery 2 Td5

    Had a good run with no leaks for a while (coolant and oil). Have noticed last couple of weeks though that when I park on a slope on the road outside (vehicle facing down the road: 20-30 degree decline) that there is an oil spot the next day - size of a dinner plate at the front end of the engine below the radiator and roughly in the middle between the headlights. Otherwise no significant leaks noticed. Any thoughts on likely source?

  2. Shimsteriom

    Shimsteriom Master Procrastinator Full Member

    Joined:
    Feb 13, 2015
    Posts:
    42,352
    Likes Received:
    44,075
    Location:
    Over Here
    If you park on the flat does the oil leak appear in the same place?
    Sometimes oil can move around/along components in the engine bay before dropping off making you think it might be coming from a certain location.

    Intestinalworm likes this.
  3. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,889
    Likes Received:
    2,558
    Location:
    West of Transylvania
    Check the front camshaft seal

  4. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Leaks on the flat are largely not noticed (driveway is flat). Parked on the decline always at the same spot (front of engine and middle) and noticeable - elongated dinner plate size.

  5. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Alright then, will have to do some research on that then and add to Job List. Might tackle when I do oil change sometime in March.

  6. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,889
    Likes Received:
    2,558
    Location:
    West of Transylvania
    Off course just if you see traces of oil around it, more space if you remove that top fan shroud though


    Intestinalworm likes this.
  7. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Looks easy! Did put a new rocker cover seal and injector loom in a while ago; will check the camshaft seal soon!

  8. iansoady

    iansoady Active Member

    Joined:
    Oct 11, 2006
    Posts:
    629
    Likes Received:
    57
    It is an easy job to change the front seal.

    Intestinalworm likes this.
  9. tilly2

    tilly2 Well-Known Member

    Joined:
    Jul 28, 2019
    Posts:
    641
    Likes Received:
    216
    Location:
    Staffordshire
    takes longer to take the cover off, than do the replacement...

    Intestinalworm likes this.
  10. Stanleysteamer

    Stanleysteamer Well-Known Member Full Member

    Joined:
    Nov 22, 2013
    Posts:
    21,601
    Likes Received:
    41,035
    Location:
    East Dorset
    Piece of pistachio to do, one of the more satifying jobs on a D2 and I have yet to find one that had a more dramatic effect for so little dosh!

    Intestinalworm and Dippypud like this.
  11. tilly2

    tilly2 Well-Known Member

    Joined:
    Jul 28, 2019
    Posts:
    641
    Likes Received:
    216
    Location:
    Staffordshire
    And make sure you do a nice clean up job, getting rid of all that cruddy oil... Smuggness will follow as you look at your nice clean engine...

    Intestinalworm likes this.
  12. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Okay - removed acoustic/thermal cover and fan shroud to get a good look at the front camshaft oil seal. It's an EU3 engine so the EGR cooler sits in front of the seal and blocks it a little. Anyway, noticed that oil had indeed been slowly oozing out from the bottom of the seal! Interestingly, I could easily just pull the seal out with my fingers - very loose fit! I would assume that after 17 years the original plastic seal has become hardened and shrunk a little with heat/oil exposure?

    Okay, just one question now - aftermarket or original seal (fairly significant price difference). Any thoughts/experiences?

    I assume there is also a rear camshaft oil seal - is it worth renewing this as well at the same time?

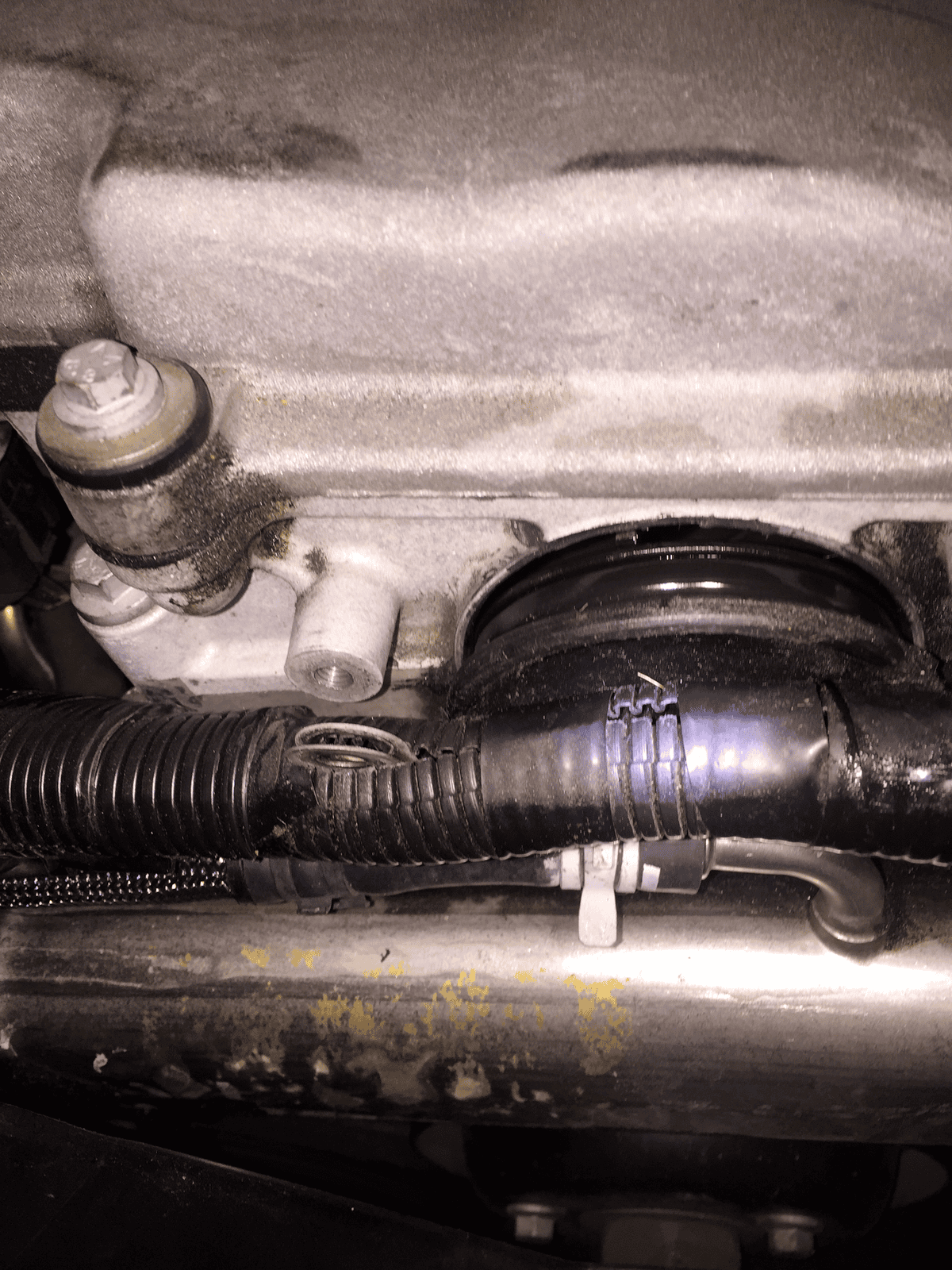

    Here's a pic of what I seen - already wiped some oil off (can't see oozing oil trail on the bottom side):



  13. tilly2

    tilly2 Well-Known Member

    Joined:
    Jul 28, 2019
    Posts:
    641
    Likes Received:
    216
    Location:
    Staffordshire
    Its the O ring that loses its elasticity, and fails to seal. You can see how flat it is against the cap, almost as if its been cooked and set in that shape. Common issue with old O rings that have been exposed to oil and heat.

    I stuck a Bearmach on mine off the Bay. No issues and an easy fit. Really need to do the rear one now.

    Intestinalworm likes this.
  14. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Yeah, noticed the flat o-ring; that would explain the loose fit then (similar issue to fuel cooler o-rings)!

    Will go and buy an aftermarket seal online from Rimmer Brothers then. Might be worth changing the rear seal as well as I think there is oil slowly oozing out at the back of the engine as well. I assume the rear seal is also easy to replace?

  15. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    I assume that there's no point of just changing the o-ring seal?

  16. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,276
    Location:
    louth lincs
    just fit a new oring and use silicone sealant ,the rear seal is part of the rocker cover gasket

    Intestinalworm likes this.
  17. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Silly-billy I am! I replaced the rocker cover gasket not that long ago - so yes, that should all be okay as far as the rear oil seal is concerned! Might just change the o-ring then on the front camshaft oil seal and save a bit of money! Does anyone know what size the o-ring is so I can just buy one off eBay?

  18. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Just noticed on the Rimmer Bros website -
    ERR5369 - Rear Camshaft Oil Seal?

    Anyway, will just focus on sorting the front seal for now - internet search shows the rear seal doesn't seem to leak(?), but as stated the leaks are more likely around the half-moon seal which is part of the rocker cover seal.

    Last edited: Jan 8, 2020
  19. Intestinalworm

    Intestinalworm Well-Known Member

    Joined:
    Nov 5, 2017
    Posts:
    589
    Likes Received:
    123
    Location:
    Australia
    Okay, thinking about keeping the original (LR) plastic plug and fitting a new VITON o-ring to it then? Have done a bit of reading/research and a number of people on forums have commented that the LR seal is a tight-fit and takes some effort to press on whilst the aftermarket seal (Bearmach) pushes on easily; also mentioned Bearmach seal starts to leak within a year or so of going on. I assume the LR seal uses a VITON o-ring? Might be a small but crucial difference between LR and aftermarket as far as materials/dimenions to make the difference? Will have to look around for the correct size VITON o-ring and slip that on the current (LR) plastic plug. I note that the LR seal as per http://www.discovery2.co.uk/camshaft_seal.html costs AUD 38.10 from Rimmer Bros, whilst they sell an aftermarket one for AUD 7.50.

    Okay, had a look - found a "BS330 Viton O-Ring 2.125" ID x 0.21" Thick" (that's the correct spec I believe)on ebay for AUD 16.64 delivered to Australia. With that in mind, might just try my luck with the aftermarket seal from Rimmer Bros!
    .

    Last edited: Jan 8, 2020
  20. tilly2

    tilly2 Well-Known Member

    Joined:
    Jul 28, 2019
    Posts:
    641
    Likes Received:
    216
    Location:
    Staffordshire
    I was under the impression there is a separate rear seal.
