P38A Oil Cooler Pipe removal

Discussion in 'Range Rover' started by ukadamwest, May 18, 2019.

< Previous Thread | Next Thread >
  1. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,658
    Likes Received:
    619
    Location:
    Surrey
    Getting around to finishing off the P38 front cover, which turned into soma additional things, as always, the gearbox oil cooler was leaking, so due to be replaced. of course LR in their wisdom use steel unions on an ally cooler, result, the thread snapped off in the union.

    have the new pipe all set to go in.. however, its the top pipe on the gearbox (return) anyone have any tought how to access the union. its a 19mm spanner and I felt like gynaecologist trying to get my hands in there. I can get a spanner on, but there is no scope to get a turn on. I cracked it off, the only thing I think of is a 19mm stubby spanner.. anyone any ideas ?

    once this is done, its a coolant flush, new front discs rear UJ's and top up on fluids. new brake accumulator went on today. nearly there.. just this pipe access holding me up !

    workshop manual says 'undo unions' yeah right ! is there a method.. something I am missing ? stubby spanner ?

  2. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    2,266
    Likes Received:
    749
    Location:
    Trapped inside my head @ LZ asylum
    I know what I would do. Coz I’m a dick


    Cut the end of the spanner off so it is stubby :D
    Maybe weld bit of wire so you can pull it at an angle from below.

  3. Bix

    Bix Well-Known Member

    Joined:
    Jan 6, 2012
    Posts:
    3,019
    Likes Received:
    138
    Location:
    Shrewsbury
    A crows foot, or a manifold spanner.

  4. stemac33

    stemac33 Active Member

    Joined:
    Apr 22, 2012
    Posts:
    337
    Likes Received:
    97
    Location:
    Accrington, Lancs
    I just used a small 6" spanner real Pita but doable

  5. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    5,205
    Likes Received:
    3,491
    Location:
    Appears out of nowhere.
    Cut a 19mm spanner in half and weld a socket on it.

    Pikey? Yes..

    Works? sometimes.

    Has worked for me, was on a Gems 4.0 though.

  6. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,658
    Likes Received:
    619
    Location:
    Surrey
    thanks guys

  7. Grrrrrr

    Grrrrrr Jedwood Spannerhands

    Joined:
    Jul 8, 2012
    Posts:
    10,837
    Likes Received:
    2,114
    Location:
    Buckinghamshire, UK. ('95 DT)
    Cannot remember it being an issue but I remember the oil pipes fiasco.

    Tap spanner from your plumbing gear?

  8. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    54,031
    Likes Received:
    8,784
    Location:
    Preston Lancs.
    Crows foot or flare nut obstruction spanner. If you have proper tools you can do a proper job.

    Last edited: May 19, 2019
    ukadamwest likes this.
  9. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    3,497
    Likes Received:
    1,006
    Location:
    sud ouest France
    Lower the gearbox cross member down with the box attached, you may gain some access?o_O

    RangeRoller dt likes this.
  10. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,658
    Likes Received:
    619
    Location:
    Surrey
    Bought a set of stubby spanners. no dice. there isn't the space between the union and gearbox bell casing to get a spanner on from underneath. can get it on from above the selector mechanism but from there can't get an arm in there to turn it. can tap the spanner around with a bar onto the spanner, but that is pointless as I'll not be able to do the new union up.

    As per the previous posts. Have a set of flare / open ended ring spanners on the way courtesy of Amazon prime.

    Dropping the cross member or the prop shaft or other items isn't going to work. The casing blocks an open spanner on one side and the selector mechanism blocks the turn on the other.

    Oh how the engineers must have laughed at when it was built. along with blend motors, heater matrix and exhaust manifold lower bolt on number 8.

  11. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    2,266
    Likes Received:
    749
    Location:
    Trapped inside my head @ LZ asylum
    Take a picture for us. I doubt I could even get me hand up there

    ukadamwest likes this.
  12. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,658
    Likes Received:
    619
    Location:
    Surrey
    Like I said... I feel like a gynocologist now

  13. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    2,266
    Likes Received:
    749
    Location:
    Trapped inside my head @ LZ asylum
    Fed up of the smell?

  14. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,658
    Likes Received:
    619
    Location:
    Surrey

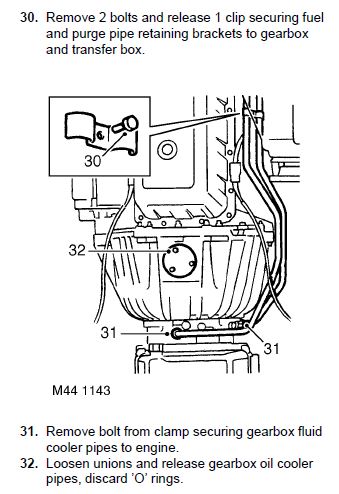

    cant even get a cleat camera pic with the propshaft and exhaust cats in place but the bugger is the union marked 31 here

    oil cooler pipe Capture.JPG

  15. plumbfisher

    plumbfisher Active Member

    Joined:
    May 14, 2013
    Posts:
    410
    Likes Received:
    46
    Location:
    Berwickshire
    Is the leak actually from that union? Mine is leaking around the crimped pipe in the engine bay so I've wondered if it was possible to just change that end of the pipe without having to do the gearbox end (which I took one look at and knew it was beyond me to do). I haven't measured it yet but wondered if a compression coupler of some sort would do it?
    And any pipe joint crimpers that I've seen would certainly not fit under the bonnet.

  16. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    2,266
    Likes Received:
    749
    Location:
    Trapped inside my head @ LZ asylum
    They illustrate it as bolt off bolt on but replacing will be a job if access is too tight to get it off. You may need to lower the box to get to it

    @plumbfisher - I have seen people connect onto the pipes, doing away with just the leaky part. You may find the threads in search bar as that’s where I’d have read them from before i signed up.

  17. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,658
    Likes Received:
    619
    Location:
    Surrey

    no the leak isn't from that union, the leak was from the cooler, however, Lr in their wisdom used steel unions on an ally cooler, the thread broke off in the union. thus new pipe !

  18. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    54,031
    Likes Received:
    8,784
    Location:
    Preston Lancs.
    A few cycles of heat and quench then a Plus gas soak after last heat often does the trick on this type of union. Once movement is felt further Plus gas and a to and fro motion on the nut works wonders. Reassemble with Copaslip.

  19. Grrrrrr

    Grrrrrr Jedwood Spannerhands

    Joined:
    Jul 8, 2012
    Posts:
    10,837
    Likes Received:
    2,114
    Location:
    Buckinghamshire, UK. ('95 DT)
    @MrGorsky: didn't you swap your oil cooler over? How did you get it out?

  20. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,658
    Likes Received:
    619
    Location:
    Surrey
    I cracked off the union and got to turn a 1/4. After the turn there's no space to get a spanner on to turn. open ring spanner set arrived today. I'll try with that next weekend. if not I'll drop the prop the exhaust, remove the engine, and open the sunroof

    EAS works fine though !

    RangeRoller dt and Grrrrrr like this.
