Finally got Foxwell NT530 Pro tool for my D2 & FL1.

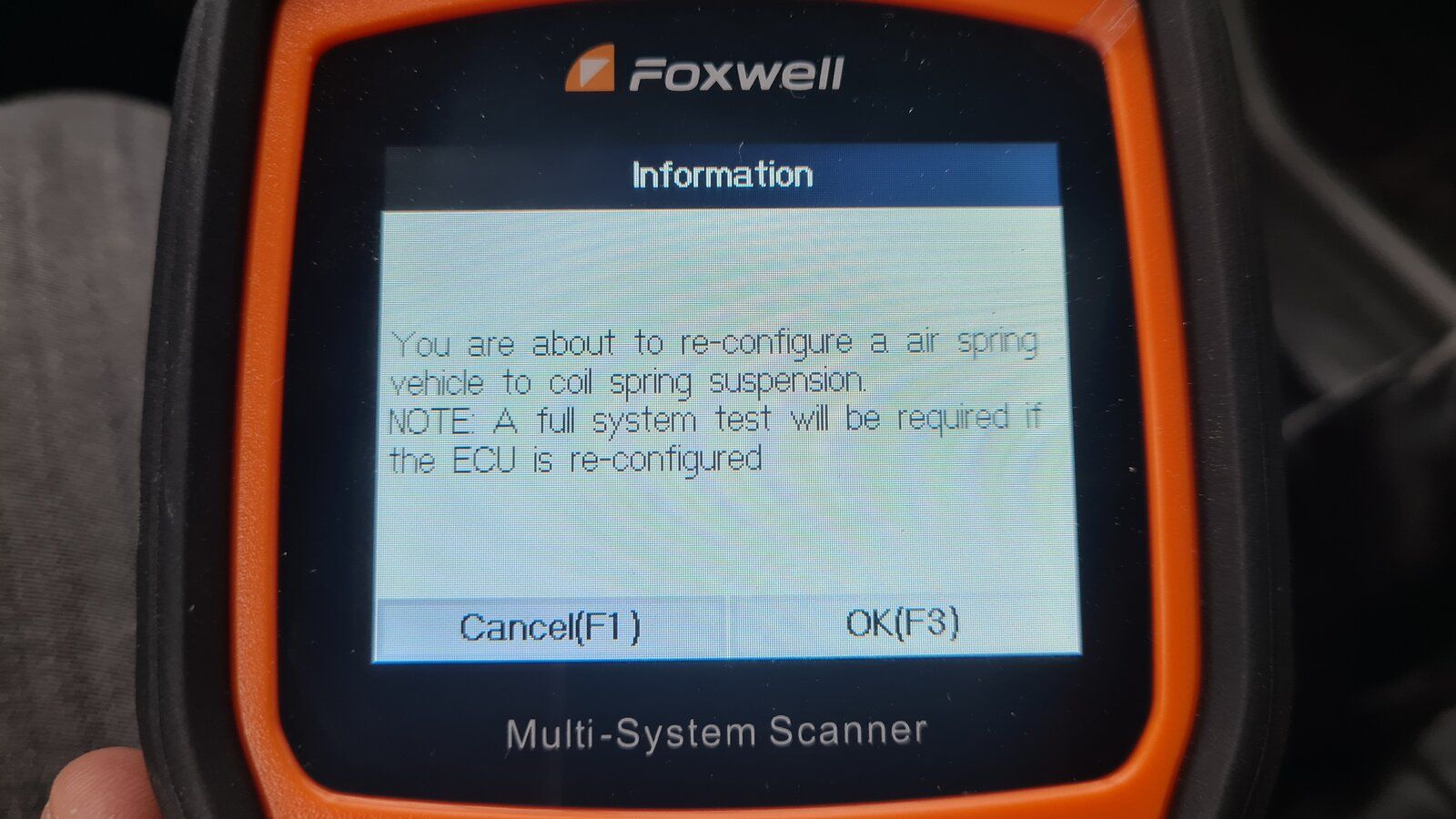

Any ideas why I'm not able to switch the suspension to coils? It says my car is currently with Air suspension and let's me do the switch to Coil. But when I go back to the menu, it's still on Air.

Tool itself seems to work, I can clear the codes and see information from the car.

If you scroll through all the settings in that menu isnt there a "save" or "write" settings option at the end as to not exit without that? If you just simply quit after you modified a setting without saving it somehow it will not be assumed

sierrafery said:
If you scroll through all the settings in that menu isnt there a "save" or "write" settings option at the end as to not exit without that? If you just simply quit after you modified a setting without saving it somehow it will not be assumed
Click to expand...

Have to look again but I think there was OK and Cancel in that menu.

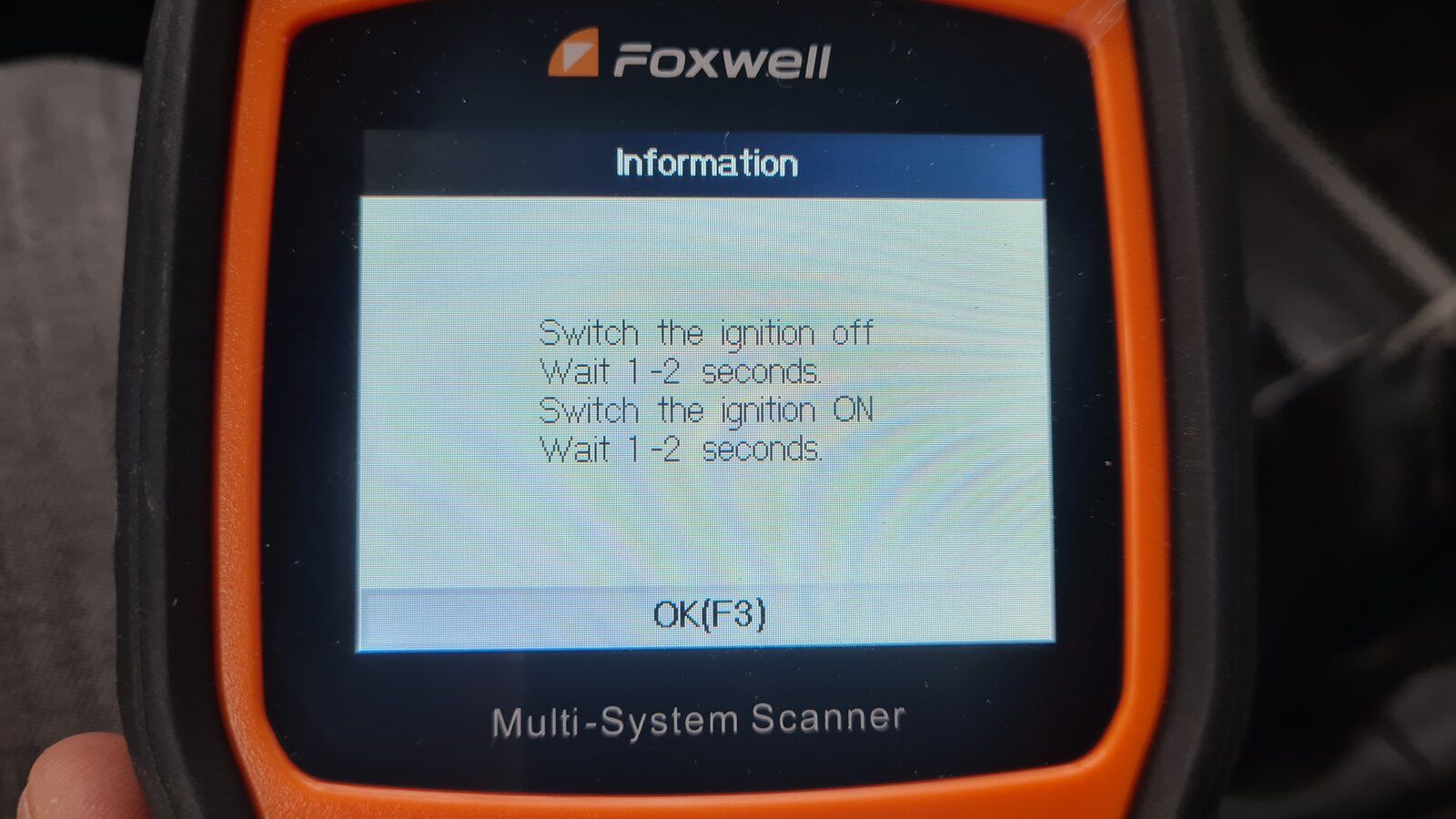

is that in the ABS settings menu? if yes and still no joy e-mail foxwell tech support with this issue cos they used to be helpfull...might be a software glitch cos i.ve seen such things with the NT530 . Try to wait 60 seconds after you switched ign off not as they say just 1-2

Hi, did you get this sorted out ? When I used mine on my son's TD5 after he converted it to springs we had no such problems.

Andy Warren said:
Hi, did you get this sorted out ? When I used mine on my son's TD5 after he converted it to springs we had no such problems.
Click to expand...

No luck. Tried multiple times, waiting longer than instructions also.

Just came to my mind...I have unplugged (the electric connector) the compressor but that shouldn't affect this?

Last edited:
I've seen problems with NT530 in relation with the SLABS in other cases too... not the case for 510 0r 520 ... contact tech support cos they should have an update

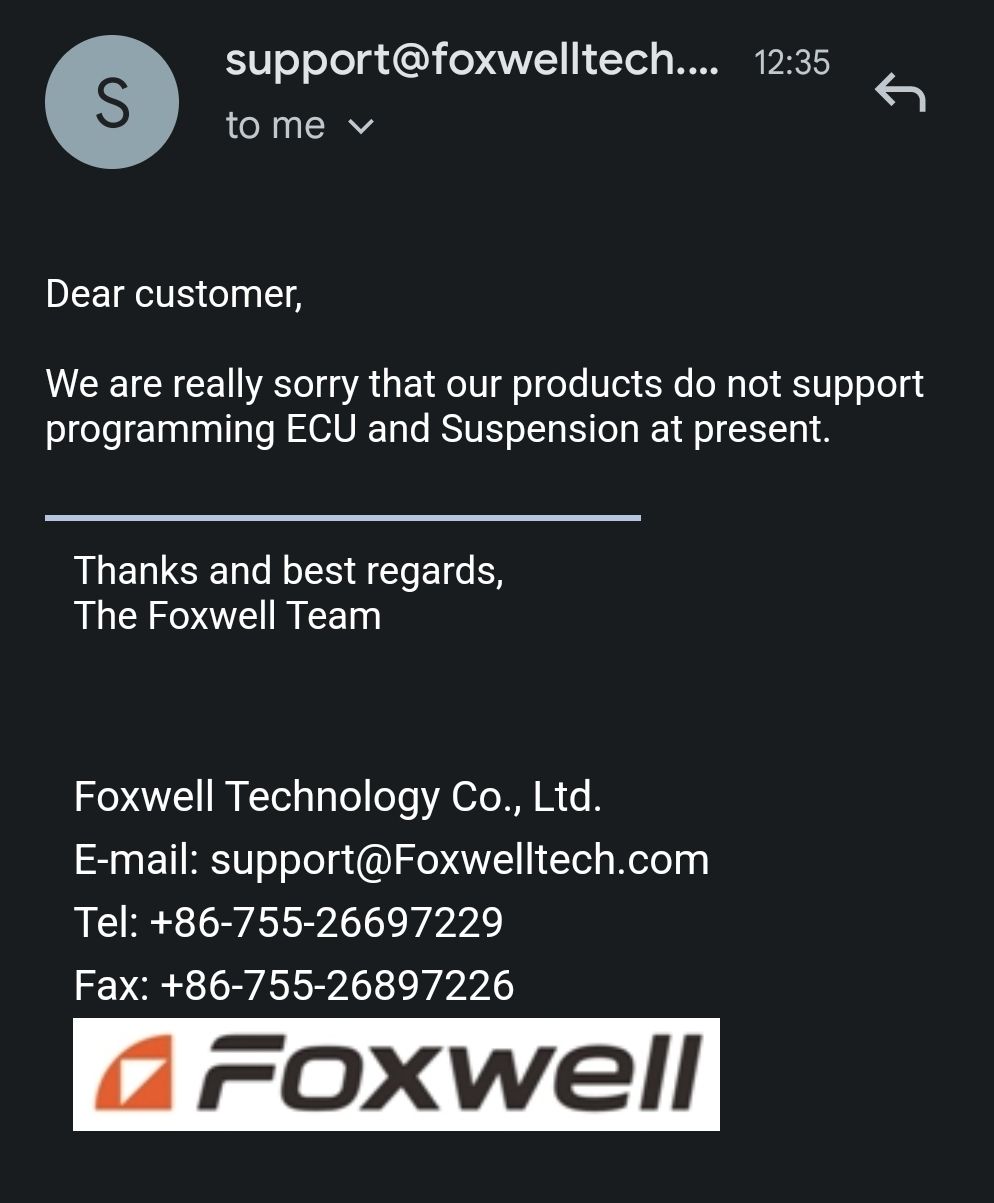

Their answer is a bit strange? Why the functionality would be in the ABS menu if it is not supported?


Seems that foxwell is going down as well as others once reliable which became a joke :confused: ... i've seen the 510 working well for suspension myself, so they upgraded it to 530 which is inferior but for more money :mad:
