No dim dip headlights help !!!

brockus · Aug 7, 2009

The problem is i av no dim dip headlights everthing else works but not the dim dip lights ?

i av put a new switch on it, still the same, i av check the wirin n it seems to be ok...the earths r ok on the stalk n connectors to the lights!

the thing wat is confusing me is i cant seem to find the relay for the headlights?

i have found the headlight washing 1 as they are not work aswell, so willl this effect my lights? n if not wer is my realy for the headlights ?

help please
Anthony

Paul D · Aug 7, 2009

Disco 1, 2 or 3?

discool · Aug 7, 2009

Oh come on Paul 2's & 3's don't have dim-dip.
The question is what year is your D1 as there were two different systems fitted.

Paul D · Aug 7, 2009

How would I know that, I only have a D1 300 Tdi ... I have all Rave manuals and was going to look it up for him!

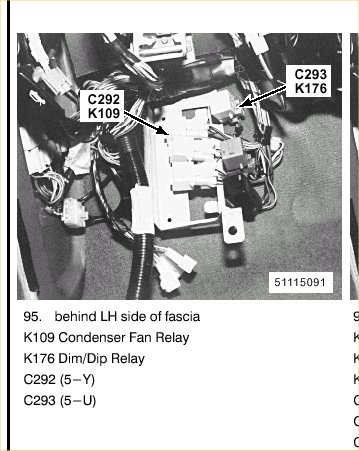

OK, assuming it's a D1 300, same as mine, then the Dim-Dip relay is behind left hand side fascia ...

discool · Aug 7, 2009

Yup same a mine, early disco's have a black box cliped to the steering column i believe.
I have disconnected my DD at the resistor as I have LED sidelights, brilliant but look naff with the yellow DD light.

I'm ok with electrics, but snorkels

brockus · Aug 7, 2009

i av a disco 1 93 is the year n i have already found it, thank god

it was at the right side under the plastic coverings n it was that wat was causin the problem !

stegrundy · Jan 20, 2010

I've a problem with the left side headlight only working intermittantly on dip ( and sometimes the right strobing/flashing ) . Sidelights are fine, Full beam is fine. I swear it is an earthing problem, but I can't find the headlight earth points for the left. I've a '94 300tdi , and the earth point is supposed to be right by the headlamp. Anyone know where it is??

brockus · Jan 21, 2010

i had a problem like this when my light came on n off by themselfs/flashing, then one day no dim dip i found out that my black connotors what conects to the bulbs had melted causein it to sort out and then blow my relay

i have a 200tdi not sure if ur headlights are similer but check to make sure ther are all in good condition and no meltin points.

if this helps ???

anthony

The Mad Hat Man · Jan 21, 2010

thats a common problem - fix is to wire lights up thru a couple of relays. diagram is in Q's and A's section.
