Need a helpful Lightweight owner...

boguing

Well-Known Member

Full Member

Posts

10,470

Location

A bit sarf of Dorking

• Apr 2, 2019

• #1

Any chance you can tell me where the left hand rigid oil cooler pipe is clipped to something solid. None of my pictures caught it and I've forgotten. I'm hoping you don't tell me that I have to drill and tap the chassis, 'cos the engine's in and mainly connected up. Custom bracket from the bottom engine mount nut will be the workaround if you do!



wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Apr 2, 2019

• #2

I'll have a look at mine tomorrow and let you know, unless someone beats me to it.



boguing

Well-Known Member

Full Member

Posts

10,470

Location

A bit sarf of Dorking

• Apr 2, 2019

• #3

That would be great. I'm becoming convinced that there must be a bracket that I've mislaid, most likely fitting onto the bottom flexible mount bush stud.



wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Apr 4, 2019

• #4

boguing said:

That would be great. I'm becoming convinced that there must be a bracket that I've mislaid, most likely fitting onto the bottom flexible mount bush stud.

Click to expand...

Sorry not took photos today, weather was foul, will try again tomorrow for you.



boguing

Well-Known Member

Full Member

Posts

10,470

Location

A bit sarf of Dorking

• Apr 4, 2019

• #5

Oh good, an excuse to show off one of the more successful things from the last 48 hours. My oil pipe support bracket. Freehand, none of this cad and cardboard malarkey...

The left hand end is under the bottom engine mount nut and all is well. Thanks for offering though!



Last edited: May 7, 2019

wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Apr 5, 2019

• #6

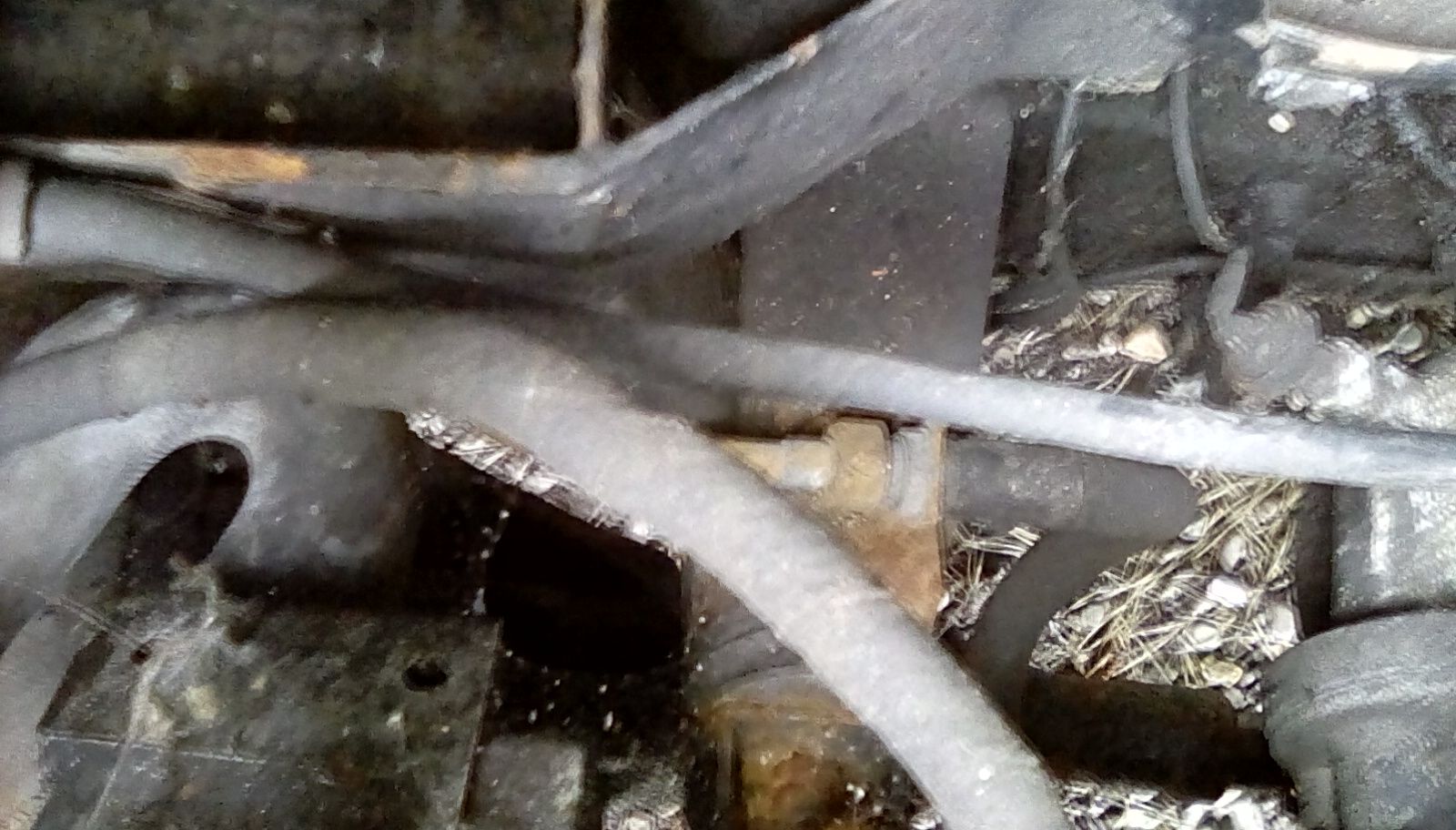

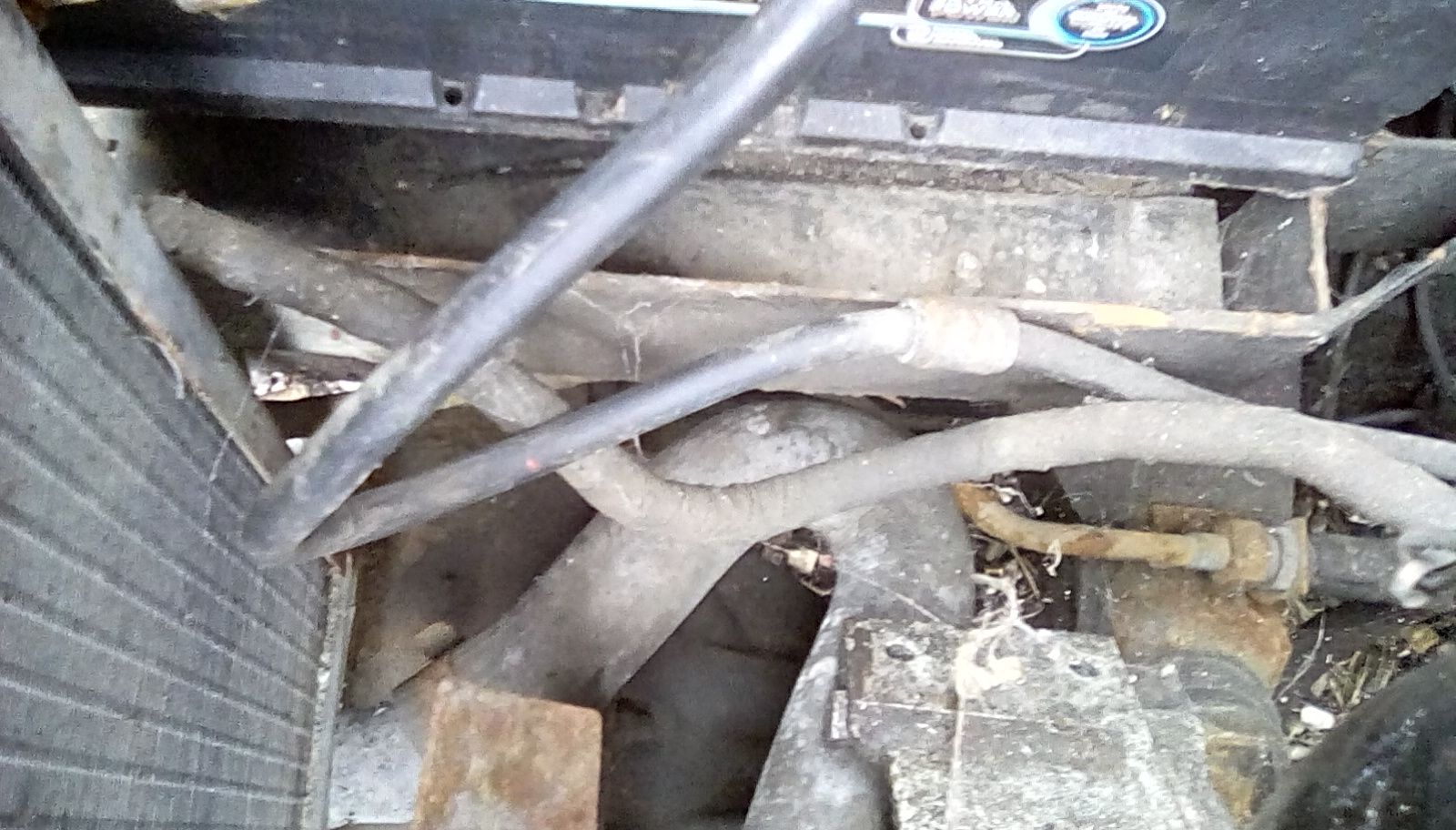

I hope these help. The pipe appears to clip to the engine mount on the chassis



boguing

Well-Known Member

Full Member

Posts

10,470

Location

A bit sarf of Dorking

• Apr 5, 2019

• #7

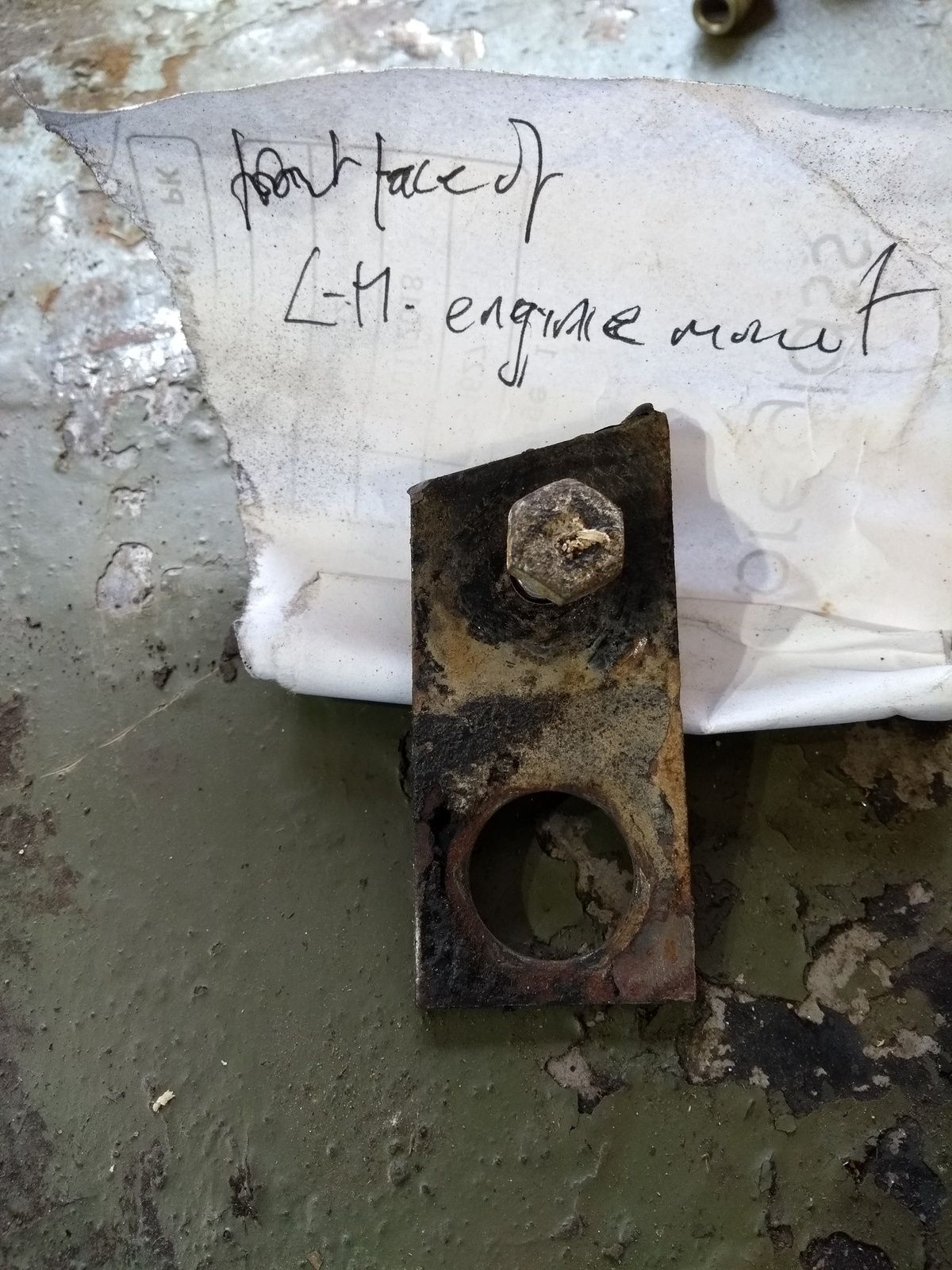

Thanks very much indeed - look what I found this morning...



Attachments

•

  297.8 KB · Views: 200

wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Apr 5, 2019

• #8

boguing said:

Thanks very much indeed - look what I found this morning...

Click to expand...

Ha ha, always the way



mick dodd

Active Member

Posts

106

Location

st asaph denbighshire

• May 7, 2019

• #9

sorry cant help mine has a transit engine !
