P38A Multi plug

Main multi plug connector under the header tank took it apart to clean up all the pins and now car won’t start again all lights on dash but no check engine light and nanocom not talking to engine ecu to check code for becm do these plugs only go back one way or could it have blown a main fuse checked all relays and fuses and all seem good

Oh forgot to say nanocom connecting to other ecu becm and Wabco just not the one I need

I won't be touching that plug then.

Stay well away from it mate bloody nightmare got to fault find all the wires again just hope it’s not blown the fuse box

Grrrrrr said:

I won't be touching that plug then.

Click to expand...

Me neither

pete12345 said:

Stay well away from it mate bloody nightmare got to fault find all the wires again just hope it’s not blown the fuse box

Click to expand...

Fuses will go before the fuse box,try reconnecting it ,may be bad contacts.

pete12345 said:

Oh forgot to say nanocom connecting to other ecu becm and Wabco just not the one I need

Click to expand...

It must be something in the air,my Nanocom talks to everything except the EAS.

pete12345 said:

Stay well away from it mate bloody nightmare got to fault find all the wires again just hope it’s not blown the fuse box

Click to expand...

hi @pete12345

do u want me to try and find the connector part number or loom for u

As am on the parts and ebay looking for bits so just thought if I wished me to see if I can find it , or wiring diagrams etc

gstuart said:

hi @pete12345

do u want me to try and find the connector part number or loom for u

As am on the parts and ebay looking for bits so just thought if I wished me to see if I can find it , or wiring diagrams etc

Click to expand...

What a kind gesture.

tomcat59alan said:

What a kind gesture.

Click to expand...

Many thks, always like to help where I can

just thought as I’m looking for parts wouldn’t hurt to look for the OP at the same time , but alas will have to wait until the op can kindly tell me what connector it’s part of and what it serves

gstuart said:

Many thks, always like to help where I can

just thought as I’m looking for parts wouldn’t hurt to look for the OP at the same time , but alas will have to wait until the op can kindly tell me what connector it’s part of and what it serves

Click to expand...

Think it's the big round connector under the expansion tank.

tomcat59alan said:

Think it's the big round connector under the expansion tank.

Click to expand...

thks, just looking for a full electrical manual so can cross reference it with the pins Piet numbers, well trying anyway, lol

Sorry gstuart was watching the football yer please any wiring diagrams may help it’s the main connector from the fuse box that then goes through the firewall will have to check all the wiring into the bottom of the fuse box I think waiting for a bit of dry weather

pete12345 said:

Sorry gstuart was watching the football yer please any wiring diagrams may help it’s the main connector from the fuse box that then goes through the firewall will have to check all the wiring into the bottom of the fuse box I think waiting for a bit of dry weather

Click to expand...

hiya

no probs , found this so far , hope it helps mate

https://fuse-box.info/land-rover/land-rover-range-rover-p38a-1994-2002-fuses

https://www.stockholmviews.com/p38/index.html#links

https://www.nanocom-diagnostics.com/downloads/preview/p38-becm

heres also a full suspension manual just in case it’s useful

https://uploads.tapatalk-cdn.com/files-1089/EAS20-20Beginers2028Rev29.pdf

alas I can’t seem to download the rave manual on my iPad

hope the links will be useful to u , still hunting for connectors for u

Another link

https://www.simtekuk.co.uk/index.php/automotive_connectors/land_rover_-_rover_connectors/?k=:8:55999:

under the seat
https://sites.google.com/site/rangeroverp382/home/becm-body-electrical-control-module

Are these the connectors plse, thks

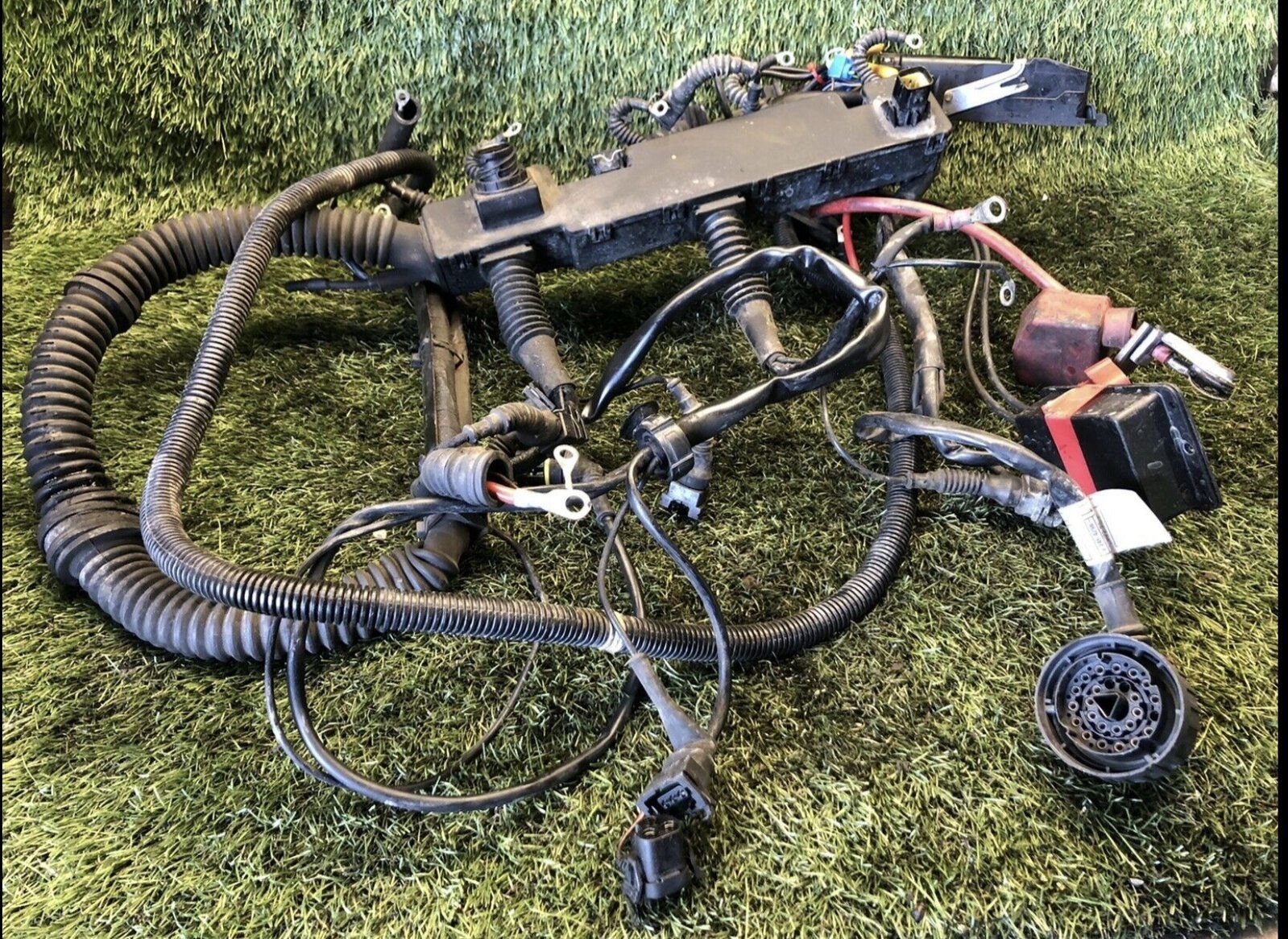

Or a loom ?? Is it the large round one please ur after

apologises not sure of the engine

https://www.ebay.co.uk/itm/203363107929?hash=item2f5962c459:g:Su4AAOSwPMBggGbl

gstuart said:

Or a loom ?? Is it the large round one please ur after

apologises not sure of the engine

https://www.ebay.co.uk/itm/203363107929?hash=item2f5962c459:g:Su4AAOSwPMBggGbl

View attachment 241573

Click to expand...

That's the diesel engine loom mate,it's similar to the round one in the photo but it's as post #11 under the expansion tank.

tomcat59alan said:

That's the diesel engine loom mate,it's similar to the round one in the photo but it's as post #11 under the expansion tank.

Click to expand...

many thks, apologises , so is it a petrol loom connector I’m looking for plse, have been trying to find a picture of the engine and expansion tank location in order to pin where the connector is

was also going from the OP saying from the fusebox

plus don’t know why I can’t download the rave on my iPad

thks again @tomcat59alan

gstuart said:

many thks, apologises , so is it a petrol loom connector I’m looking for plse, have been trying to find a picture of the engine and expansion tank location in order to pin where the connector is

was also going from the OP saying from the fusebox

plus don’t know why I can’t download the rave on my iPad

thks again @tomcat59alan

Click to expand...

You won't see it in a photo, you've got to lift the tank out of the way.
