Missing bolts on sump, what are they?

Discussion in 'Land Rover Freelander' started by WLJayne, May 9, 2012.

< Previous Thread | Next Thread >
  1. WLJayne

    WLJayne Well-Known Member

    Joined:
    Apr 1, 2012
    Posts:
    3,810
    Likes Received:
    13
    Location:
    Derpyshurr
    Hi guys,

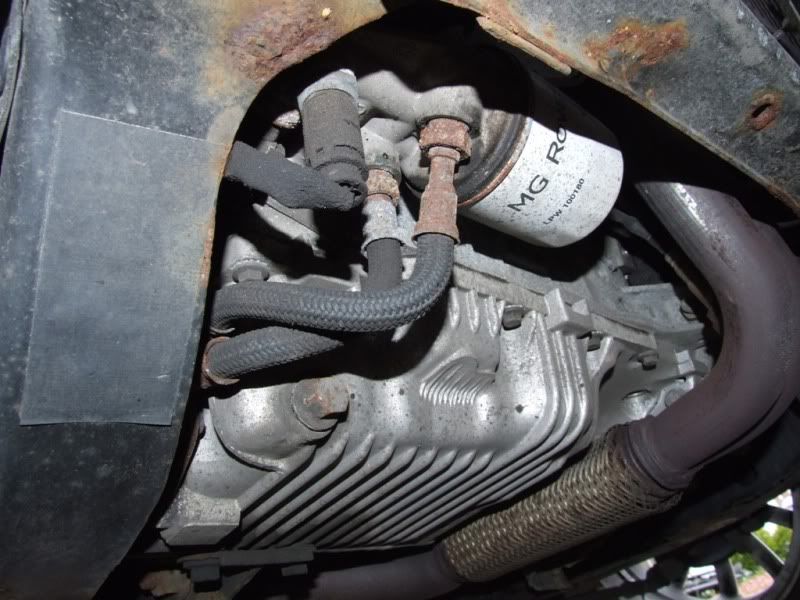

    I was working on the exhaust yesterday and I noticed a bracket underneath the oil sump with two bolt holes in it, with threads going into the sump. I found a pic, you can see the two bolt heads in the bottom left:

    [​IMG]

    Mine are missing. What are they for and do I need to get some in there? If so could someone tell me what size they are :)?

    Thanks,

    Will.

  2. Hawkmoon

    Hawkmoon New Member

    Joined:
    Oct 31, 2011
    Posts:
    33
    Likes Received:
    0
    Location:
    The original home of Aston Martin
  3. WLJayne

    WLJayne Well-Known Member

    Joined:
    Apr 1, 2012
    Posts:
    3,810
    Likes Received:
    13
    Location:
    Derpyshurr
    Corr blimey that's useful! You're a legend matey :D!!

    And maybe, just maybe that is the source of the knock that happens whenever I accelarate/decelerate and/or shift gears at low speeds! Thanks a million.

    Will.

  4. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,554
    Likes Received:
    302
    Location:
    stoke-on-trent
    simular but different on the td4

  5. Hawkmoon

    Hawkmoon New Member

    Joined:
    Oct 31, 2011
    Posts:
    33
    Likes Received:
    0
    Location:
    The original home of Aston Martin
    No worries!

    For what its worth, I'm thinking an ebay special, 'spares or repairs' auction or wheel nut sale would a be place to get the missing parts purchased!
    Drop an update with a few pics when you get they bits fitted!

  6. WLJayne

    WLJayne Well-Known Member

    Joined:
    Apr 1, 2012
    Posts:
    3,810
    Likes Received:
    13
    Location:
    Derpyshurr
    I was on the phone with Bell Engineering today about the transmission, and I mentioned this. They said that there's probably supposed to be something in there. Probably two M8 bolts, I just have to stick something down the hole to see how long the bolts need to be. I'll be able to pick them up from Halfords or screwfix and jobs a goodun.

    Thanks guys, I'll let you know if this solves the clonk issue.

    Will.

  7. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,278
    Location:
    louth lincs
    so you have two holes and your going to fit two bolts why ,if its not leaking oil out of then ,

  8. longdog

    longdog Active Member

    Joined:
    Apr 6, 2007
    Posts:
    827
    Likes Received:
    40
    Location:
    Bratfud
    See post 2

  9. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,278
    Location:
    louth lincs
    so your fitting a stay ?

  10. longdog

    longdog Active Member

    Joined:
    Apr 6, 2007
    Posts:
    827
    Likes Received:
    40
    Location:
    Bratfud
    Or refitting it after someone left the bolts out.

  11. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,278
    Location:
    louth lincs
    fair enough it hasnt been clear but it is a common issue with people seeing hole and must fill it

  12. longdog

    longdog Active Member

    Joined:
    Apr 6, 2007
    Posts:
    827
    Likes Received:
    40
    Location:
    Bratfud
    And finding a plug on the wiring loom:scratching_chin::rolleyes:

  13. WLJayne

    WLJayne Well-Known Member

    Joined:
    Apr 1, 2012
    Posts:
    3,810
    Likes Received:
    13
    Location:
    Derpyshurr
    When I sees a bracket wif two oles on top of a big hunk o' metal wif two oles in it, it sets me "that looks like there should be summat 'oldin 'em together" alarm in the old bean.

    I reckon som berk forgot to put them back in when the oil rail and HG was updated. That's the most likely explanation. As in post #2, I think that torque dampening is it's most likely function. I'll have a good look when i fit the new exhaust manifold gasket this weekend.

    Will.

  14. Hawkmoon

    Hawkmoon New Member

    Joined:
    Oct 31, 2011
    Posts:
    33
    Likes Received:
    0
    Location:
    The original home of Aston Martin
    Hey Will, I was searching around (for a potential upgrade for my sump guard/under tray) and came across this:

    Land Rover Freelander 1.8 16v Engine Mounting Bracket, KKU105860 | eBay

    &

    Engine Mount Rear Lower Tie Bar KKH102260 Island 4x4 - Specialists in Land Rover and Range Rover Parts and accessories for all models. UK and worldwide mail order.

    maybe helpful!;)

  15. WLJayne

    WLJayne Well-Known Member

    Joined:
    Apr 1, 2012
    Posts:
    3,810
    Likes Received:
    13
    Location:
    Derpyshurr
    Well I stuck two M12 X 30mm bolts with washers on at 40 f/lb and it didn't cure the knock. So I'm thinking it's something else. The rear diff mount has been replaced and at the moment the rear prop is off. It still sounds like it coming from the middle or front. Any ideas what it could be?

  16. James.

    James. Member

    Joined:
    Sep 8, 2010
    Posts:
    55
    Likes Received:
    1
    Location:
    Ferndown, Dorset
    umm... you didnt just literally put a m12 bolt in the hole did you :eek:

  17. WLJayne

    WLJayne Well-Known Member

    Joined:
    Apr 1, 2012
    Posts:
    3,810
    Likes Received:
    13
    Location:
    Derpyshurr
    Well....yes...pretty much. The holes are 37mm deep with an M12 thread, so in line with the images of these bolts I've seen I put two in with washers under the heads. There were washer marks around the holes, so there were defintely fixings in there before. Some bugger just forgot to put them back in.

  18. James.

    James. Member

    Joined:
    Sep 8, 2010
    Posts:
    55
    Likes Received:
    1
    Location:
    Ferndown, Dorset
    okay but what's the point of putting a bolt in a empty bolt hole ... if there is meant to be a bracket then fair enough but put the bracket on too.

    If you look on the Gearbox and other main parts of the engine there are blank holes but this is because that component might be mounted slightly different on a different make of car.... so by putting a bolt and washer in a pointless blank hole is well kind of pointless and wont solve your knocking issue, you sure there isnt a bracket that goes there like in post #2

    not trying to just be argumentative but im just lost at why you thought putting a bolt in a empty hole would solve a knocking noise :confused:

  19. WLJayne

    WLJayne Well-Known Member

    Joined:
    Apr 1, 2012
    Posts:
    3,810
    Likes Received:
    13
    Location:
    Derpyshurr
    ;)

  20. derek1603

    derek1603 Member

    Joined:
    Aug 17, 2009
    Posts:
    21
    Likes Received:
    0
    Location:
    Norfolk Broads
    I suppose it's time I joined in the forum (hello from sunny Norfolk) I have gained a lot of information from it. The missing bracket is the "IRD support bracket", it fits around the drive shaft and has 9 bolts (I will try and find a picture) they are a pig to get some of the bolts in, when you see the shape of it you will understand why!I would think it was left off when someone had the sump off if they put the lower engine tie bar on first. I am not sure how needed it is but imho I would want to refit it.
