Military door top glass rattling like a Mo-fo!

Discussion in 'Defender 90 / 110 / 130' started by Mac-1990, Feb 20, 2022.

< Previous Thread | Next Thread >
  1. Mac-1990

    Mac-1990 Member

    Joined:
    Dec 18, 2017
    Posts:
    72
    Likes Received:
    9
    Location:
    West Yorkshire
    Hi all,
    Ex military 110 door top sliding glass is driving me insane the rattling is beyond a joke now. Wedging card up in the gap works a while until the compact to much and drop out or you open the windows for a cheeky macdonalds drive through they drop out.

    Wondering is there some replacements seals that they need? Or something people have used themselves and made up something to stop the rattle. I think I've found some parts for it but them seem stupid expensive for what essentially is some foam?

    Thanks in advance!

  2. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    9,043
    Likes Received:
    4,022
    Location:
    Far away from you!!
  3. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,922
    Likes Received:
    1,829
    Location:
    Warwick
    Does it not just need the felt runners replacing that sit in the frame surrounding the glass? I have done it a couple of times with mine and you do not need to dismantle to door to do it. After removing the old one you open the window fold the felt strip in half and insert it into the groove starting at the edge of the open window. Then close the window over the strip and reopen the window moving the felt with the glass through the channel in the frame. Keep repeating this until the felt strip sits along the whole length.
    I got mine from here but cannot remember the size, will look up my last order for you.
    https://www.woolies-trim.co.uk/

    I have done mine twice and helped a friend do his, the description of how to do it makes it sound more complicated and difficult than it is, in reality is is a 10min job.

    EDIT: This is what i used to do mine. https://www.woolies-trim.co.uk/product/1717/black-felt-strip

  4. Mac-1990

    Mac-1990 Member

    Joined:
    Dec 18, 2017
    Posts:
    72
    Likes Received:
    9
    Location:
    West Yorkshire
    Hi that's great! Thanks so how does the felt stay in place? Does it need gluing?

  5. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,922
    Likes Received:
    1,829
    Location:
    Warwick
    The felt sits in a channel has a lip on it rather than just being u-shaped so the lip keeps it in place. No glue needed.

  6. Mac-1990

    Mac-1990 Member

    Joined:
    Dec 18, 2017
    Posts:
    72
    Likes Received:
    9
    Location:
    West Yorkshire
    Thanks so much, just ordered 2 lengths at 6ft, that ought to be enough its just the tops you do right? 2 channels a side?

  7. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,922
    Likes Received:
    1,829
    Location:
    Warwick
    I think so but obviously there are two top Channels one for each panel. I will check mine next time I am in the barn (currently undergoing rebuild)

    Mac-1990 likes this.
  8. V8bob

    V8bob Active Member

    Joined:
    Nov 30, 2018
    Posts:
    120
    Likes Received:
    69
    Location:
    Midlands
    The bottom slides have 6 little plastic runners, 3 per window. These wear out. Tell tale is scratches in the bottom channel. Bit of a job to replace, and they are a ridiculous price at 3+ quid each.
    But if they are worn, changing the felt won’t stop the rattle when the window is open.

    oh, the forward window has felt top and front, rearward window has felt top and rear.

  9. Mac-1990

    Mac-1990 Member

    Joined:
    Dec 18, 2017
    Posts:
    72
    Likes Received:
    9
    Location:
    West Yorkshire

  10. V8bob

    V8bob Active Member

    Joined:
    Nov 30, 2018
    Posts:
    120
    Likes Received:
    69
    Location:
    Midlands

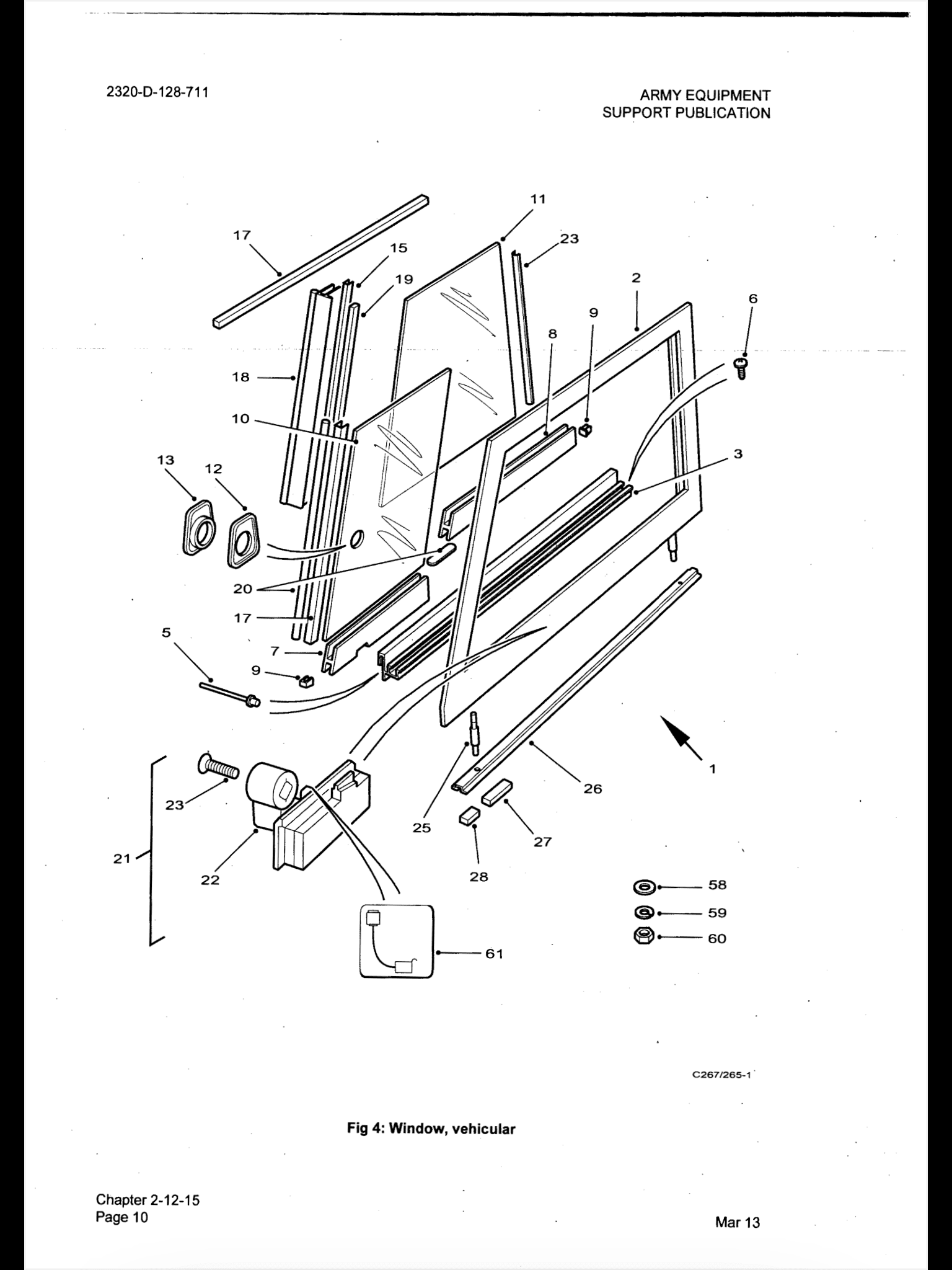

    Well…..
    No3 is the bottom bit that the 2 windows sit/slide on.
    No7 and No8 are the bottom metal bits attached to the windows.

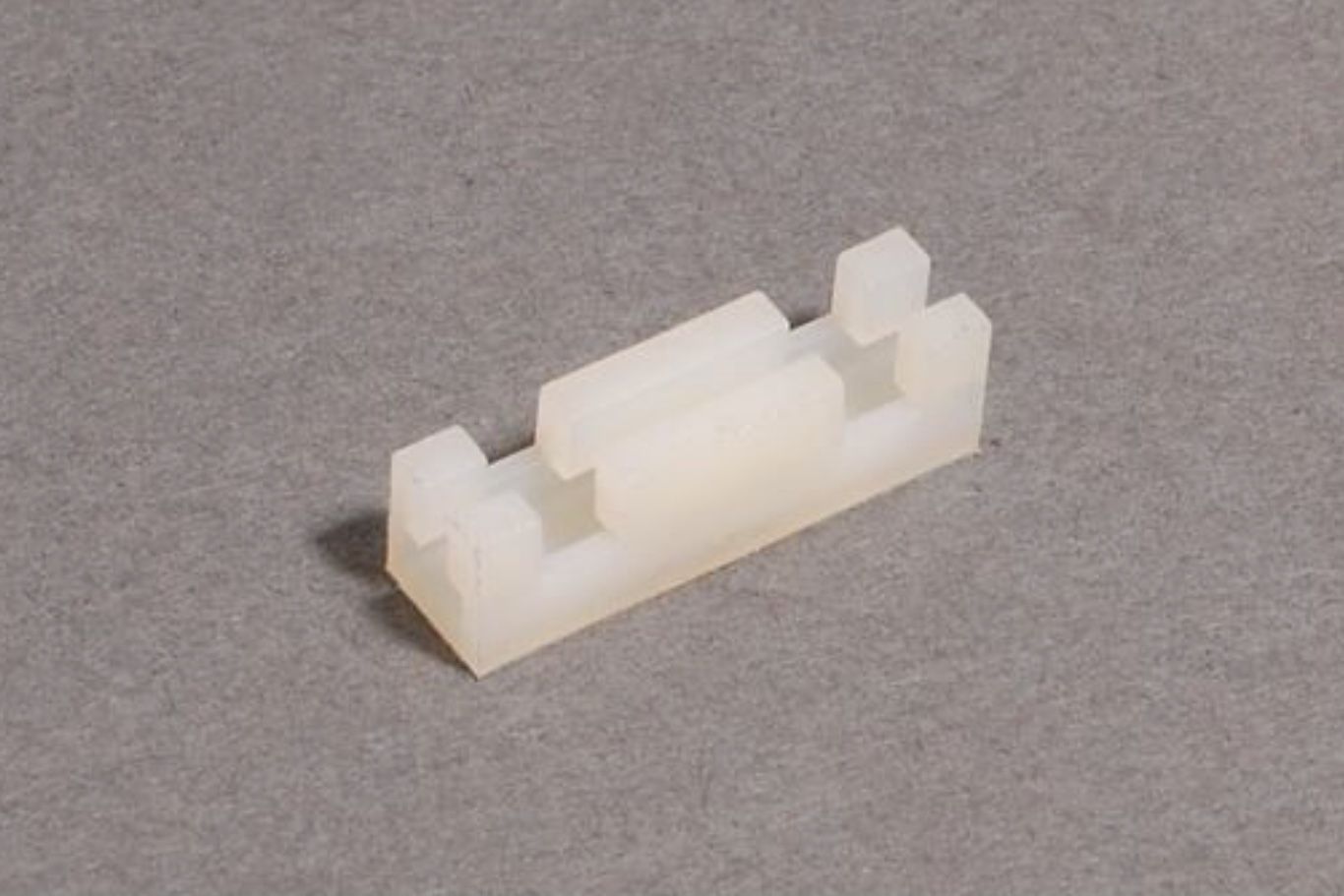

    No9 are the little plastic bits - these are fixed to the underside of the metal slide attached to the windows.
    Pat number: MTC6221


    Hope that makes sense.

    v8250 and Mac-1990 like this.
  11. Mac-1990

    Mac-1990 Member

    Joined:
    Dec 18, 2017
    Posts:
    72
    Likes Received:
    9
    Location:
    West Yorkshire
    Perfect sense thanks! So do you drill out the rivets in the window lock and the 2 on that strip to take it to bits?

  12. V8bob

    V8bob Active Member

    Joined:
    Nov 30, 2018
    Posts:
    120
    Likes Received:
    69
    Location:
    Midlands
    Yes, You need to take the window locks out completely. Takes a bit of wiggling.
    Then the screws in the bottom of the channel if they are still present. Then the rivet each end.
    Both windows then come out attached to the bottom runner. They are on like a T track.
    The plastic bits will be visible once you slide the windows off the ends of the track.

    v8250 and Mac-1990 like this.
  13. Mac-1990

    Mac-1990 Member

    Joined:
    Dec 18, 2017
    Posts:
    72
    Likes Received:
    9
    Location:
    West Yorkshire
    Mate thanks for the info its dynamite! I think I'll see how well they rattle or hopefully don't once I've fitted the felt before shelling out and tearing the door tops down fitting bits of plastic, never know 36 year old bits of plastic might be in really good condition

  14. Zed.

    Zed. Well-Known Member

    Joined:
    Jul 24, 2015
    Posts:
    1,693
    Likes Received:
    1,858
    Location:
    Deepest Bandit country (Wales)
    this is something on my list, ever expanding list:oops:

    Rich.

    Mac-1990 likes this.
