Method to Remove Rusty Rounded Caliper Bolts

Discussion in 'General Land Rover Forum' started by Muse, Jan 8, 2017.

  1. Muse

    Muse Member

    Joined:
    Feb 3, 2016
    Posts:
    26
    Likes Received:
    2
    Location:
    Cumbria
    Hey! I'm looking to buy x4 front caliper retaining bolts for my Disco II. I believe this is them:
    http://www.paddockspares.com/ftc2996-bolt-caliper.html

    They're 19mm double hex part number: FTC2996 Horrible things to remove... I've completely rounded the rusty old ones and now they're stuck... haha. Is there a cheaper bolt to use which isn't a double hex? £17 for 4 is pretty steep... Thanks!
    ---------------------------------------------------------------------------------------------------------
    EDIT>>
    Thanks for all the advise! Managed to get two calipers off and changed the discs and brakes!
    My method using all of your comments to guide me, because when I used a box wrench with hardly any force the ribs completely rounded off.

    1. Wire brush all the crap off the bolt
    2. SOAK in pen oil or WD40
    3. WHACK with a hammer hard many times
    4. To make the bolt fit an IRWIN Bolt Extractor, I used a file (dremel) to give the bolt some edges and small enough to go into the socket.
    5. Keep trying the socket for a decent fit, then hammer into place until fairly tight and deep.
    6. SLOWLY begin to remove the bolt, if the extractor starts to wobble as its spinning, remove ratchet and replace in another position.
    7. It will eventually come off once the socket bites.

    Wow... they're amazing tools. Along with the impact screw driver to remove the disc screw.

    Last edited: Jan 10, 2017
  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    67,191
    Likes Received:
    3,073
    Location:
    louth lincs
    you need the proper bolts ,brakes are fairly important, whack the heads hard with a decent sized hammer then hammer your socket back on

    neilly likes this.
  3. Muse

    Muse Member

    Joined:
    Feb 3, 2016
    Posts:
    26
    Likes Received:
    2
    Location:
    Cumbria
    Good point mate. I appreciate your advice on my past two posts.
    As for the old one, it was so rusted, on turn of the 19mm double hex rounded it bare. I have some irwin extractor bolt sockets but its slightly too big for them, do you think I could file them smaller then try with another socket? I've been at it for 2 hours! fed up... :(

  4. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    67,191
    Likes Received:
    3,073
    Location:
    louth lincs
    whack them quite a few times before anything else, it will mushroom the head and shock the thread loose

    Muse likes this.
  5. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    5,770
    Likes Received:
    2,368
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    I'd agree with James here. There are many times when you can get away with the odd nut and bolt from Screwfix or even B&Q. You might even find what you're looking for in what my father used to call his "Joy box"*.
    But there are times when only the best is good enough, and there is only one right part, for example, brakes, steering, towbars, cylinder head and so on. There are no doubt other places and fittings which can be added to the list. In other words, bite the bullet and buy the recommended parts in this case.

    *It was called his "Joy Box" because whenever he was asked if he had a part, he'd have a rummage in this big box of bits and then he'd get asked "Any joy Dave?"

    Muse likes this.
  6. Muse

    Muse Member

    Joined:
    Feb 3, 2016
    Posts:
    26
    Likes Received:
    2
    Location:
    Cumbria
    Thanks for that Brian, good old joy box haha.
    I've purchased the original parts, I'll try whacking it more with a hammer and see if I can file it down to fit my extractor. If this doesn't work I'll try a hammer and chisel. Replacing the discs and brake is the easy bit, it's removing the bloody bolts!

  7. Brown

    Brown Well-Known Member

    Joined:
    Jul 11, 2012
    Posts:
    4,504
    Likes Received:
    566
    Location:
    East Midlands
    A lot of folks on here swear by those Irwin bolt grip sockets for caliper removal. An imperial 1/2" socket is a slightly tighter fit than the equivalent metric one and might be helpful if you have one to hand.

    Flossie likes this.
  8. Muse

    Muse Member

    Joined:
    Feb 3, 2016
    Posts:
    26
    Likes Received:
    2
    Location:
    Cumbria
    Thanks! I have the Irwin extractors, they're great. however, two of the double hex retaining bolts have completely rounded... I had to file it smaller to fit socket due to being between two sizes. The socket just keeps slipping despite a massive grip to begin with.... any advice please? I've soaked them in special Penetrating type of WD40 and whacked many times with a hammer.

    Feel like I've wasted 3 hours!! :(

  9. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    8,597
    Likes Received:
    2,488
    Location:
    Oxfordshireness
    Can you get an impact wrench ( if you have one ) on it with the irwin sockets?

    Cheers

  10. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    3,198
    Likes Received:
    953
    Location:
    Shropshire
    1/2" multipoint socket fits real snug or the same in ring spanner.
    Edit to say- sorry! Wrong vehicle:oops:
    Edit edit...19mm? Heads?Or thread diameter?

    Last edited: Jan 10, 2017
  11. Muse

    Muse Member

    Joined:
    Feb 3, 2016
    Posts:
    26
    Likes Received:
    2
    Location:
    Cumbria
    Thanks for all the advise! Managed to get two calipers off and changed the discs and brakes!
    My method using all of your comments to guide me, because when I used a box wrench with hardly any force the ribs completely rounded off.

    1. Wire brush all the crap off the bolt
    2. SOAK in pen oil or WD40
    3. WHACK with a hammer hard many times
    4. To make the bolt fit an IRWIN Bolt Extractor, I used a file (dremel) to give the bolt some edges and small enough to go into the socket.
    5. Keep trying the socket for a decent fit, then hammer into place until fairly tight and deep.
    6. SLOWLY begin to remove the bolt, if the extractor starts to wobble as its spinning, remove ratchet and replace in another position.
    7. It will eventually come off once the socket bites.

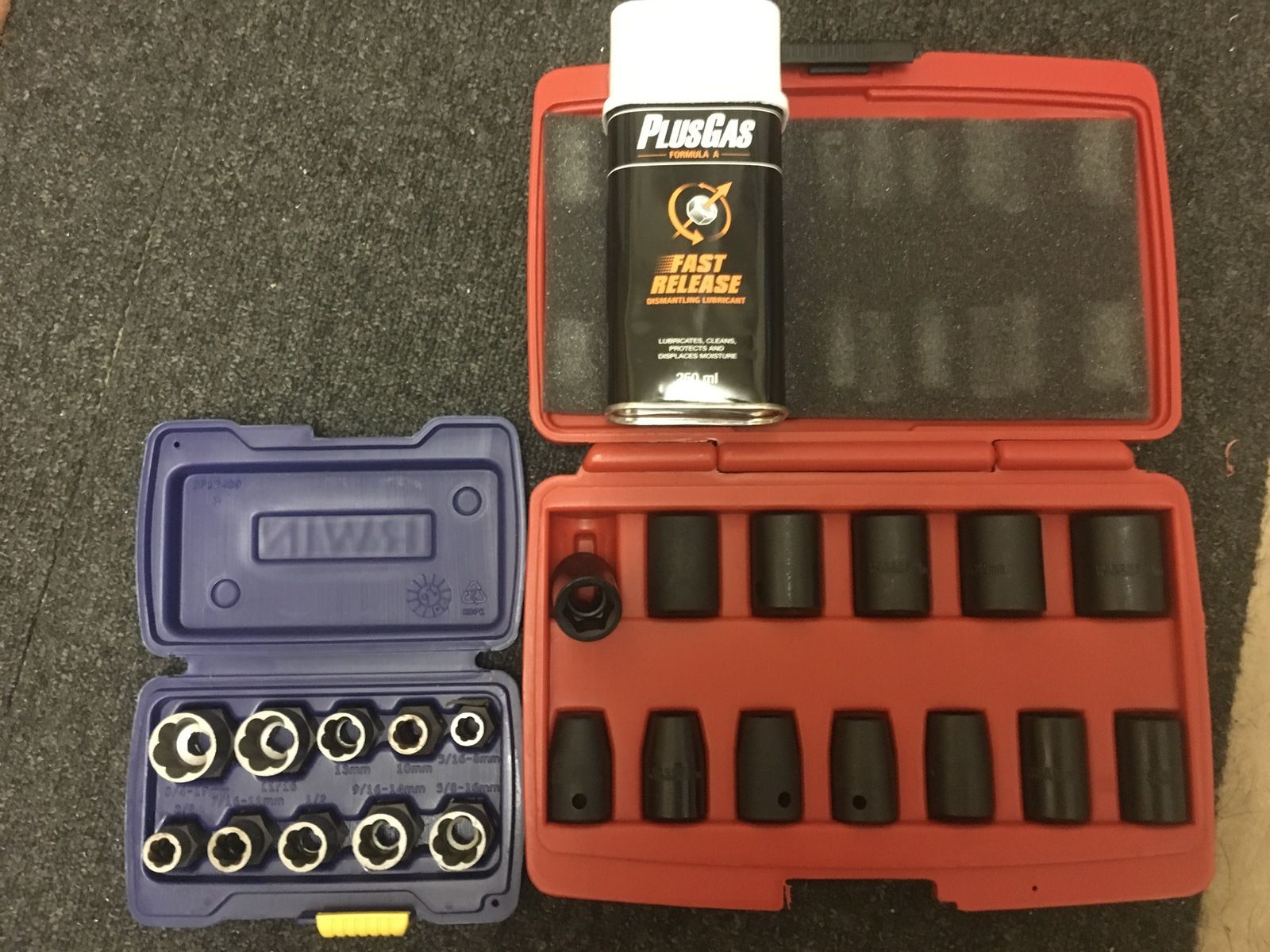

    Wow... they're amazing tools. Along with the impact screw driver to remove the disc screw.

    [​IMG]

  12. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    8,597
    Likes Received:
    2,488
    Location:
    Oxfordshireness
    Yep,

    Technically , they are MULLERED.... :p:p:p:p.......nice job getting them off.

    Cheers

  13. Muse

    Muse Member

    Joined:
    Feb 3, 2016
    Posts:
    26
    Likes Received:
    2
    Location:
    Cumbria
    Mullered=Extremely Drunk? I feel like it after loosing my temper all night until I figured a feasible method out of removing the ba$t@rds haha.
    The car was going to the scrap yard earlier on! :mad::mad: :rolleyes:

    neilly likes this.
  14. meego

    meego Well-Known Member

    Joined:
    May 20, 2010
    Posts:
    3,561
    Likes Received:
    1,051
    Location:
    Gods Country
    Sounds like you only have a half set of the Irwins.

  15. Muse

    Muse Member

    Joined:
    Feb 3, 2016
    Posts:
    26
    Likes Received:
    2
    Location:
    Cumbria
    Got the full set mate. However mine were so badly corroded that it actually just slides when I used the correct socket. Had to quickly dremel down to the lower socket.

  16. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    4,997
    Likes Received:
    515
    Location:
    essex and beyond
    Complete set is fourteen I believe

  17. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    13,542
    Likes Received:
    2,224
    Location:
    Swanley , Kent
    have got both irwin sets

    theres 10 x in there,

    maybe there's another set


  18. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    13,542
    Likes Received:
    2,224
    Location:
    Swanley , Kent
    u deserve a bottle after getting them out

    have before now when all else has failed in putting some stilsons on a bolt , never fails, lol

  19. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    4,997
    Likes Received:
    515
    Location:
    essex and beyond
    l
    Yes another set with four in, for larger heads, up to 24 mm from memory

  20. meego

    meego Well-Known Member

    Joined:
    May 20, 2010
    Posts:
    3,561
    Likes Received:
    1,051
    Location:
    Gods Country
    Usually if one is spinning on the head, the next one down fits it. That's why I thought you only had the half set. No worries. You got them off which is the important thing. A Dremel is high on my to buy list.
