Mantec Fitted

Stuballsed · Oct 5, 2010

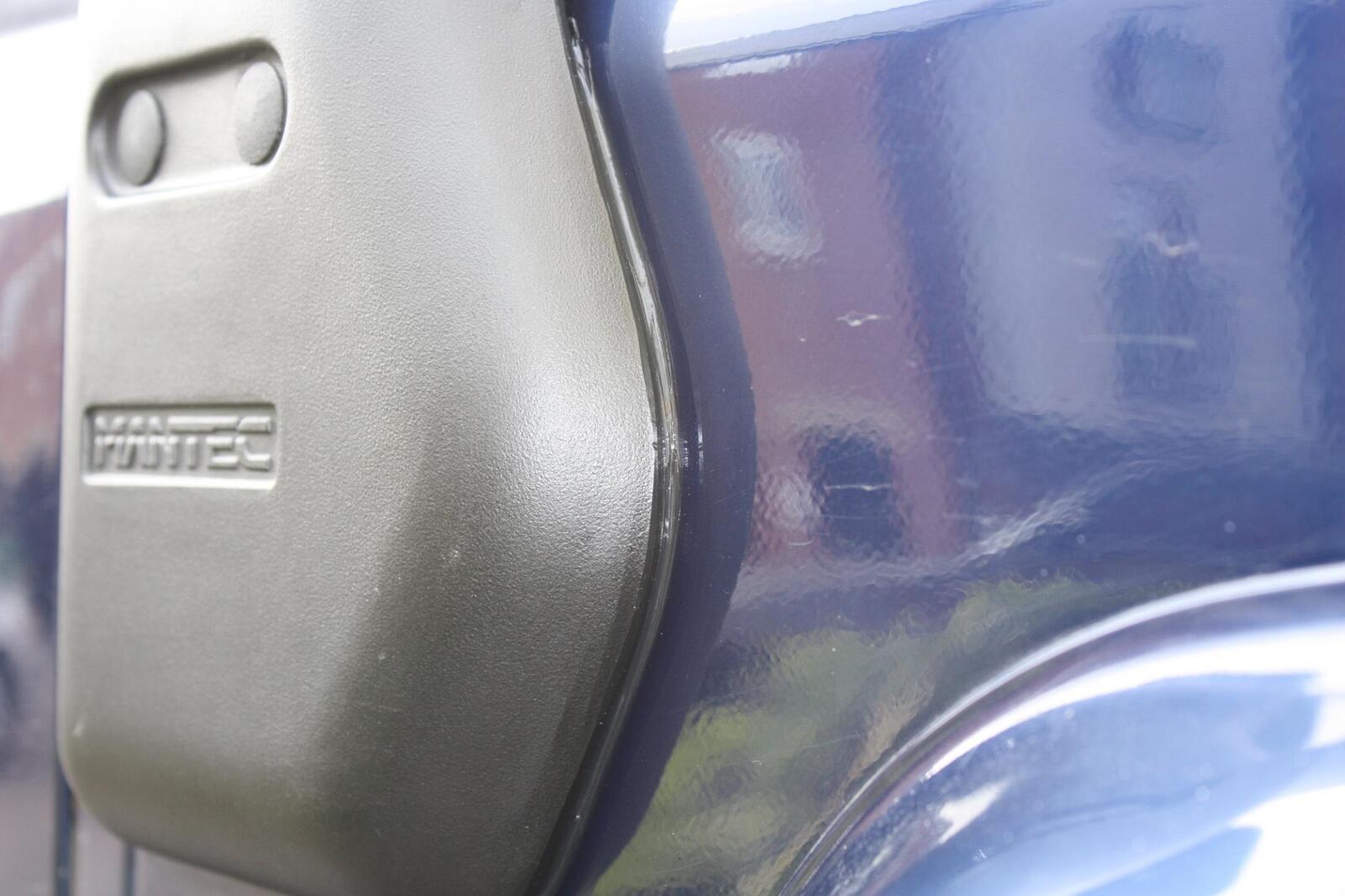

Well, just got me new Mantec Snorkel fitted. Went ok, no thanks to Mantec who seam to think fitting instructions are not neccessary!

Anyway, used plently of sealant between existing ducting and inside edge of wing and between snorkel and outside edge of wing, so hopefully got a decent seal here.

Q: What about the T piece halfway along the ducting inside the engine bay

Is that not just going to act like a big bloody water hoover?

Stuballsed · Oct 7, 2010

Oh dear

I'm sure I've not stumped the experts. I must have bored then with a stupid question

.

I'll try again

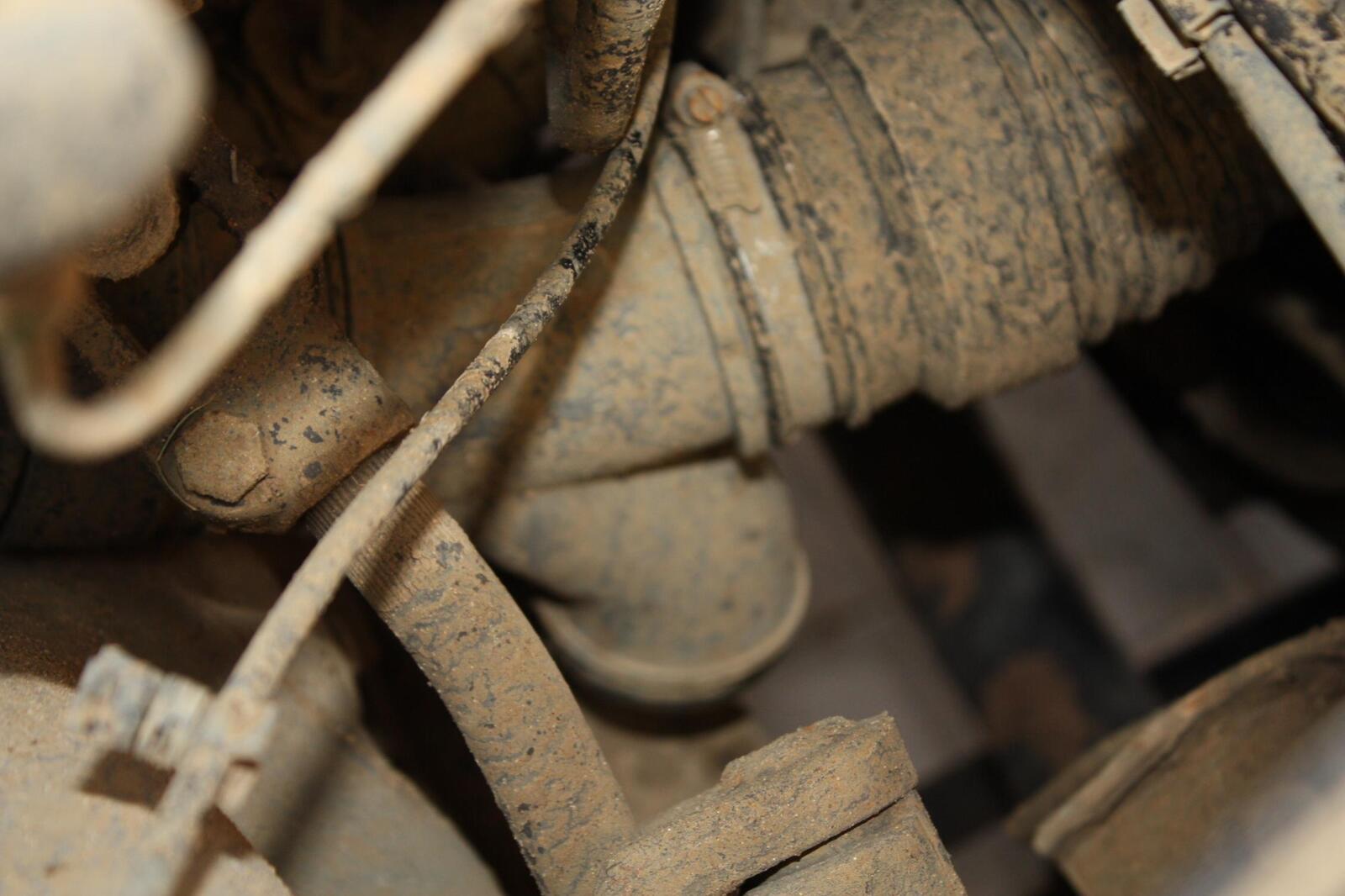

Can anyone tell me if I need to block off the T piece of the air intake hose. The one in the picture, within the engine bay.

nathan5346 · Oct 7, 2010

Think you answered your own question in your 1st post :doh:

Stuballsed · Oct 7, 2010

Ah

thank you. But I have searched all over the net and can not find any comment on this hose connection

Surely my landy aint the only one with this T piece

Is there a repacement part or is it a creative DIY job and if so why? That's whats bugging me most. I guess I get so used to finding the answer to anything, I feel a bit self doubting when I can't find an answer to even an apparently obvious problem

nathan5346 · Oct 7, 2010

If its allowing air in its gonna let water in so seal everything up

Mr Noisy · Oct 7, 2010

id love to comment usefuly but im not a diesel man.

however quite simply, as above, if its an open hole it needs removing/bypassing or it needs sealing up.

yes the intake system needs to be sealed.

when you think you have finished, run the enginew and put your hand/a rag over the snorkel inlet and you should get a good vacuum and no sounds of leaks.

if not, try try again until its fully sealed!

Mr Noisy · Oct 7, 2010

and please tell me why your steering rod appears so bent???

Stuballsed · Oct 8, 2010

Mr Noisy said:
and please tell me why your steering rod appears so bent???

Oh spare me

Not aware of a problem? Drives fine and had the drop arm ball joint done recently with no comment from the mechanic.

However, could have bent it recently? :-(

Stuballsed · Oct 8, 2010

Just checked Busters Photo tour on Collapsable Steering Shaft Removal. I believe it is suposed to have a bend in it like this. Phew.

Mr Noisy · Oct 8, 2010

good!

Griffdowg · Oct 8, 2010

that T piece has a 1 way vlave in it to allow water to drain out of the pipework should it find its way into and down your snorkel.

I have left mine alone and not had any problems. I have gone pretty deep to.

G
