Disco 2 LT230 rear seal

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
T

tilly2

Well-Known Member
Posts
1,193
Location
Stafford
Ordered a rear output seal for my leaking LT230 transfer box, on the Disco 2, TD5.

Arrived this morning but Im not sure I have the correct part...

Ordered a STC3433 off R and C 4x4 off thE bay....

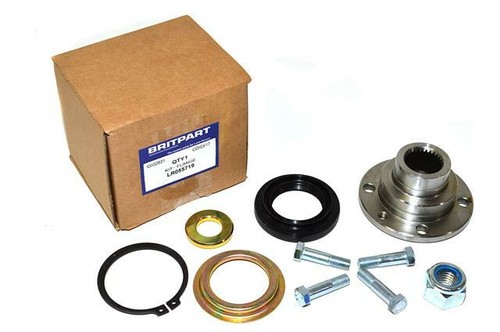

This is what was listed in the kit...

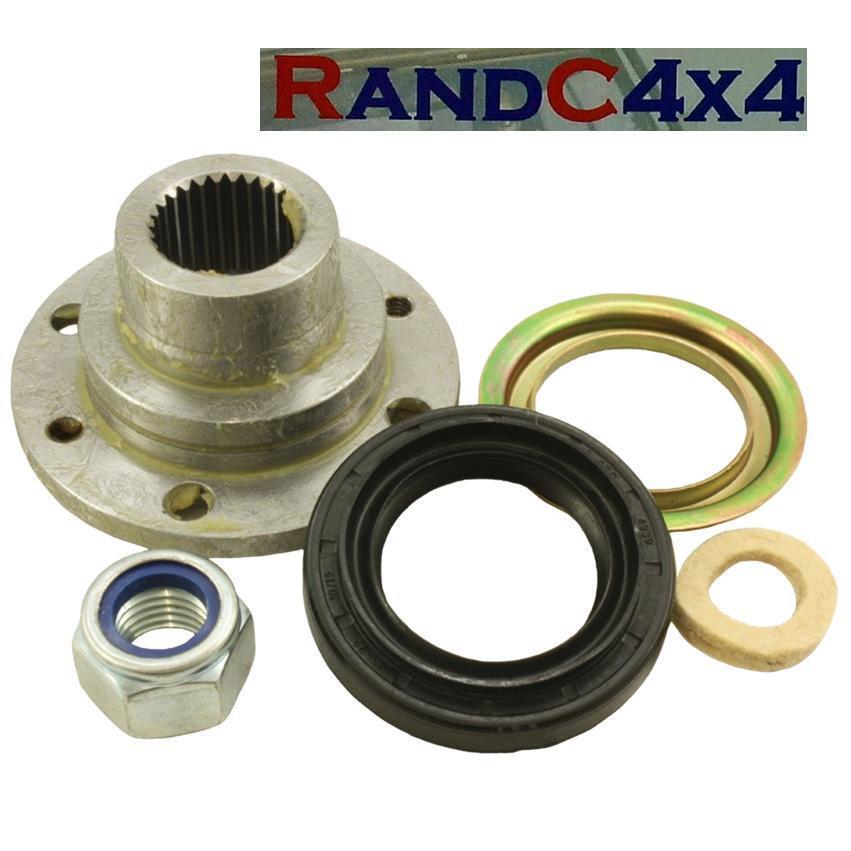

and this is what arrived...



Which one is correct, as both state they are LT230 rear output seal kits...

You need a new felt washer. Don’t know why some kits come without. Soak in gearbox oil first. The one in pic with extra bolts is new bolts for flange and a circlip for retaining bearing.

And I wouldn’t even fit that seal! Get corteco one or similar for sake of a fiver and ensure seal land is clean and not marked

Im not replacing the bearing, so I take it I dont need that... although, watching some of the Youtube videos, it doesnt seem a hard job. I have a slide hammer... Anyone have the part number for the bearing.

Edit - I have a different part no. to above...


Attachments

  • FCD451FF-2042-491D-B9EA-9F7228AFFDC1.jpeg
    186.5 KB · Views: 122
Cheers James.... just ordered a Cortico from Ebay, for just under a fiver... and ordered a FAG bearing for £8.70, plus a pair of felt washers...

Last edited:
