little bastard broke in to my landy need help sourcing a part !

Discussion in 'Defender 90 / 110 / 130' started by richard critchley, Aug 28, 2016.

< Previous Thread | Next Thread >
  1. richard critchley

    richard critchley Member

    Joined:
    Apr 14, 2016
    Posts:
    48
    Likes Received:
    0
    Location:
    lancashire
    looking for the piece that goes on the end on new key barrel its held on by the little push button but mine are seized solid any one know the part number

  2. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,227
    Likes Received:
    3,485
    Location:
    Arse!
    Did they try to steal it? You know they might come back for it?

  3. richard critchley

    richard critchley Member

    Joined:
    Apr 14, 2016
    Posts:
    48
    Likes Received:
    0
    Location:
    lancashire
    yeah its now hide in my workshop lol do u know what part it is i refering to ?

  4. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,217
    Likes Received:
    2,487
    Location:
    North of the Wall
    I think you need to buy the whole barrel, but they are pretty cheap if I remember correctly.
    [​IMG]

  5. richard critchley

    richard critchley Member

    Joined:
    Apr 14, 2016
    Posts:
    48
    Likes Received:
    0
    Location:
    lancashire
    Yeah bought a full barrell and keys but it the piece that goes on to the end of barrel so then the rod fits on to that piece

  6. wonderdust

    wonderdust Member

    Joined:
    Aug 17, 2011
    Posts:
    40
    Likes Received:
    3

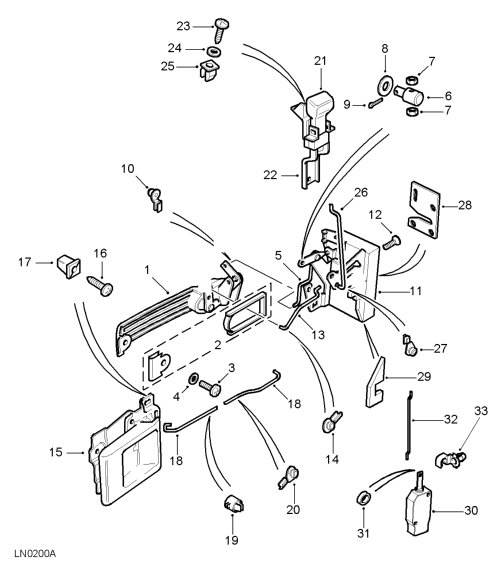

    [​IMG]this any help

    Last edited: Aug 29, 2016
  7. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,217
    Likes Received:
    2,487
    Location:
    North of the Wall
    Hmmmm.....
    Is that bit not incorporated in to the handle?
    I can remember getting confused about that myself. I might have an old handle in the garage, I'll see if I can find it.
    IIRC the corrosion causes that bit to come adrift from the handle by seizing to the barrel. When you get it off the barrel you think it's a separate part. I can't quite remember though, it's over a year since a did the handles.

  8. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,217
    Likes Received:
    2,487
    Location:
    North of the Wall
    Couldn't find the handle, but here's a picture.
    [​IMG]
    The barrel slides in there and the sprung (when it's not seized) pin clips it in. It rotates the little lever when you turn the key.
    I think that's right. Hope this helps anyway.

  9. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,227
    Likes Received:
    3,485
    Location:
    Arse!
    Britpart?

  10. richard critchley

    richard critchley Member

    Joined:
    Apr 14, 2016
    Posts:
    48
    Likes Received:
    0
    Location:
    lancashire
    Could be why ?

  11. Retroanaconda

    Retroanaconda Well-Known Member

    Joined:
    Jul 22, 2008
    Posts:
    581
    Likes Received:
    124
    Location:
    SW Scotland
    The little cage thing is part of the handle assembly I believe.

  12. richard critchley

    richard critchley Member

    Joined:
    Apr 14, 2016
    Posts:
    48
    Likes Received:
    0
    Location:
    lancashire
    All sorted now cheers for the help

  13. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,949
    Likes Received:
    3,169
    Location:
    Shropshire
    How??
    Found the bit lying in the bottom of the door?

  14. richard critchley

    richard critchley Member

    Joined:
    Apr 14, 2016
    Posts:
    48
    Likes Received:
    0
    Location:
    lancashire
    full new door handles sorted it lol
