Lightweight front hubs

Discussion in '101's and Military' started by TheMegaMan, Oct 21, 2019.

< Previous Thread | Next Thread >
  1. TheMegaMan

    TheMegaMan Active Member

    Oct 15, 2019
    Likes Received:

    I have a 1981 88 Series 3 (and yes, I have asked over on the Series forum, but it was suggested I ask here, too!), that has what I believe are front hubs from a Lightweight.

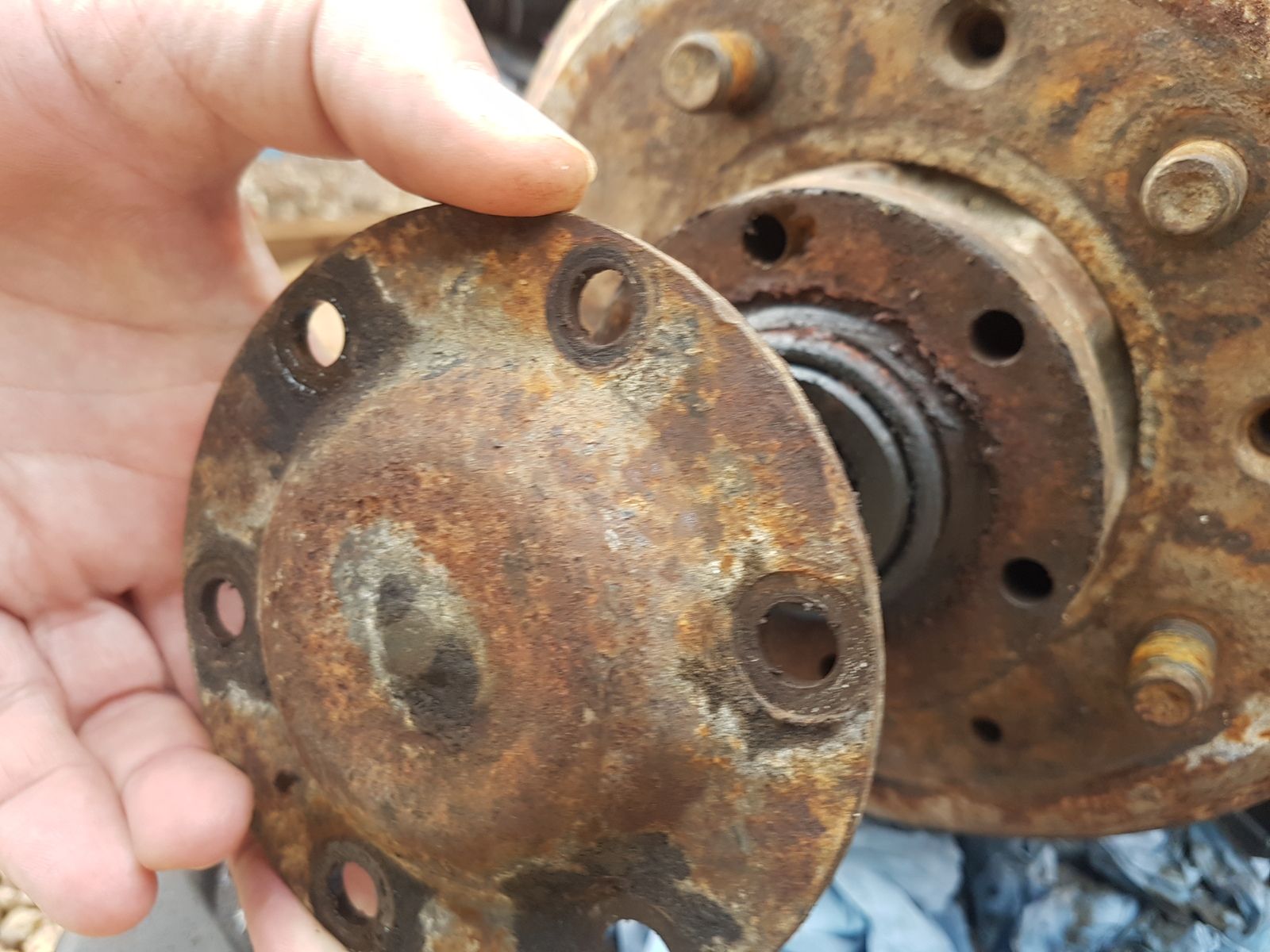

    They look like this:

    20191019_164053.jpg 20191019_164058.jpg

    The drive shaft has 24 splines at the hub end (although the diff end has the regular 10 splines for an older vehicle).

    I'm rebuilding the Landy, and and refreshing the axles as part of that. So I'm looking for new seals, etc. I believe I've found most of the appropriate parts, but I can't find the O-ring or rubber/felt seal (although it's hard to tell as the old one has broken up) that are used in the hubs/drive member.

    Can anyone suggest a part number and/or supplier for the lightweight-specific seals?
