Lights On Buzzer

Discussion in 'Defender 90 / 110 / 130' started by slomofo, May 17, 2019.

< Previous Thread | Next Thread >
  1. slomofo

    slomofo Well-Known Member

    Joined:
    Jan 18, 2010
    Posts:
    891
    Likes Received:
    292
    Location:
    Bardsville
    I was wondering, how do you fit a little piezo buzzer that sounds when you’ve left your lights on but switched off/keys out?

    I’m getting old and forgetful and keep missing the little green sidelight tell tale - my name is in my shirt just in case.

    Any Sparky Boffins with an idiots guide?

    ‘04 Td5 110

  2. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    6,908
    Likes Received:
    3,396
    Location:
    Cowroast
    Shirley a simple relay and buzzer will do it?

  3. slomofo

    slomofo Well-Known Member

    Joined:
    Jan 18, 2010
    Posts:
    891
    Likes Received:
    292
    Location:
    Bardsville
    Quite probably, but Electrics are wizardry to the likes of me!

  4. Scooby22

    Scooby22 Well-Known Member

    Joined:
    Aug 11, 2017
    Posts:
    704
    Likes Received:
    204
    Location:
    County Durham

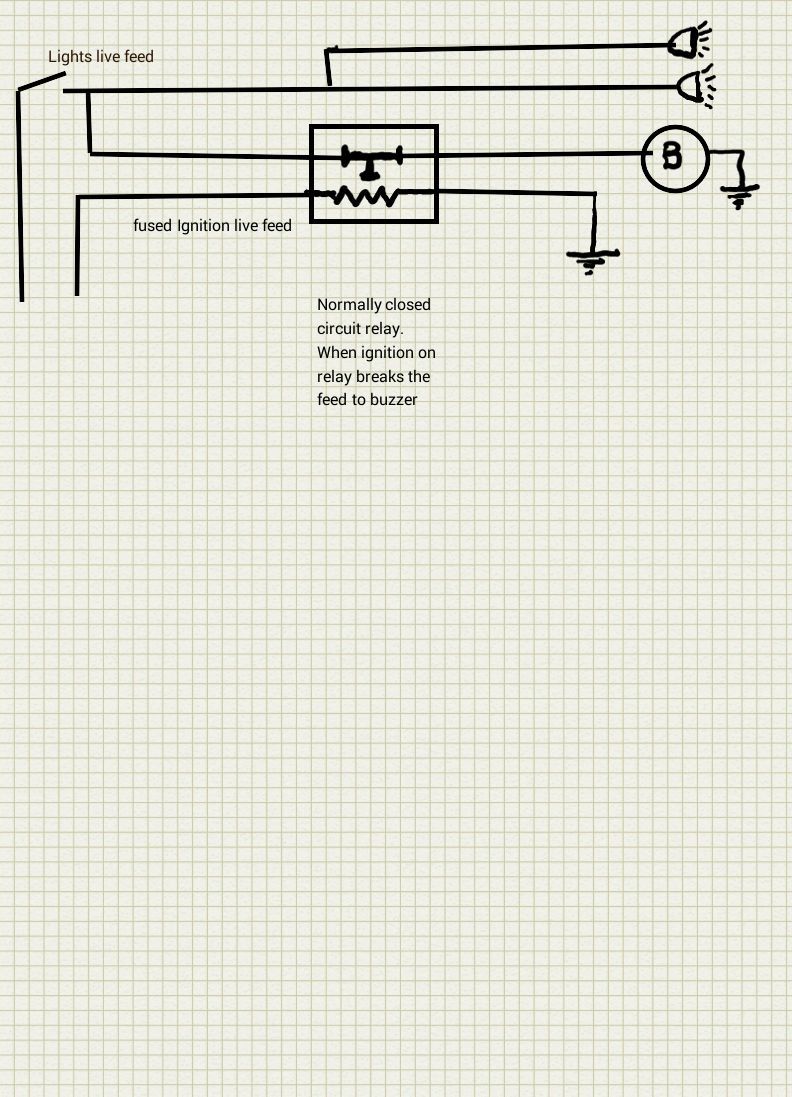

    Just off the top of my head
    Idea note_20190517_222748_01.jpg

    doriz and Oldseadog like this.
  5. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,598
    Likes Received:
    2,829
    Location:
    Shropshire
    I got one from vehicle wiring products years ago which came with simple wiring instructions.
    Triggered by the door switches .

    Scooby22 likes this.
  6. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    6,908
    Likes Received:
    3,396
    Location:
    Cowroast
    I’m useless at electric string and wiggly amps, but as @Scooby22 says a simple relay energised by the ignition will suffice. I suspect you just need to track down the correct wiring to butcher :D

  7. slomofo

    slomofo Well-Known Member

    Joined:
    Jan 18, 2010
    Posts:
    891
    Likes Received:
    292
    Location:
    Bardsville
    It looks like hieroglyphics to me, unless there is a numpty picture with colours and a nurse on standby it will end in tears. I’ll put the buzzer I have back in the box marked ‘nice ideas’ and move on to hammer/spanner opportunities o_O
