Land rover gearbox bearing .HELP.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

109party

Well-Known Member
Posts
2,901
Location
Funny place of Norfolk
i need it out to replace it as its seized, i will repair it so it must come out whole. but it wont come out :(, do i need a special tool what would u do here pics of the piece im on about.

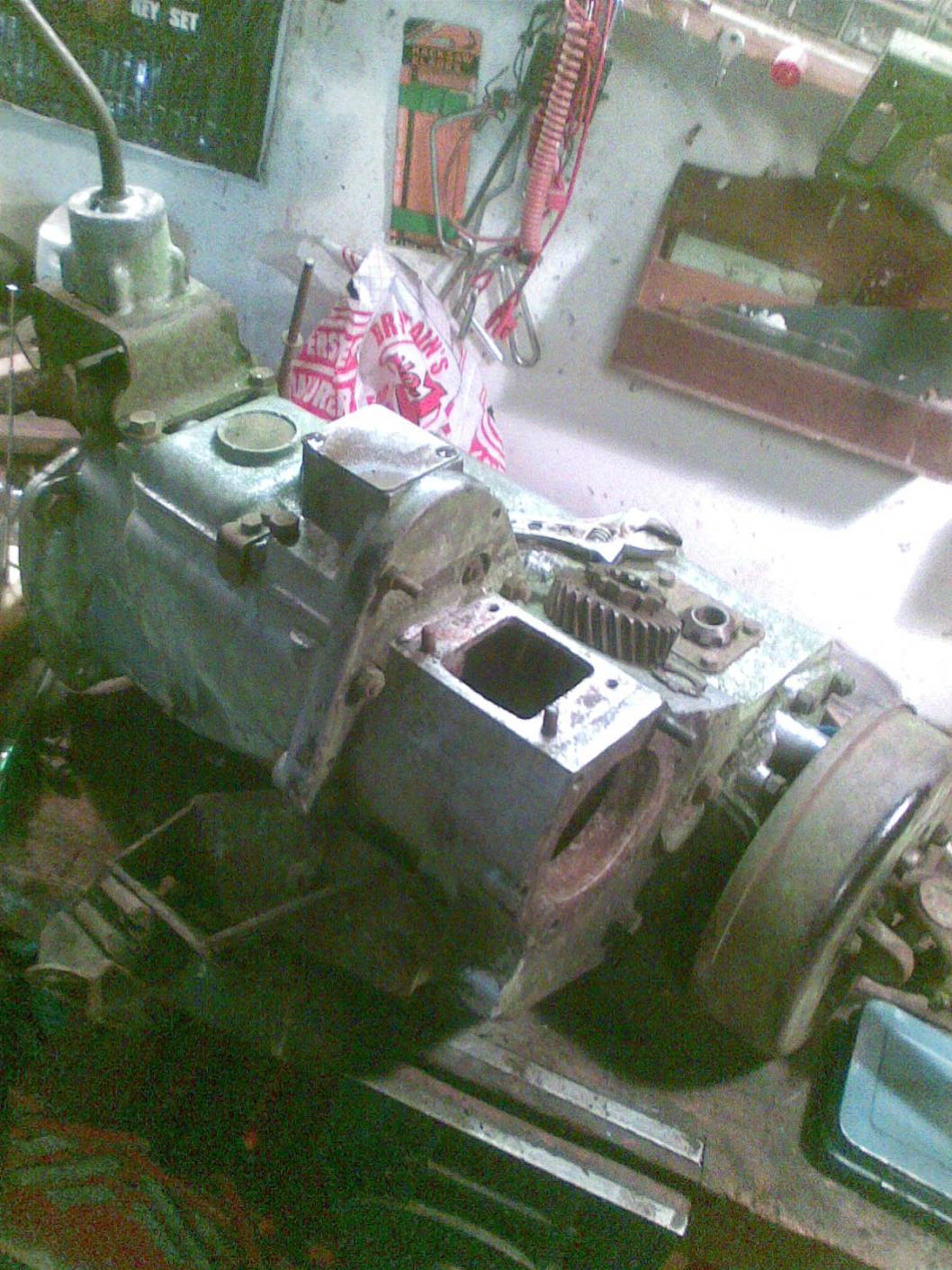

Image030.jpg its the bit wich covers up the end hole, for the overdrive or pto.

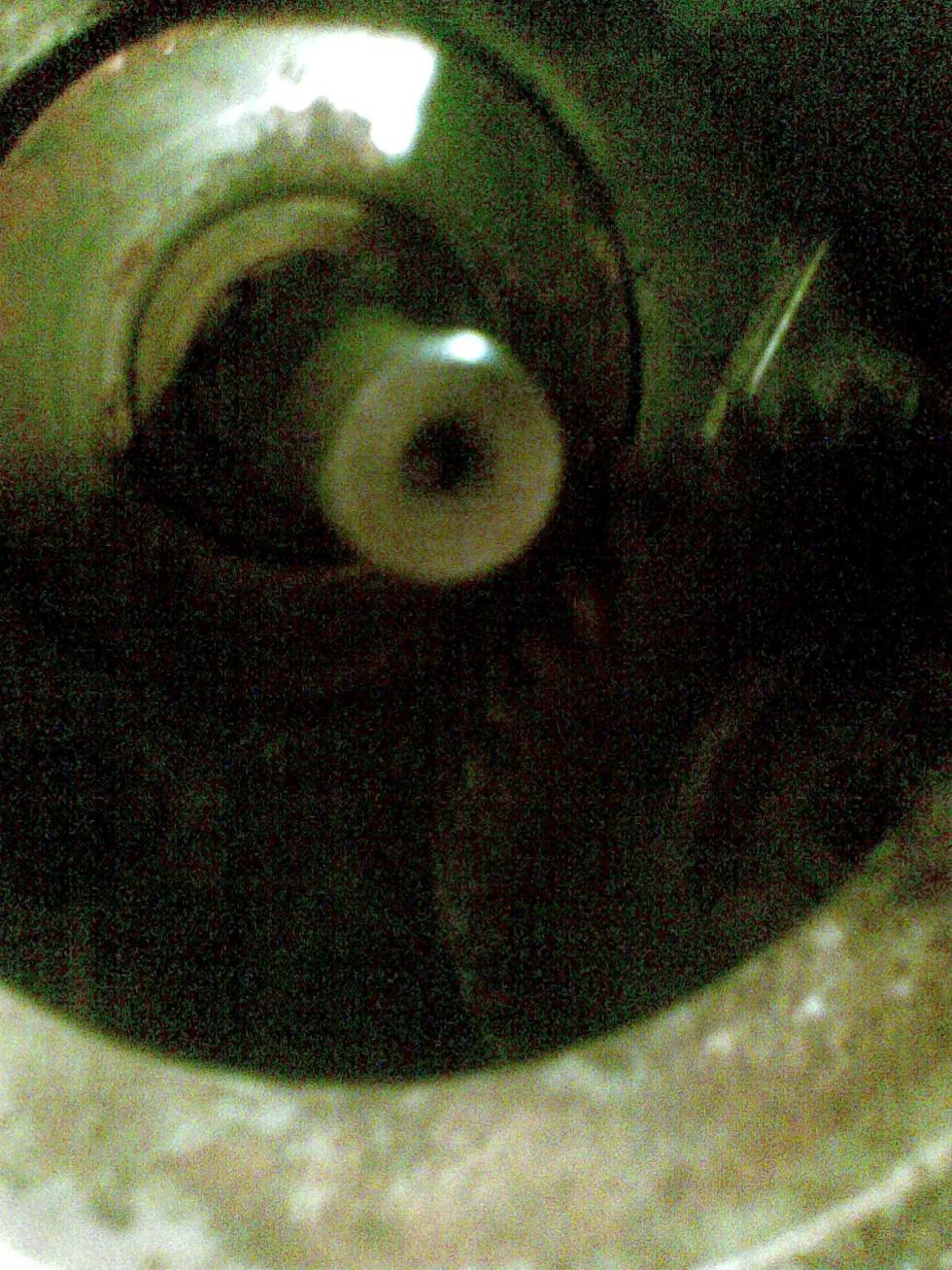

Image031.jpg the bearing wich goes on this shaft.

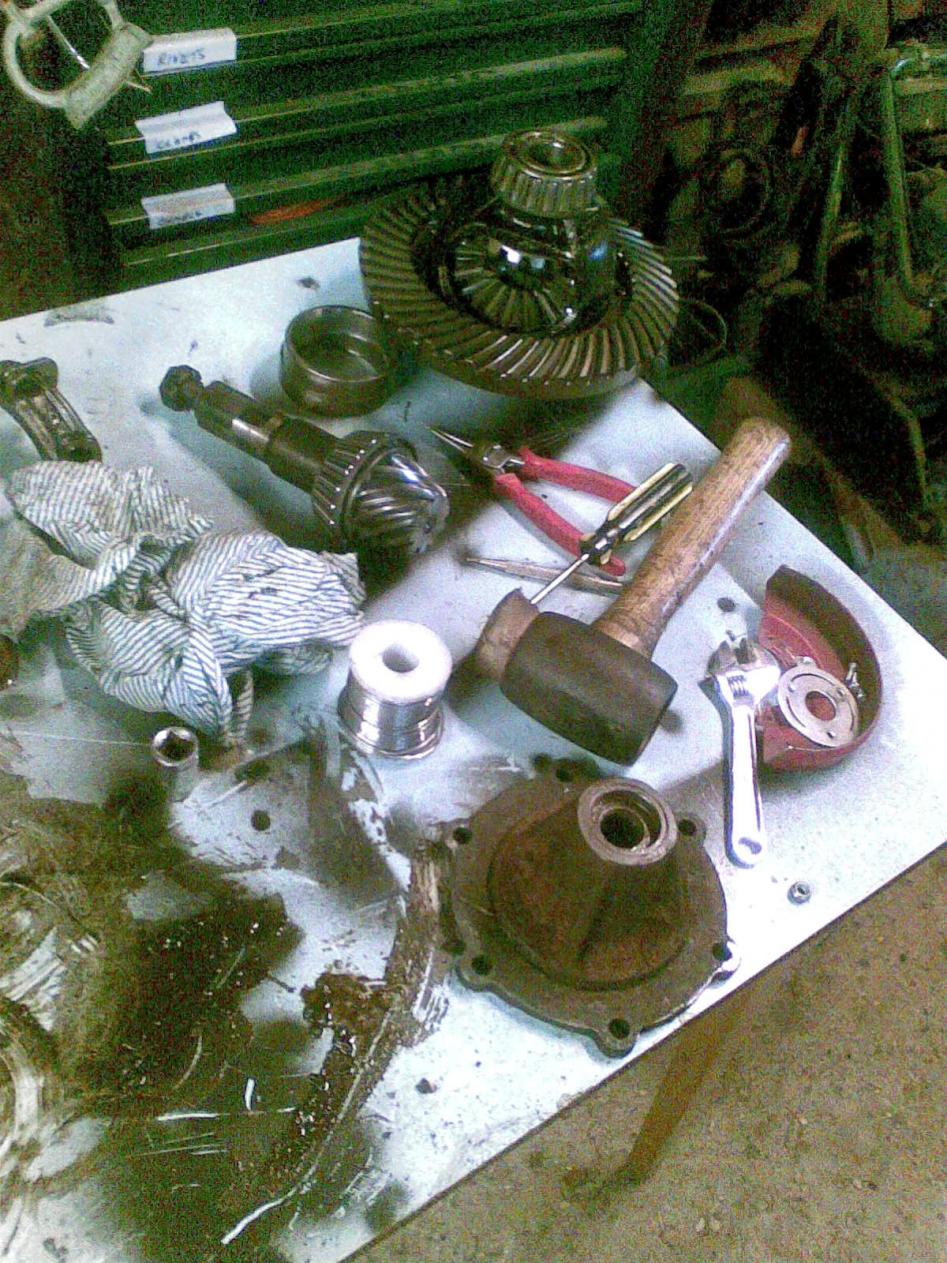

Image032.jpg that cover plate, next to the horrible oil stain and below the diff.

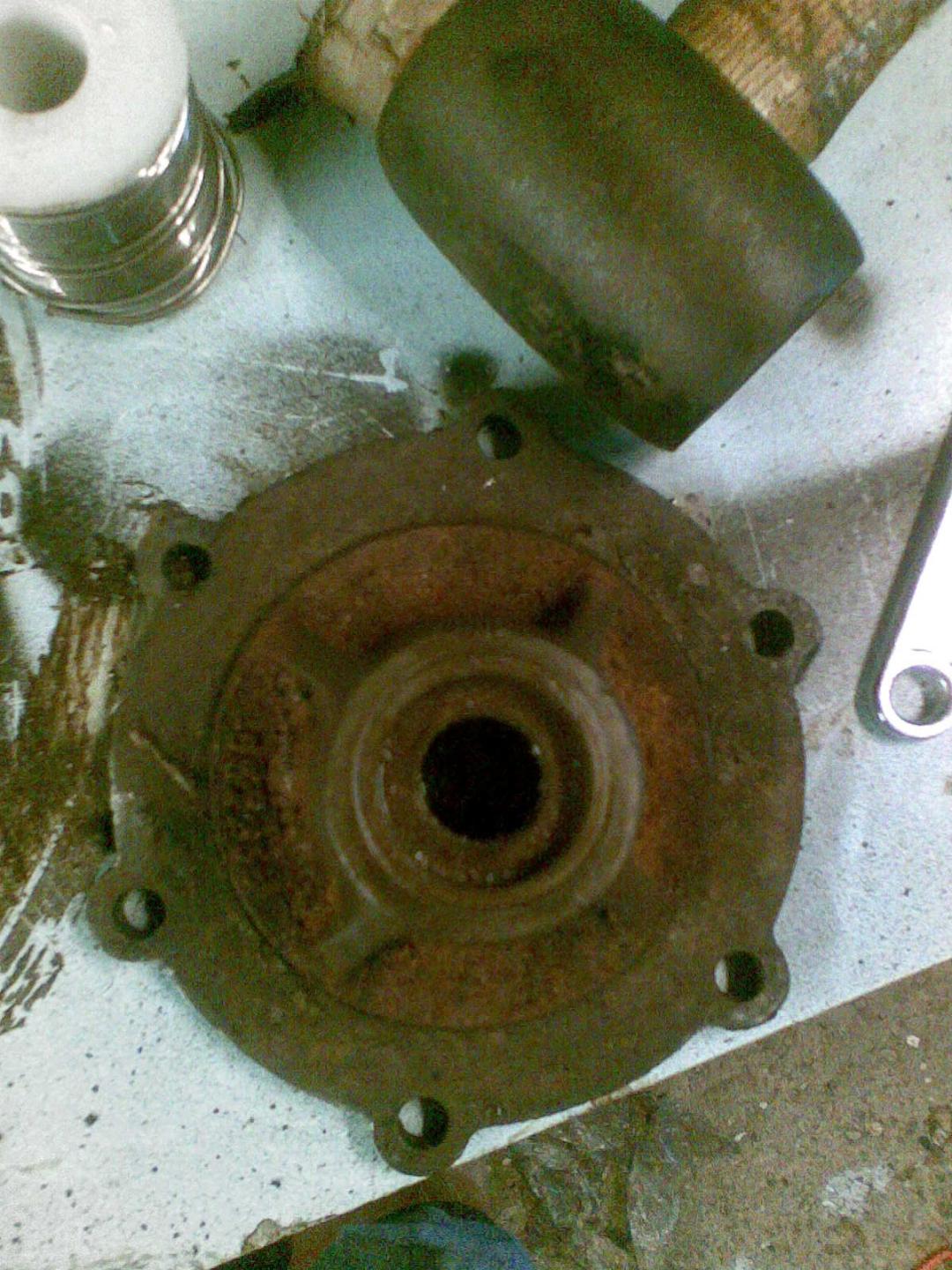

Image033.jpg that bit how does that bloody bearing come out.

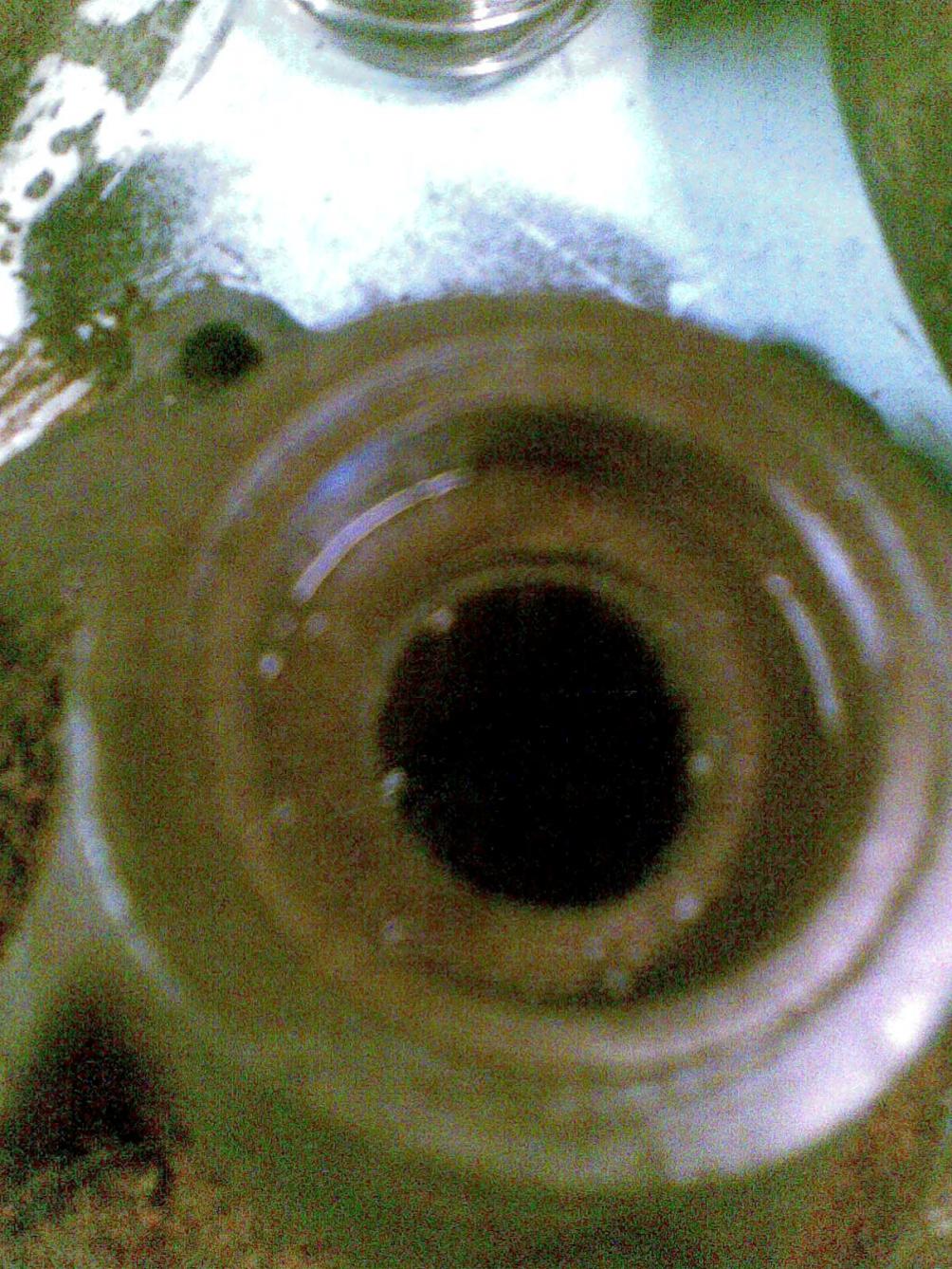

Image034.jpg that bearing in there the rusty one.

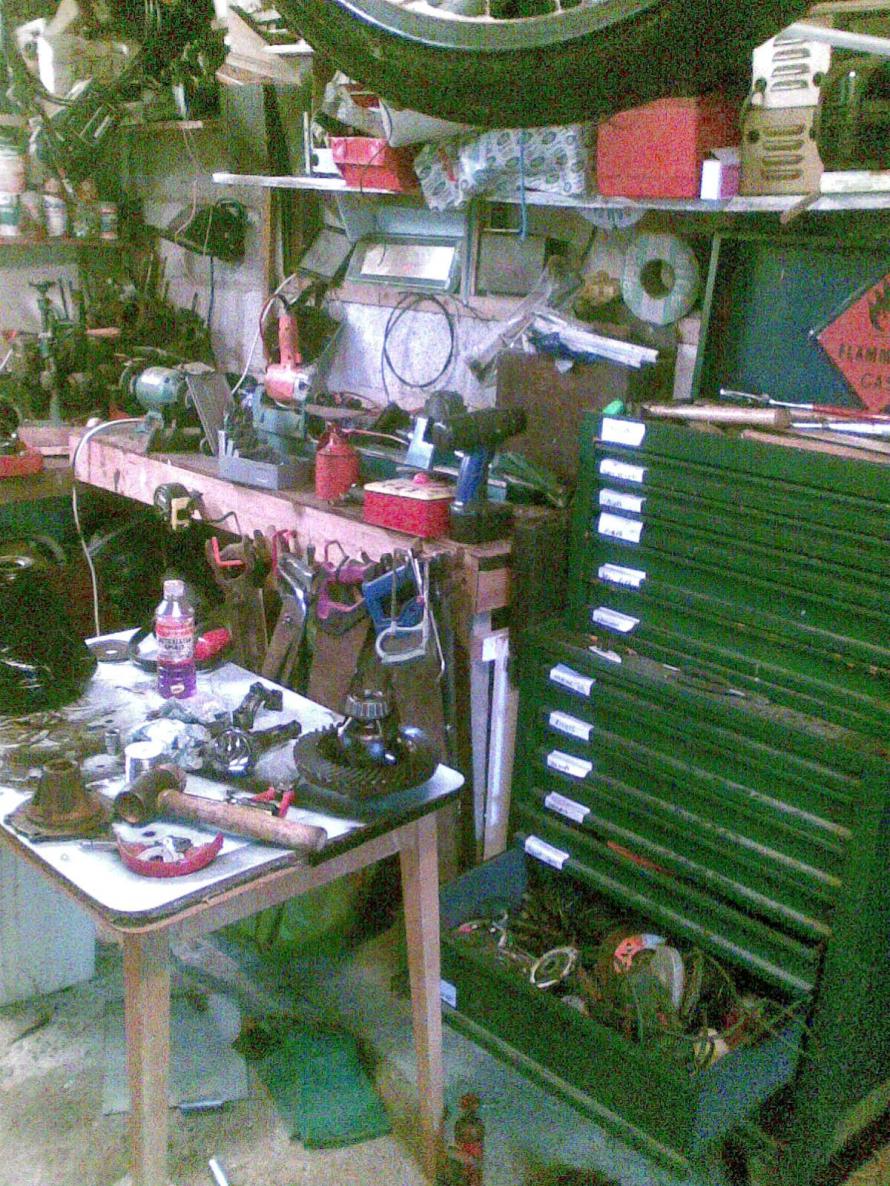

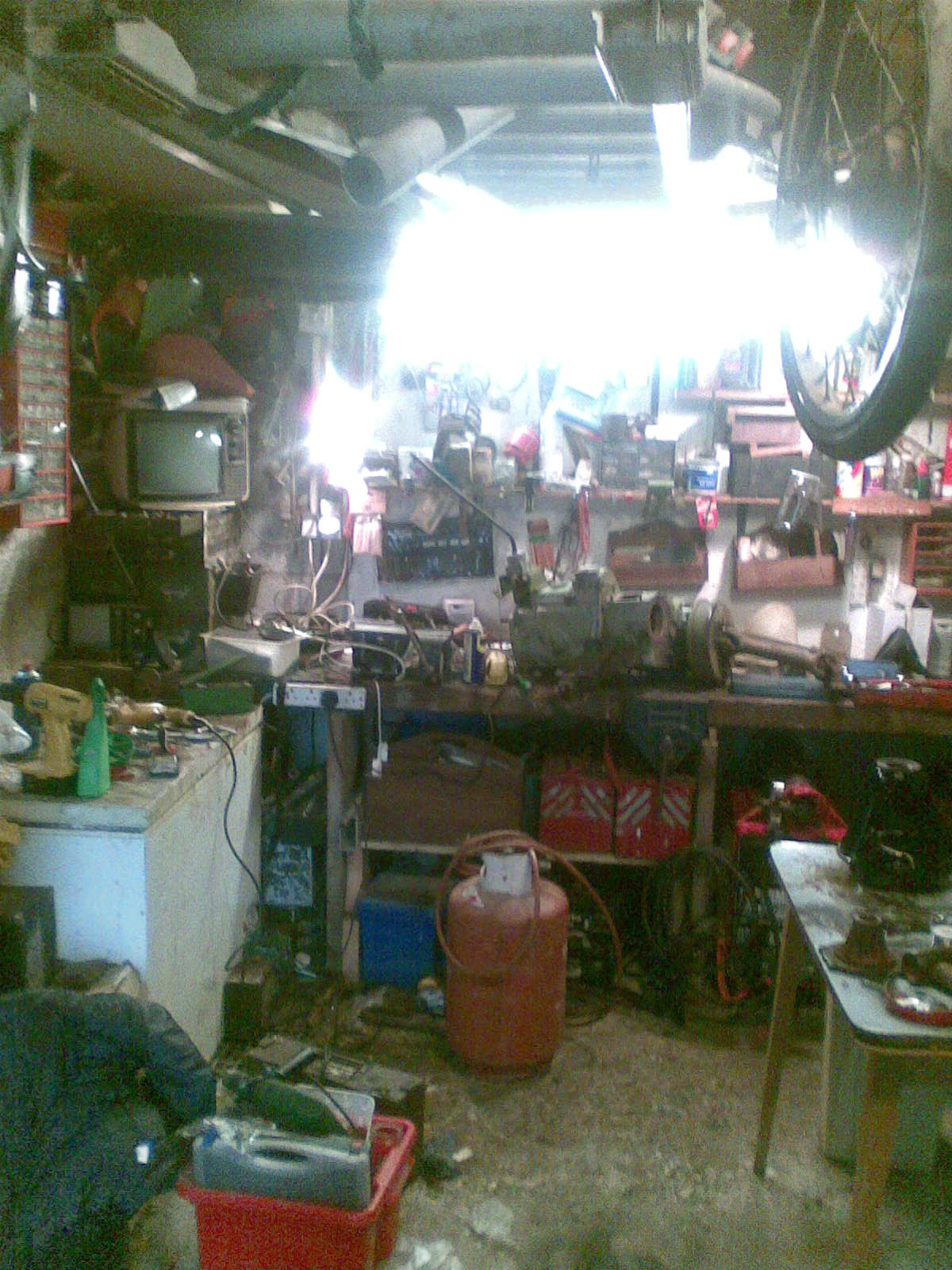

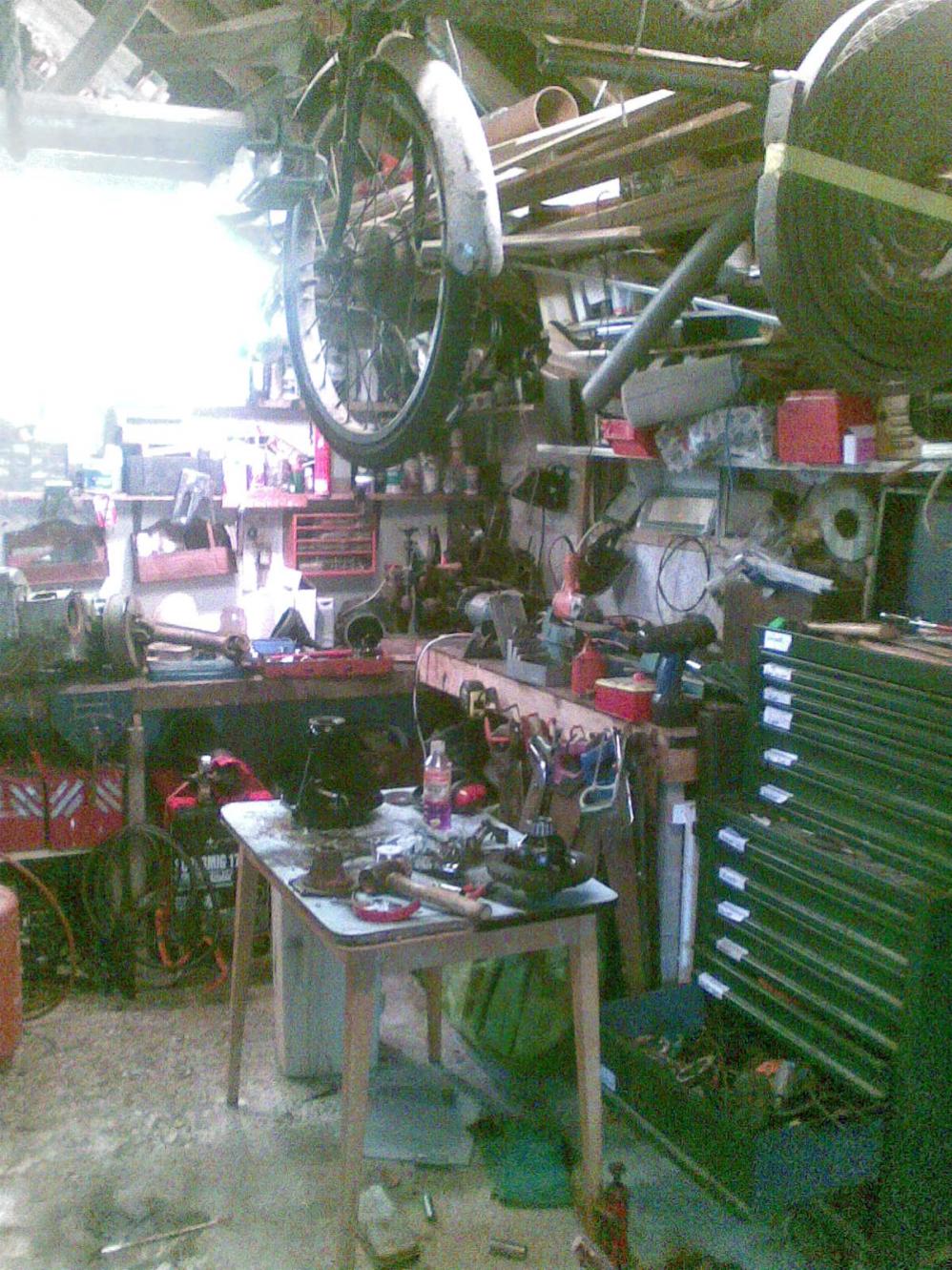

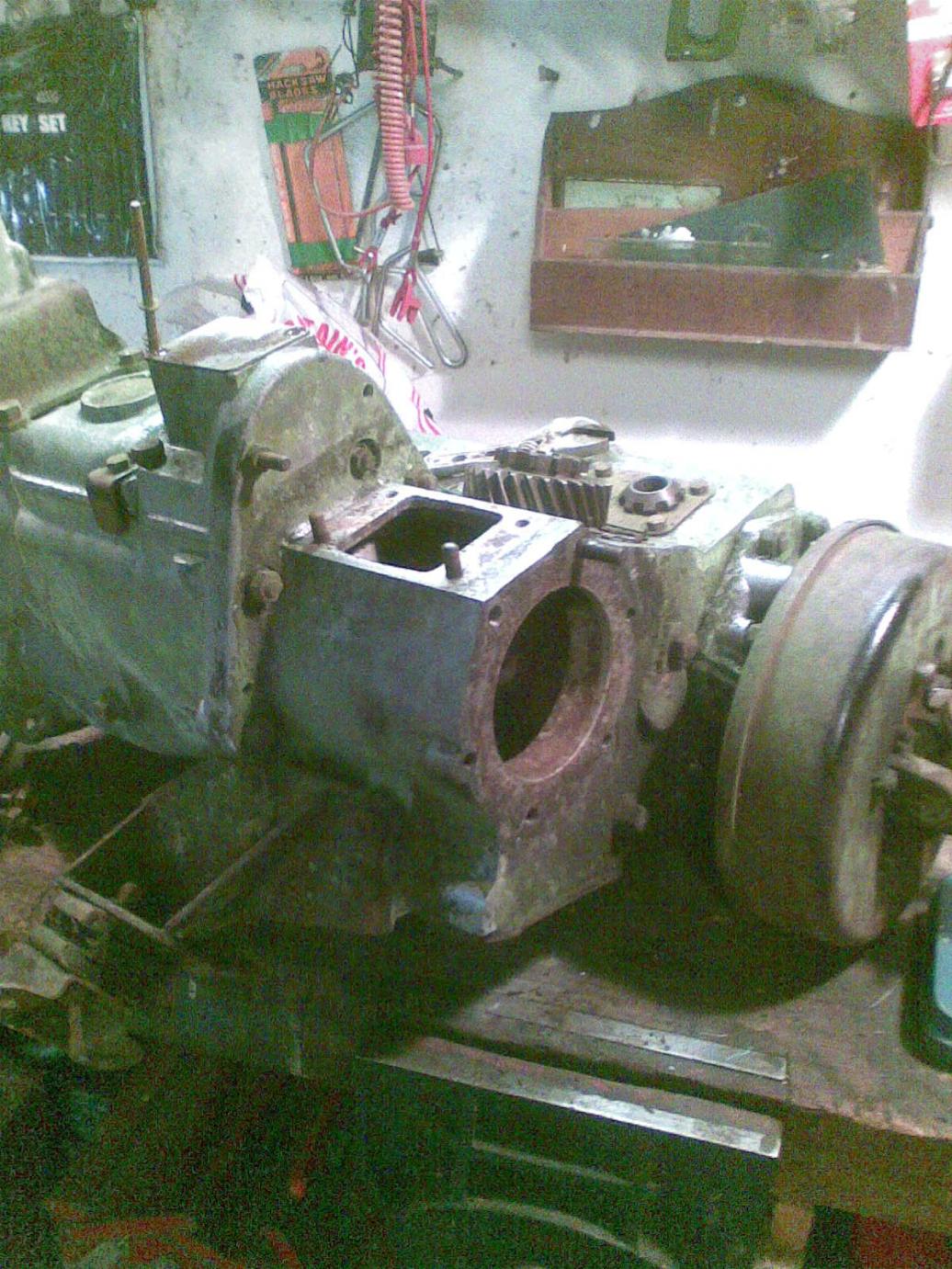

jsut randoms pics now because i got carried away with uploading so here is my garage and bench as it all looks at the moment. gearbox on bench. my limited messy home :), not posh like sum1 said when taking pics of the ram. Image035.jpg Image036.jpg Image037.jpg Image038.jpg so yer messy but i know were everything is and, no posh tv like sum people have. just an old black and white thingy.

Last edited:
RIGHT our kid several ways to do this ,have you got a large tap tp screw into the bearing and hawk it out like that,2 small chisel down the side of the bearing distort it get it out like that ,,,3 find a piece of steel thats a good fit in the bearing fill the bearin with grease ,put your steel bar in thump it with rubber or leather hammer and hydraulic it out,,,4 die grinder shave it very thin,then dig it out with screwdriver ect ,or any variations or combinations of these try anything but dont damage the housing ...hope this is some help ,,,dave

thanks il go have another pop, so every method means damaging the bearing and casing but with the pitting its bout 2 have thats not gonna matter. cause it will need replacing,
how does the main ring though come out because thats the first be, as it will be brittle steel would just cracking and then removing in parts be the best method

Thanks

i didnt know there was steel ring in there as well,,it,ll break if its hard or you could put the oxy-acetlene on it and soften it i find that works but a decent bat will shatter it then you can take it out in bits mate the other is only a bronze bush if i remember rightly but i could be wrong (dementure settin in i suppose) right who sed that come on own up who sed that.eeerrrrrrrr who sed what .whats he talkin about.who? i dunno !.what
