Hello, so my Range Rover L322 td6 2004 will not go into 4th Gear it does some pretty specific things that might help narrow down the cause and they are as follows. take it for a drive it goes into first then second then third as normal and then as soon as 4th Gear should be engaged the trans failsafe prog appears the strange thing is that it loses the torque converter lock-up when failsafe happens it then free wheels when you leave off the Throttle, maybe that's a clue also if I drive it in manual mode and shift first second third torque converter lock up stays engaged. my hope is that maybe it is just a fourth to fifth shift solenoid that's causing the problem but I'm not sure because I am very unfamiliar with this particular gearbox. Bemble do these symptoms sound familiar to you? Any suggestions? it has very recently had an oil change new filter and oil level is perfect battery perfect too.
l322 TD6 Gm5l40e wont go into 4th! Help me Bemble
- Thread starter bhTD6
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Datatek
Well-Known Member
- Posts
- 45,018
- Location
- Near Poitiers SW France
I don't know, but the torque convertor slipping clutch breaks up and fecks the gearbox.
Bemble
Well-Known Member
- Posts
- 653
- Location
- Lancashire
Have you lost 4th AND 5th gears? It's highly significant if your transmission can't select 5th either (using manual mode). The torque converter lock-up clutch is automatically disengaged if failsafe mode is flagged.
Phil
Phil
Bemble
Well-Known Member
- Posts
- 653
- Location
- Lancashire
- Posts
- 16,479
holidaychicken
Well-Known Member
- Posts
- 4,014
- Location
- Kent
We are not worthy
holidaychicken
Well-Known Member
- Posts
- 4,014
- Location
- Kent
That will be an interesting build , there are a lot of electrics connected to the transmission
freelance
Well-Known Member
- Posts
- 8,702
- Location
- essex and beyond
Was the second box new, recon, or diy rebuild, and what mileage on second one?
Bemble
Well-Known Member
- Posts
- 653
- Location
- Lancashire

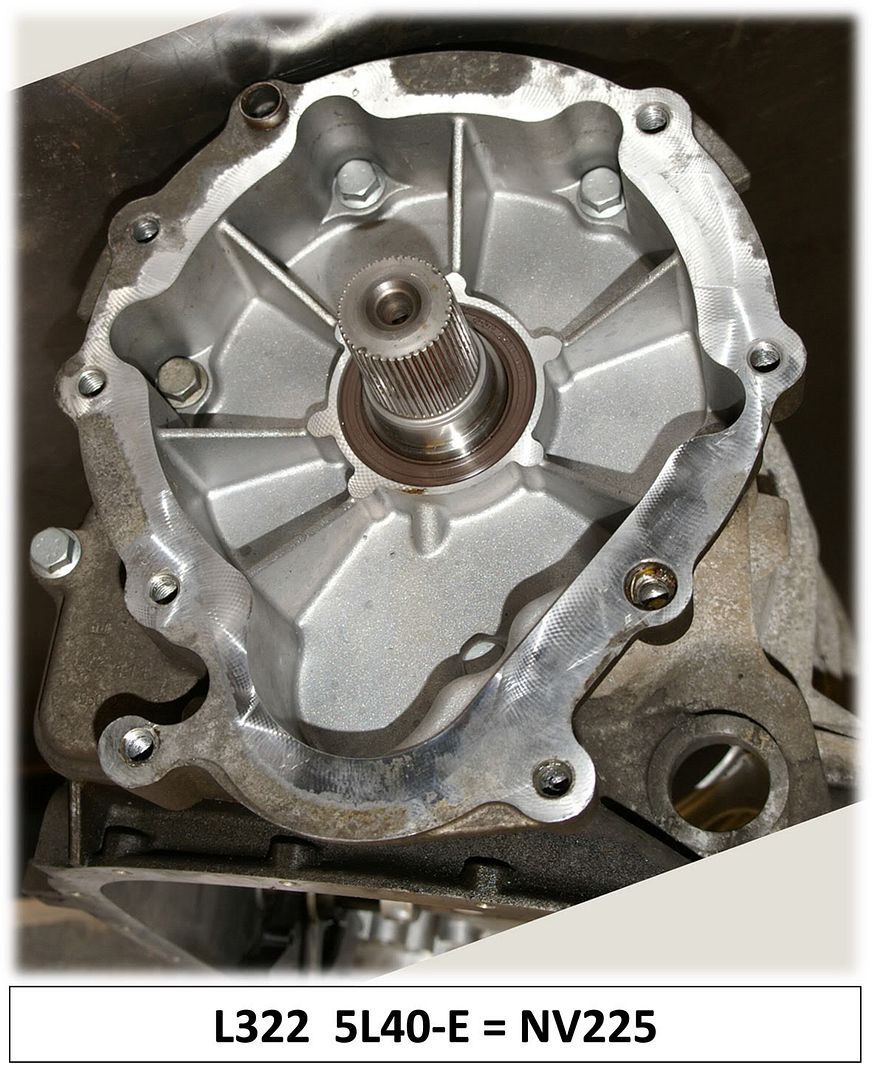

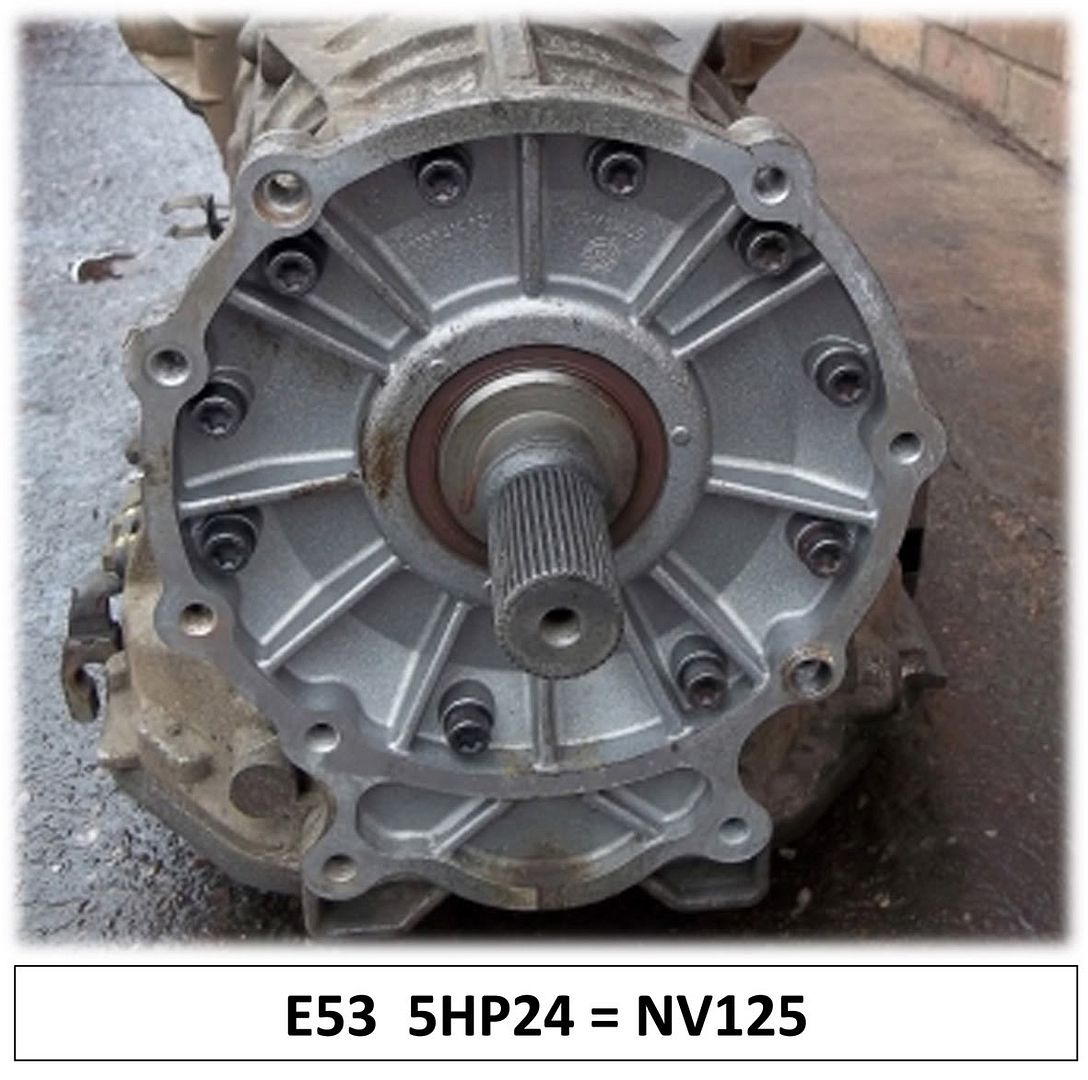

The bolt pattern for the E53’s NV125 transfer box is not the same as the NV225 (which was unique to the L322). I think, along with the electrical/electronic/control issues mentioned by holidaychicken, such a conversion would be extremely challenging.
Phil
Phil
myfirstl322
Well-Known Member
- Posts
- 41,354
- Location
- Hoots mon...
I would definitely keep it simple and stick with an auto, but @dave658 could probably do the conversion for you over a long weekend.
https://www.landyzone.co.uk/land-rover/6-wheel-drive-discovery-ii-am-i-totally-mad.301730/
https://www.landyzone.co.uk/land-rover/6-wheel-drive-discovery-ii-am-i-totally-mad.301730/
Phil I've done loads of manual conversions it shouldn't be any more difficult than anything i've done before in my opinion! I will make adapter plate to join the GS6X53 box to the nv225 no big deal, and don't believe the engine needs to talk to the auto to idle and go through the the rpm range normally, i've put m57 into a classic before without to much issue. What electrical/electronic/control issues do you foresee? personally i think the pedal box will be trickier but all very doable. although i do think it would be too difficult to attempt for most people who aren't experienced with this kind of stuff.The bolt pattern for the E53’s NV125 transfer box is not the same as the NV225 (which was unique to the L322). I think, along with the electrical/electronic/control issues mentioned by holidaychicken, such a conversion would be extremely challenging.
Phil
the second one was a reconditioned unit.
i prefer auto but im sick of these absolute **** boxes! the manual will be reliable and interesting if nothing else and ill be happy with that.I would definitely keep it simple and stick with an auto, but @dave658 could probably do the conversion for you over a long weekend.
https://www.landyzone.co.uk/land-rover/6-wheel-drive-discovery-ii-am-i-totally-mad.301730/
Bemble
Well-Known Member
- Posts
- 653
- Location
- Lancashire
If you’re capable of undertaking a manual gearbox conversion then you’re more than capable of re-manufacturing a 5L40-E transmission. Why don’t you rebuild your transmission yourself to ensure that, this time, it’s done properly? If you get the valve body assembly fitted with Sonnax valves this time, then the transmission should last another 80,000-100,000 miles.
https://xoutpost.com/837639-post1.html
Phil
https://xoutpost.com/837639-post1.html
Phil
I have actually considered doing that but when I looked into it I found that you need a specialist tooling and such, and I've not been able to find any kind of rebuild manual For it, do you know of any kind of rebuild guide manual? I rebuilt a torqueflite 727 Before and that was pretty easy but I had an excellent DIY rebuild manual to guide me along. but yeah I would definitely consider rebuilding it if i had the right information to guide me?
Used these for bits for my ZF4HP22 earlier this year.
https://jpat.co.uk/general-motors.html
This is the 5l40e:
https://jpat.co.uk/uploads/1/0/3/5/103549764/15__gm6_5l40e_5l50e.pdf
You need to put the pics side by side & I expect there will be differences at the rear due to the transfer box - which was the same for mine
https://jpat.co.uk/general-motors.html
This is the 5l40e:
https://jpat.co.uk/uploads/1/0/3/5/103549764/15__gm6_5l40e_5l50e.pdf
You need to put the pics side by side & I expect there will be differences at the rear due to the transfer box - which was the same for mine
thank you very much for that, very helpful actually, the visual really simplifies everything!
