Hi All.

Just installed a Kenwood double din into my 2013 defender 90. Purchased the CMOS-230 reverse camera as an extra. I know to connect the 2 amp red wire on the camera to the purple signal wire on the double din but where would the black wire connect to?

I thought I would be able to wire this up to the reverse light but don’t think it is possible.

Any help would be greatly appreciated.



miktdish

Guns n Chainsaws

Full Member

Posts

4,606

Location

Near Lanark, South of Glasgow. Scotland

• Aug 29, 2024

• #2

What is the black wire supposed to do ?
Black is normally ground (-) or does yours have a special function ?



G

Glack Attack

Member

Posts

17

• Aug 29, 2024

• #3

miktdish said:

What is the black wire supposed to do ?

Click to expand...

It is a Ground wire according to the instruction booklet. I can’t understand where the signal would come from when i select reverse.



Attachments

•

  223.4 KB · Views: 68

miktdish

Guns n Chainsaws

Full Member

Posts

4,606

Location

Near Lanark, South of Glasgow. Scotland

• Aug 29, 2024

• #4

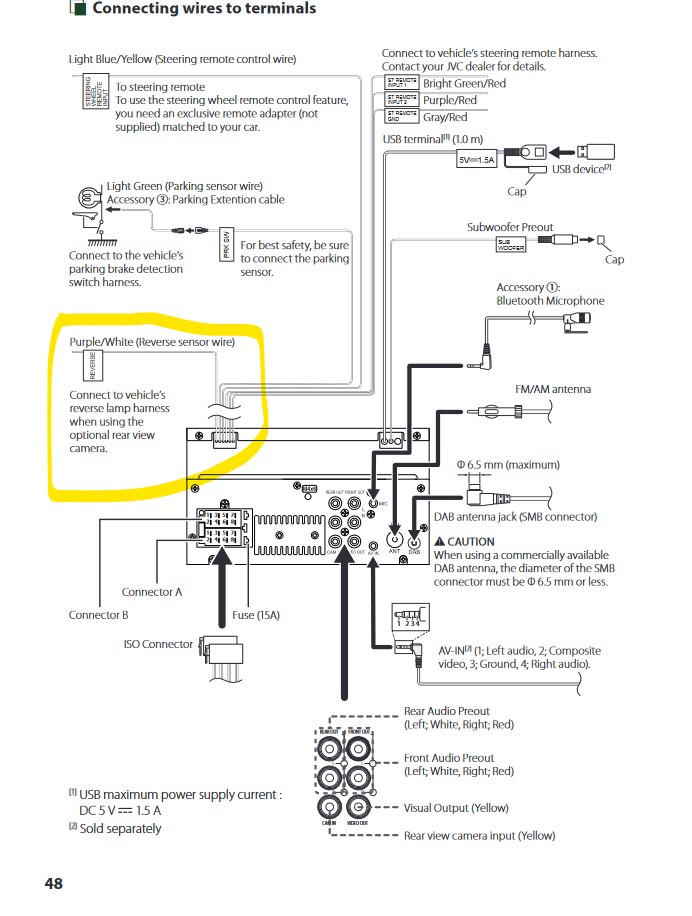

It's nothing to do with the camera. it's the video display unit that needs to determine if reverse is selected...

Connection to a TV with an RCA video input is possible,
but confirm whether the TV you use has a reverse gear
connection function.



G

Glack Attack

Member

Posts

17

• Aug 29, 2024

• #5

miktdish said:

It's nothing to do with the camera. it's the video display unit that needs to determine if reverse is selected...

Connection to a TV with an RCA video input is possible,
but confirm whether the TV you use has a reverse gear
connection function.

View attachment 324783

Click to expand...

Thanks for the image. What cable can I purchase to connect the purple/white wire to the reverse light? Also, which fuse does the red wire connect to?



miktdish

Guns n Chainsaws

Full Member

Posts

4,606

Location

Near Lanark, South of Glasgow. Scotland

• Aug 29, 2024

• #6

Glack Attack said:

Thanks for the image. What cable can I purchase to connect the purple/white wire to the reverse light? Also, which fuse does the red wire connect to?

Click to expand...

I get the feeling that this is a bit much for you.
I'd be tempted to find an auto electrician to help.

You can use any colour wire you like to connect to the reverse light 12V feed, avoid the blue fold-over clamp (scotch lock) style connectors these ...

25 x Blue Scotch Locks Splice Wire Cable Electrical Connector Terminal 14-16 AWG | eBay

Blue Scotch Locks. Quantity: 25.

www.ebay.co.uk

The red wire (to the camera) needs an aux 12v feed.
The aux circuit is the one that becomes live when the ignition key is turned to position 1, the radio (for example) is on this circuit as is the fag lighter, windscreen wipers etc, ie anything that works when the key is turned and stops working when the key is removed.
Fit an in-line fuse so that if the camera does crap out it doesn't let the smoke out the wires ...

12V 6 Fuses In Line Standard Blade Car Fuse Holder Motorcycle Automotive AWG | eBay

6 x Standard Blade Fuses (5A 10A 15A 20A 25A 30A). 1 x Splash Proof In Line Standard Blade Fuse Holder.

www.ebay.co.uk



E

Eig

New Member

Posts

5

• Sep 2, 2024

• #7

Hi, the black is a ground, the reverse connection comes from the stereo as the diagram above.



G

Glack Attack

Member

Posts

17

• Sep 2, 2024

• #8

Eig said:

Hi, the black is a ground, the reverse connection comes from the stereo as the diagram above.

Click to expand...

Hi there. I will report back in 3 weeks once I have got round to this and let you know how it goes.



G

Glack Attack

Member

Posts

17

• Oct 13, 2024

• #9

Glack Attack said:

Hi there. I will report back in 3 weeks once I have got round to this and let you know how it goes.

Click to expand...

Hi Folks.

Installed the camera today and seems to be working fine by manually selecting camera on the display, however, when I select reverse, this doesn’t trigger the camera for some reason. The reverse bulb is working (checked this on the fog lamp side). Measured voltage on reverse side and getting zero. Do you think the reverse switch needs changed? I took power from the cigarette lighter for this with a 2amp inline fuse fitted.
