Freelander 2 (LR2) Just how bad is my rear diff?

Discussion in 'Land Rover Freelander' started by parxuk, Sep 14, 2020.

< Previous Thread | Next Thread >
  1. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    I'm not at all mechanically minded.

    I had a look under the car tonight and saw something I am fairly sure it shouldn't appear the way it does.

    I believe this area relates to the Haldex and rear Diff???

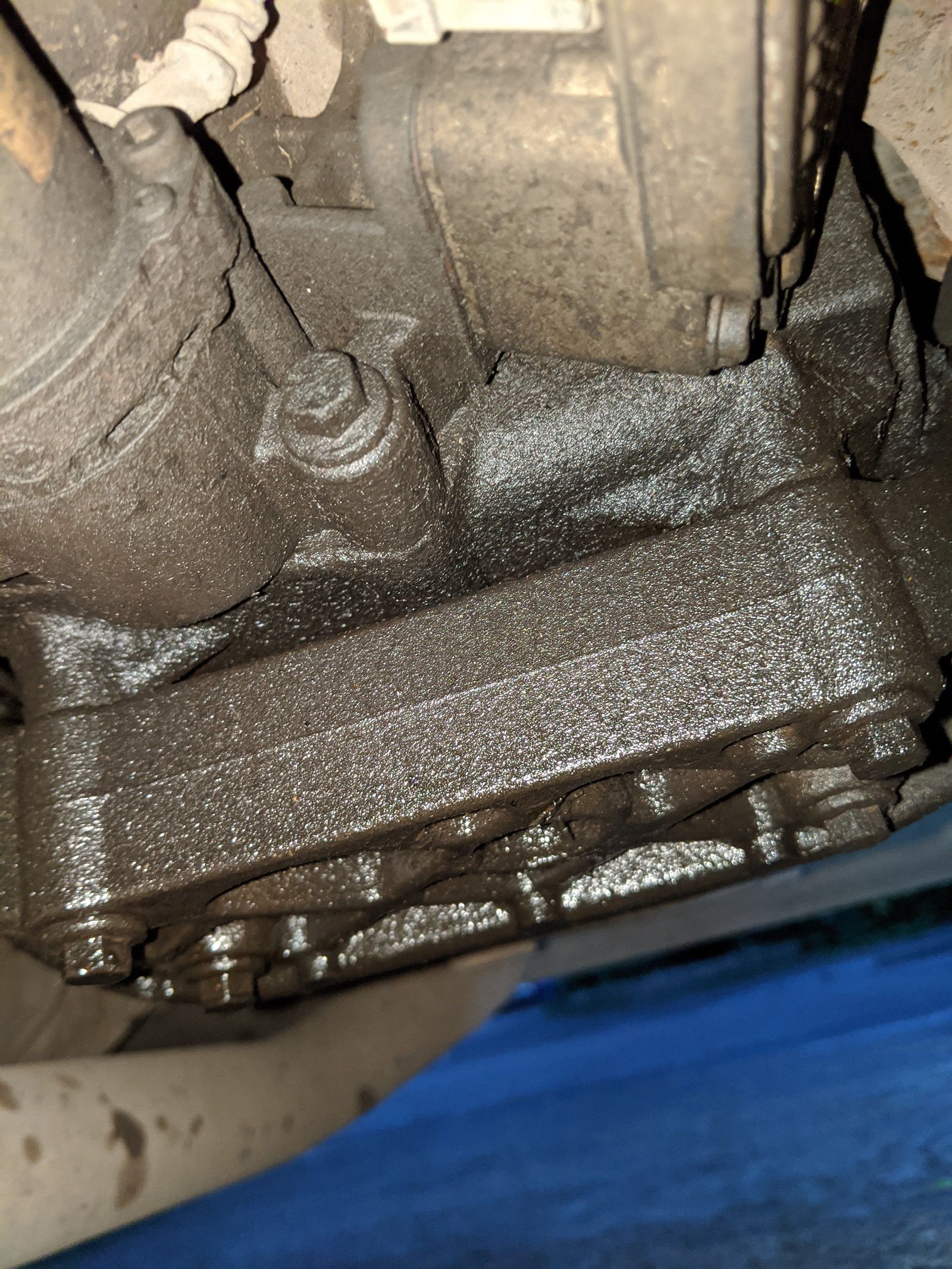

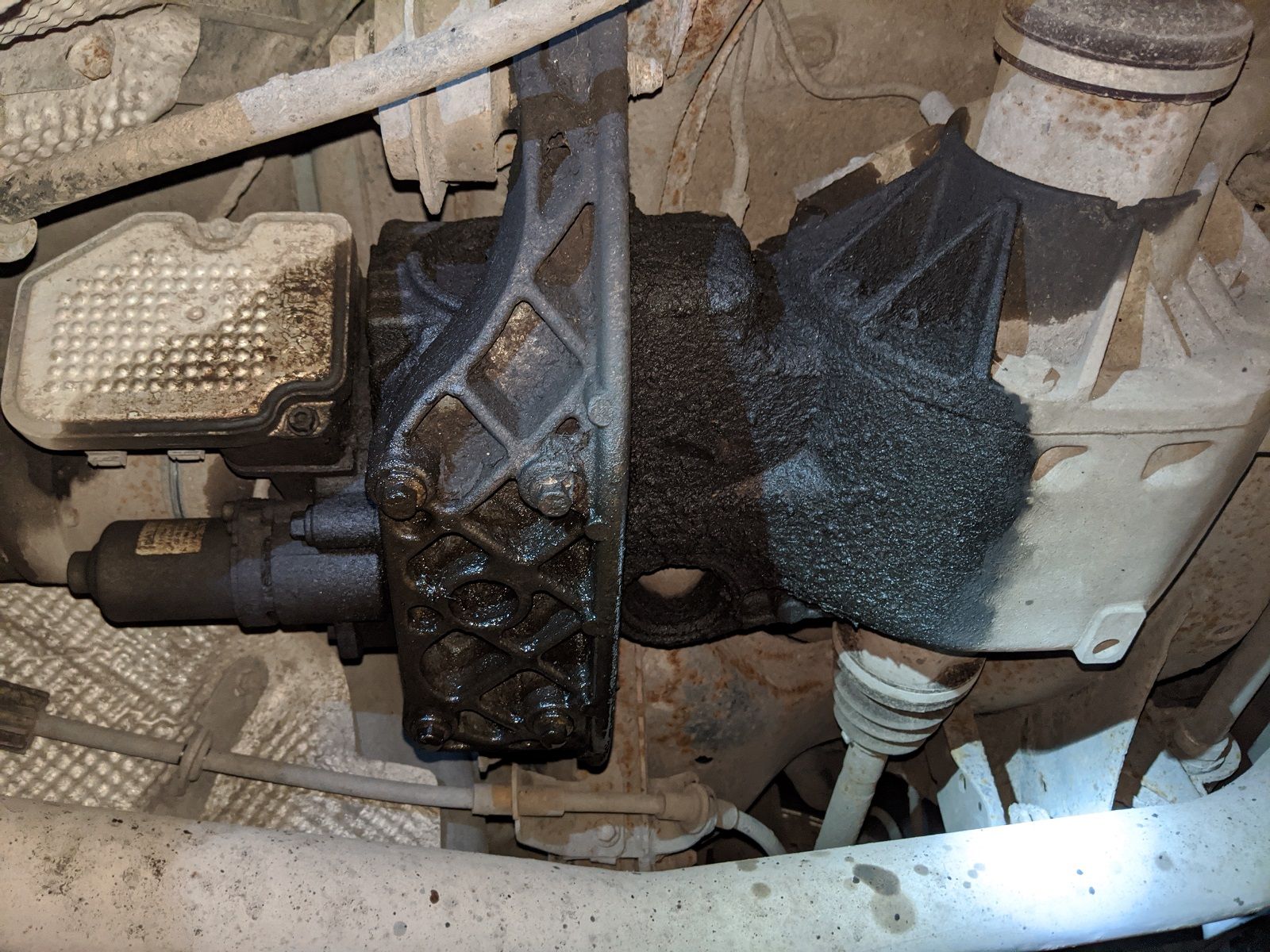

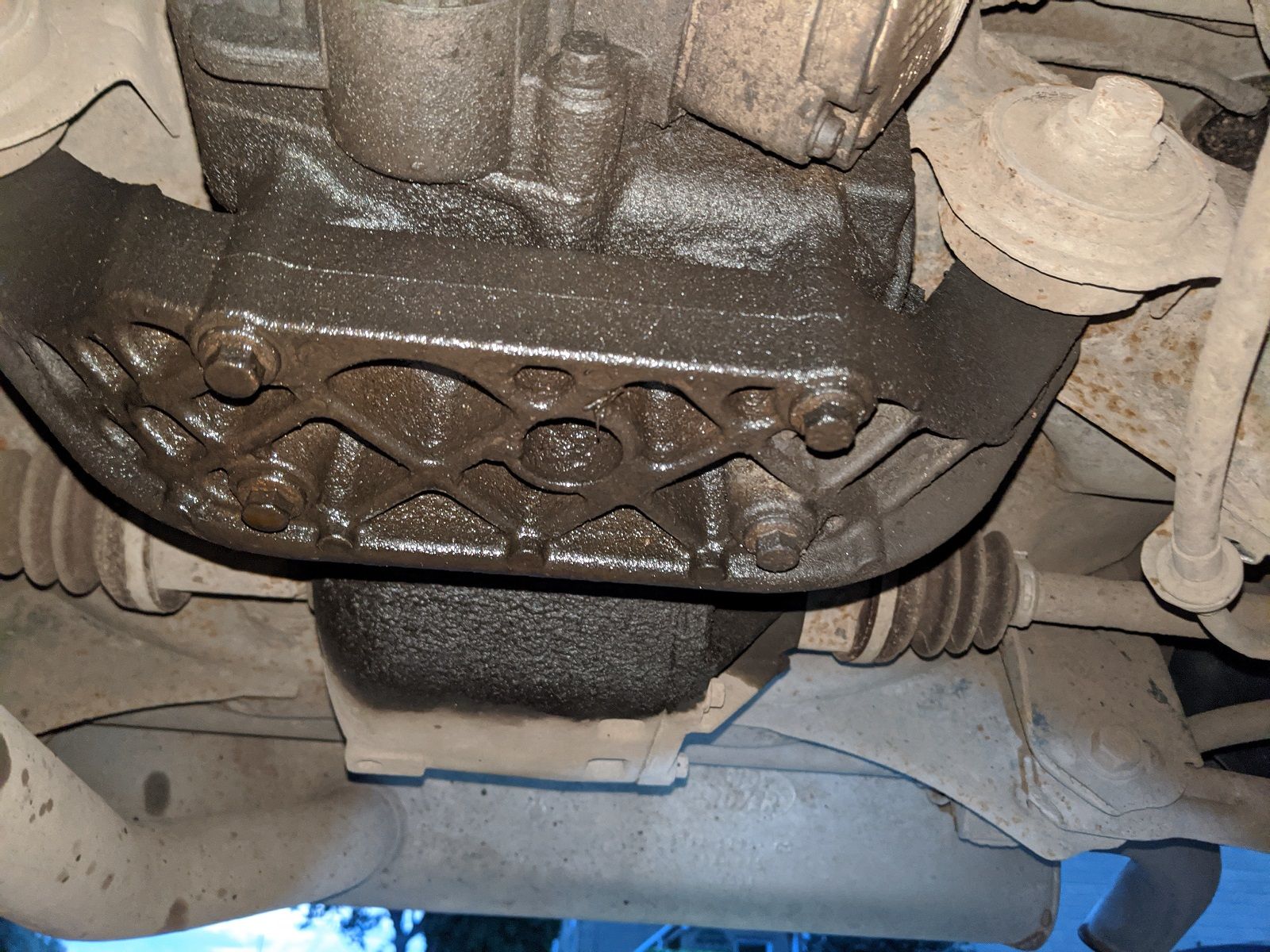

    From the attached pictures just how bad does it look (if you can tell from a picture?) and what should my next course of action be?

    Frustratingly I didnt really want the FL2 which we bought a few months ago (though it is a nice drive) but the wife insisted. Since buying the thing we have discovered that the boot isn't very big. In addition we re-homed a greyhound last month, and the rear boot seems to high for it to (easily) jump up in to. Subsequenlty I have to manhandle the 40KG beast in to the boot. Not an easy task.

    Maybe I should get rid soon?

    Would really appreciate peoples thoughts?



    Thanks


    Attached Files:

  2. paul99

    paul99 Active Member

    Joined:
    Mar 19, 2020
    Posts:
    319
    Likes Received:
    92
    Location:
    Right here, right now.
    I don't have any advice around your Haldex, but I thought I'd let you know that you can get plastic dog ramps to help them get in and out of your car. Aldi and Lidl often have them as special items, along with other shops and pet stores. I'm going to have to look into one for the mutt, as she tells me she is getting to old to jump in and out of the car, easily.

  3. Snaggapuss

    Snaggapuss Active Member

    Joined:
    Oct 5, 2010
    Posts:
    160
    Likes Received:
    68
    Location:
    Vilhelmina, Sweden
    first thing to do is to give that a good cleaning, then you might be able to see where the oil leak is from, or check via the filler plugs which one is shy of oil, get a power washer on it clean it up, I can't really tell but it looks as if it is the left seal on the diff drive shaft, but then the oil should be going the other way so a definitely clean it to see where the oil leak is, everything can be fixed. Any strange rumbles etc, is the diff whining, do you have four wheel drive etc etc

  4. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    Paul99 - thx for the suggestion on dog ramps, I will check them out.

    Snaggapuss - If I am blasting it with a jet washer, is there anywhere I should be careful of not blasting with water, or is it OK to absolutely soak it all?

    Thx

  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    23,154
    Likes Received:
    5,588
    Location:
    Near Newquay
    The rear diff itself looks oil tight, but the Haldex looks to be leaking from somewhere. Give it a good clean, to see if the oil leakage point is obvious. It's also sensible to top up the fluid as it doesn't contain much.

    I'd change the fluid, as it should be done at pretty short intervals, but seldom is. However changing it could be false economy, if it needs replacing anyway.

    Last edited: Sep 15, 2020
    raywin and parxuk like this.
  6. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,798
    Likes Received:
    372
    Location:
    Westmidlands
    Purchase your self some engine degreaser spray, couple of pound, spray it liberally use a stiff brush to work it in, those that come with dust pan and brush will do again about £2 then jet wash it off no need to have the jet wash on full blast, or you could just wash it off with normal garden hose gun, wipe with some old rags and go from there, most likely Haldex filter is blocked so at started to leak ? any strange noise coming from that area.

    parxuk likes this.
  7. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    So I have now degreased and jet washed/cleaned the haldex and DIff.

    Anywhere in particular I should be looking for leaks from?

    Have attached some pictures. Also rear diff housing (or whatever it might be called) appears to have a chip out of it (circled in red on the picture). God knows how that happened.

    It's booked in for a Haldex service on 3rd October, so hopefully it will last until then?


    Attached Files:

    • 1.PNG
      File size:
      796 KB
      Views:
      53
    • 2.PNG
      File size:
      757.6 KB
      Views:
      53
    • 3.PNG
      File size:
      754.1 KB
      Views:
      61
    • 4.PNG
      File size:
      452.8 KB
      Views:
      51
  8. potus

    potus Well-Known Member

    Joined:
    Sep 22, 2011
    Posts:
    1,672
    Likes Received:
    942
    Location:
    South Devon
    Damage is probably due to someone levering against that area whilst trying to pry/remove the drive shaft

    parxuk likes this.
  9. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,798
    Likes Received:
    372
    Location:
    Westmidlands
    No its fully clean you need to give it time to show up the leak if there is one, any whining noise coming from the rear diff etc, as it's booked in for a Haldex service on 3rd October by then maybe the oil patch will show ?

    parxuk likes this.
  10. raywin

    raywin Well-Known Member Full Member

    Joined:
    Feb 17, 2014
    Posts:
    3,498
    Likes Received:
    2,278
    Location:
    North Yorkshire
    Check the diff oil is OK don’t want to damage it, pretty easy just get the car level and take out the plug, top it up until it just starts to dribble out of the filler.
    Filling the Haldex is more complex there is a procedure to follow involving filling it and then removing some of the oil, best to Google that and understand it completely before attempting it.
    Now its nice and clean it will soon tell you of any leak and where the oil is coming from, I wouldn’t worry too much about the chip on the casing, better without it but don’t see it as a disaster.

    parxuk likes this.
  11. paul99

    paul99 Active Member

    Joined:
    Mar 19, 2020
    Posts:
    319
    Likes Received:
    92
    Location:
    Right here, right now.
    Hard to tell on my phone, but is that the remains of oil leaking down from above the casing in the top left of the third photo?

  12. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    Took the car for a 50 mile round trip to Weston Super Mare today, and then checked the rear diff/Haldex.

    Looks like its weeping/leaking from a hole on the rear diff, but I have no idea what the hole is for?

    Help please. What is the hole for, and what do I do about it?

    Edit: I found this thread on another forum where someone else was suffering the same issue. I dont think this exact cause was identified?

    https://www.freel2.com/forum/post397236.html#397236

    Someone replied with "Inside the Haldex - Differential ensemble, there are some seals.
    As the ensemble is a closed one, you can't know the state of those seals without dismantling and separating the Haldex from the differential.
    That hole is a "tell-tale". When the seals fail, the oil is "drained" through that hole and you know that the seals have failed and possible the oils from the two have "mixed"..."

    I dont really understand what this means, and what the repair is?

    Thanks


    Attached Files:

    Last edited: Sep 21, 2020
  13. Rank Amatuer

    Rank Amatuer Well-Known Member

    Joined:
    May 8, 2018
    Posts:
    2,003
    Likes Received:
    1,930
    Location:
    Scotland
    You have a 40kg greyhound? That is one seriously overweight dog. No wonder you have a dicky diff.

  14. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    He's just big boned!!!

    Actually he's probably more like 38. But he is a big boy, and certainly not easy to get in to the back of the car.

    For the larger males, I think that's fairly average from what i've seen?

  15. raywin

    raywin Well-Known Member Full Member

    Joined:
    Feb 17, 2014
    Posts:
    3,498
    Likes Received:
    2,278
    Location:
    North Yorkshire
    The haldex - diff are in the same casting and the oil is prevented from .mixing by seals I am not sure but I suspect the little hole is kind of a tell tale which is into the space between the two alowing any leakage to go out rather than pass into the other side.
    I suspect you need to get it checked out and probably seals changed, then all filled up again, did you say that its having the haldex serviced?

  16. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    Haldex is due to be serviced in approx 3 weeks, but i'm worried now that I need to either not drive the vehicle until then, or get it serviced somewhere else quicker.

    I am worried I could run it dry and make things worse.

    Can that happen?

  17. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    Visited transmission specialist this morning and showed him the pictures.

    He said that this will be caused by the rear diff breather pipe being blocked, and subsequently blowing a seal between rear diff and haldex (i think thats what he meant anyway).

    Quoted £275 + VAT to service Halldex and replace seal. Breather pipe will be extra and depending on which pipe it is could be between £50 and £180.

    Sound about right to you clever folk?

  18. GrumpyGel

    GrumpyGel Well-Known Member Full Member

    Joined:
    Oct 31, 2013
    Posts:
    17,098
    Likes Received:
    11,711
    Location:
    Christchurch, New Zealand
    That sounds like a sensible diagnosis - but I'm no expert.

    Bell Engineering, who appear to be quite a reputable outfit and recommended for various Freelander parts, quote £180 to service a Haldex, presumably +VAT and that won't include doing the seal and I dunno if that includes the fluid/filter and other bits for the service - they quote £65 for those as a purchase.

    http://www.bellengineering.co.uk/freelander-2-products/

    parxuk likes this.
  19. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    GrumpyGel

    Thx. I have spoken with Austin at Bell. He thinks it will need a Haldex service and new Piston seal. Quoted £150 + VAT + seal, which is half the price of everywhere else.

    Unfortunately he cant do it until 29th October. He has however assured me it will be fine to drive in that time, and that the "Reduced Traction" light would come on the dash if it begins to get too low.

    I hope he is correct!

    Last edited: Sep 21, 2020
    GrumpyGel likes this.
  20. parxuk

    parxuk Member

    Joined:
    Mar 22, 2020
    Posts:
    52
    Likes Received:
    7
    Location:
    Bristol
    Sent Austen at Bell the picture of my haldex/diff pre-cleaning. His reply was "blimey, that is bad!!!".
    Subsequently he has suggested I disable the Haldex pump in the interim until the FL2 is at Bell.
    From some Googling I see there are 2 possible ways to do this - either pulling the fuse (FB6?), or directly disconnecting the plugs to the Haldex underneath the car.
    Is 1 way better than another? Just pulling the fuse seems the simplest.
    Thanks in advance.
