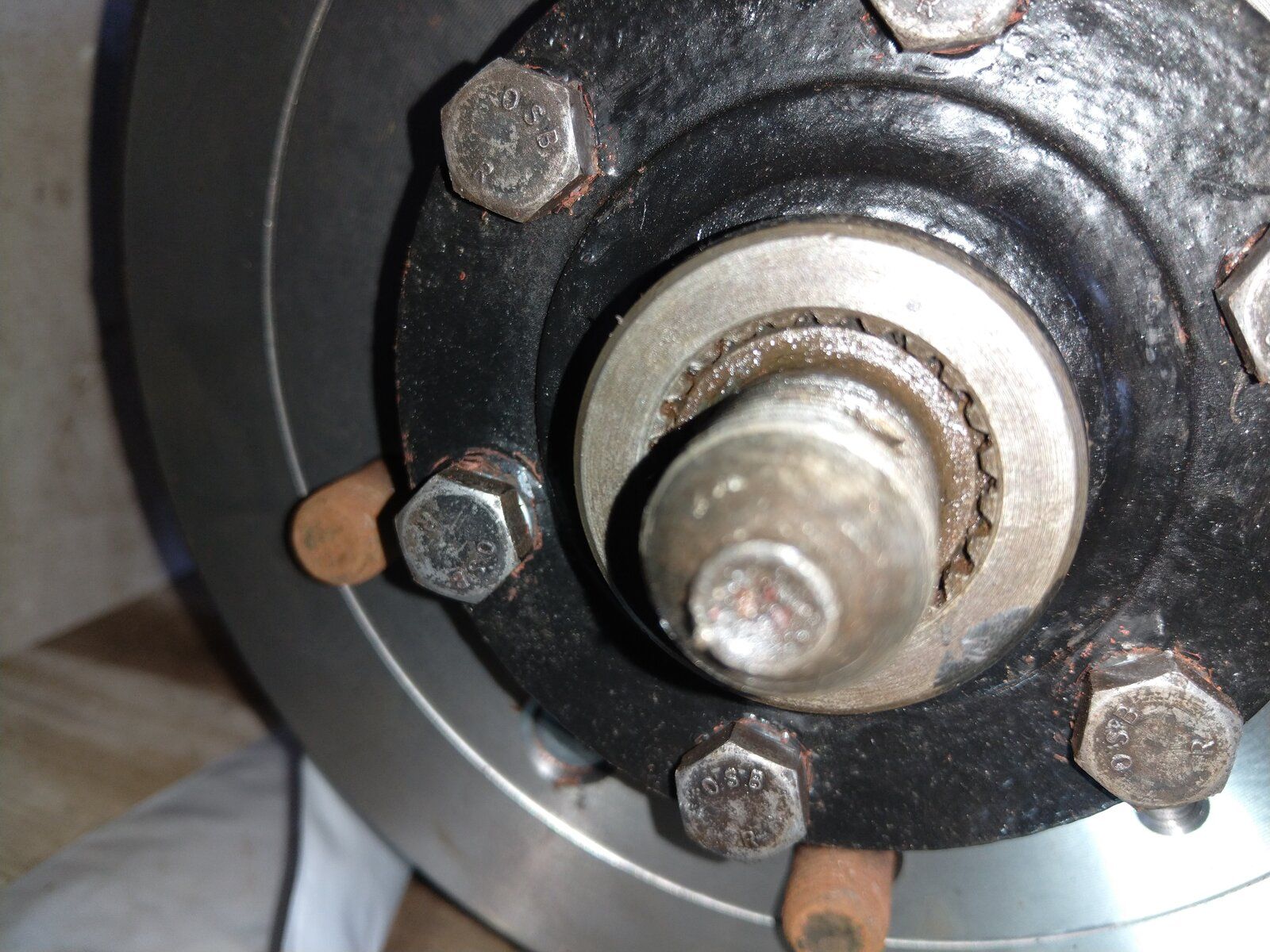

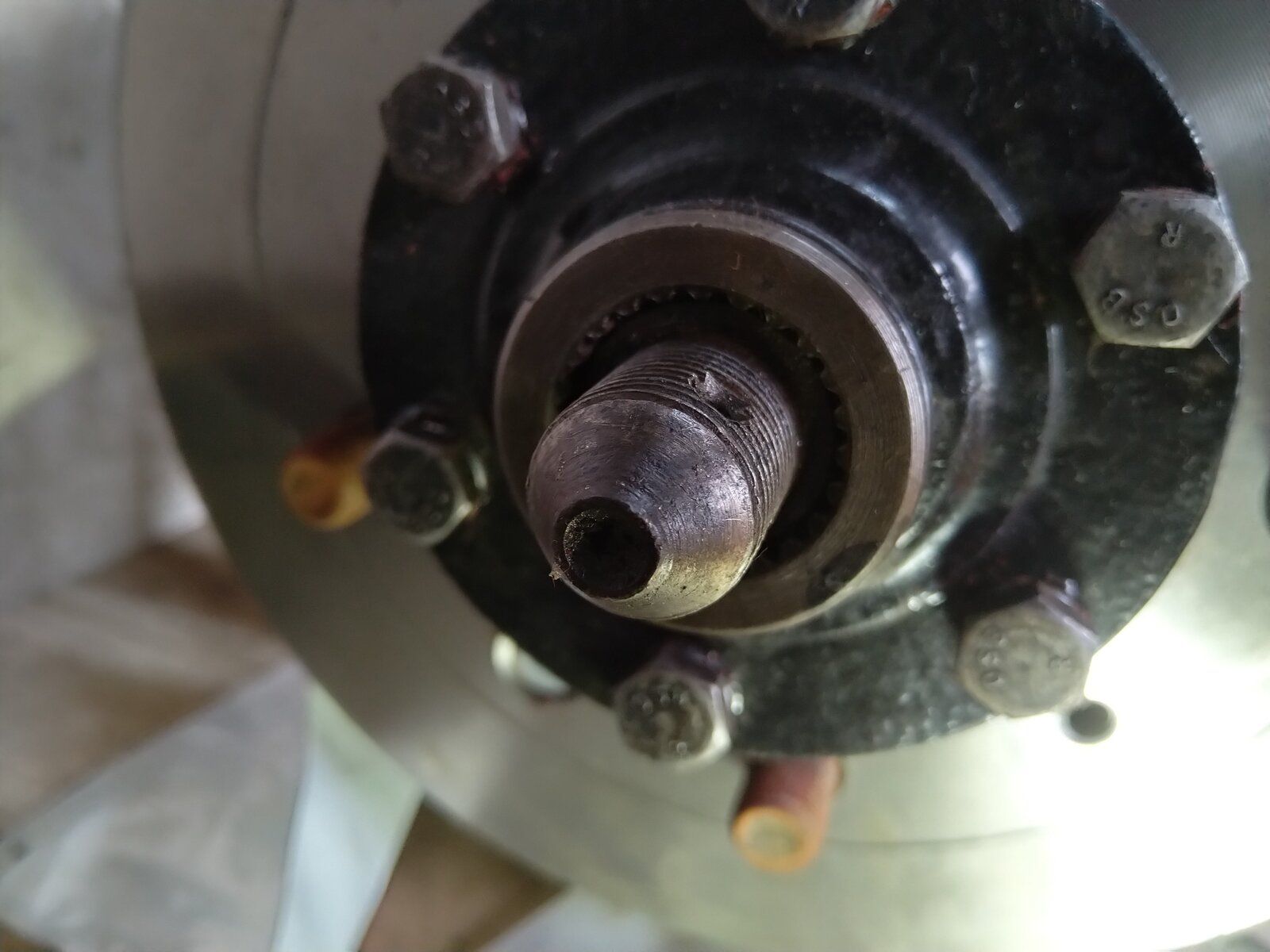

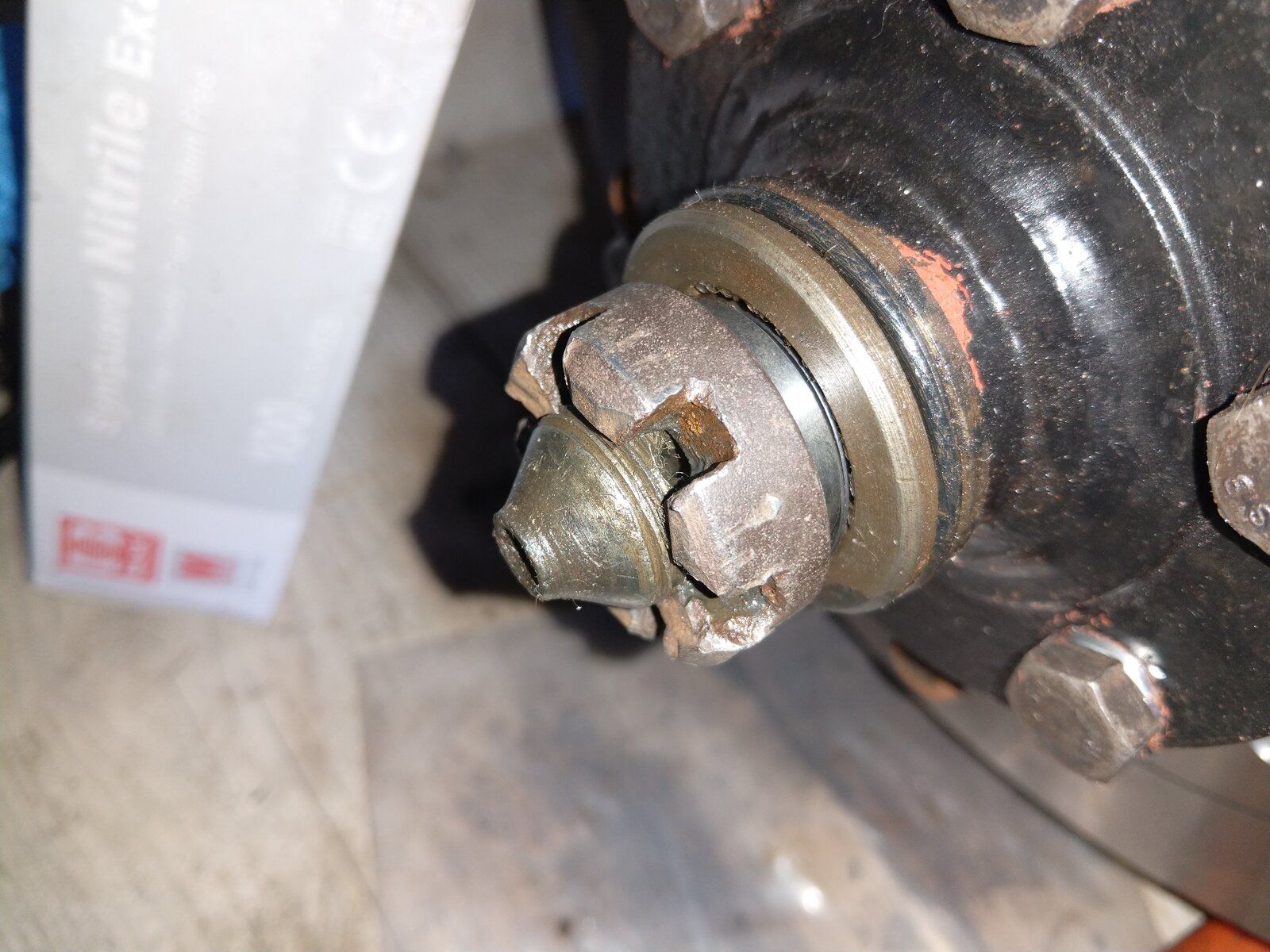

109 front Hub. I can't remember talking these parts of off nor was there a large Washer either. But according to Diagram theses are bit's I need. The spirolox ring just flops about.
Is This Right
- Thread starter border
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Wildefalcon
Well-Known Member
- Posts
- 1,685
What year is your 109? 1981 ish?
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
It is 1970 but I have used parts from 2 different spare axles. Neither definitely didn't have these bit's on
Wildefalcon
Well-Known Member
- Posts
- 1,685
Ah. could be a post rationalisation axle. The lock nut suggests it. Different parts needed.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Think I just need a big washer before the big nut on end, just doesn't look right with parts I have.
Wildefalcon
Well-Known Member
- Posts
- 1,685
Yes, two different axle types, I think you've bits from both. Have you got the parts book?
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

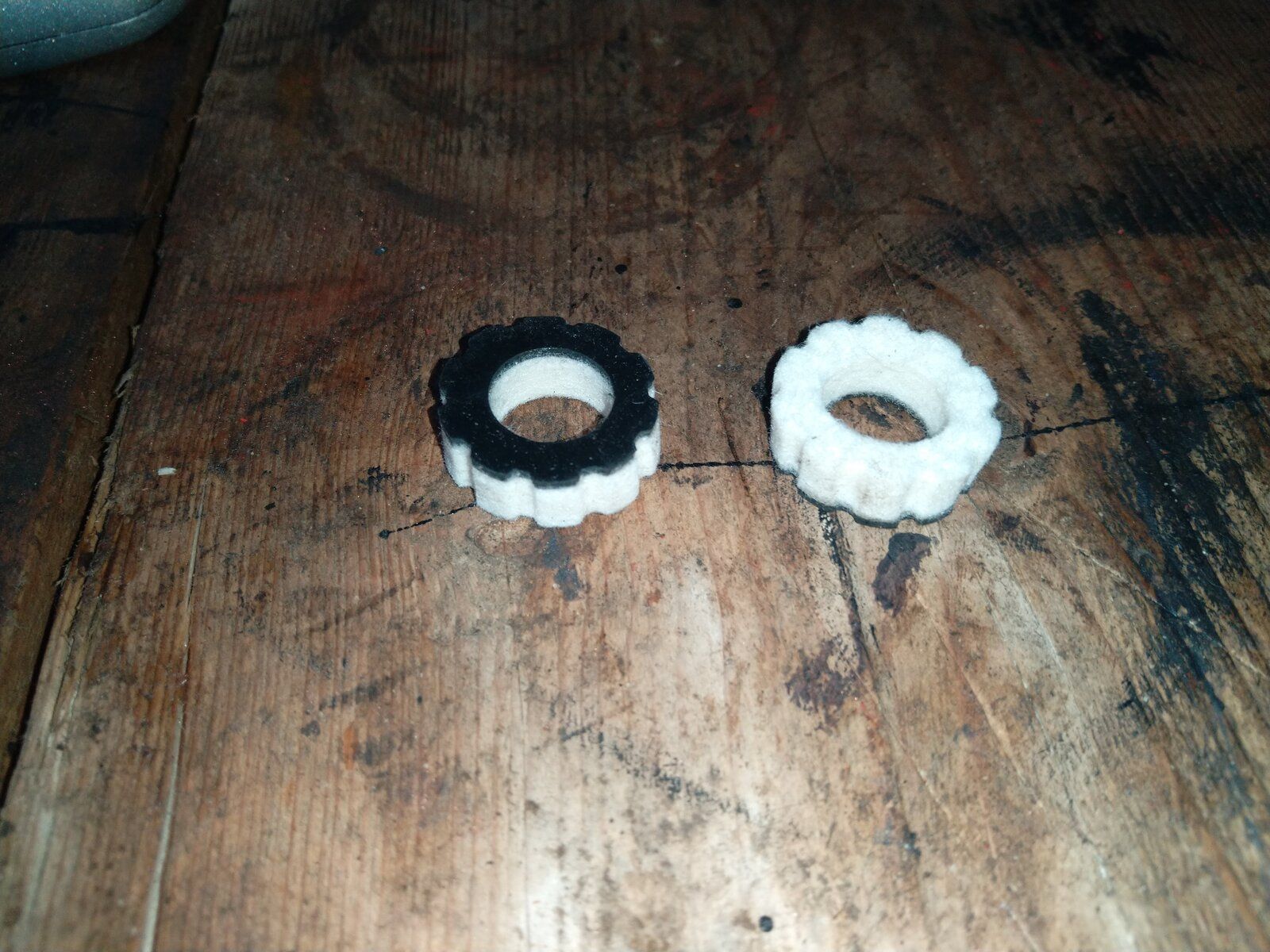

, I got these felt seal thingys RTC3515, in the wheelbearing kits but they do not go over end they are way to small, but think they were on when I stripped it down, there was no 571922 washers as I would have kept them. So not sure what the hell I need now. The 2 bits in my first post above just do not look right at all but this Diagram below is for 88in - Up to June 1980. so really Confused now
Attachments
tottot
Well-Known Member
- Posts
- 8,077
- Location
- west wales coast
The felt seals are only for 10 spline shafts.
Wildefalcon
Well-Known Member
- Posts
- 1,685
How many splines on your hand shaft outers? I think it's 24. So you need the post 1980 parts.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Yes 24, is there I different felt seal for 24s
tottot
Well-Known Member
- Posts
- 8,077
- Location
- west wales coast
I doubt it, Pretty sure the Salisbury axle did not have them. Not the 24 spline version anyway.
Wildefalcon
Well-Known Member
- Posts
- 1,685
This might help:
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

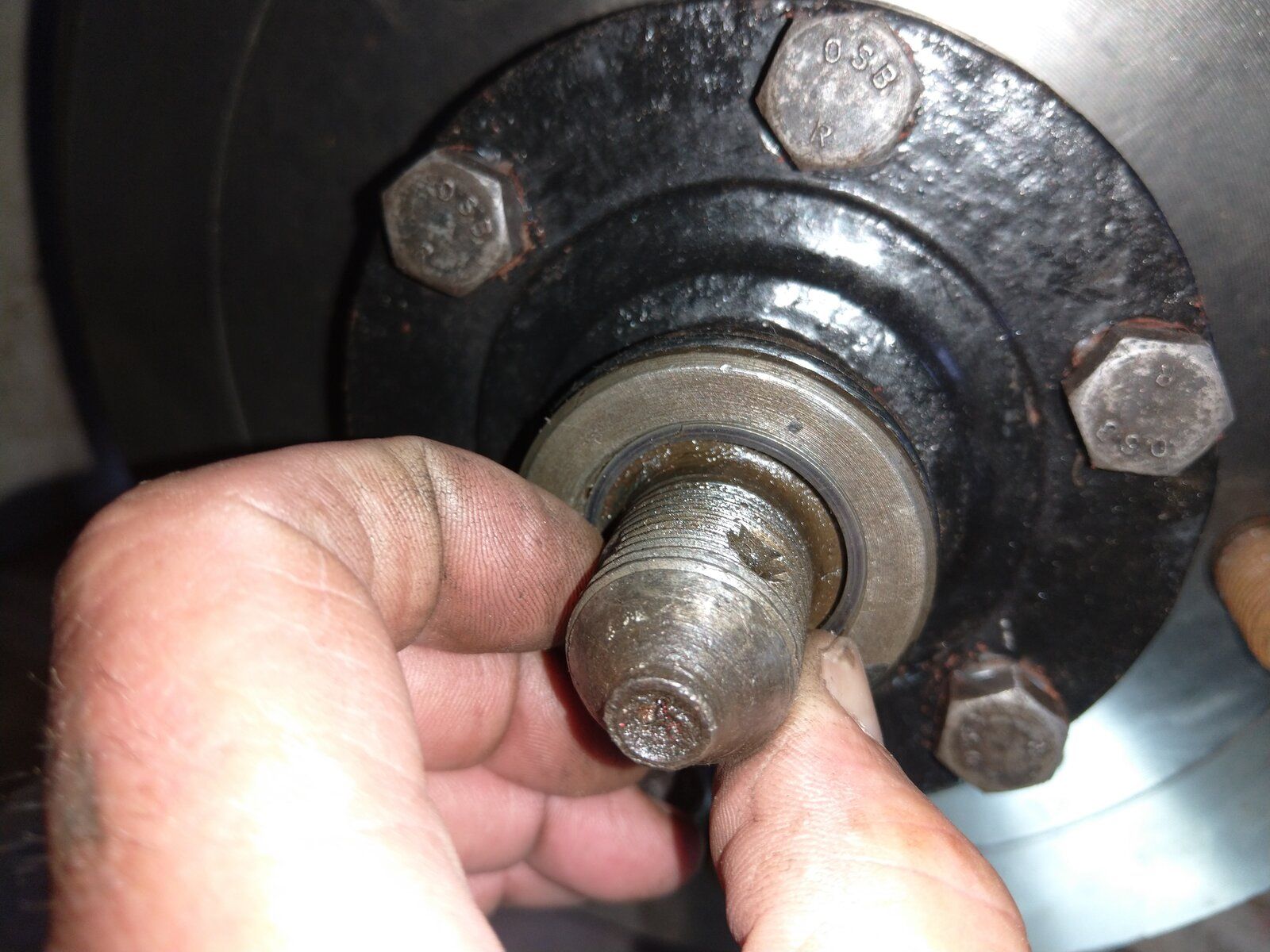

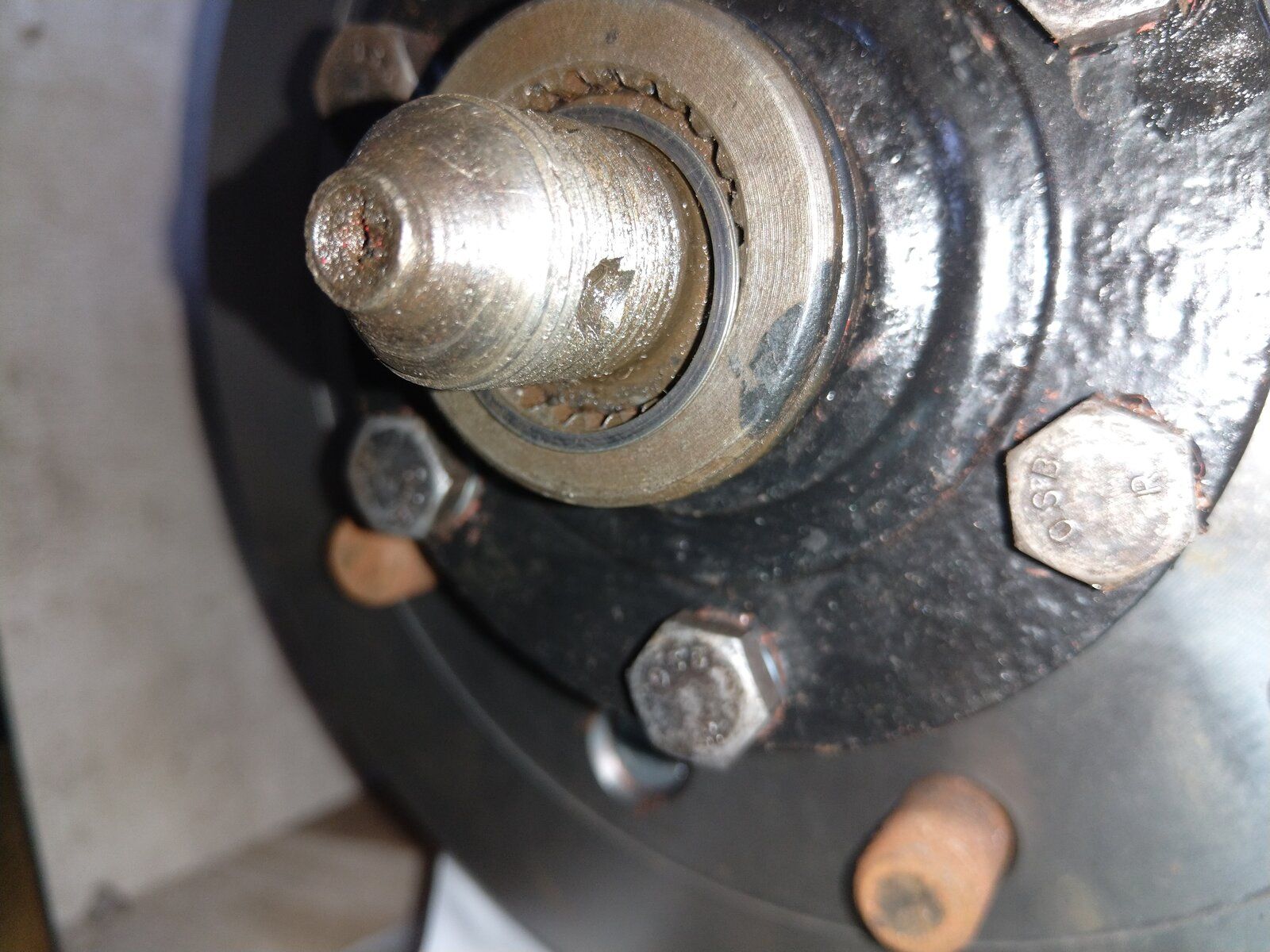

Your right mate I found a 10 spline and they fit perfect. Looks like I do have the right bits after all, but how does the spirolox ring go on it's slightly larger, Is it supposed to snap into gap like circlip ?
Attachments
Last edited:
tottot
Well-Known Member
- Posts
- 8,077
- Location
- west wales coast
Sorry don't know.
Wildefalcon
Well-Known Member
- Posts
- 1,685

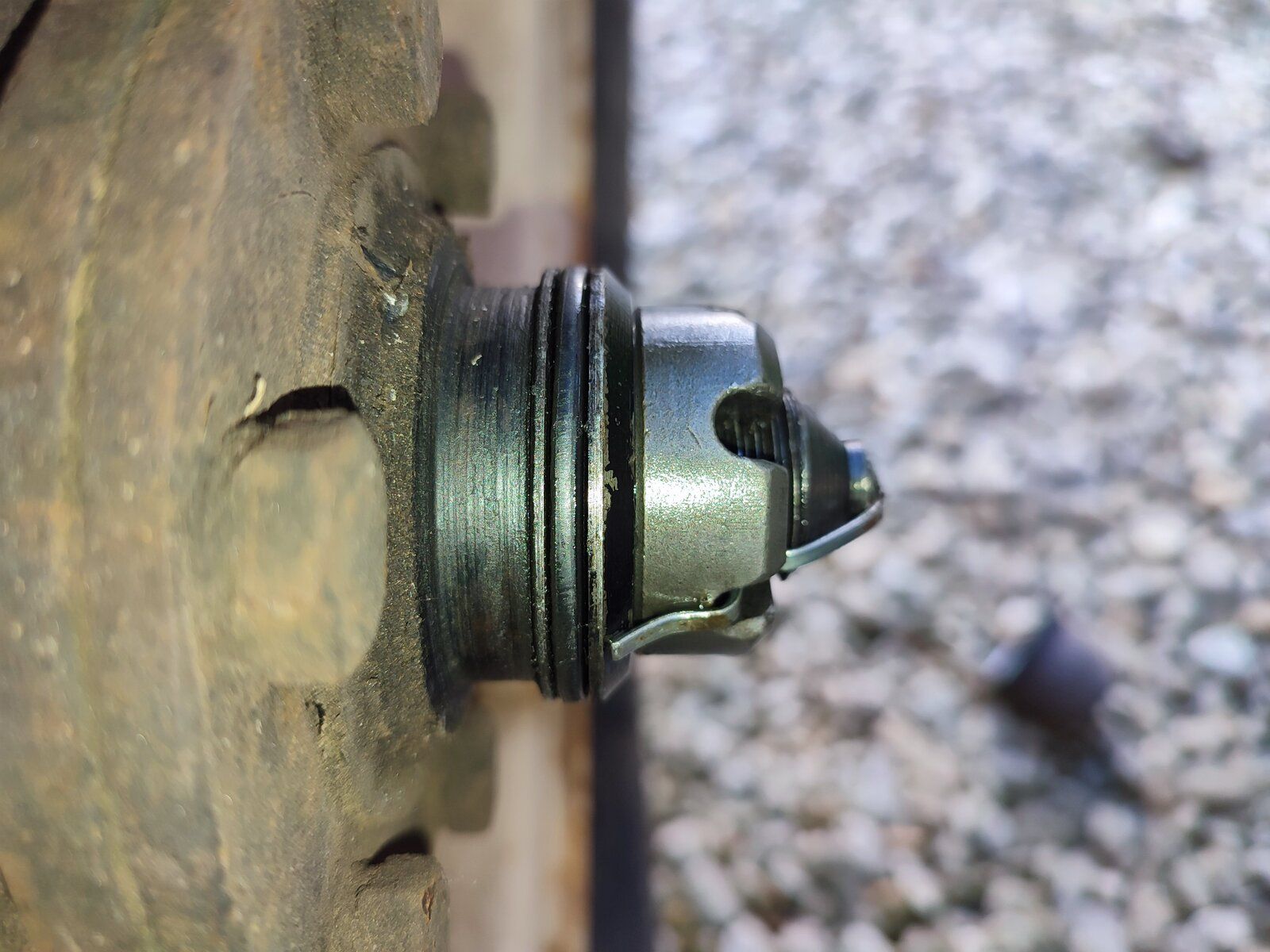

This is mine, 1981 LWB axle.
Wildefalcon
Well-Known Member
- Posts
- 1,685
The bit with the O ring is part of the drive flange.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

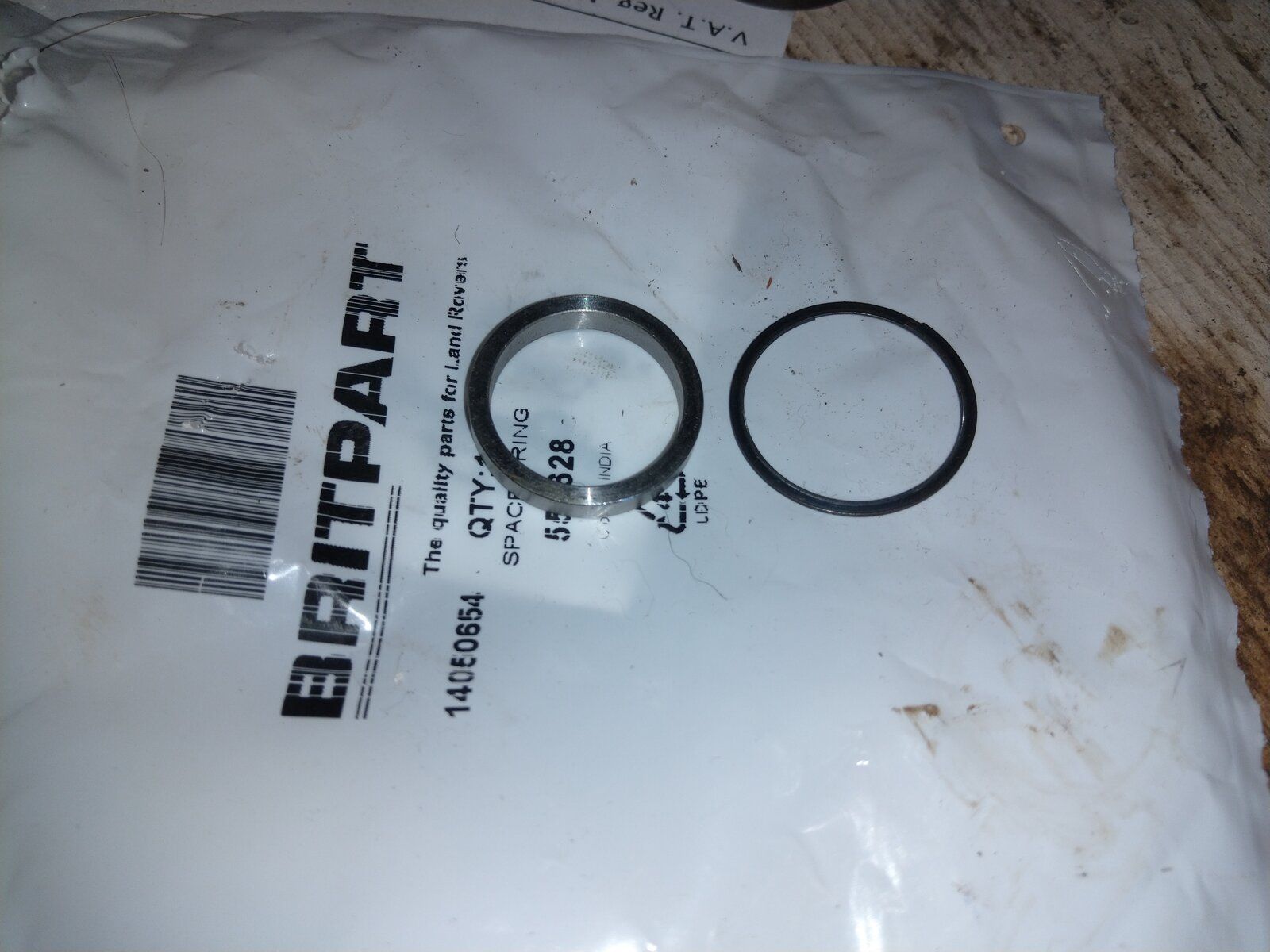

Thanks I have new O rings on flange, So do you just have the big nut on the end tightened up to drive flange ?
Wildefalcon
Well-Known Member
- Posts
- 1,685
Yes, but I've had an issue with one side. The hub cap keeps pressurising, so I suspect something is wrong. One of these days I'll strip it down and find out why.
There may be a seal under the nut.
There may be a seal under the nut.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

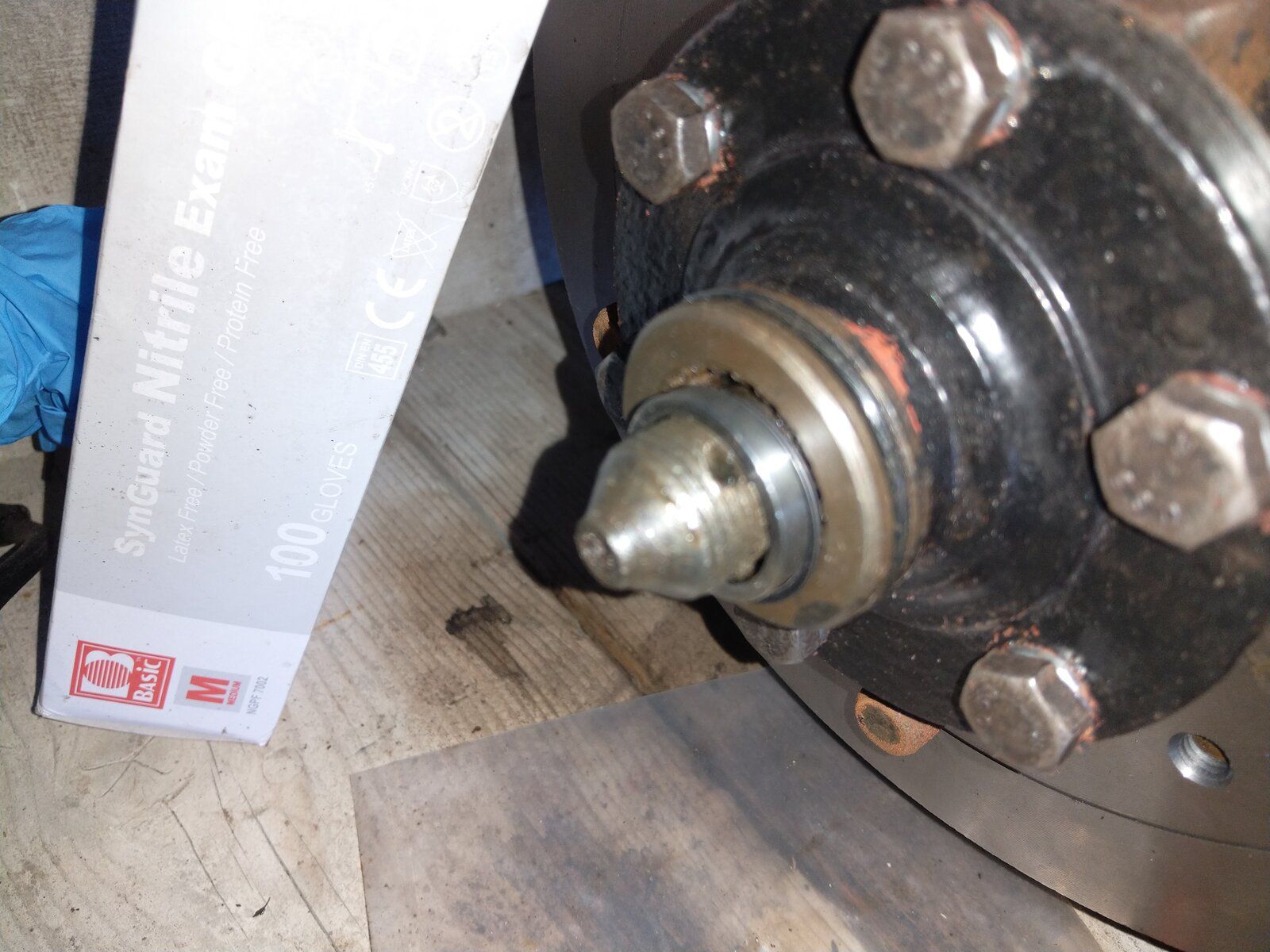

Well theres no way I can get that stupid Spirolox ring thingy to snap in. Think I will just leave it and spacer out and use only the big nut with split pin, Is there a socket that fits this nut ? cant find one yet, or is there some kind of special tool to tighten them ?
Thanks
Wildefalcon
Well-Known Member
- Posts
- 1,685
I made a thing to tighten mine.
