How do I find a switched live wire?
- Thread starter Mackers
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
bluedog333
Well-Known Member
- Posts
- 5,450
- Location
- Henley on Thames, Oxfordshire

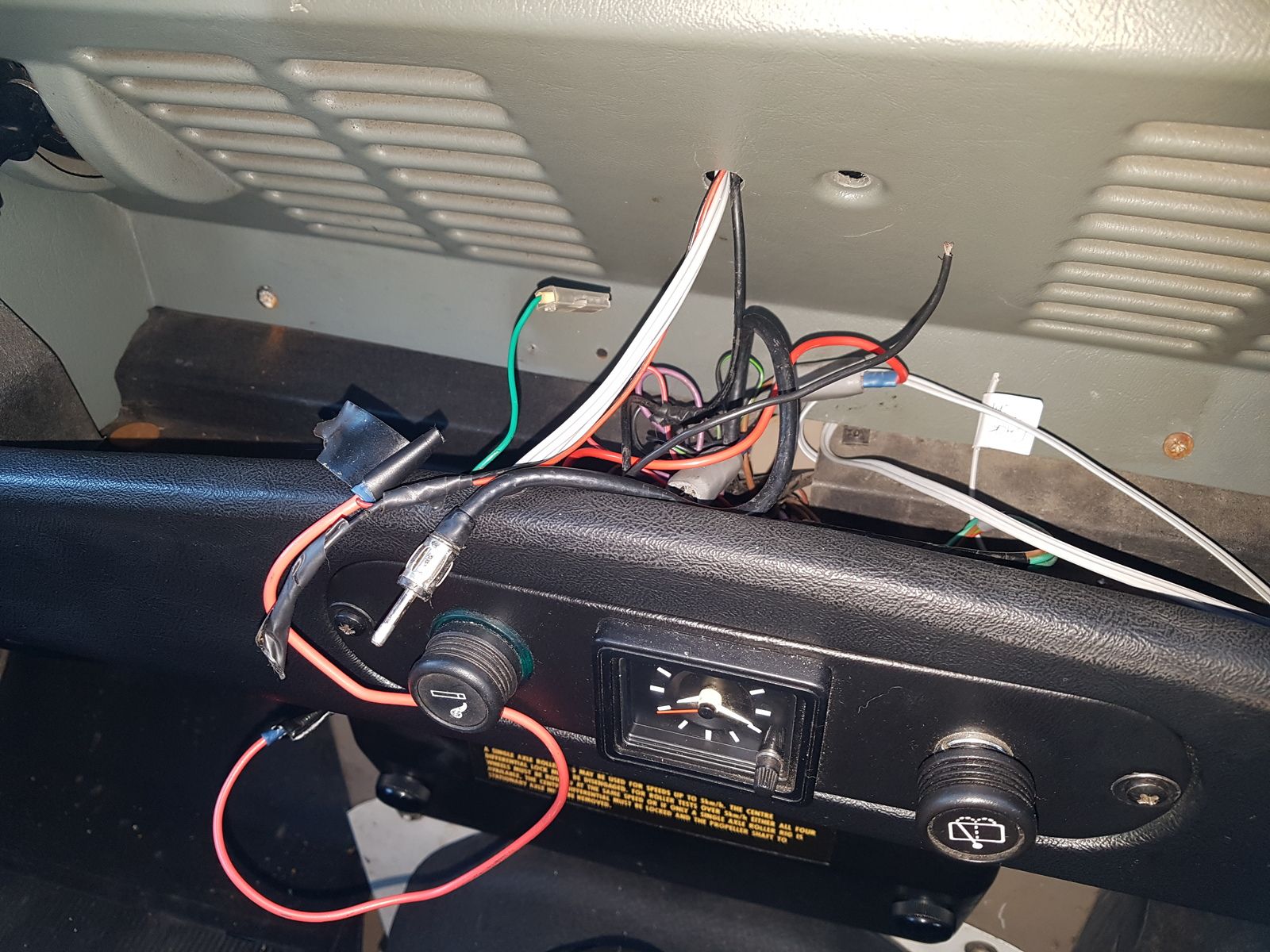

The green to the rear wash/wipe switch should be ignition switched live. Don’t know about stereo feeds
Did you buy the multi meter advised a few months ago?
You may need it if you have much wiring like that
A small kit with some terminals and crimp pliers is needed here me thinks.
As for your original question. No I can’t see 1 sorry
J
You may need it if you have much wiring like that
A small kit with some terminals and crimp pliers is needed here me thinks.
As for your original question. No I can’t see 1 sorry
J
https://www.landyzone.co.uk/land-rover/using-a-multimeter-on-a-vehicle-electrical-system.331788/
Did you read this?
Set your meter to the correct setting for measuring volts.
Black lead to the metal body and then probe some wires with the red lead.
With ignition on When you find turn ignition off and see if it is still there.
As suggested you may find 1 on the back of the wiper switch. Also in the fuse box you will find 1.
Is your radio powered all the time? Some are wired with ignition on only as well.
Good luck
J
Did you read this?
Set your meter to the correct setting for measuring volts.
Black lead to the metal body and then probe some wires with the red lead.
With ignition on When you find turn ignition off and see if it is still there.
As suggested you may find 1 on the back of the wiper switch. Also in the fuse box you will find 1.
Is your radio powered all the time? Some are wired with ignition on only as well.
Good luck
J
doriz
Well-Known Member
- Posts
- 17,312
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Brill pdf. Cheers
Brill. Cheers.https://www.landyzone.co.uk/land-rover/using-a-multimeter-on-a-vehicle-electrical-system.331788/
Did you read this?
Set your meter to the correct setting for measuring volts.
Black lead to the metal body and then probe some wires with the red lead.
With ignition on When you find turn ignition off and see if it is still there.
As suggested you may find 1 on the back of the wiper switch. Also in the fuse box you will find 1.
Is your radio powered all the time? Some are wired with ignition on only as well.
Good luck
J
If your radio/stereo/disco system only comes on after you switch the ignition on then it is an after ignition live and you can use that feed. Just a thought - can you use the existing radio live feed anyway? if you have to turn the stereo off after you've turned the ignition off it's only 1 extra thing to do.
Fairly easy to do even with very little electrical know how - cut the existing feed wire, use a piggy back connector on the incoming supply and a spade connector on each of the feeds to the radio and DAB module.
Fairly easy to do even with very little electrical know how - cut the existing feed wire, use a piggy back connector on the incoming supply and a spade connector on each of the feeds to the radio and DAB module.
Cheers for that. Gonna tackle it this week.
doriz
Well-Known Member
- Posts
- 17,312
Mackers, this is what I did. The wires to your dash will or should have bullet connectors on the end. I cannot remember the wire colours but you can switch live etc to ascertain which of the wires are permanent or switched live. In my case I just crimped on new yellow male bullet connectors and rammed them home, bingo.
Rougharse Racing
Well-Known Member
- Posts
- 883
- Location
- The Grim North
Lucas wiring, main wire colour:
Brown Live all the time, un-fused
Purple Live all the time, fused
White Live with ignition on, un-fused
Green Live with ignition on, fused
Brown Live all the time, un-fused
Purple Live all the time, fused
White Live with ignition on, un-fused
Green Live with ignition on, fused
I've got a purple wire that goes to my courtesy light. I put the red to it and they work great.
Rougharse Racing
Well-Known Member
- Posts
- 883
- Location
- The Grim North
That's a permanent live, not switched.
Scooby22
Well-Known Member
- Posts
- 1,251
- Location
- County Durham
12 volt socket is usually only live with ignition on, tap a fused feed from the back of there.
bluedog333
Well-Known Member
- Posts
- 5,450
- Location
- Henley on Thames, Oxfordshire
Pretty sure they’re permanent live too.
Scooby22
Well-Known Member
- Posts
- 1,251
- Location
- County Durham
It may be permanent live, mine is only live with ignition but mine is a 2004 TD5.
