Help identifying these parts please

Retroanaconda said:

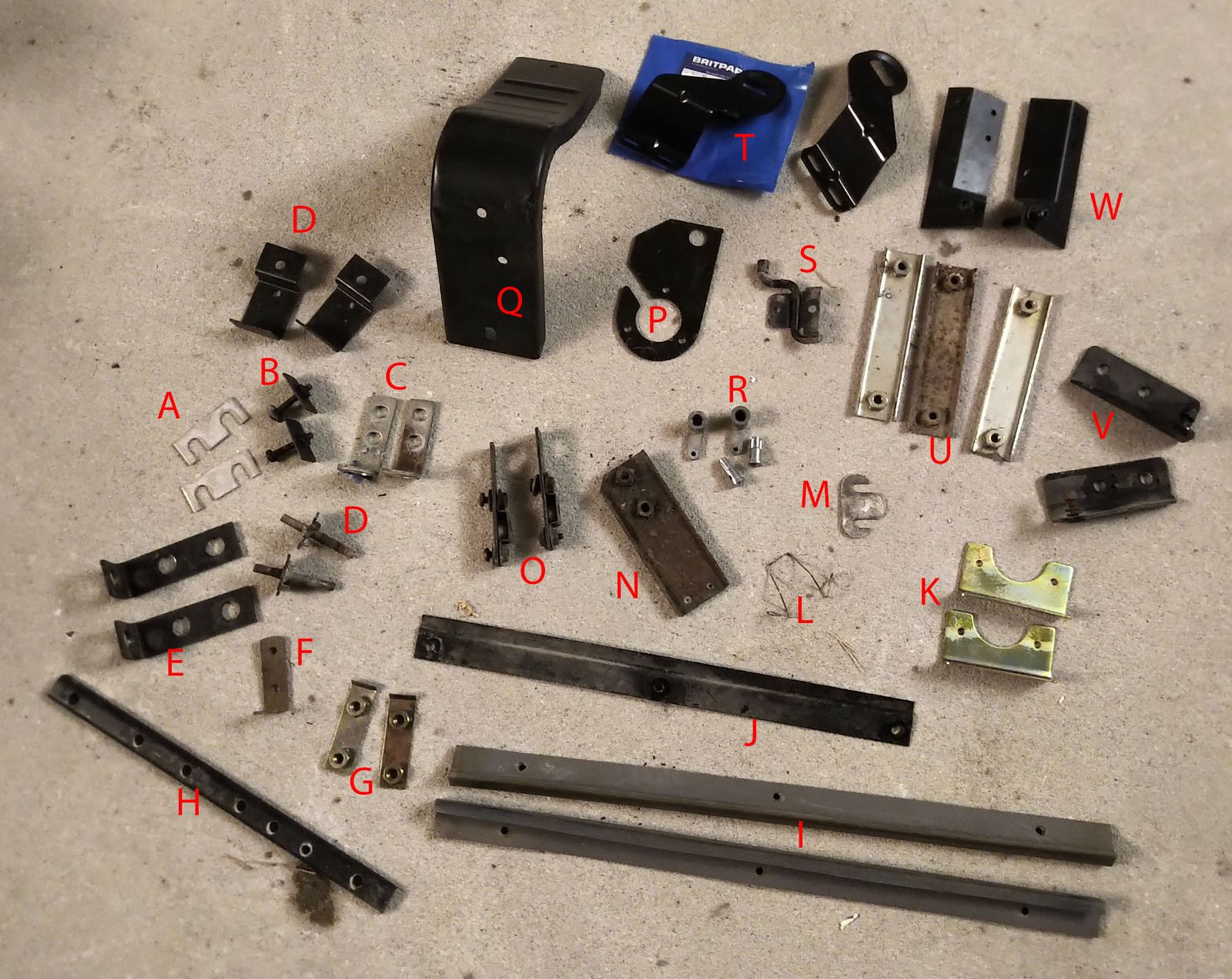

A - spacers for the rear door check strap bracket that bolts to the rear of the seatbox.
B - roof to screen frame bolts and nut plates
C - brackets for side frames to tub
D - studs for same as D
E - as for C
F - ?
G - nut plates possible for bulkhead foot to sill
H - ?
I - if rubber (?) then door seals to sill
J - not sure, might be to do with holding plates down under seats or cubby box
K - bracket for rear tub wheel arch, sits on top of tub capping, near second row seats. No idea what it’s supposed to do as I didn’t refit mine after the rebuild.
L - headlamp bulb retainer spring
M - spacer for door striker
N - nut plate for the back door check strap securing bolts.
O - nut plate for the rear tub cappings. I think the rear bench seats bolt into them.
P - towing socket bracket
Q - wheel chock
R - parts for door locks
S - door check strap spring
T - radiator bracket
U - ?
V - second row door check strap securing plates. Bolt to rear of seat box with “A” as a spacer.
W - ?

Click to expand...

Al2O3 said:

Is J the angle bar that holds the battery down, via two rods threaded on the ends, they hook in the bottom of the seat box.

Click to expand...

mick 1986 said:

I thought that, but mine has plain holes in it, not threaded. It has threaded bar and nuts on the top.

Click to expand...

Al2O3 said:

I'm on my phone and can't tell those holes are threaded

Click to expand...
