HELP, identify the engine type on 89 RRC

Radman · Nov 13, 2018

I would like to buy a RR with the 2.5 VM diesel,. however owner is not sure if the car have 2.4 or 2.5 VM engine. the car was build in july 1989, in this month the factory introduced the newer one.

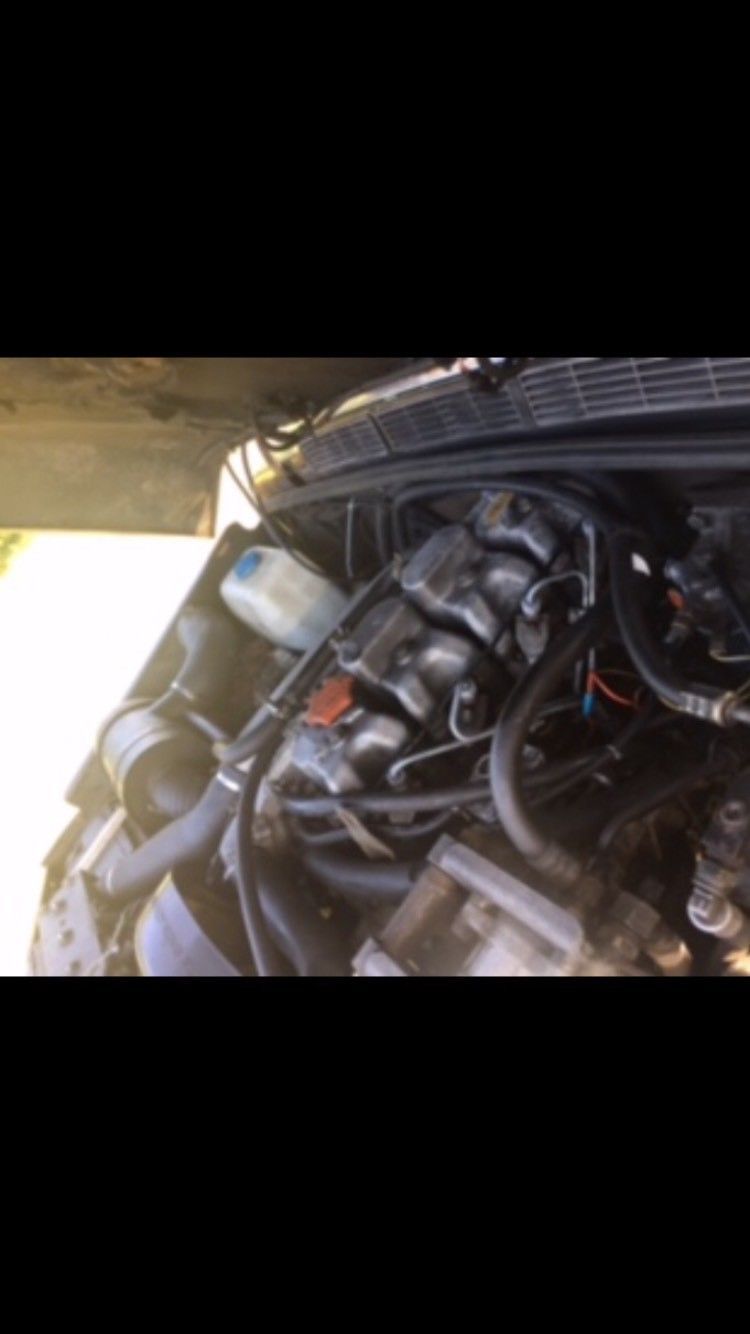

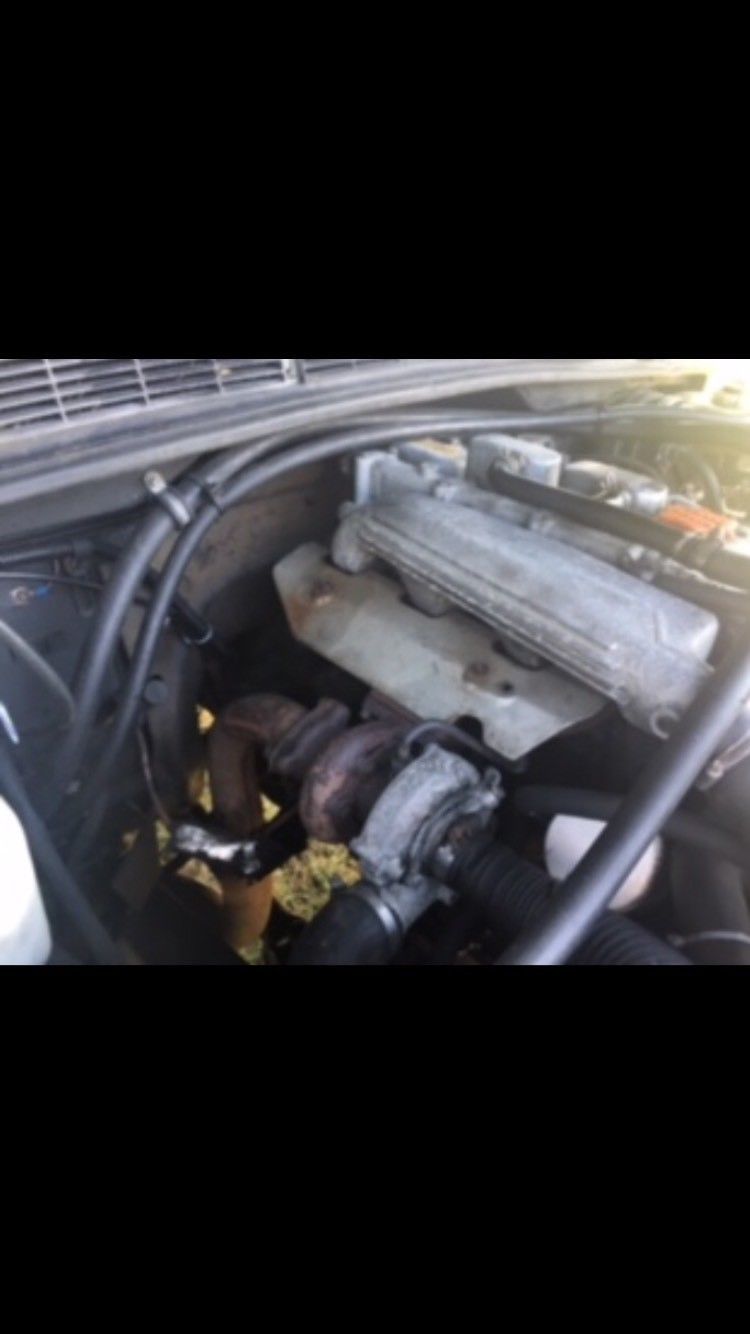

Its a french car and there is no info in the car documents about engine size. I have just photos and the chassis number.
Im a bit lost because dont know how be sure abou the engine type.

cheers

rad

Ratae · Nov 13, 2018

Have a look at this with your chassis number.
https://www.firstfour.co.uk/land-rover-vin

Radman · Nov 13, 2018

the code shows its VM 2.4 ? but the owner insist its 2.5
SALLHABE8FA383

norseman · Nov 13, 2018

First you say the PO 'is not sure' of the engine size, then you state 'owner insists it's a 2.5'

Forgive me if I'm missing something here.

jamesmartin · Nov 13, 2018

Radman said:
the code shows its VM 2.4 ? but the owner insist its 2.5
SALLHABE8FA383

check the engine number

Datatek · Nov 13, 2018

I may be wrong, but I thought the later 2.5 had a one piece cylinder head rather than 4 separate ones?

tomcat59alan · Nov 13, 2018

Datatek said:
I may be wrong, but I thought the later 2.5 had a one piece cylinder head rather than 4 separate ones?

No, your thinking of the vm engine fitted to the J**P. I carn't even type the name.

Datatek · Nov 13, 2018

tomcat59alan said:
No, your thinking of the vm engine fitted to the J**P. I carn't even type the name.

I only know the marine versions

tomcat59alan · Nov 13, 2018

Datatek said:
I only know the marine versions

Not in a RRC.

Ratae · Nov 13, 2018

Get the engine number then run it past these:
http://www.vmdieselspecialist.com/engine-serial-number-location/
http://www.vmdieselspecialist.com/

I've just had a look at my factory manual which covers both the 2.4 & 2.5 VMs & visually they look very similar.
I don't know if these numbers will be on the engine number plate but:
The 2.5 is Type "95 A VM type HR 4924 HI"
The 2.4 is Type "11A VM type HR 492 HI"
If you can identify the engine coolant rail the thermostat is shown on the side of it with the temp sensor on the end on the 2.4 but the stat & it's housing with the top hose connection as part of the housing are on the front end on the 2.5
2.4 sump looks to be 2 piece whilst the 2.5 is one piece.

Radman · Nov 13, 2018

norseman said:
First you say the PO 'is not sure' of the engine size, then you state 'owner insists it's a 2.5'
Forgive me if I'm missing something here.

He was just told it 2.5. but no evidence for that.

Radman · Nov 13, 2018

jamesmartin said:
check the engine number

I wish. but its not easy to get it.

Radman · Nov 13, 2018

Ratae said:
Get the engine number then run it past these:
http://www.vmdieselspecialist.com/engine-serial-number-location/
http://www.vmdieselspecialist.com/

I've just had a look at my factory manual which covers both the 2.4 & 2.5 VMs & visually they look very similar.
I don't know if these numbers will be on the engine number plate but:
The 2.5 is Type "95 A VM type HR 4924 HI"
The 2.4 is Type "11A VM type HR 492 HI"
If you can identify the engine coolant rail the thermostat is shown on the side of it with the temp sensor on the end on the 2.4 but the stat & it's housing with the top hose connection as part of the housing are on the front end on the 2.5
2.4 sump looks to be 2 piece whilst the 2.5 is one piece.

thank you. Ill try to check again. Strange that its so difficult to tell them apart.

Henry_b · Nov 13, 2018

The VM 2.4 was replaced in 1990 by the 2.5 VM and a short time later that was replaced by the 200tdi.

All 2-300 TDIs are badged TDI on the boot.

And VM's are badged Turbo D

And with yours being a july '89 it'll be the 2.4.

jamesmartin · Nov 13, 2018

Henry_b said:
The VM 2.4 was replaced in 1990 by the 2.5 VM and a short time later that was replaced by the 200tdi.

All 2-300 TDIs are badged TDI on the boot.

And VM's are badged Turbo D

And with yours being a july '89 it'll be the 2.4.

unless it was replaced

Henry_b · Nov 13, 2018

jamesmartin said:
unless it was replaced

Well, yes of course

OP will 'ave to check engine numbers

Gazbo · Nov 13, 2018

If he flies me over there I'll have a look and tell him in 2minutes, I've spent many hours working on one, a 2.4 out of a 1988 RRC of course.

Radman · Nov 13, 2018

Gazbo said:
If he flies me over there I'll have a look and tell him in 2minutes, I've spent many hours working on one, a 2.4 out of a 1988 RRC of course.

Ill go to check it in person so well see. thanks for the offer ofc.

jamesmartin · Nov 13, 2018

Henry_b said:
Well, yes of course

OP will 'ave to check engine numbers

back in their day we used to rebuild a lot and a lot went for the 2.5 as a replacement,quite an interesting engine to rebuild, you bolt the main bearing caps around the crank journals then slide that into the block,heads cracked often and later were chrome plated on head face iirc,they also ran high oil pressure 90 psi

Gazbo · Nov 13, 2018

Radman said:
Ill go to check it in person so well see. thanks for the offer ofc.

Let me know if you want me to get a sample engine number off the 2.4 we have here to compare, I can get it later today from my mates place, but this engine is out of 1988 rrc.
