Headlining

border · Apr 11, 2020

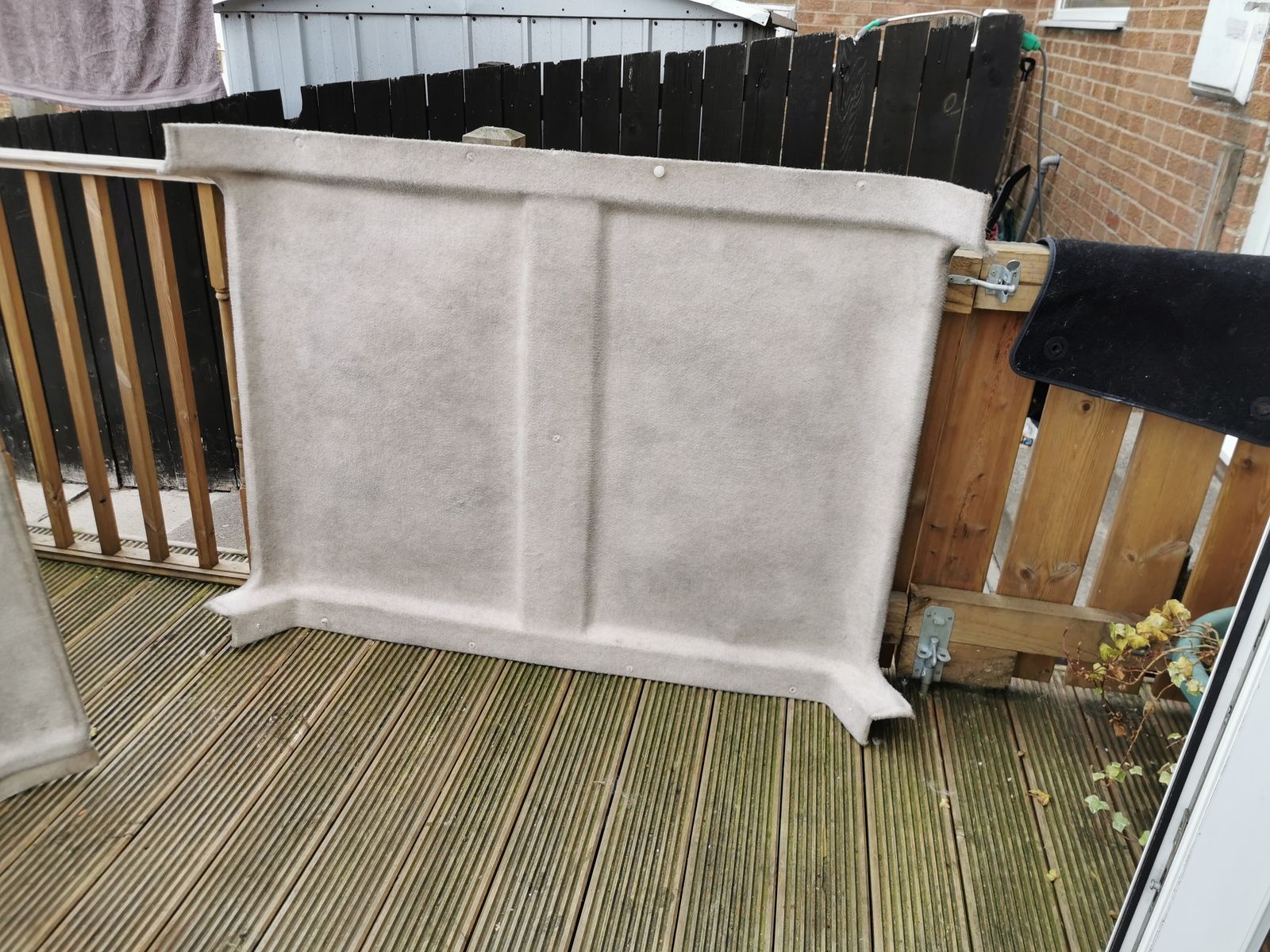

Been on cleaning my Headliner for my rebuild. Its in decent nick very solid / rigid, not coming away from the mould.
Went to try the front part today Only got a few of clips in to hold it, as waiting on some new ones to arrive, .

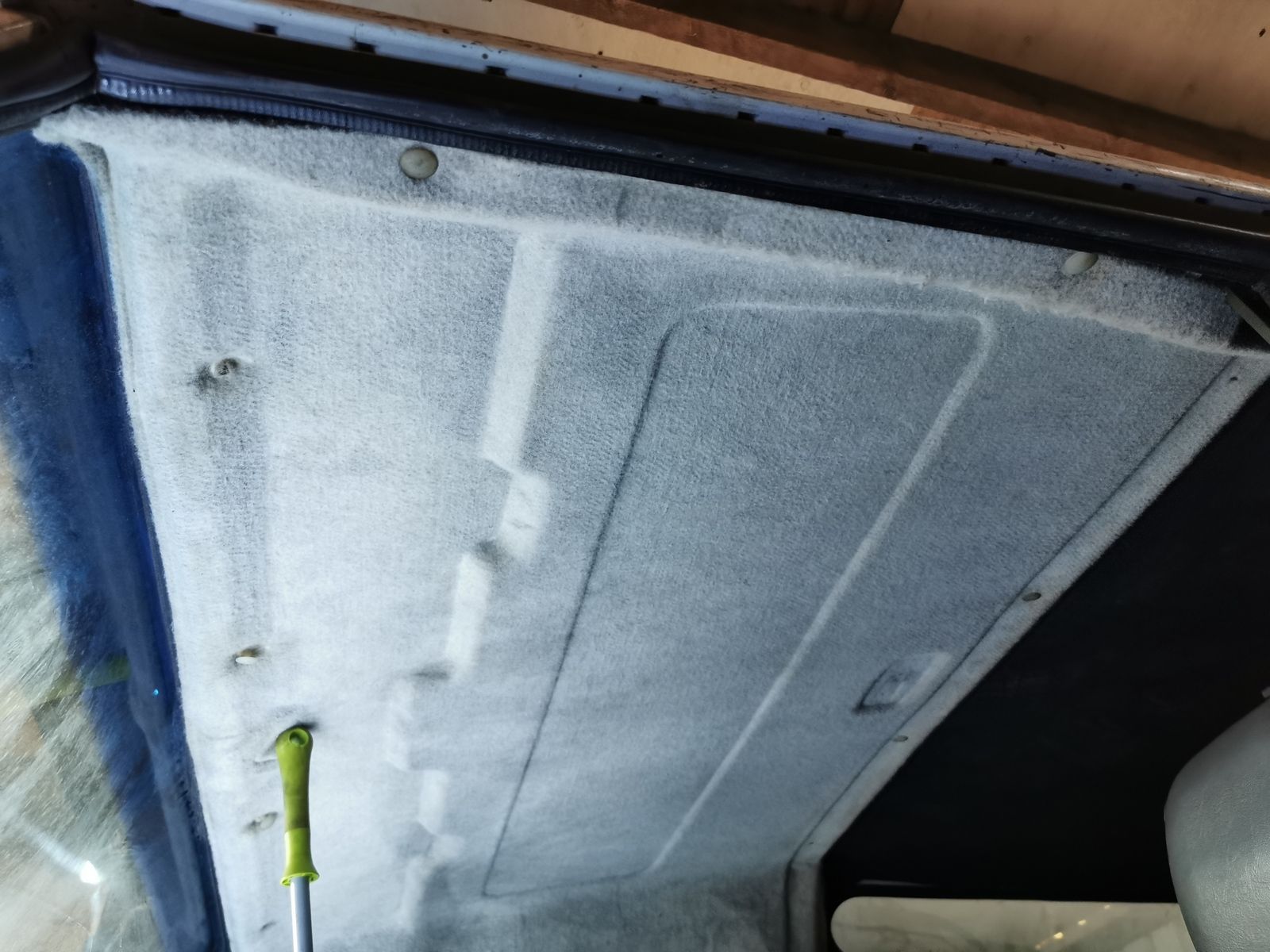

Anyway once up it is still sagging in the middle, not the material but the whole thing, Is this normal ? as all holes line up although the front ones above windscreen are a pain to get in.

Flossie · Apr 11, 2020

Mine did that, got some fir trees and added more into the cross struts in the roof. Mine is external ribbed.

doriz · Apr 11, 2020

Same ere. I stripped all the material off, removed all the dust and dry adhesive and applied evostik. It took 500mls of glue and was a pita but at least it isn't sagging now.

border · Apr 11, 2020

Think Ill use the spray glue in the middle I used for underlay and carpets, as well as the fir tree clips.

doriz · Apr 11, 2020

border said:
Think Ill use the spray glue in the middle I used for underlay and carpets, as well as the fir tree clips.

You'll be talking about fitting carpet next - pigs don't mind whether your tratter has carpet or not.

border · Apr 11, 2020

doriz said:
You'll be talking about fitting carpet next - pigs don't mind whether your tratter has carpet or not.

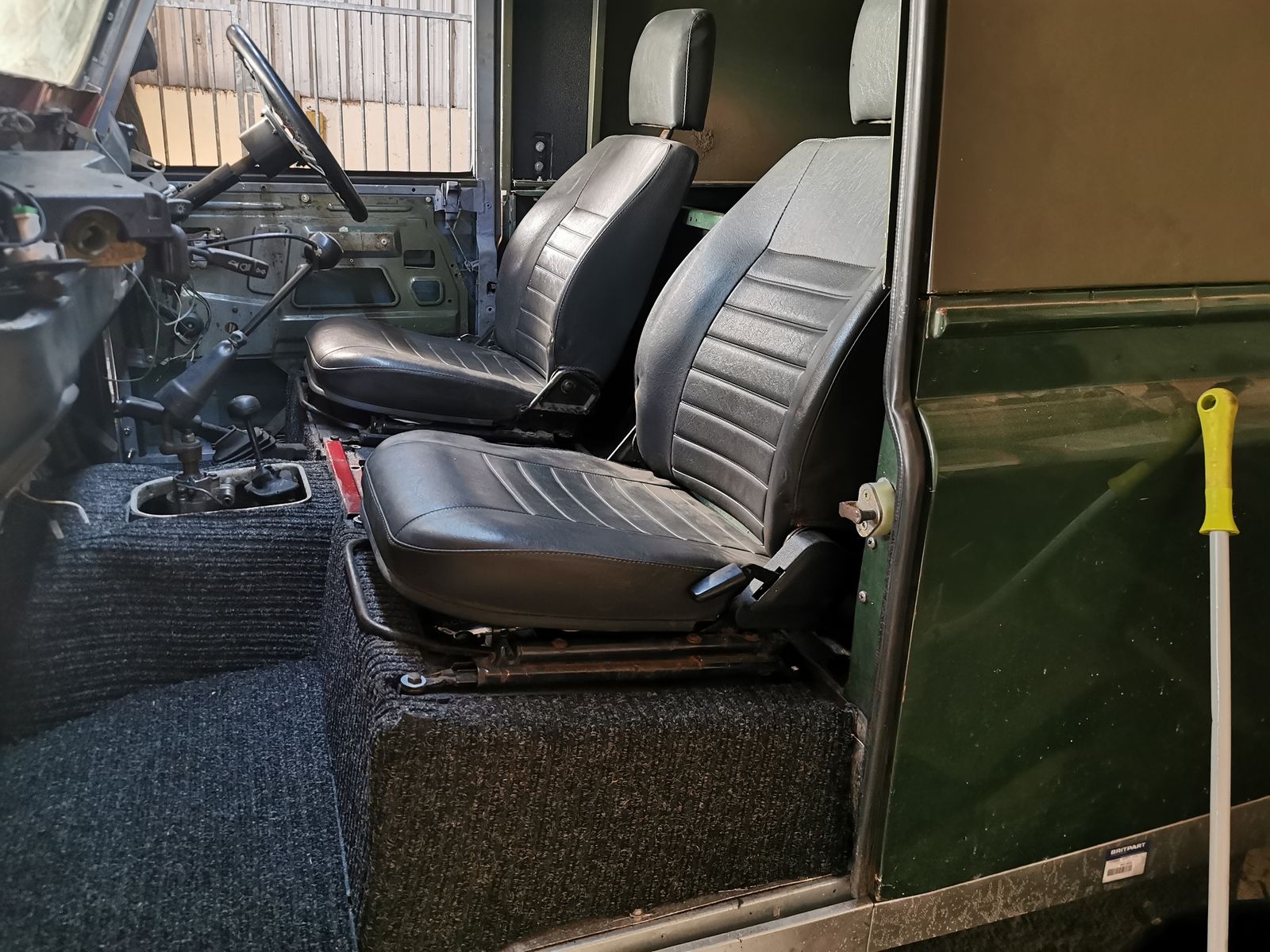

Just done that, not the neatest but it aint a show truck its a workhorse , well will be when its finished

kevstar · Apr 11, 2020

I took my headliner out & fibre glassed the top side then recovered it.

resto_d1 · Apr 11, 2020

border said:
Just done that, not the neatest but it aint a show truck its a workhorse , well will be when its finished

Bloody smart that!

resto_d1 · Apr 11, 2020

border said:
Just done that, not the neatest but it aint a show truck its a workhorse , well will be when its finished

what carpet is that?! I didn’t want carpet in mine but now I’ve cleaned n welded bulkhead I hope I’ve found any weak points

border · Apr 11, 2020

kevstar said:
I took my headliner out & fibre glassed the top side then recovered it.

Did the middle go up OK or did it still sag ?

resto_d1 said:
what carpet is that?! I didn’t want carpet in mine but now I’ve cleaned n welded bulkhead I hope I’ve found any weak points

Got it given off a bloke last week, he does repairs in post offices and it was on the floor in the door way of one, very hard wearing stuff, should last a good while.

bankz5152 · Apr 11, 2020

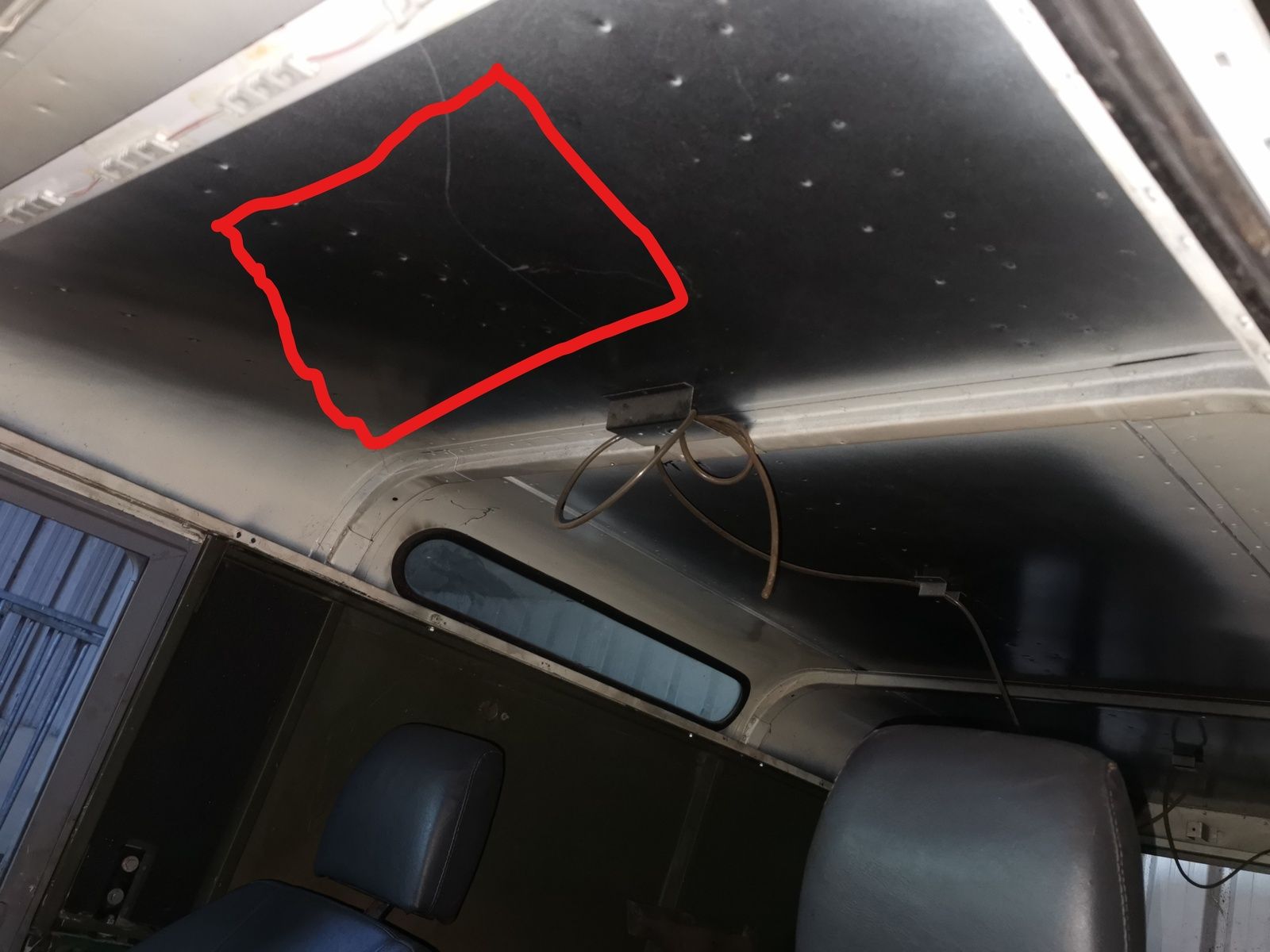

I drilled some extra holes in the central roof support, added 3 extra clips.

kevstar · Apr 11, 2020

border said:
Did the middle go up OK or did it still sag ?

Got it given off a bloke last week, he does repairs in post offices and it was on the floor in the door way of one, very hard wearing stuff, should last a good while.

No sagging at all, if its really bad id put a smallish bit of timber across then glass over it (after a layer of glass)

border · Apr 11, 2020

bankz5152 said:

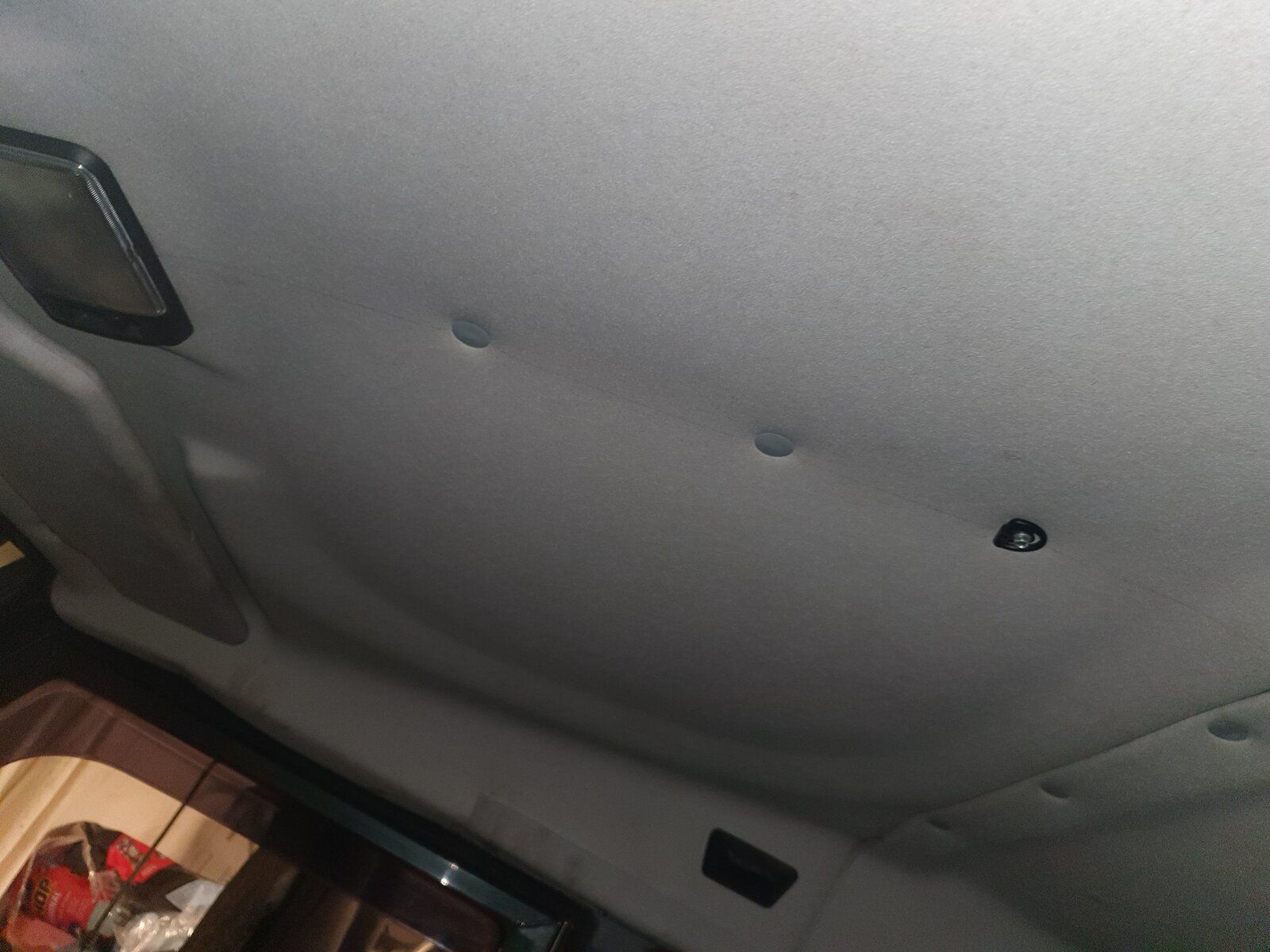

I drilled some extra holes in the central roof support, added 3 extra clips.

View attachment 205351

Thought about that but there's no where to drill on mine.

kevstar said:
No sagging at all, if its really bad id put a smallish bit of timber across then glass over it (after a layer of glass)

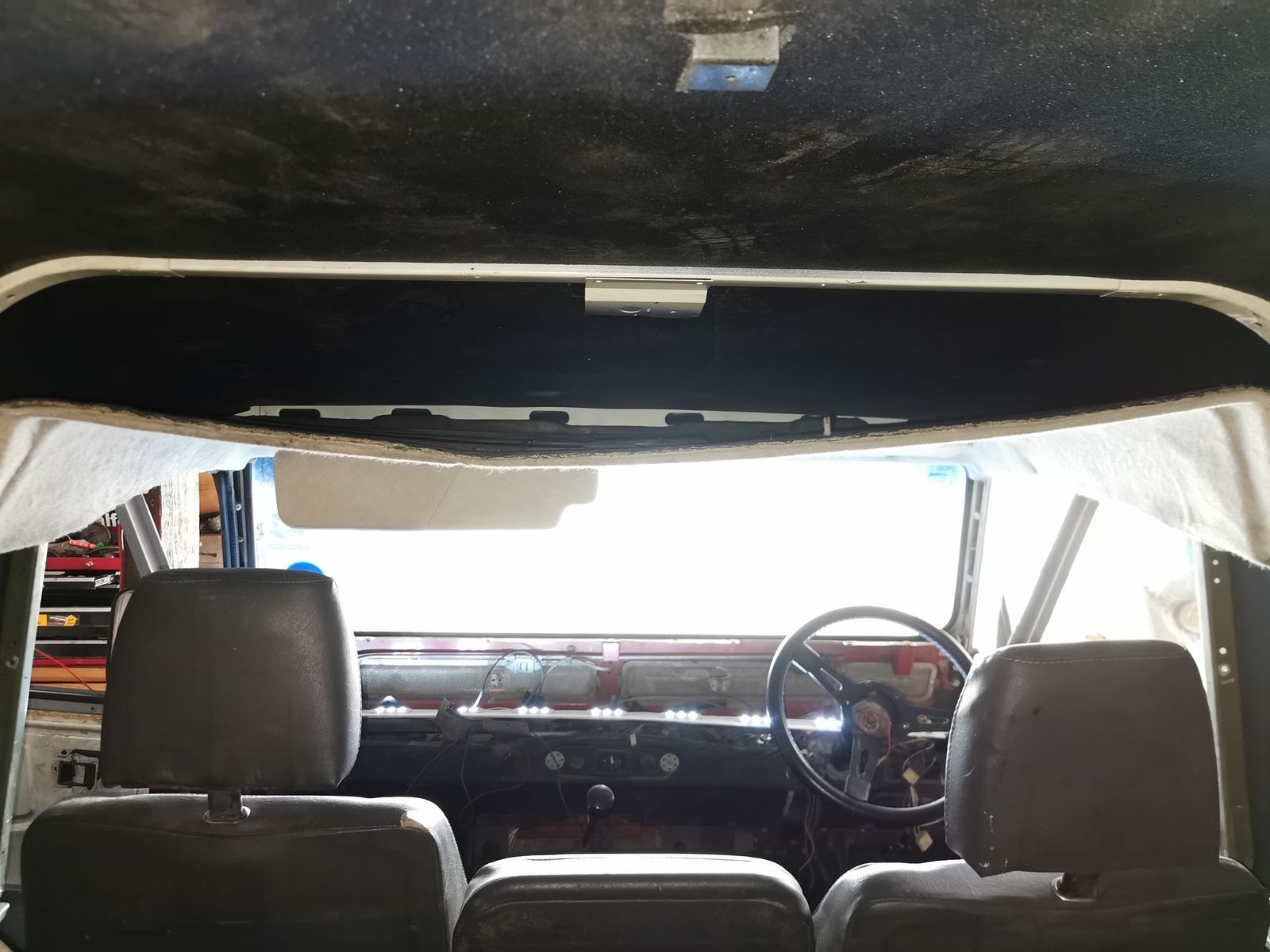

Theres a good 3 inch gap where it sags in the middle, would rather have it fastened right up to the roof, think the glue should work but might be a bit tricky getting things in place as it sticks really fast.

kevstar · Apr 11, 2020

border said:
Thought about that but there's no where to drill on mine.

Theres a good 3 inch gap where it sags in the middle, would rather have it fastened right up to the roof, think the glue should work but might be a bit tricky getting things in place as it sticks really fast.

Take the roof off then glue it & lay the head lining down on it rather that trying to hold it up.

bankz5152 · Apr 12, 2020

Could use some HD velcro

border · Apr 12, 2020

kevstar said:
Take the roof off then glue it & lay the head lining down on it rather that trying to hold it up.

OMG, Theirs no way that things coming off again, was hard enough getting it fitted on my own,

Will get the glue on and a couple of clips either side and take pot luck.

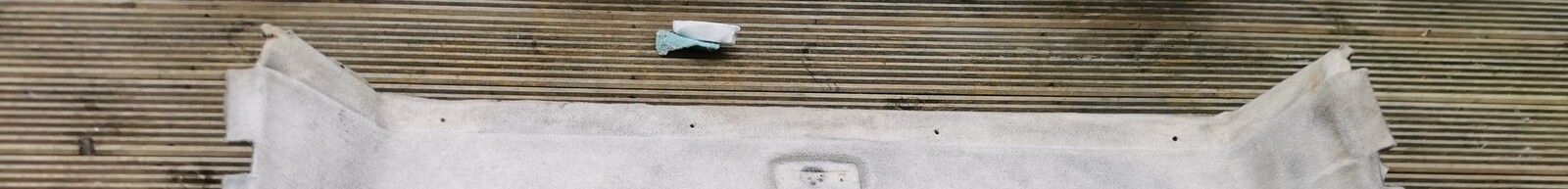

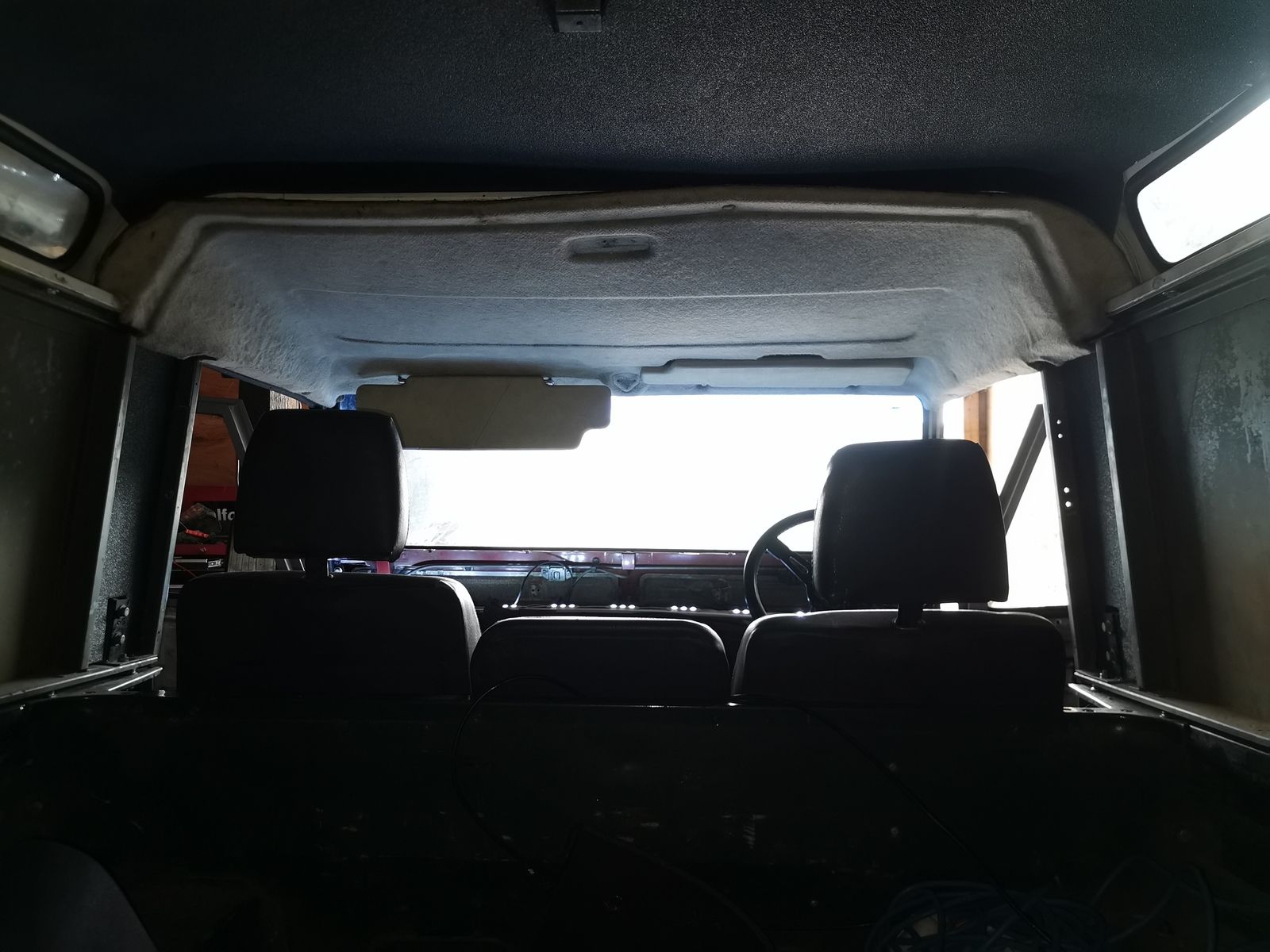

One thing ive just thought of, there is an overlap at one end where the 4 holes are on the front and back pieces , on pic, so I take it that these go on first then the middle section goes on last. I THINK if you know what I mean.

border · Apr 12, 2020

bankz5152 said:
Could use some HD velcro

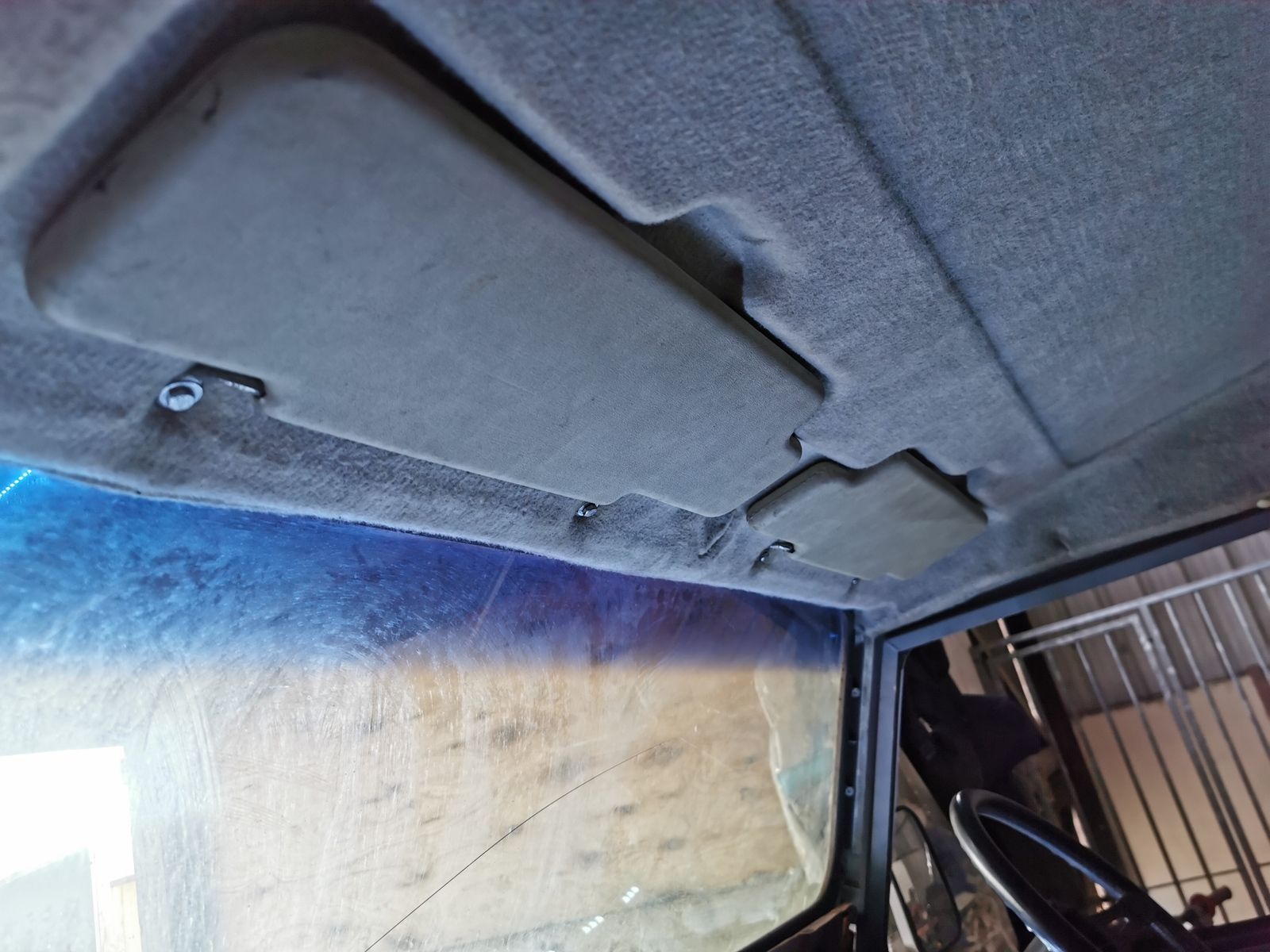

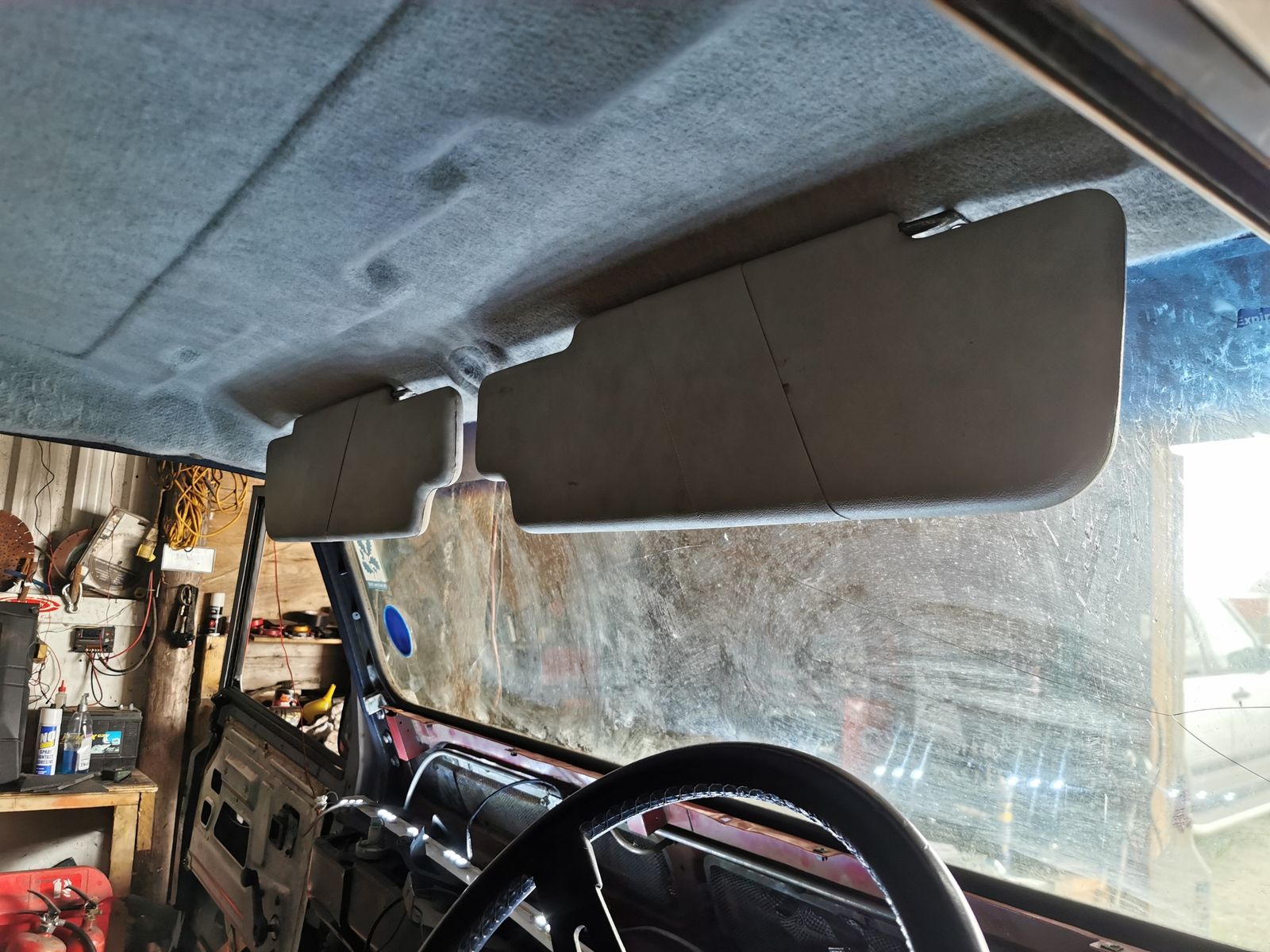

Think that's a great Idea Mate, as Thers plenty of room to get my hands in at the moment, as its only fitted at the front at sun visors which I completely forgot about till someone reminded me.
Anyway still sagging but think if I glue it and need it out again for some reason Ill have to rip it out then, so will try and get some good Velcro stuff.

kevstar · Apr 12, 2020

border said:
OMG, Theirs no way that things coming off again, was hard enough getting it fitted on my own, Will get the glue on and a couple of clips either side and take pot luck.
One thing ive just thought of, there is an overlap at one end where the 4 holes are on the front and back pieces , on pic, so I take it that these go on first then the middle section goes on last. I THINK if you know what I mean.

I see your getting there with it, good idea with the Velcro though.

border · Apr 12, 2020

Just a thought I wonder if this box thingy is holding it off, the headliner is not cut out for it but you can see where it pushes on to it.

Hicap phill · Apr 12, 2020

Is it for your interior light?
