Handbrake cable differences FL1 (ended up to be adjuster)

Discussion in 'Land Rover Freelander' started by Stance, Feb 13, 2022.

< Previous Thread | Next Thread >
  1. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland
    Last spring I took and built my back drum brakes with new parts. Brakes work well but I have been having problems to get the hand brake adjustment right. It either doesn't hold at all or sticks. Just found from older topics that there are different cables for FL1. The cables I got from Autodoc are the one in the picture - have I got the wrong ones? My car is 2004 sport stw TD4 manual.

    I have done the shoe adjustment multiple times following the instructions, shouldn't be that hard to get right. So started to doubt that maybe my parts were wrong.


    Attached Files:

  2. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    21,022
    Likes Received:
    15,485
    Location:
    Christchurch, New Zealand
    Can't say if the cable is correct or not, but often these types of problem are because a bit (is it the adjuster?) has been installed back-to-front.

    It must be quite easy to do, cos a couple of people have done it and the brakes appear to go back together correctly.

    Stance likes this.
  3. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland
    That could also be possible. You mean the bar with forks in the ends and the adjustment wheel?

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,154
    Likes Received:
    7,528
    Location:
    Near Newquay
    That's the correct looking cable.

    First off, are you backing the cable adjuster (under the arm rest), before attempting to adjust the rear brakes?
    Are you adjusting them by hand, or letter the auto adjuster do it?

    Have the auto adjusters been put in the correct side?

  5. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland
    Yes I have backed the cable adjustment so that it is loose. Then adjusting manually buy turning the adjuster wheel so that shoes start to bind into drum but I can still move wheels by hand easily. And after that tightened the cable adjustment.

    I have to take the wheels and drums off now and take pictures to check do I have my adjusters wrong way.

  6. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland

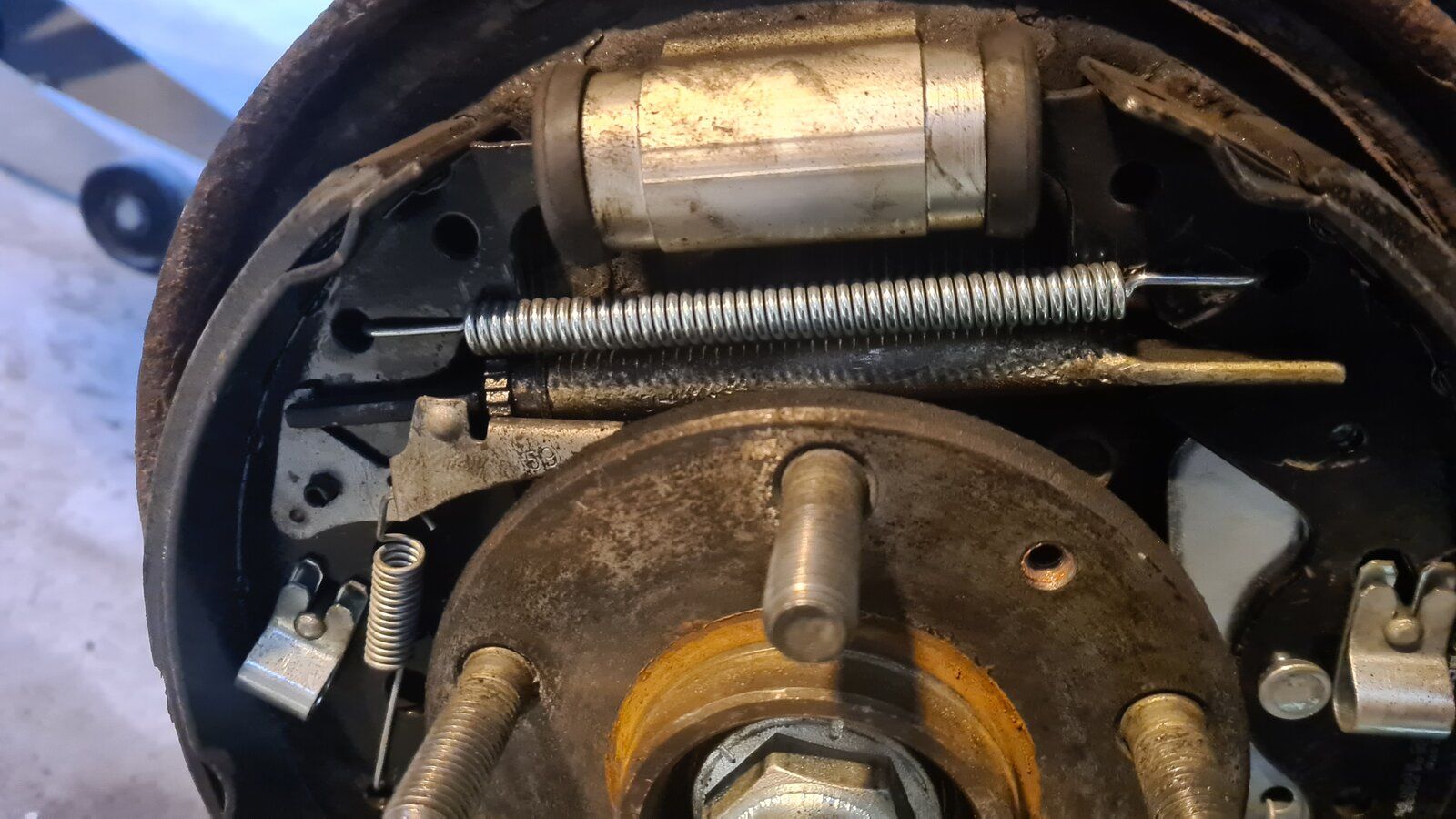

    So this is left side.

  7. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    21,022
    Likes Received:
    15,485
    Location:
    Christchurch, New Zealand
    Stance likes this.
  8. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland

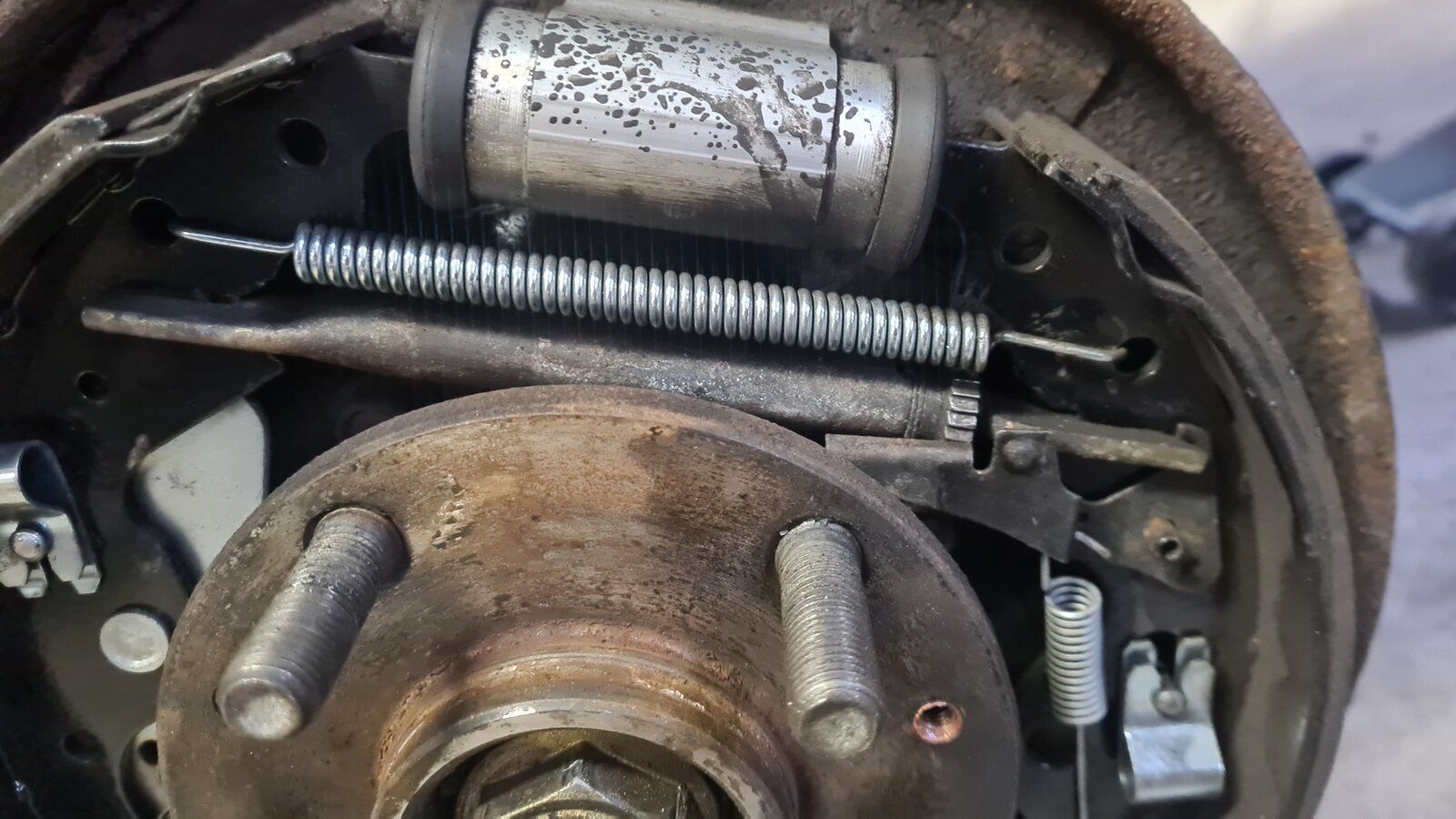

    And this the right one.

  9. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Not 100% clear in photo, but the toothed wheel looks to be upside down. This means left and right adjusters may ha e been swapped at some point.
    Best check is that the metal hooked plate that turns the adjuster should hook and rotate the adjuster as the hook travels downwards. If it rides over the teeth then it is wrong. Yours look like the hook is stuck under the adjuster tooth, again, suggesting upside down. Left and right hand adjusters are different and have opposite adjuster threads.
    Hope that is your issue.

    Stance likes this.
  10. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Also, check in the manual that the fork on the adjuster is correct. There is a long prong and a short prong. I thought the long prong goes at the rear to work the pivoting counter lever fixed to the shoe.

  11. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland
    Andyfreelandy I think that's the issue!

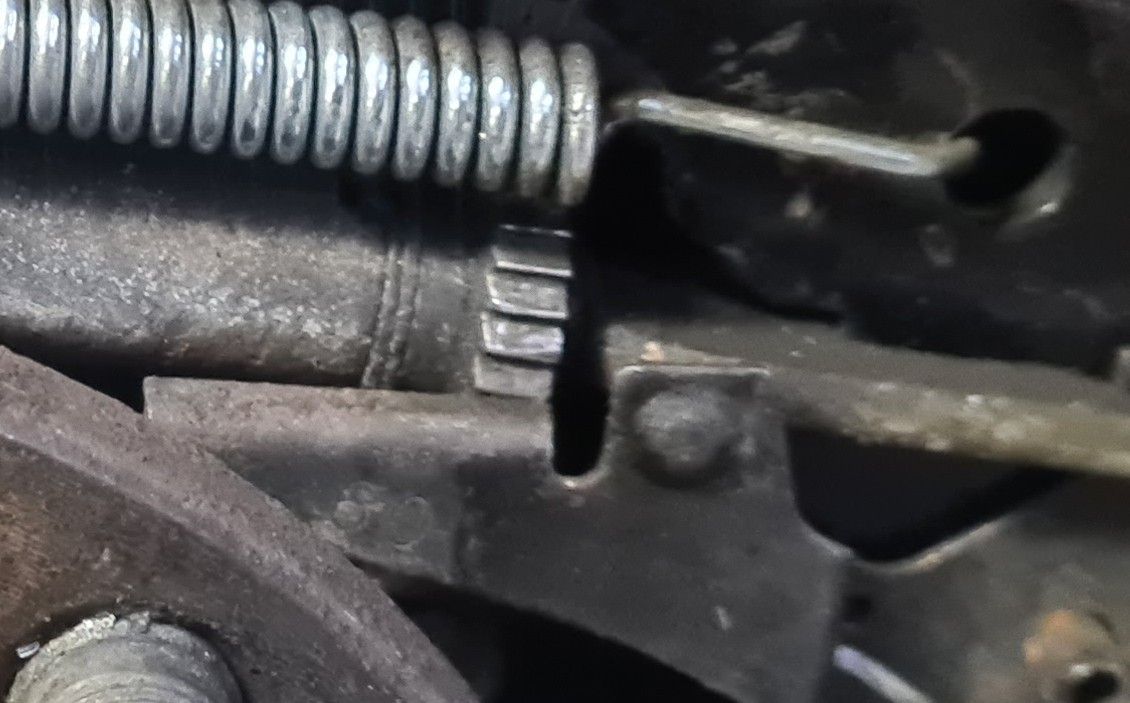

    Here's a closer look.

  12. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    2,083
    Likes Received:
    501
    Location:
    Westmidlands
    These look ok to me.
    [​IMG]1

    [​IMG]2

    And you have adjusted through the rear back plate hole, yes with handbrake cable loose, so the drum just drags, or you can lock the drum off then back the knurled nut off by three clicks each side.
    [​IMG]3

    [​IMG]4

    You then adjust the front handbrake cable.
    [​IMG]5

    Last edited: Feb 13, 2022
    Stance likes this.
  13. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon

    Yes, looks wrong to me. Have a good look, by prising the shoe off its rest the ratchet should turn and then return ready for next ratchet. Yours is stuck as the cog is upside down.

    Stance likes this.
  14. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Maybe a previous owner error.
    Always do one side at a time to prevent mix up and always emulate the adjustment to make sure it works before reassembly.

  15. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland
    The starting point was that back brakes were totally sized when I got the car. Had to clean and get everything moving again, so could be my fault too.Think I'll get new adjusters also now and put these back together with new shiny parts.

  16. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Of course if they are upside down, footbrake applications will be un adjusting the shoes and making the situation worse!!

    Don't forget to clean the shoe rests on the backplate and apply some copperslip grease.
    Lubricate all pivots with copperslip. Not too generously!

    New adjusters with sharp teeth always work better.
    Other way of testing it is get someone to very gently press pedal with drum off and watch the adjuster work. Don't press pedal too hard or you might fire the hydraulic piston out.

    Stance likes this.
  17. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,154
    Likes Received:
    7,528
    Location:
    Near Newquay
    The adjusters are reversed by the looks of it.
    This is the LH side, note the adjuster teeth are upwards. 20180916_153952.jpg

    Edited because I can't tell my left from my right, even though I knew this was the UK passenger side, I still screwed up.:eek::oops:

    Last edited: Feb 13, 2022
    Stance likes this.
  18. Stance

    Stance Active Member

    Joined:
    May 9, 2021
    Posts:
    107
    Likes Received:
    53
    Location:
    Finland
    Thanks again, this is great forum for finding information.

  19. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    Can you clarify the long and short fork ends on the non adjusting end of the adjuster John?? Can't remember if the long prong goes to the rear or the front of the shoe. Thanks

  20. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    3,659
    Likes Received:
    1,358
    Location:
    Devon
    The manual shows both prongs the same length!!!
