Grumble

Evening Folks ,

Looking for some advice , the old Hippo has started a thundery Grumble when turning right, notice it more on roundabouts not full lock but as good as. Now it's seems to be coming from the passenger side rear .

This is intermittent.

Now I had the IRD & VCU replaced 2 years ago.

Had a look under the motor today and the rear differential side mounts are solid .

CV boots look ok as well. Can anyone advise what else to look out for before I put it into the Stealers

Regards,

RizzleKicks

How are the tyres? Are they all the same make, type and size with the least worn on the rear?

4 brand new tyres fitted last month

The VCU may only be 2 years old - but worth doing a 1 wheel up test.

With the rear diff - it is almost always the front mount that goes - I recently took the mounts off my parts car - the side/rear ones were in perfect condition, but the front one was completely shot to pieces.

I know @Tony Reeves had to replace the drive shaft support bearings in his rear diff - don't know what the symptoms were.

Also, VCU bearing shows up when turning - low pitch hum noise.

What bearings were used and how many miles??

Definetley not a hum noise . All were genuine LR parts. Don't believe in buying cheap as you end up buying twice .

Had this done at 40,000 & just hit 60,000 last week

Morning Folks had the old Hippo into the garage this morning , mechanic checked it all over and could not find the fault. Took it for a drive and nothing , totally ‍.

I had to fix a bang on my Freelander, but all the clunks, rattles, groans I just leave and they have sorted themselves out

Edit : I did try and fix a 'whir' once, but it just made another type of whir - so left that as well.

Morning folks ,

Finally got a mechanic to look at the issue and it's the Prop Shaft Bearings have started to split causing the annoying sound.

Replaced these 2 years ago for genuine ones from Stealers £86 Each and only lasted 2 years and covered 20,000 miles surely they meant to last a lot longer than that ??

Now is there any other Prop Shaft Bearings out there that are better quality than the Stealers ?

Fit genuine bearings, you don't have to buy them from a main stealer ...shop around ...

Gee - got that one right - gotta be worth some points :0

VCU bearings = propshaft bearings.

They come with a 2 year parts and labour warranty if genuine Land Rover purchased from an authorised LR dealer - so contact where you bought them from and see if you can get them under the warranty

Assuming of course they were fitted square to the prop......

RizzleKicks said:

Morning folks ,

Finally got a mechanic to look at the issue and it's the Prop Shaft Bearings have started to split causing the annoying sound.

Replaced these 2 years ago for genuine ones from Stealers £86 Each and only lasted 2 years and covered 20,000 miles surely they meant to last a lot longer than that ??

Now is there any other Prop Shaft Bearings out there that are better quality than the Stealers ?

Click to expand...

I've come across this several times since the Tata take over of LR. I suspect they may well be making the parts cheaper than the original parts. Traditionally LR bearings contained FAG rollers (identified by a red grease seal)
The actual assembly was made by GKN if I remember right.

Looking like another supplier is now making them though.

td4van said:

Assuming of course they were fitted square to the prop......

Click to expand...

To clarify that, you fit the bearings square to the VCU centreline:

guineafowl21 said:

To clarify that, you fit the bearings square to the VCU centreline:

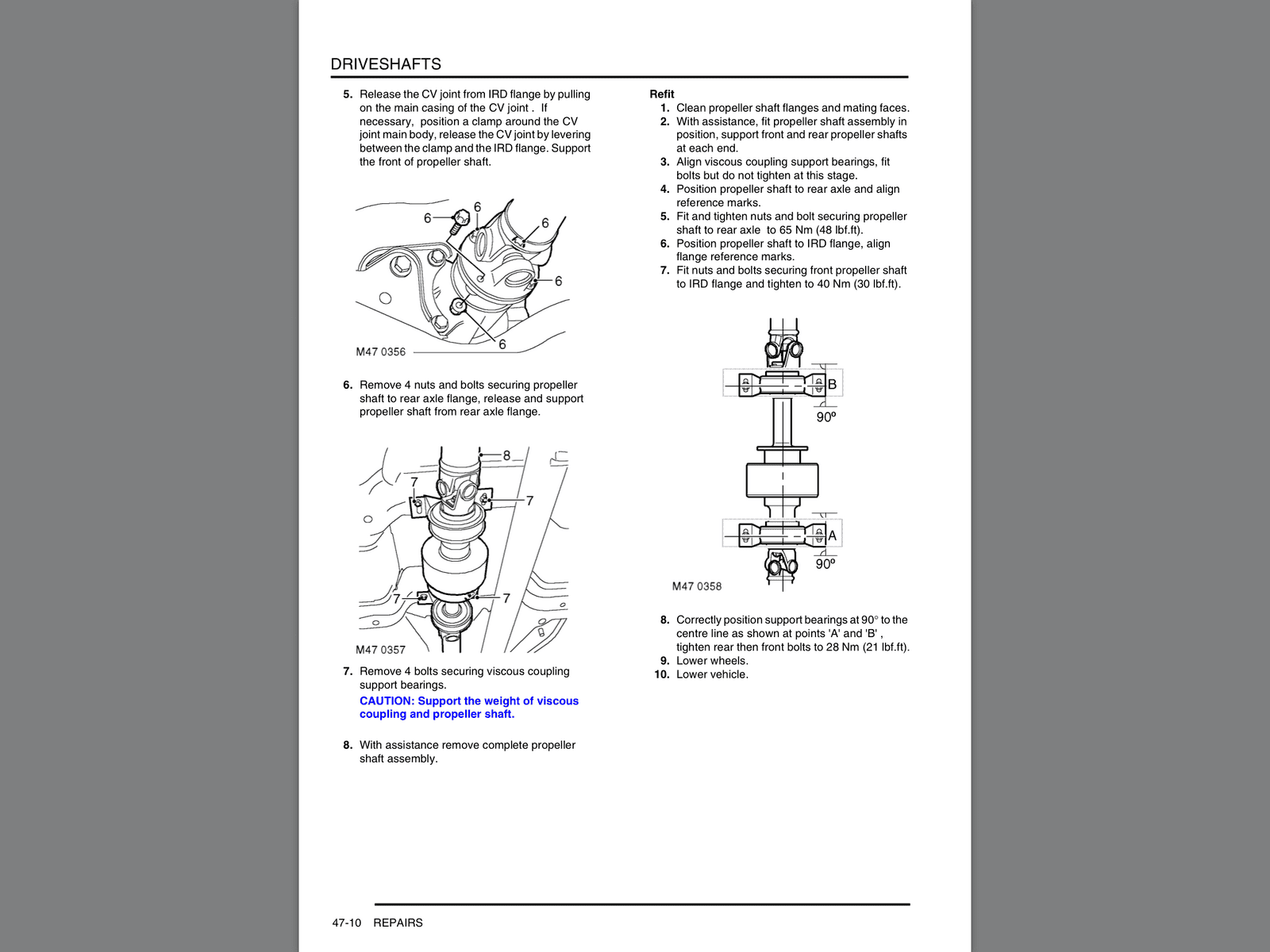

View attachment 123061

Click to expand...

Yes. The VCU support bearings must be at 90° to the VCU shaft centre line. As per the LR diagram shown in your post.
