green+red light

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
S

scarecrow243

Active Member
Posts
139
Location
wormit fife
Hi can anyone tell me what the switch with a small green and red light on it is for its on the left side of the steering wheel on the dash i cant find it in the owners manual ,96 xs v8i thanks for any help, dave

Hi guys ill post a pic of the switch to see if it helps,when the ignition is turned on both lights are lit then when i start her up the green light is lit then goes out, dave

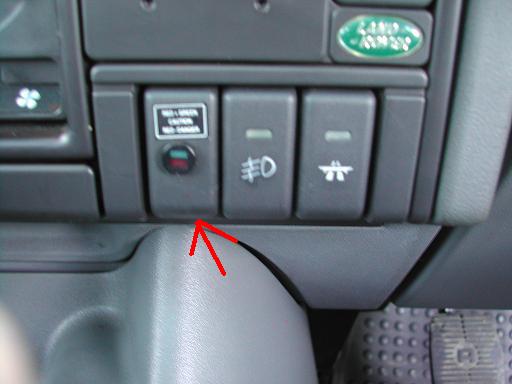

this is the switch it has on it red -green caution red danger


Attachments

  • DSCN3788.JPG
    28.6 KB · Views: 247
Last edited:
The Mad Hat Man said:
green = oil pressure?
red = alternator charging?

:hysterically_laughi
Click to expand...

You might actually be onto something there...
How many batteries do you have? Could be some sort of split charge indication...

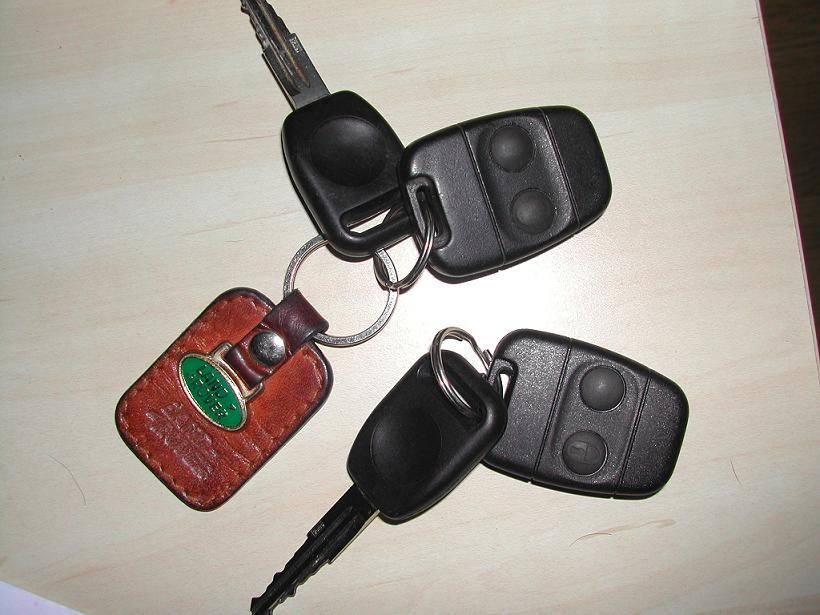

Otherwise, while you have got your camera out - take a photo of the keys and any fobs you have on them... more likely is you have some sort of aftermarket alarm/immobiliser fitted

Am sure that is a tyre pressure indicator think ive seen one on an MGTF on the MG forum. Hope that helps. You could try asking them?

Yup .. non-standard fitment so all bets are off and no-one can tell you with certainty (unless they've got the identical stuff) what it's for ... down to you to track it.

Might be worth starting with ignition off, press the switch see if anything happens. Ignition on, press etc .. engine running, press switch etc etc ... make sure nothing else, radio, CB, fans etc are running when testing.

It's possible it's a switch for an air locker at one of the diffs, or indeed almost any gadget that can be fitted and needs a switch to make it work!! .. so road-testing might be necessary .. as well as a good check all over for extra spurious wiring and extra 'bits' added ... ;)

Hi guys still stuck with this one i cant see any thing added under the bonnet i have phoned the last owner and he did not have it fitted and i cant see the first owner haveing it fitted as an after market item as that would void his waranty would it not, i have phoned the main dealers and they havent a clue to what the lights are for,ps its not a switch

I can tell you what it is. It's a low temperature warning light and it's a Land Rover option for the 300 series Disco's. I got one on mine.The lights come on when you turn on the ignition as a check. The green light stays on at about 5 degrees, both lights come on at 2 degrees, and red light lights at zero degrees. The sensor is either sticking out through your grill(like mine is) or tucked behind the bumper. Hope this helps.
