L322 Gearbox oil change, good or bad news

Discussion in 'Range Rover' started by youmitegetian, Jun 14, 2018.

< Previous Thread | Next Thread >
  1. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    Ok so I did the first of the 3 expected sump dumps this evening,

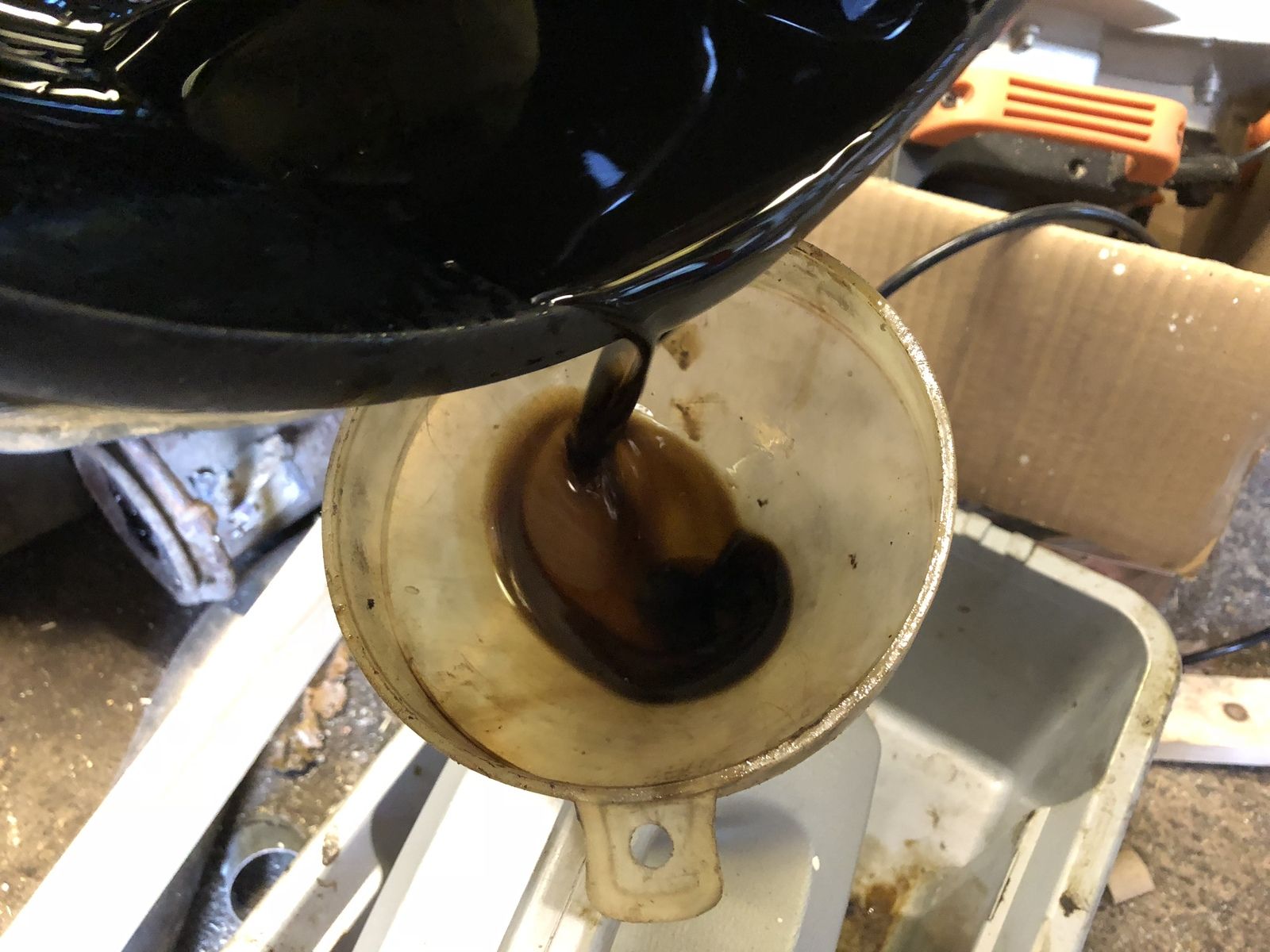

    Firstly I was surprised at how horrid and thin the old oil was (pictured)
    Secondly I was surprised on 2.5 litres came out so I assumed it must have been low on fluid.
    I guess the good news is there was no sign of anything in the oil, no shimmering or glizzening so no metal.
    But the bad/odd thing is that I could only get 2.7 litres back into it, the car looked level but maybe it was pointed downhill slightly,
    Anything else that could cause this? 1E34C795-200A-41CD-9D38-FEDBC40AF35A.jpeg

  2. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,048
    Likes Received:
    1,812
    Location:
    Geroutavit.....
    How much new oil did you get in whilst the engine was switched off,

    and how much more upon running?

  3. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    Could only get 2.7 in, no more once up to temp either

  4. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    What’s the correct procedure?? Pretty sure I followed it to the letter

  5. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,048
    Likes Received:
    1,812
    Location:
    Geroutavit.....
    That's odd, I'm sure I got about the 2.7 static, but nearly another litre once running. (NOT measured, but 7 litres was bought and 2.5ish remains)
    Maybe it was 6 litres bought......, doubting myself now!

    Temperature?

  6. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    35 but to be fair my thermometer is pretty old so maybe not correct

  7. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    Might take a while to get most of the old. crap out at this rate lol
    When I had volvos there was a way to flush the system in one go, would take about 16litres but did a good job, can’t think how to modify the procedure for the landy though, it involved filling through the dipstick tube and draining through the oil cooler feed

  8. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,048
    Likes Received:
    1,812
    Location:
    Geroutavit.....
    Did you drain it hot or cold?

    35 is marginal (if accurate), 40-50 is preferred I believe, which takes some time from cold start-up, at least 25 mins.(Idling), but given fluid expands as it gets hotter then in theory you should of had the opposite problem, ie.... slightly over filling???

  9. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    Drained it warm I’d say, about 20-25 minutes after a 3 mile drive home, I’ll do it again at the weekend and get myself a better thermometer I think, I was surprised to only get 2.5 out to be honest, I’d read more like 4.5 comes out

  10. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,048
    Likes Received:
    1,812
    Location:
    Geroutavit.....
    Well, I intended to measure what actually came out but failed on that score.
    I need to definitively find out how much the friend ordered before I can categorically reply truthfully.
    All I can say with reasonable certainty is it took nearly a litre to fill once engine was running, at 40 ish degrees (infra red thermometer)

  11. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    Ok cool so that’s the job for the weekend then and hopefully get a bit more in

  12. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,048
    Likes Received:
    1,812
    Location:
    Geroutavit.....
    Last edited: Jun 14, 2018
    Turboman likes this.
  13. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    31,486
    Likes Received:
    21,893
    Location:
    Continuously Cruising
    Really good things. Used one to diagnose a cooling system fault on my old boat. Much better than feeling pipes and skin tanks with your hand.

    myfirstl322 likes this.
  14. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    Just looking at Amazon now, must be time for me to buy a new one I reckon

  15. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    656
    Likes Received:
    40
    Location:
    evesham
    Ok so good old amazon delivered a new thermostat to me, turns out my old one was measuring around 40% low,
    Did another sump dump although I hadn’t done many miles but the fluid was back to a thin grim black colour again, 2.5 out again and 2.5 back in,
    So after letting the engine warm up to 50% on the new thermometer I could get another 1.8 litres in, taking it up to 4.3, litres.
    A noticeable difference on the test drive, much smoother acceleration,
    I do think finding a way to do a full flush, draining and refilling while the cars running would be a big benefit.

  16. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,048
    Likes Received:
    1,812
    Location:
    Geroutavit.....
    Testing oil / component temperature with your elbow is not conducive to pinpoint accuracy. :D


    So your back on track re. quantities, at least par to my experiences, which is reassuring.
    A couple or three more dumps and what comes out will look like what goes in, which is the ultimate goal.

    I wouldn't be overrly keen to a full fluid flush, not if what you have is still murky, let the percentages do it's work and wait a few weeks between them.

  17. robhew86

    robhew86 Well-Known Member

    Joined:
    Mar 8, 2009
    Posts:
    1,204
    Likes Received:
    42
    Location:
    Beds
    If you took it into a garage for a full flush, they hook it up to a machine and intercept the cooler pipes somewhere I believe, so it is do-able with the right kit.

  18. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    9,981
    Likes Received:
    1,703
    Location:
    wirral and triquivijate
    It's the crap it may disturb I would be worried about.:eek:

  19. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    7,048
    Likes Received:
    1,812
    Location:
    Geroutavit.....
    T'was my worry, heard bad things about mega flushes.

    It looks specialist so it must be good, right?

  20. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    9,981
    Likes Received:
    1,703
    Location:
    wirral and triquivijate
    Don't talk to me about specialists I saw one a couple of weeks ago,the forth by the way, about my sore throat and his advice at £300 an hour was " train your brain so when you feel like coughing you dont ". Just like going to the Main Stealers, shafted or what.:eek:
