Disco 1 Fuses question

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Talltom

Talltom

Member
Posts
17
Location
London
Hello all,

New 200tdi owner here. The thing was in a bit of a state when i got it, switches wired incorrectly etc. So i was wondering if i should be concerned about these missing fuses? Have they simply not been replaced? The others are all fine.
Im assuming it wouldnt do any harm to simply put fuses in these slots, right?


Attachments

  • 20170202_102421.jpg
    478.3 KB · Views: 107
Have you looked in your manual to see what they should be connected to? It may be that your vehicle does not have the equipment they are for.

If you do decide to add a fuse then make sure to keep an eye out for smoke. Might be worthwhile using a small fuse first.

Cheers

neilly said:
Have you looked in your manual to see what they should be connected to? It may be that your vehicle does not have the equipment they are for.

If you do decide to add a fuse then make sure to keep an eye out for smoke. Might be worthwhile using a small fuse first.

Cheers
Click to expand...

On the picture i attached it shows the symbols but i dont know what they mean... i also thought it may be 'missing' equipment.
Thanks for the warning. Ill do a little more research before waching in some fuses

You could do with an owners handbook, or RAVE to tell you what is what. A search on here will find you the RAVE manual download link (FREE!!) - and a vid on you tube by LZ's very own Saint.V8 on how it works......:)

neilly said:
@Disco1BFG ,

I did not think Rave covered the 200tdi. Although some of it may be useful, I would think some of it may be misleading. Just a point to keep in mind.

Cheers
Click to expand...

Aye, agreed - no problem. :)

The OP said he didn't know what the little symbols on the fuse "box" mean - hence my comment on the owners manual.... or RAVE...( i could have been clearer on the "or" bit :oops:)

:)

Talltom said:
Hello all,

New 200tdi owner here. The thing was in a bit of a state when i got it, switches wired incorrectly etc. So i was wondering if i should be concerned about these missing fuses? Have they simply not been replaced? The others are all fine.
Im assuming it wouldnt do any harm to simply put fuses in these slots, right?
Click to expand...

I'd say that the picture of the fuse box, supplied is fairly straightforward.
The colours of each block refers to the colour code for the fuse which fits.
The symbols are also pretty easy, the "A" and "B"columns are fairly easy to read, the "C" column photo is a bit truncated so it can't be seen fully.
  • A1, A2, are dipped headlights, the arrow shows which side. 10 amp each
  • A3, A4, are main beam headlights 10 amp each
  • A5, A6, are side/tail lights 5 amp each
  • A7, front windscreen washer and wiper motors 20 amp
  • A8, blower, probably cabin heater. 20 amp
  • A9, Rear screen heater. 30 amp
  • B1, interior lights 5 amp
  • B2, Rear fog lights 10 amp
  • B3, Indicators 15 amp
  • B4, Trailer Aux socket 15 amp
  • B5, Horn 15 amp
  • B6, Rear screen washer/wiper 10 amp
  • B7, Cigarette lighter socket 10 amp
  • B8, Fuel filler flap 15 amp
  • B9, Radio 10 amp
  • C1, C2, Electric windows. Arrows show which side. 30 amp each
  • C3, probably central locking. 15 amp
  • C4, Probably electric door mounted mirror motors. 3 amp
  • C5, C6 Temperature controlled fans. 20 amp each
  • C7, Not a clue but it's 5 amp
  • C8, Hazard flashers 15 amp
  • C9, No idea, but it shows a flame so it could be something like a fuel burning heater, and it's 20 amp
If you check the fuse box carefully, you'll see that the active fuse positions will have little flat metal sockets in them whereas the inactive ones will have nothing in them.

brian47 said:
I'd say that the picture of the fuse box, supplied is fairly straightforward.
The colours of each block refers to the colour code for the fuse which fits.
The symbols are also pretty easy, the "A" and "B"columns are fairly easy to read, the "C" column photo is a bit truncated so it can't be seen fully.
If you check the fuse box carefully, you'll see that the active fuse positions will have little flat metal sockets in them whereas the inactive ones will have nothing in them.
Click to expand...

Thank you for the tip on looking for the connectors. I could not figure out c7 either...

Disco1BFG said:
Aye, agreed - no problem. :)

The OP said he didn't know what the little symbols on the fuse "box" mean - hence my comment on the owners manual.... or RAVE...( i could have been clearer on the "or" bit :oops:)

:)
Click to expand...

Thank you, however, I could not find a working RAVE link, i have a HAYES manual, just need to get my head around the diagrams :)

As u have a Tdi you won't have a fuel pump relay, plus the remaining fuses spaces are for an AC equipped vehicle.
You will find below addition circuits fuse protected added to the list in brian47's post above, also u will find the list and more in your Haynes Manual

A1 dipped headlights and headlamp washers 10 amp
A2 dipped headlights 10 amp
A3, A4, are main beam headlights 10 amp each
A5 right hand side/tail lights, facia switches and instrument panel illumination 5amp
A6, left hand side/tail lights, number plate lights, radio, cigarette lighter, clock and heater control illumination 5 amp
A7, front windscreen washer and wiper motors 20 amp
A8, air conditioning/heater relay and fan 20 amp
A9, Rear screen heater. 30 amp
B1, interior lights, radio memory and clock 5 amp
B2, Rear fog lights 10 amp
B3, Indicators, stop lights, reversing lights, headlight levelling system, air conditioning/heater relay and warning lights 15 amp
B4, Trailer Aux socket 15 amp
B5, Horn 15 amp
B6, Rear screen washer/wiper and clock 10 amp
B7, Cigarette lighter socket 10 amp
B8, Fuel pump relay 15 amp
B9, Radio 10 amp
C1, C2, Electric windows relay. Arrows show which side. 30 amp each
C3 central locking. 15 amp
C4 electric door mounted mirror motors. 3 amp
C5, C6 air conditioning fans. 20 amp each
C7 air conditioning compressor clutch 5 amp
C8 Hazard flashers 15 amp
C9 - Not used -



Sent from my iPad Air on a train.

Thank you all. I found the page... feel silly for not checking it!

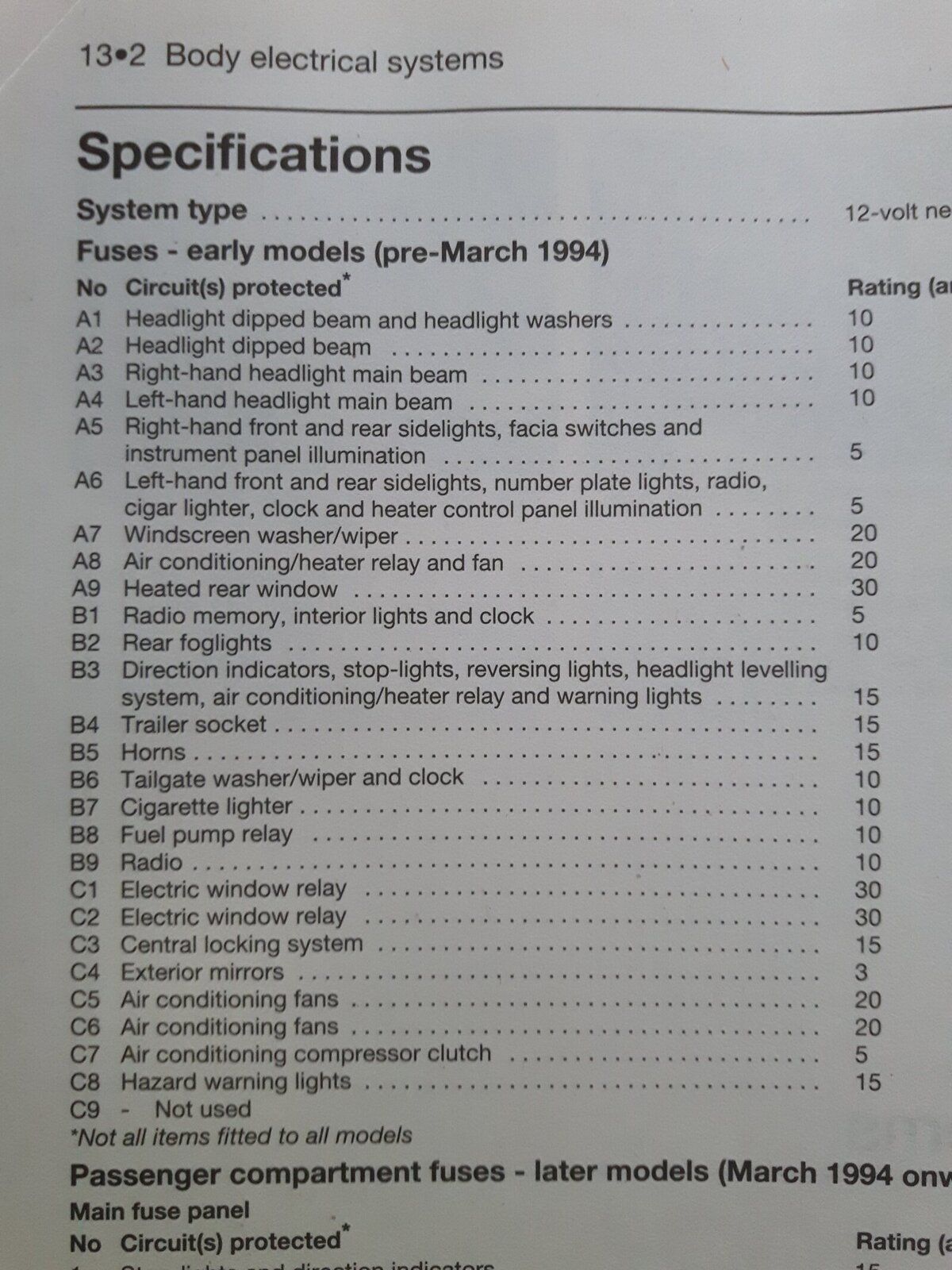

Ive uploaded a pic of the page for amyone that wants it.


Attachments

  • 20170203_162224.jpg
    267.7 KB · Views: 142
