Fuel Pump Relay Location.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

lorri789

Well-Known Member
Posts
4,657
Location
West Stirlingshire
Hi

After reading the other threads, can you assist me in locating it?

Going from the farthest in:

Yellow, Yellow/Black - obviously
Brown, Brown/Red
Black, White/red
Blue, Blue/Purple, black

:confused:


Attachments

  • DSCF0342.JPG
    49.3 KB · Views: 3,987
  • DSCF0336.JPG
    70.5 KB · Views: 6,916
My RAVE say ECU and fuel pump and injection relays under the drivers seat. But it is a NAS version. So it will be passenger seat on yours. If you look under both seats you can't go wrong. :):)

OK Back....

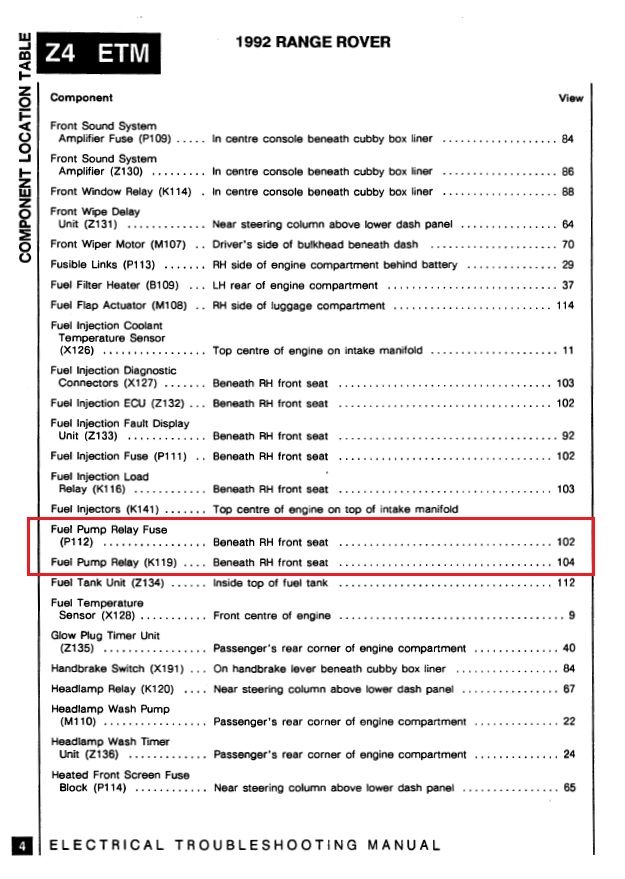

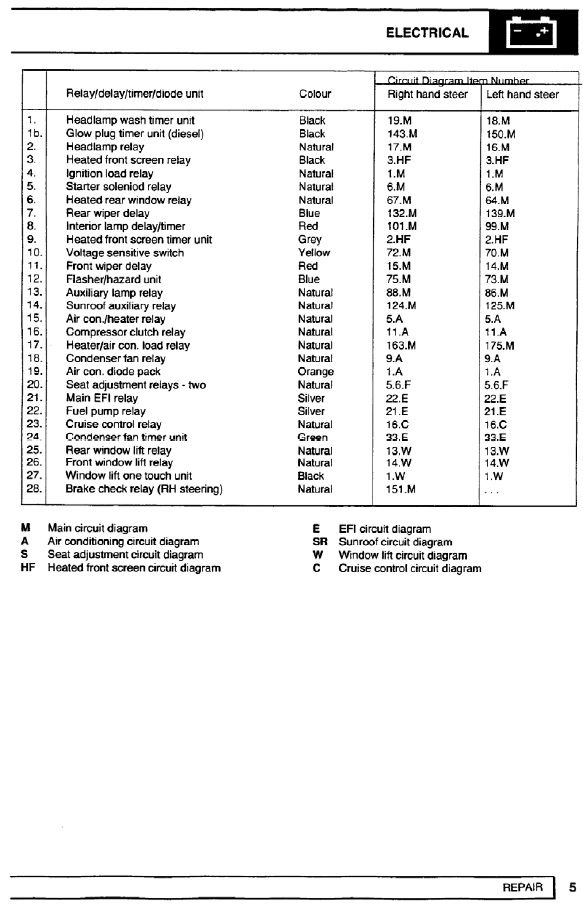

Nope my 1992 manual states under seat.....

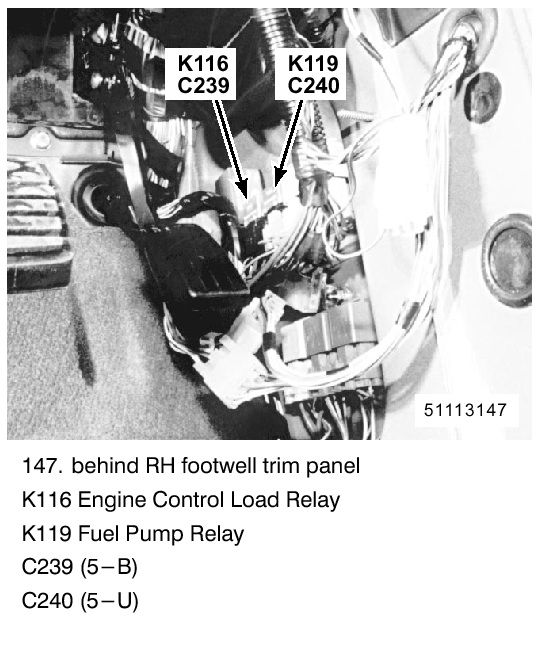

the '95 Manual says behind RH A pillar Trim panel...

As attached....


Attachments

  • RRC_FUEL_PUMP_RELAY_92.jpg
    101.1 KB · Views: 1,476
  • RRC_FUEL_PUMP_RELAY_95.jpg
    66 KB · Views: 2,723
Found the two tin ones; inside a plastic box attached to the tunnel...never seen that before!!!! Bugger me if I can reach them...but I know where they are.

Panic over.

Bit late as you've already found it, but I found them my fuel pump relay under the cubby box in the middle in my '89 Classic if you can get to it that way?
