Front door removal.
Here’s how ah did it…
First ah pulled back the lever to get at the screw…
and removed the trim.
Then ah bent ‘back’ the 2 lugs on the handle..
undid the 2 screws and removed the handle.

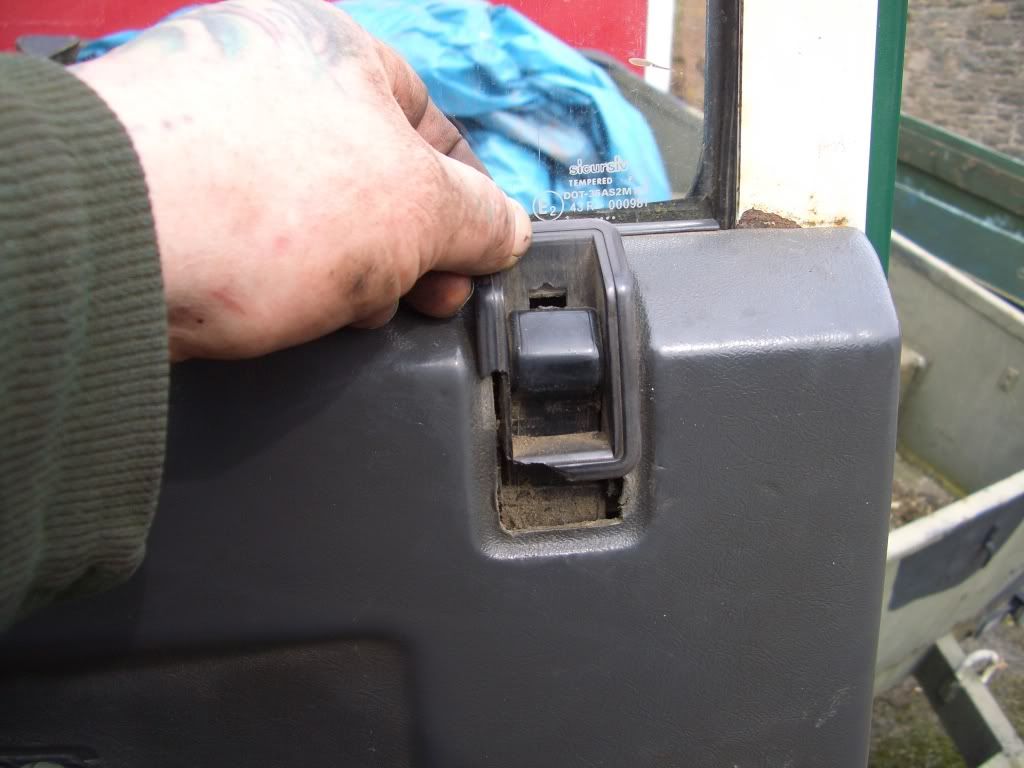

Next ah removed the inside lock trim (bit of a bugger this one, but if ye push the button down ye should see a square hole.. stick a screwdriver in it and lever it up)…

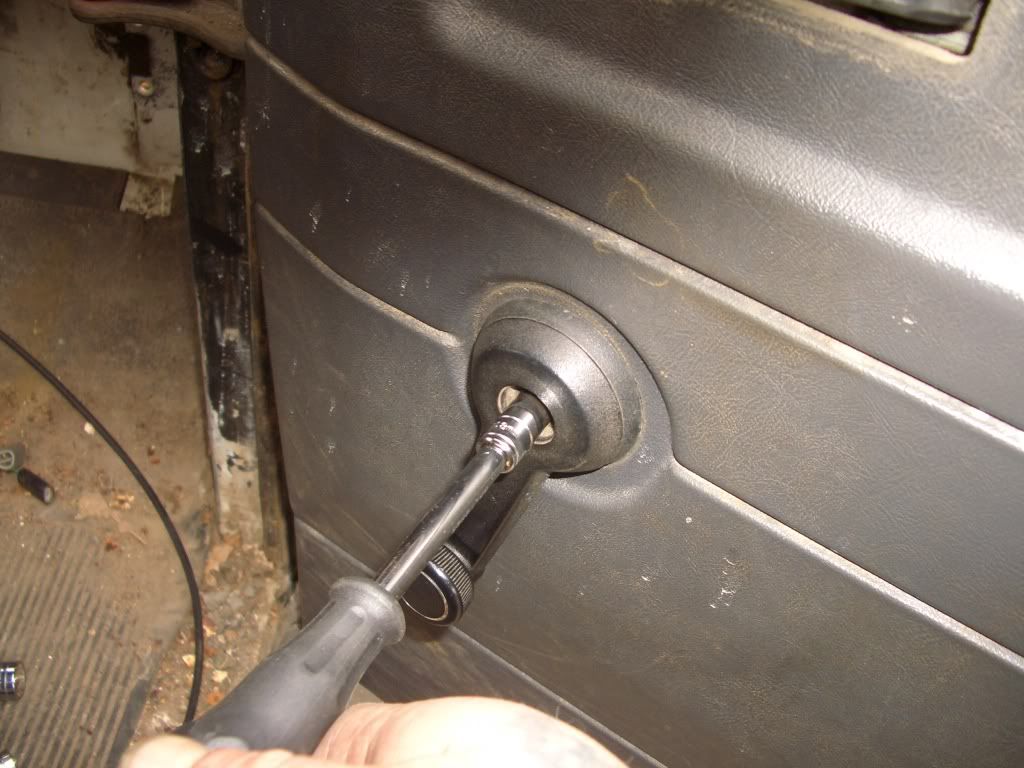

then ah popped off the centre cap of the winder handle, unscrewed and removed it…

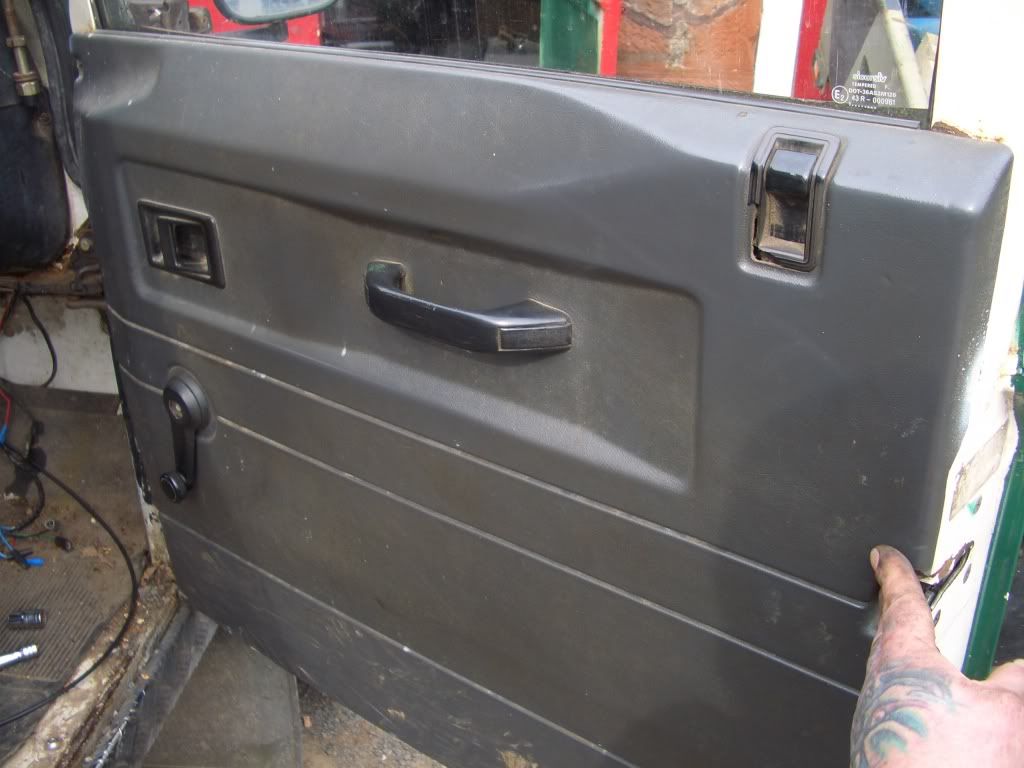

and removed the door card…

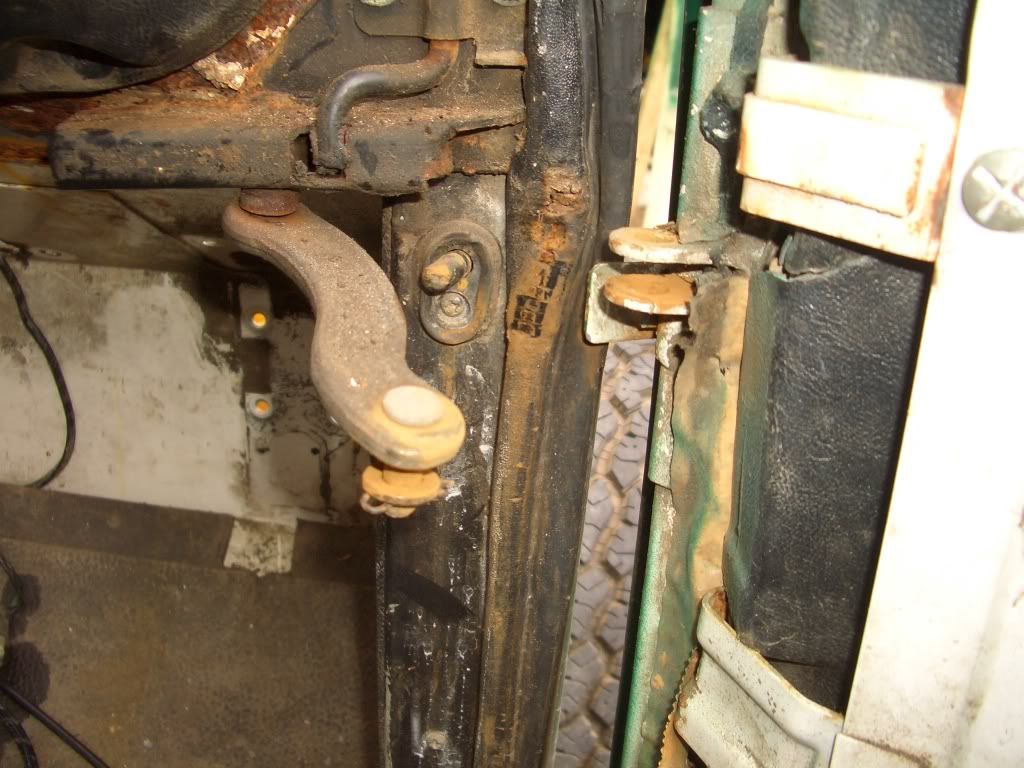

Next ah removed the wee ‘R’ clip and pin from the door check strap and removed it…

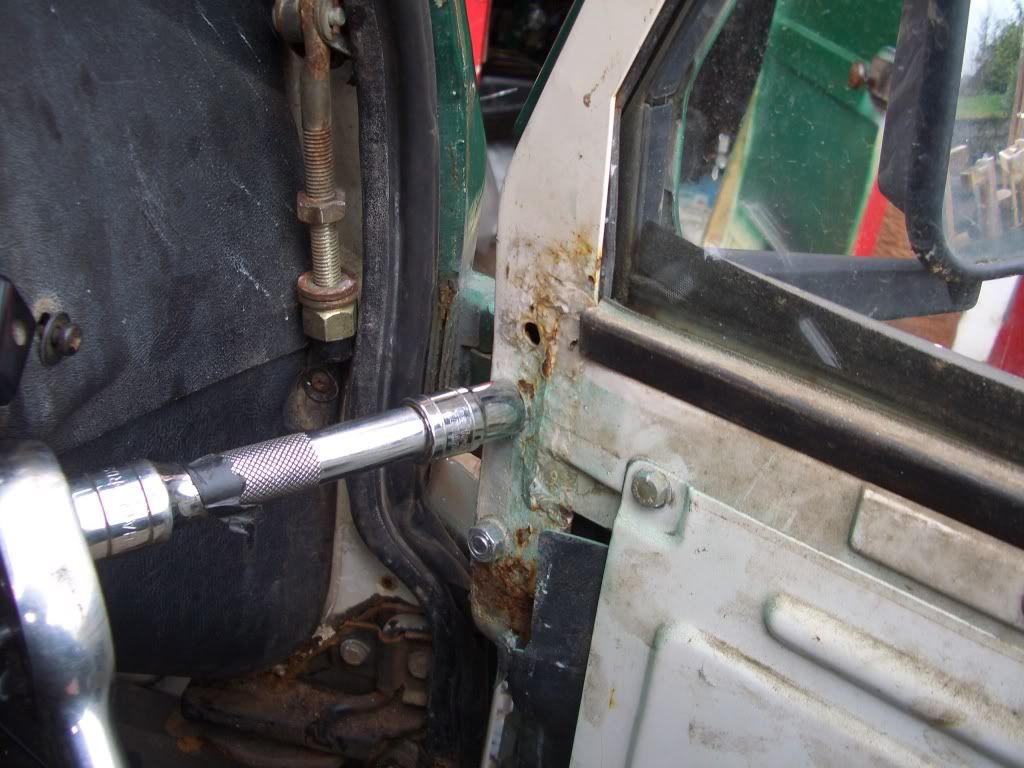

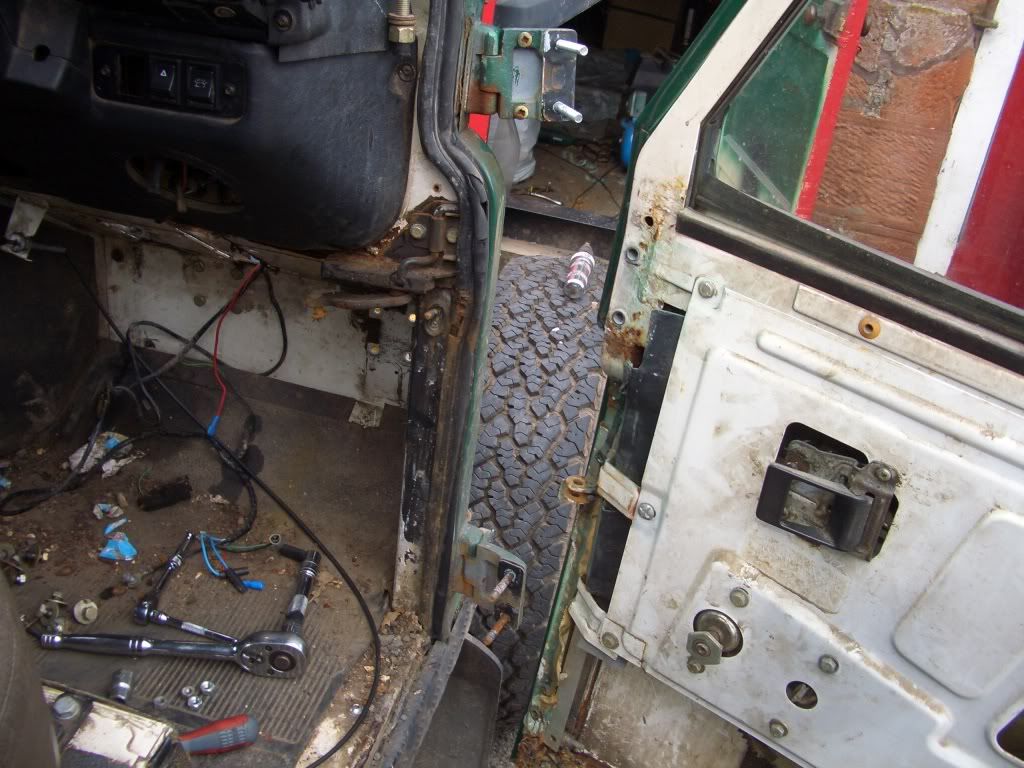

Undid the 4 nuts and wiggled the door from the hinges…

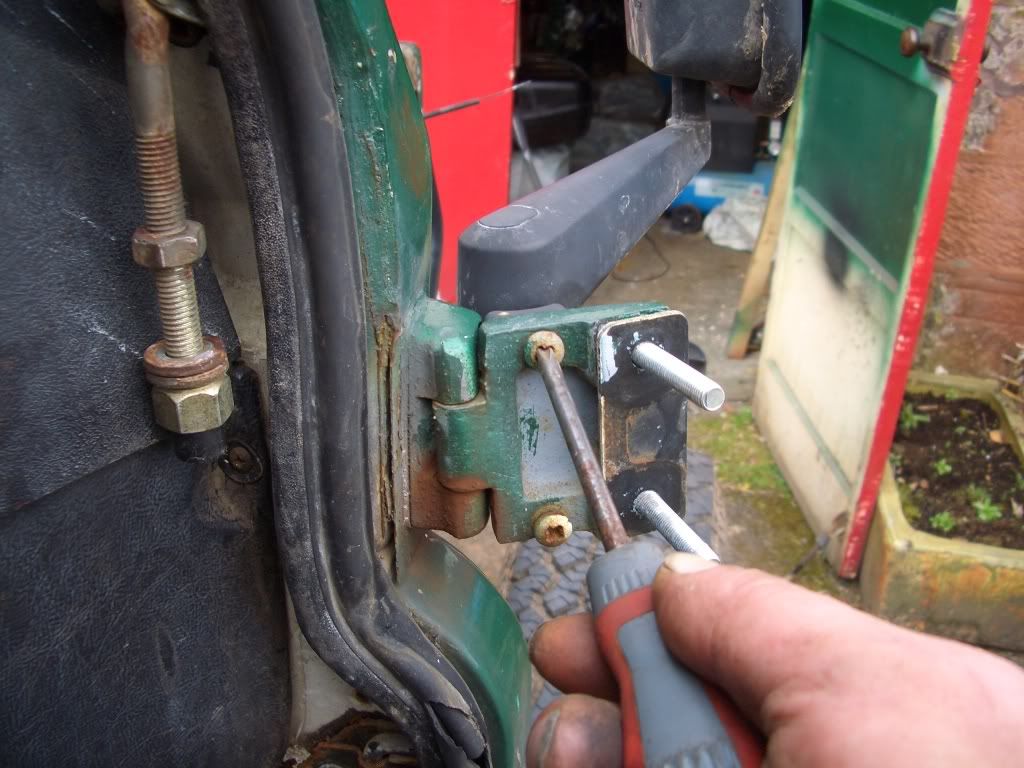

This is just a piccie of where the wing mirror screws are..
That’s it, job done
