Series 2 Front centre seat.

Hi all.
More seat advice needed.
Been looking to add front centre seat. I can find the seat base and seat back, but cannot for life of me find any info or anyone selling seat rails for it.
Does it sit on rails or is it bolted to the box?
As always, any info appreciated.
Cheers!

Series seat rails come in sets of 4, the centre two have two brackets on them to hold the centre seat back in place and the out seat backs at the same time, the outer rails just have one bracket (if that makes sense)

See here: http://1960landroverrestoration.blogspot.co.uk/2012/01/seat-belts-completed.html

The seat base sits in the gap and there are two lugs/lips secured by the bolts that hold the rail to the seatbox, these stop the base from sliding forward. so in answer to your question, there aren't specific centre seat bracket per se. If your outer seats are non standard or later Defender seats you won't have the brackets.

Make sense (I think...) but it’s not what I have.

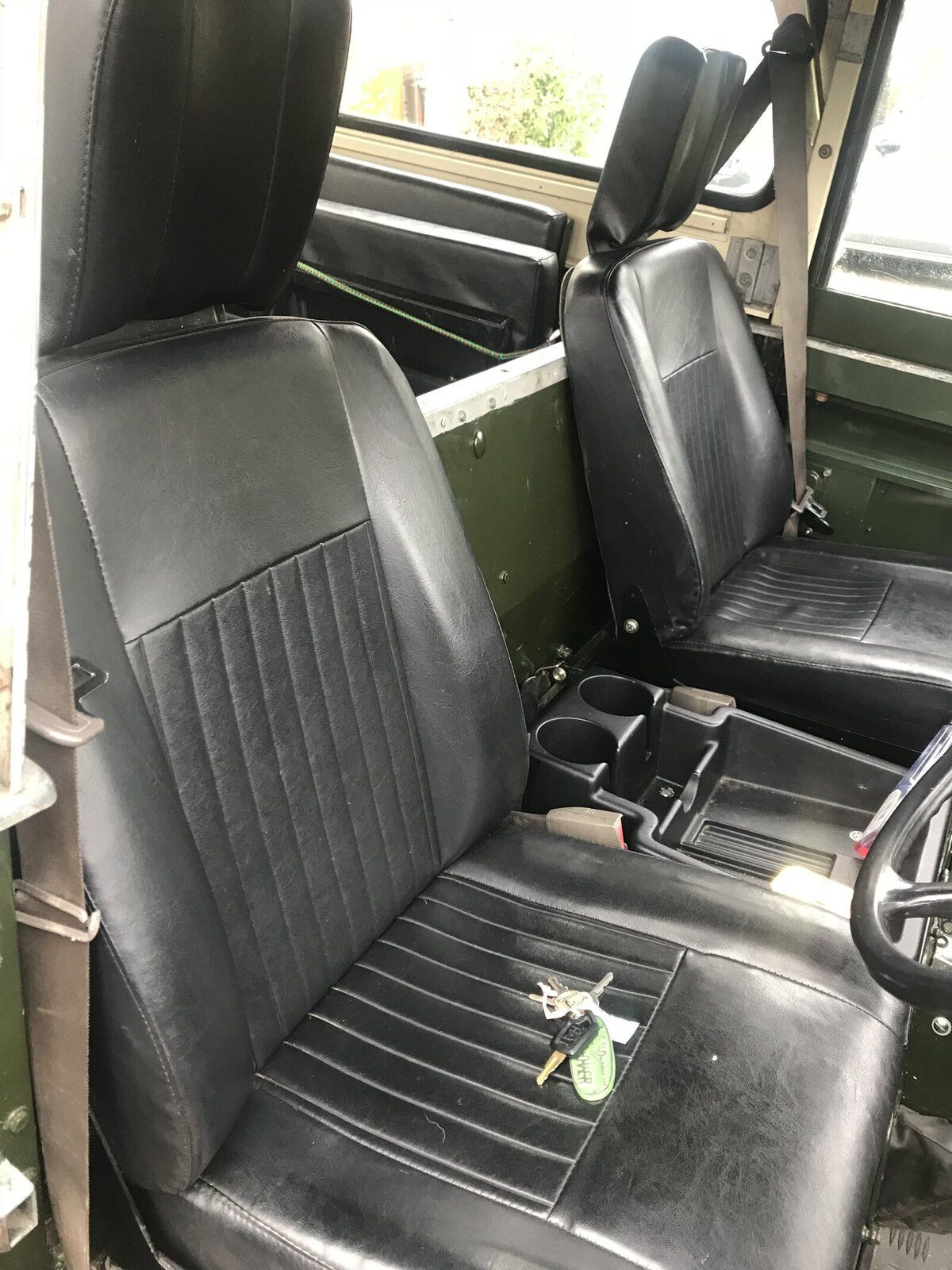

Should have said it’s deluxe seats, slightly different rails but looks as if a seat has been fitted at some point as belt is present.

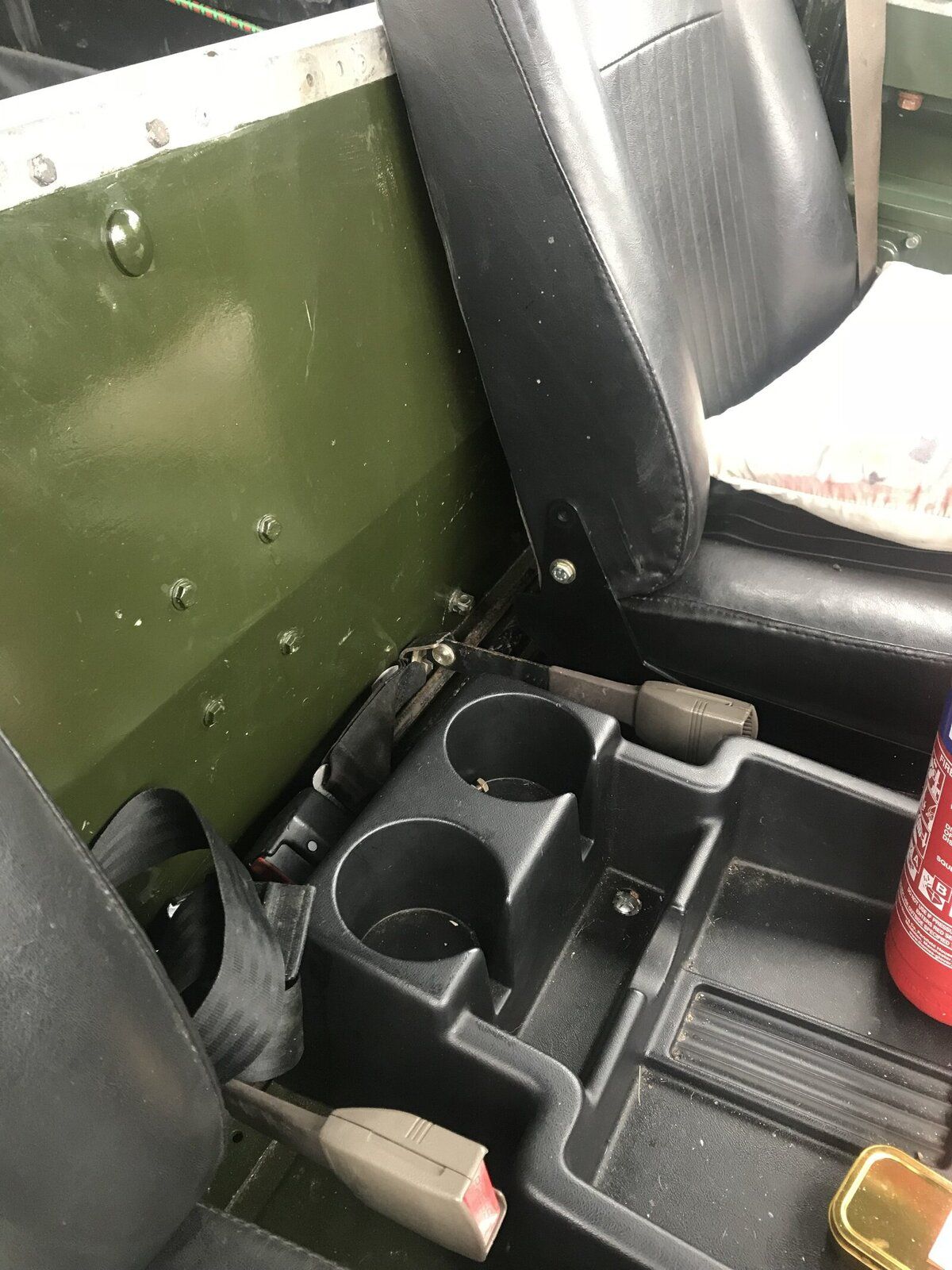

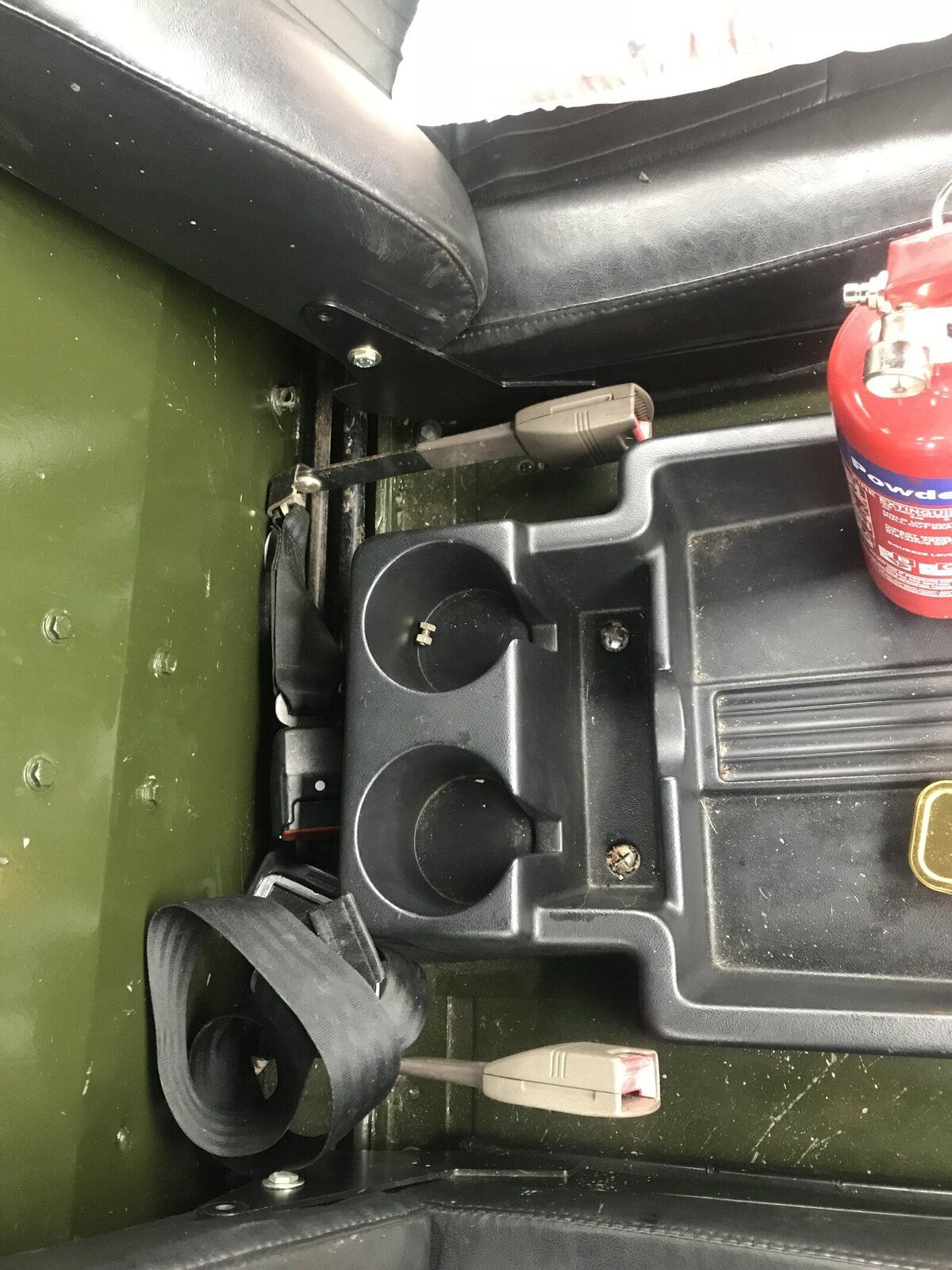

A photo showing the base itself....

Anyone have any ideas as to how to fit a middle seat?
Cheers!

My old 90 had those adjustable seats and a centre seat fitted. It had separate runners for the centre seat, I might have a photo of them somewhere, I'll post tomorrow if I have

That’d be great. Thanks!

The4 centre seat will look exactly like the passenger seat but 2/3 the width. Its a bolt in frame with no adjustment and the seat base has blocks that drop into the frame.

rob1miles said:

The4 centre seat will look exactly like the passenger seat but 2/3 the width. Its a bolt in frame with no adjustment and the seat base has blocks that drop into the frame.

Click to expand...

The later 90 and 110s are like this and it might be the best way forward in this case. Getting one to match might be more difficult.

I have deluxe seats in my series 3, I think both the driver and passenger are on sliding rails (never sit in the passenger so cannot be sure. I will try and get some photos of the middles seat for you this evening. I do know that I do not have a bottom frame, and the seat base has some blocks of wood that sit against the ridge in the seat box to prevent it form moving.

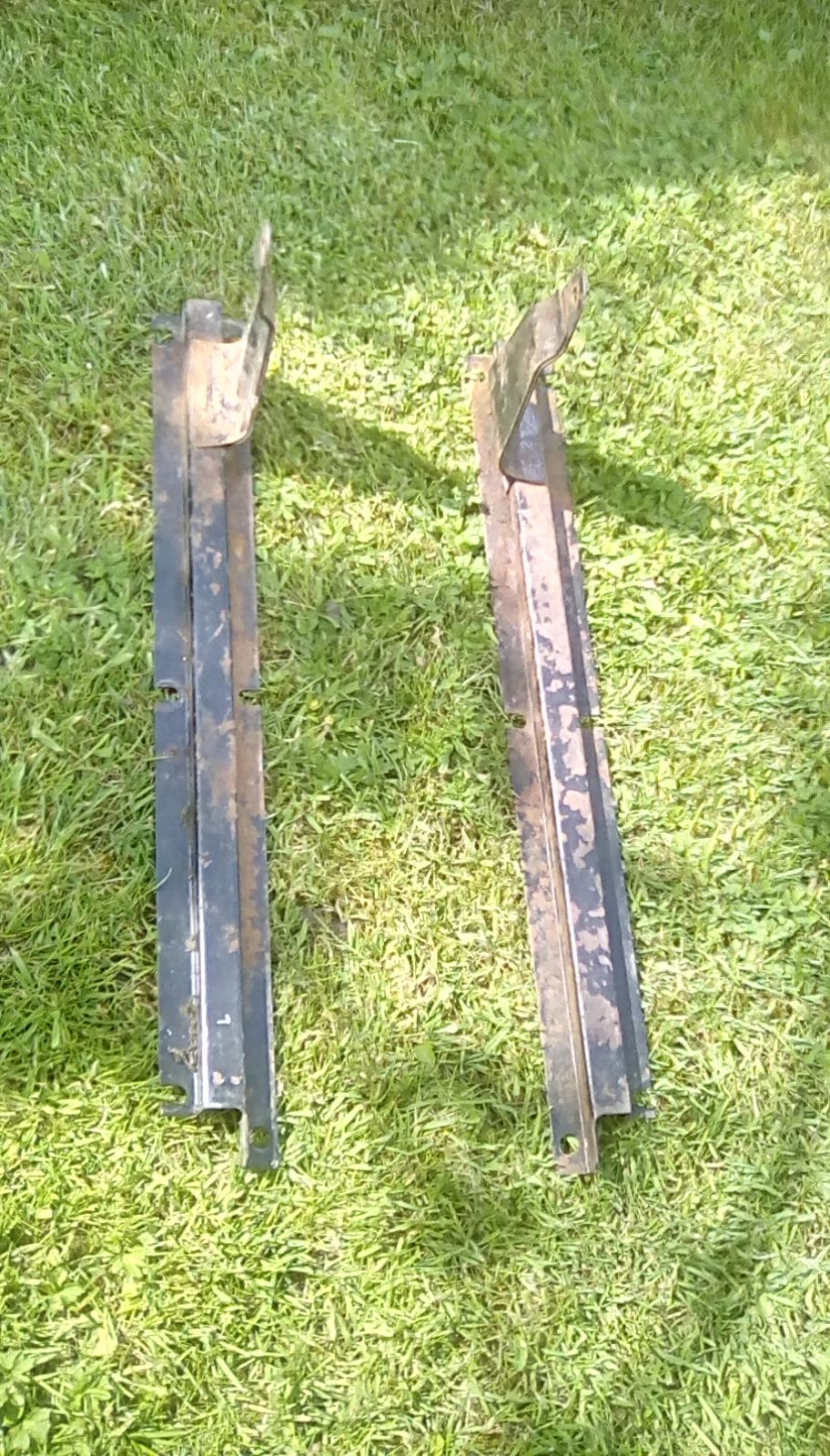

Here are two centre seat brackets. For sale if you want them

Yep. I’ll take them.
So they just bolt to seat box next to existing seat frames?
PM me.

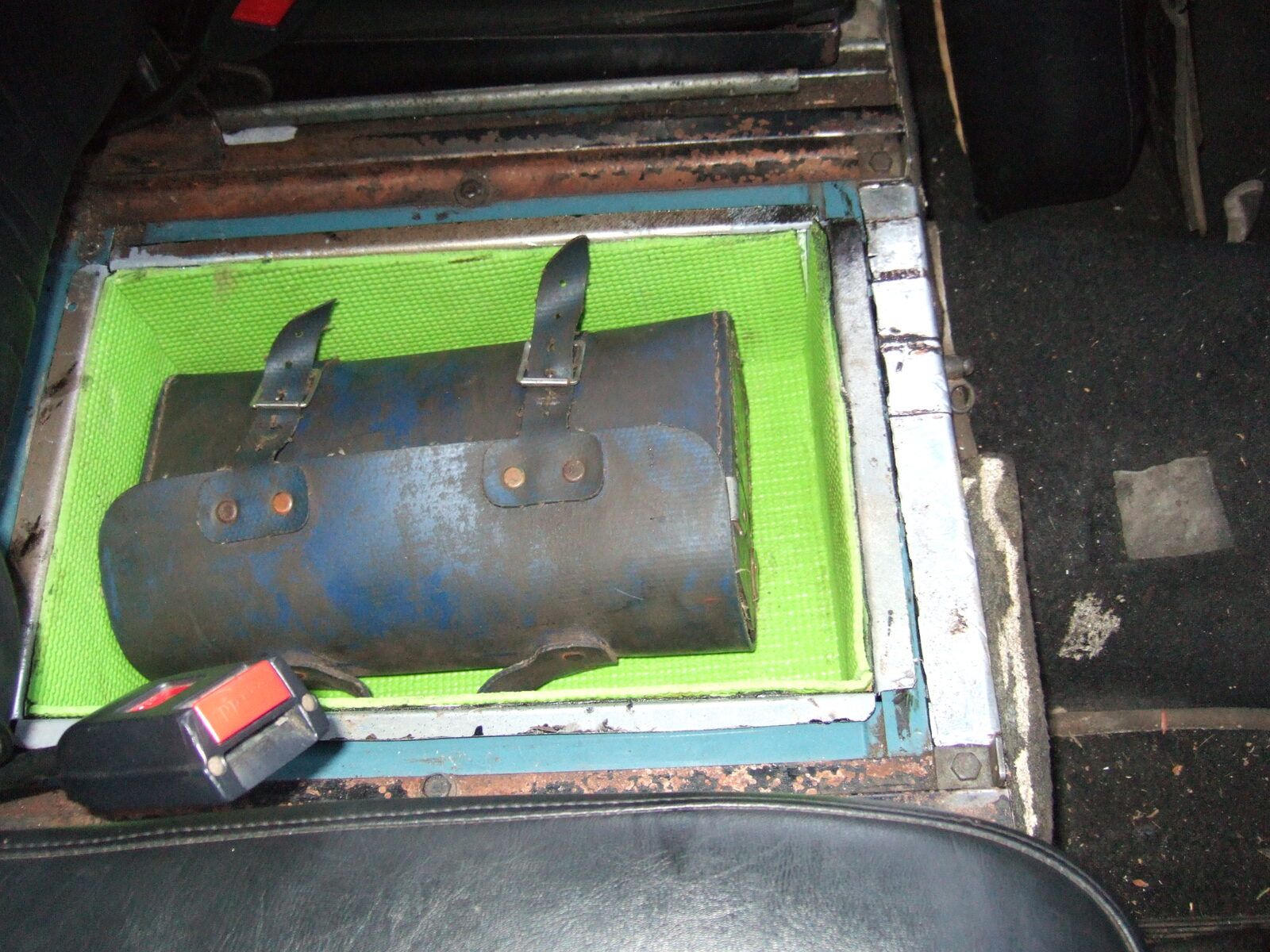

Thye front centre seat in my series 3 1972 just sits on the rails show by lat post the back rest is bolted to the upright on them rails the small brackets shown at front of my tool tray are all that locate the base pad as it is meant to lift out to access transfer case [pic does not show the cover plate in position}

I was wrong i my earlier piost, I wnet and had a look. It only has rails not a full frame so it looks like the picture above. Should have looked not gone from memory.

Cheers for all your help chaps. Rails on way.
