Freelander Tow Bar Electrics

Hi all,

Can somebody advise on a little problem I have.

I have just fitted a tow bar to my Freelander. I have located the plug point behind the O/S/R panel pic #1.

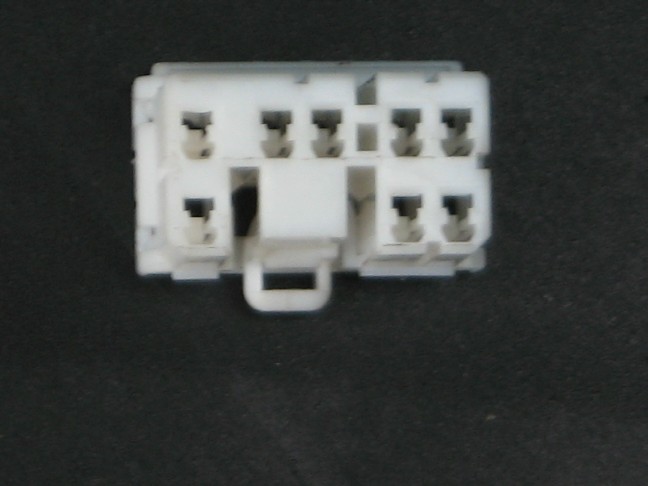

On inspection of the plug, they is a blank connector on the side of the block - see attached picture.

Is it possible to buy the spade connectors that will fit inside this blank connector as the ones I've seen at the auto factors are a little to big to fit. pic#2.

Or is it worth just to use spade connectors instead ?

Also, does any body have the colour code info to allow me to connect to the block ?

Any feedback is appriciated.

Thanks in advance.

Jamie

oppps, pics too big .

lr do the connector kit, un i dunt know todays prices but were bout 12 pounds last time i enquired, i thought that twas reasonable,on my motor i fitted crimps bullet push in type so i could dissconect easy, but it twas after i done the job i found out about the lr connectors. . .if you still want cable code , let me know un i will try un find it fer ya. . . .

Hi,

thanks for the fast responce. The LR part is this the connector only or the cable as well ?

Jamie

Colour code fer trailer lectrics is
Yellow - Left flasher
Blue - Fog lamp
White - Earth
Green - Right flasher
Brown - Right tail light
Red - Brake lights
Black - Left tail light

Jamie2126 said:

Hi,

thanks for the fast responce. The LR part is this the connector only or the cable as well ?

Jamie

Click to expand...

um sorry dunt know. . . .

Hi - do you know hat the refering LR colouring is ie green/red - white ? etc

ope this works as i had ta go int rockets hold ta find it. . . .

I think you left the details back in the rocket !!!

Can you retry ?

Jamie2126 said:

I think you left the details back in the rocket !!!

Can you retry ?

Click to expand...

gulp. . .bleedin stupid earth puters. . . .

dont forget to fit new towing flasher relay to activate trailer warning light,better than a sodding annoying buzzer.

Jamie2126 said:

Hi,

thanks for the fast responce. The LR part is this the connector only or the cable as well ?

Jamie

Click to expand...

LR part includes black socket, wiring, white connector and grommet. Its all assembled and you simply 'plug and play (Tow)'

Regards,

Steve

owwwccchhhh !! just called LR and they quoted £77 + VAT!!

Anybody recommend an aftermarket retailer who sells these ?

the internal trailer socket is C0499 - no pinouts in my Rave - but someone else might have.

maplin and CPC ( Google it part of the farnell group ) sell the molex plugs and pins will take a while to search.

but heres the colours for the tow electrics
on your freelander
( Double check first )

black ground
left green/redstripe
right green/whitestripe
live brown
12+ white

(red to red green to green blue to bits!!! )

please check..... info given in good faith.

mick

Jamie2126 said:

owwwccchhhh !! just called LR and they quoted £77 + VAT!!

Anybody recommend an aftermarket retailer who sells these ?

Click to expand...

I have a spare in my garage make me an offer.

Regards,

Steve

Jamie2126 said:

owwwccchhhh !! just called LR and they quoted £77 + VAT!!

Anybody recommend an aftermarket retailer who sells these ?

Click to expand...

pluckin ell ,thats gone up int price, use crimps or 10amp connectors. . .

Thread revival....I tried hitching the trailer lights to the hippo and surpisingly only the right side works, nothing on the left. no indicators, no light, nowt. is this a known fault?

ming said:

pluckin ell ,thats gone up int price, use crimps or 10amp connectors. . .

Click to expand...

:behindsofa:

Well said Ming !!raise:.....Do people no longer have any confidence in having a go off their own initiative without resorting to the hype and bull**** put forward by the manufacturers which basically say that if you don't buy our genuine kit at genuinely inflated prices, your pride and joy will burst into flames and disintegrate.
Forget the Scotchlocks...they are absolute crap. Soldered and shrink wrap joints are best, followed by crimp connectors and screw type "Chocolate block" type which if good for 400V joints are sure to work with a measly 12V provided that the correct amperage type is used.
You do not need to cut off the socket to make the connections if you wish, all you need to do is solder splice into the individual wires downstream of the pick up socket.

If i remembers correctly its a Minifit connector....
