Freelander 1 Freelander EV

Discussion in 'Land Rover Freelander' started by Alibro, Jun 19, 2020.

< Previous Thread | Next Thread >
  1. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    That's what I did. ;) I put sockets in my office and around the house that were wind powered when the batteries were charged and ring mains powered when the batteries were low. The batteries I had were in poor condition when I got them (for free) and the best my wind turbine could manage was 1.2kW on a windy day, most of the time I got a couple of hundred watts at best. It was only when I had the wind turbine up that I realised our area isn't as windy as I thought it was so ultimately it was a waste of time. :(
    Having said that I learned a lot, enjoyed the process and may yet use the circuit I installed. :)

    It might be worth considering a Leaf or similar for the daily commute. Their range is pretty poor for going much further but otherwise they are really well put together cars and anyone who has them like them.

  2. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    I have several old 3kW APC UPS but they were designed for lead acid so are not optimal for the Li-Ion batteries I have. Also they were designed for standby emergency use so are very inefficient and may not last long if used as a long term solution.
    Once I have the solar installed and working I'll look into it. ;)

  3. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    Entertaining latest video Ali.
    I think a disc magnet will do what you need, but I'm not 100% sure. I don't think the total diameter will matter though, as long as the magnet can couple cleanly to the rotor.

  4. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    I bought a ring magnet off ebay hoping it would do the job but it was so weak it's pretty much useless. If the diameter is too small it won't work either so for now I'm moving on. Upgrading the Altymotor can be done anytime.

    Nodge68 likes this.
  5. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    Merry Christmas every one. :)

    Nodge68 likes this.
  6. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    Here is my latest video. Most of it was shot last summer but I only got round to editing and posting today.


  7. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,122
    Likes Received:
    517
    Location:
    Truro
    Excellent stuff!

    Alibro likes this.
  8. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    Cheers mate. More to come. :D

  9. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    Work has been quiet recently so I've had time to edit the footage taken over the Summer and Autumn so here's another update. ;)


  10. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    I'm enjoying the new videos Ali. It's all getting very exciting. I can't wait to see it up n running. :D

    Alibro likes this.
  11. kernowsvenski

    kernowsvenski Well-Known Member

    Joined:
    Feb 27, 2013
    Posts:
    1,122
    Likes Received:
    517
    Location:
    Truro
    Seconded

    Alibro likes this.
  12. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    Thanks mate, unfortunately I'm now pretty much up to date with the videos and I'm bogged down with making the loom for the BMS as I keep changing my mind how to do it.
    The master modules are simple as I'd be concerned at the idea of having two BMS modules in the same system. I don't think I have much choice except to remove the circuit boards and connect directly to the cells with ring crimps, leaving a new connector dangling from the module. I'm in the process of doing that now.
    The question with the slave modules is do I cut up the eGolf loom and splice into it or remove the blank boards and make new connections?
    The reason I'm dithering over it is I want to build the pack and connect the BMS in my office for testing purposes and I don't want to have to remake the entire loom when I go to fit the modules in the car. I'm using these type of connectors https://ebay.us/1GbYXB for the master modules so it makes sense to use them for all the modules.
    This means to keep the PCB's I'd need to cut the VW loom leaving a few cm of cable and crimp on the new connectors.
    I guess this is the easiest option but I hate the idea of cutting up a loom that might be useful in the future.

    I'll edit this post tomorrow and add a few photos to better explain what I'm getting at.

    I guess that kinda sums me up tho. I hate destroying (or throwing out) anything that could be useful. :oops:

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    Yes please. I can't picture what you're saying, so pictures please. ;)

    I'm the same.

    Is it possible to simply make a completely new BMS harness which suits your layout?

  14. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland

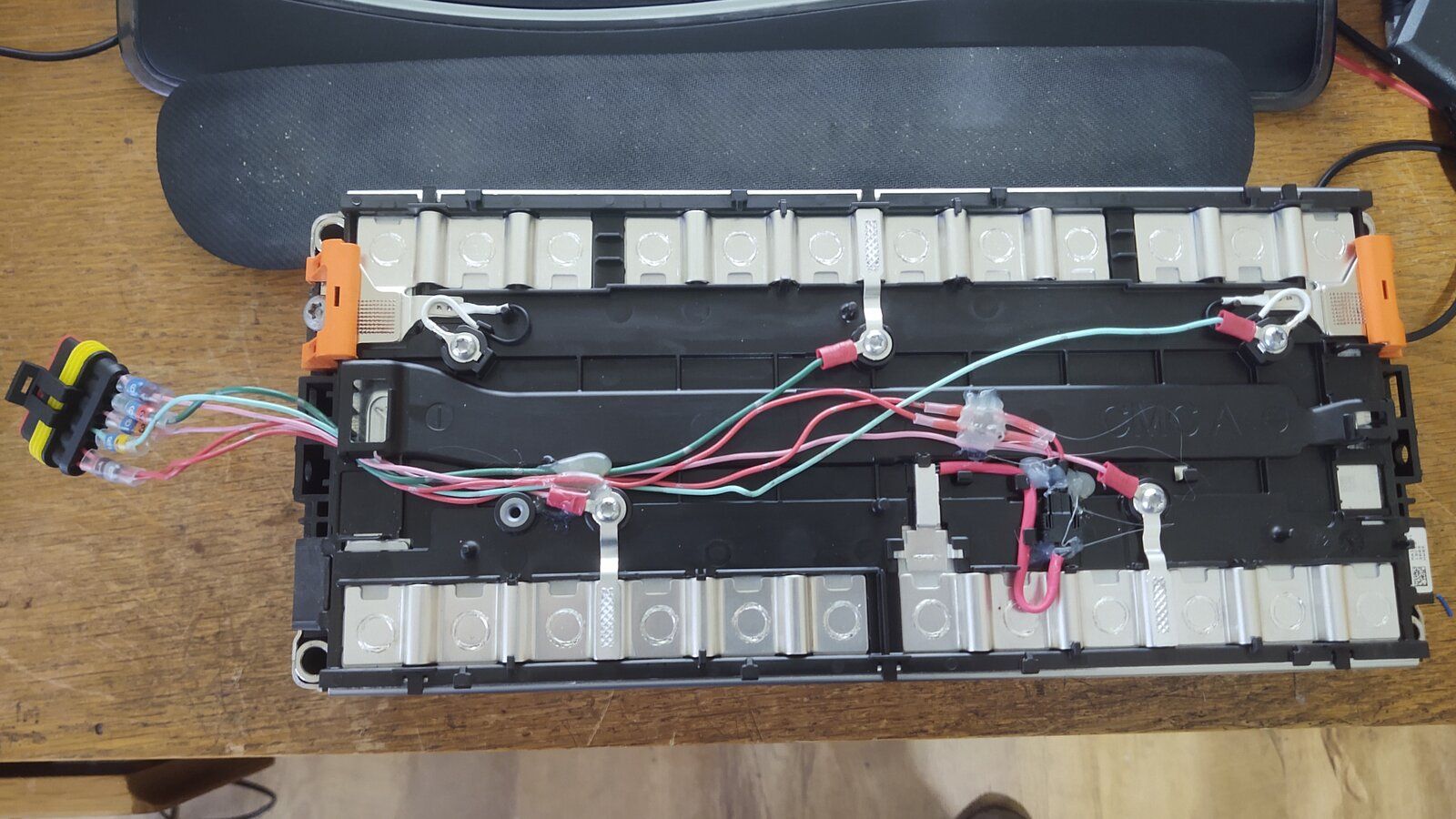

    This is one of the modules with the circuit board removed and my connections added.
    The most neg is top left and first pos is bottom left. As this is module number 18 I don't need to connect anything to the negative. The positive of module 17 will be connected to this negative so my BMS connections for M17 will cover that. To connect any BMS you connect the pack negative, then each cell positive in turn so for a 96S pack you need 97 connections.

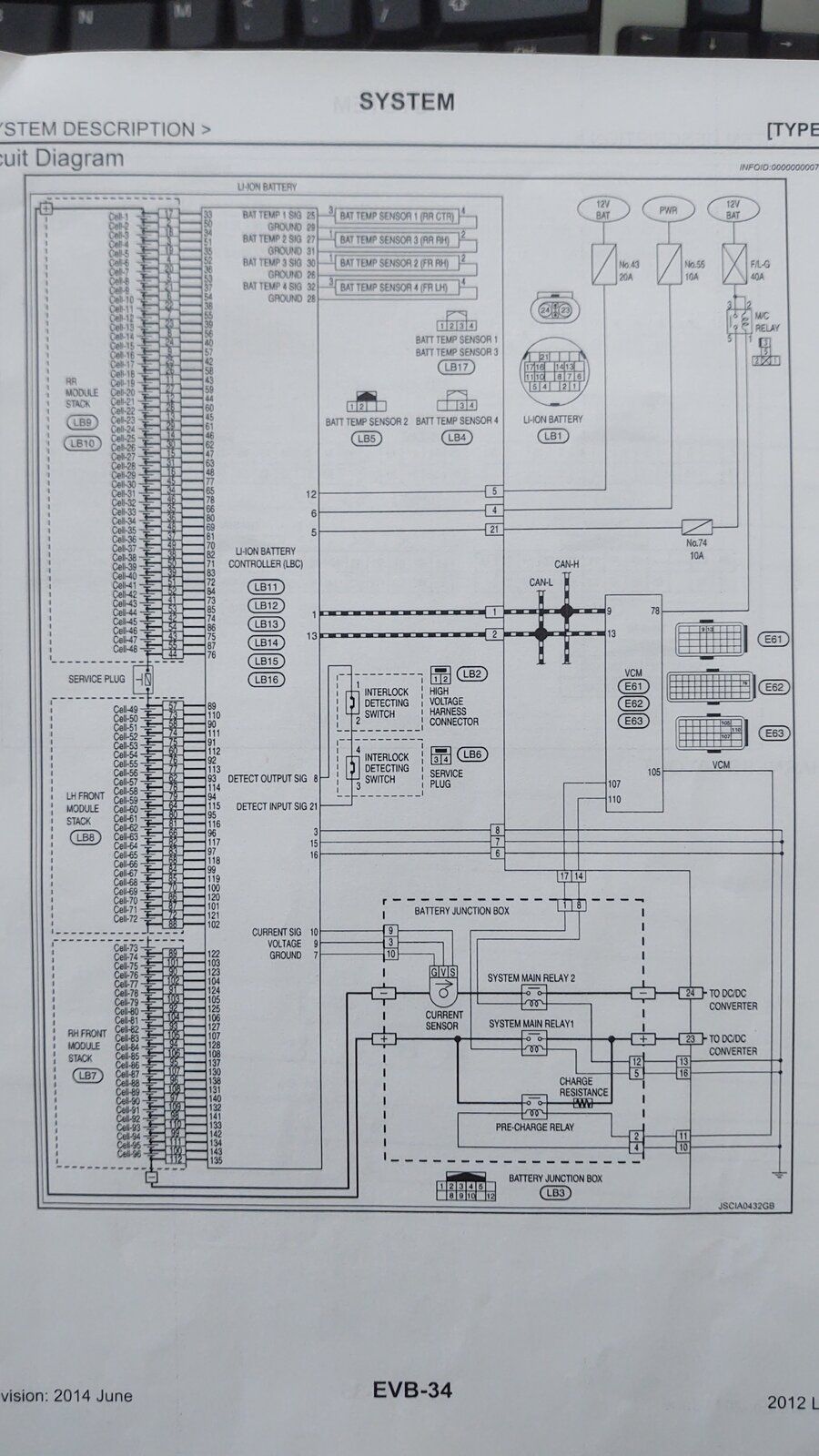

    This is the circuit diagram for the Nissan Leaf BMS

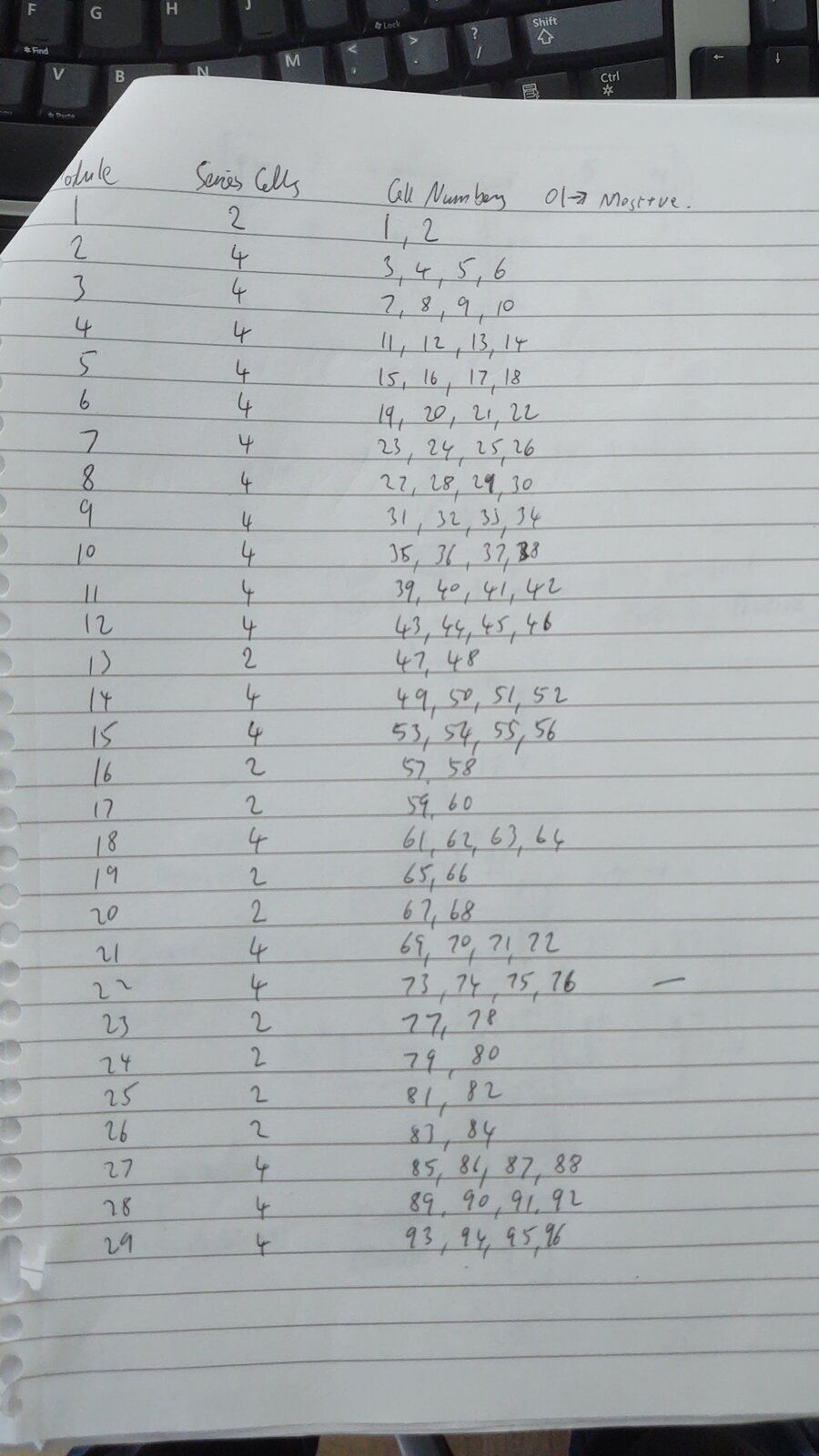

    And this is the cell count for my modules.


    I decided to keep the module numbers the same as they were in the eGolf pack and add two more. This way if I'm ever able to use the VW BMS it should simplify the change.

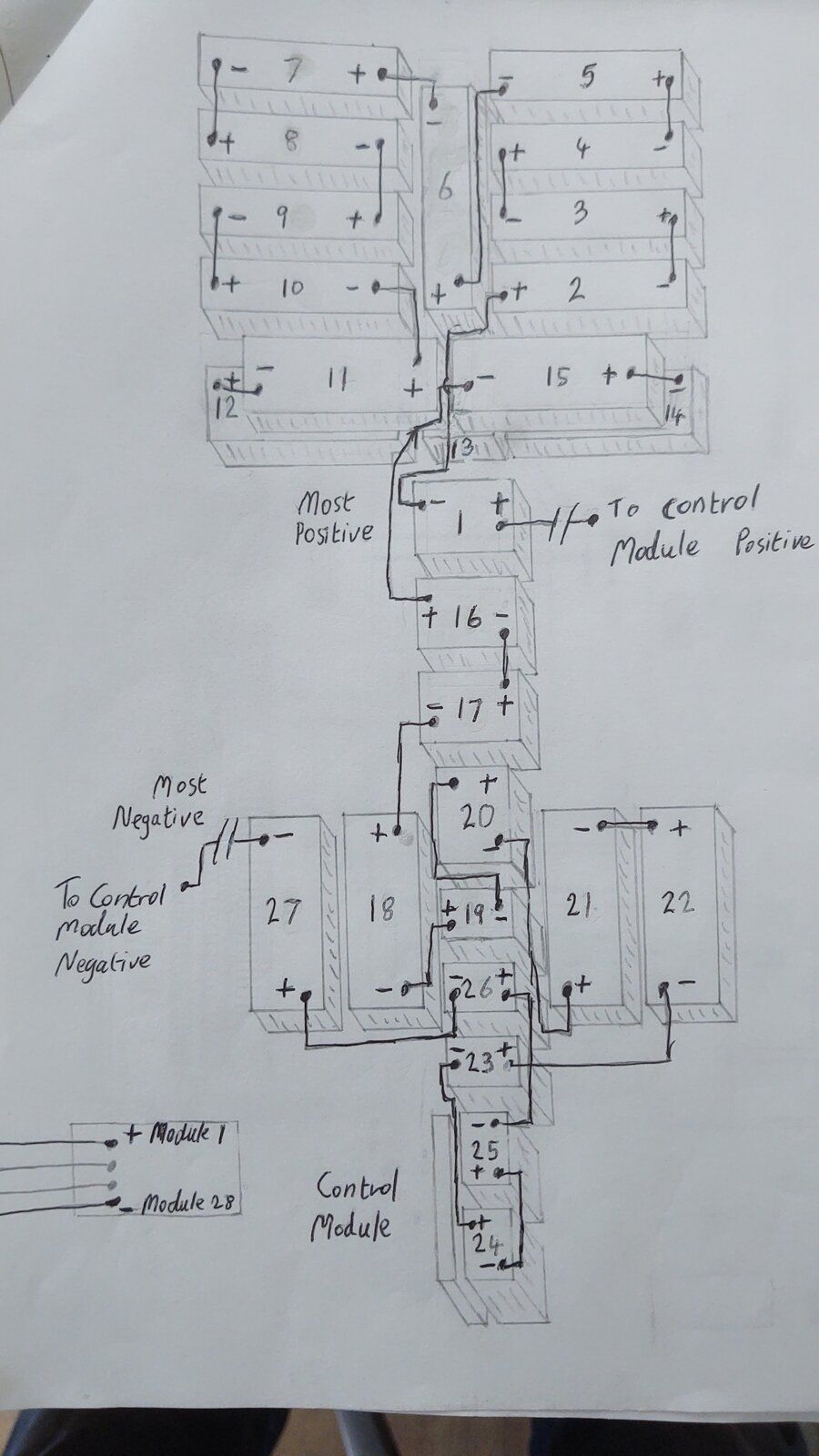

    This was the layout of the modules in the eGolf pack.

    There is a mistake in the photo above. See if you can spot it.

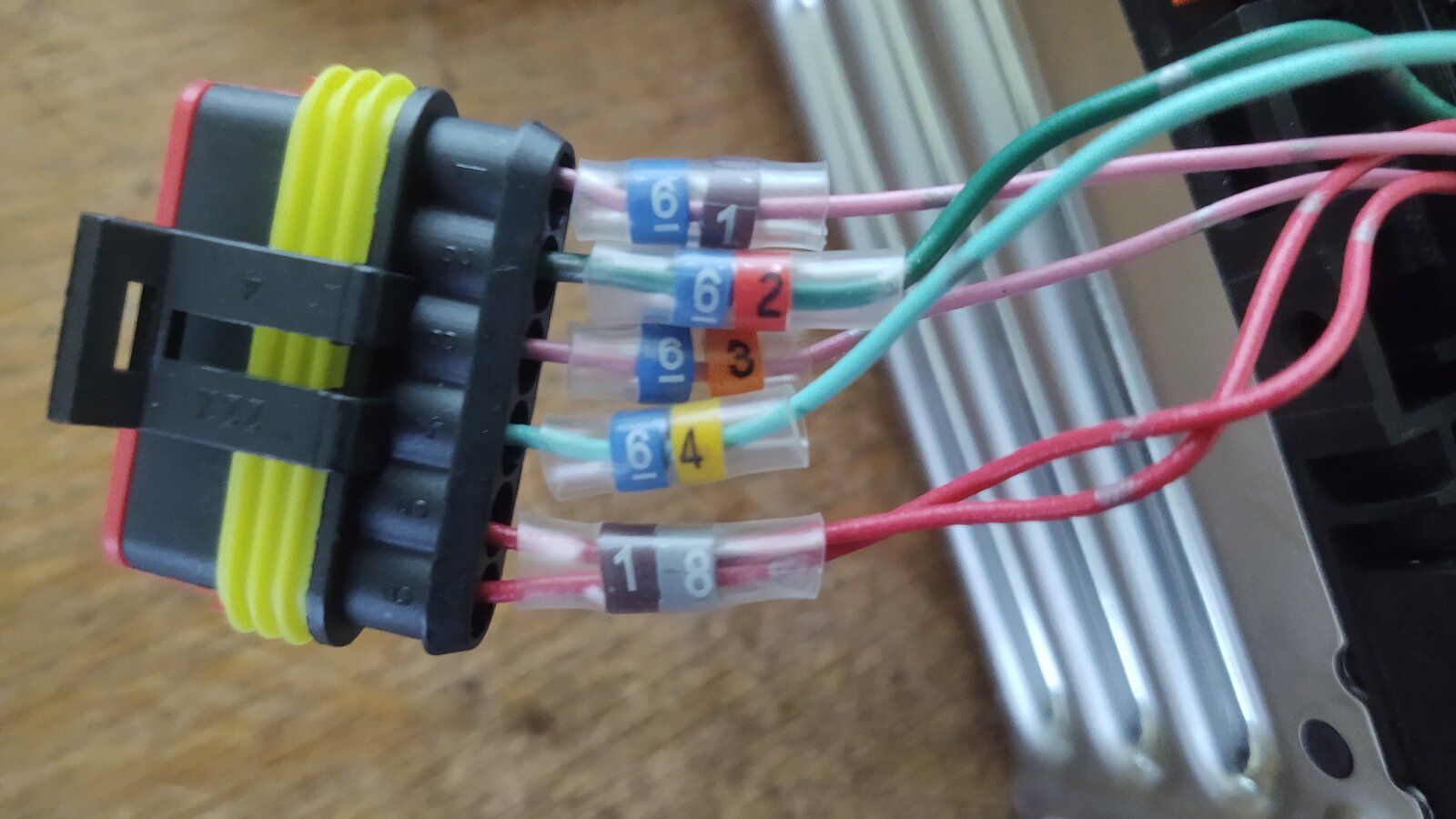

    I'm putting cell numbers on the BMS wires and module numbers on the temperature sensor wires (the bottom two red wires) to help with identification. I'll probably only use a few temperature sensors but decided to bring out connections for all of them anyway.
    These are soft PVC cable labels with some clear heatshrink to hold them.
    IMG_20220114_093351733 (1).jpg

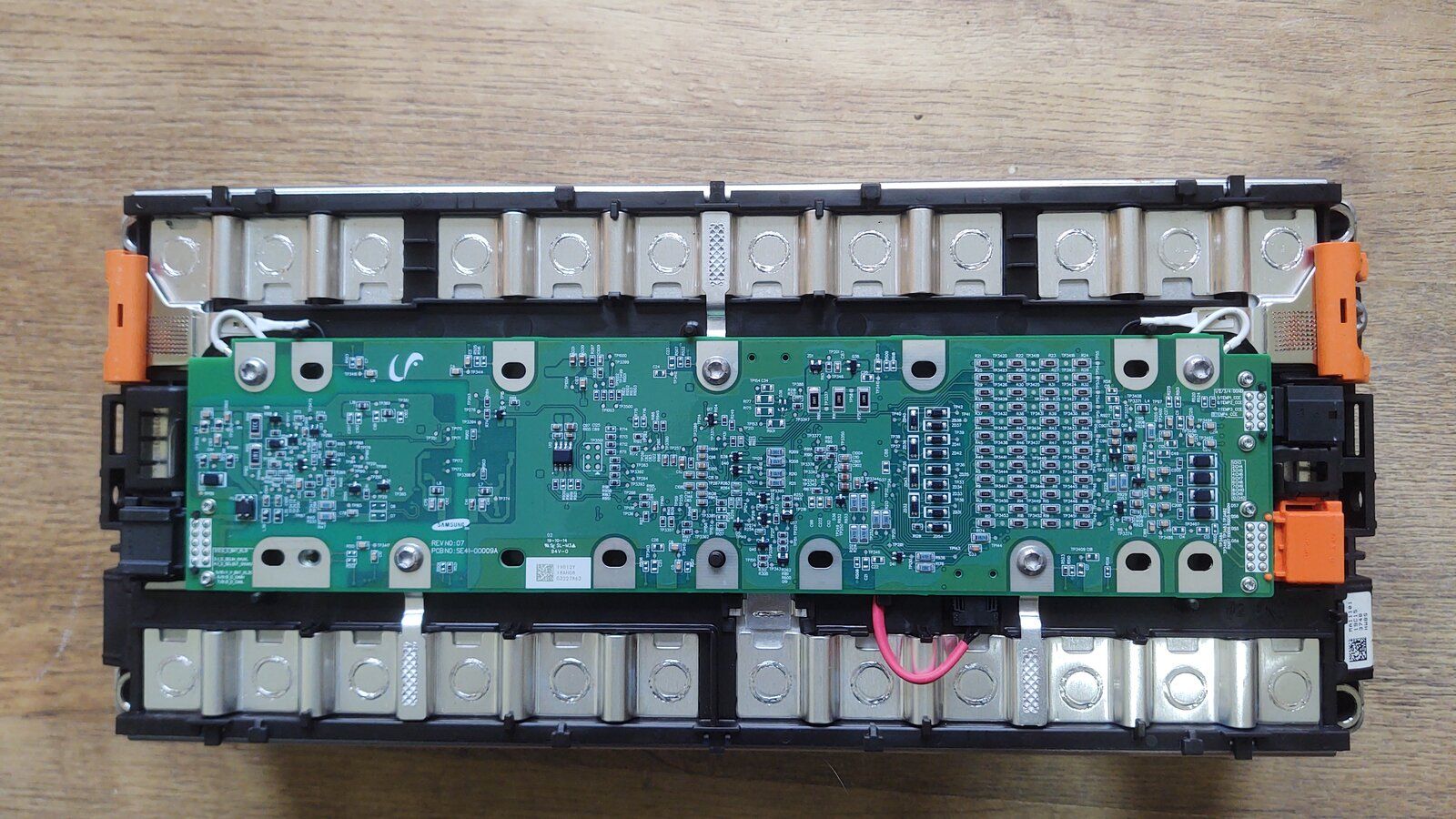

    This is a master module with the PCB still in situ.

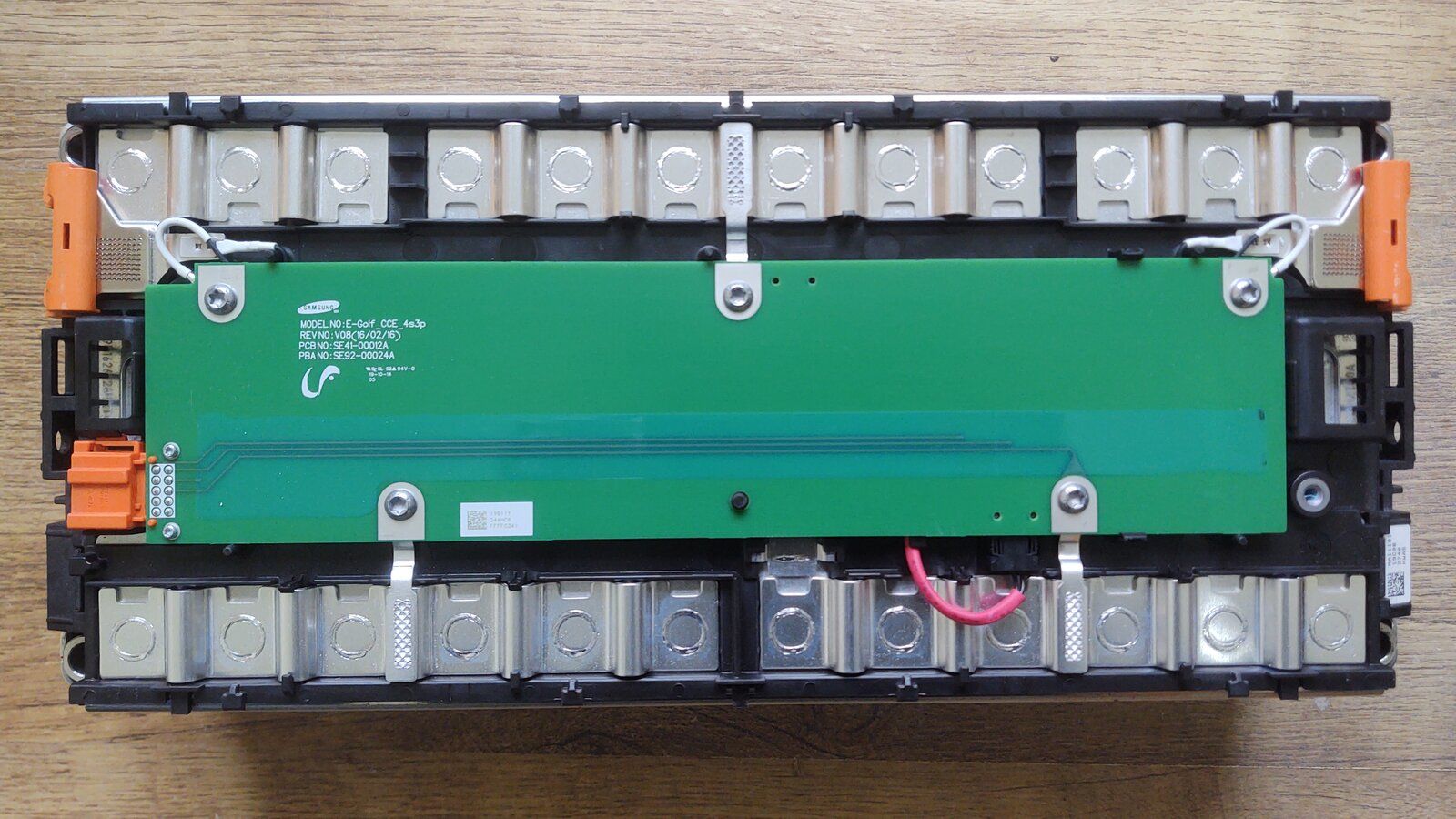

    And this is a slave module.

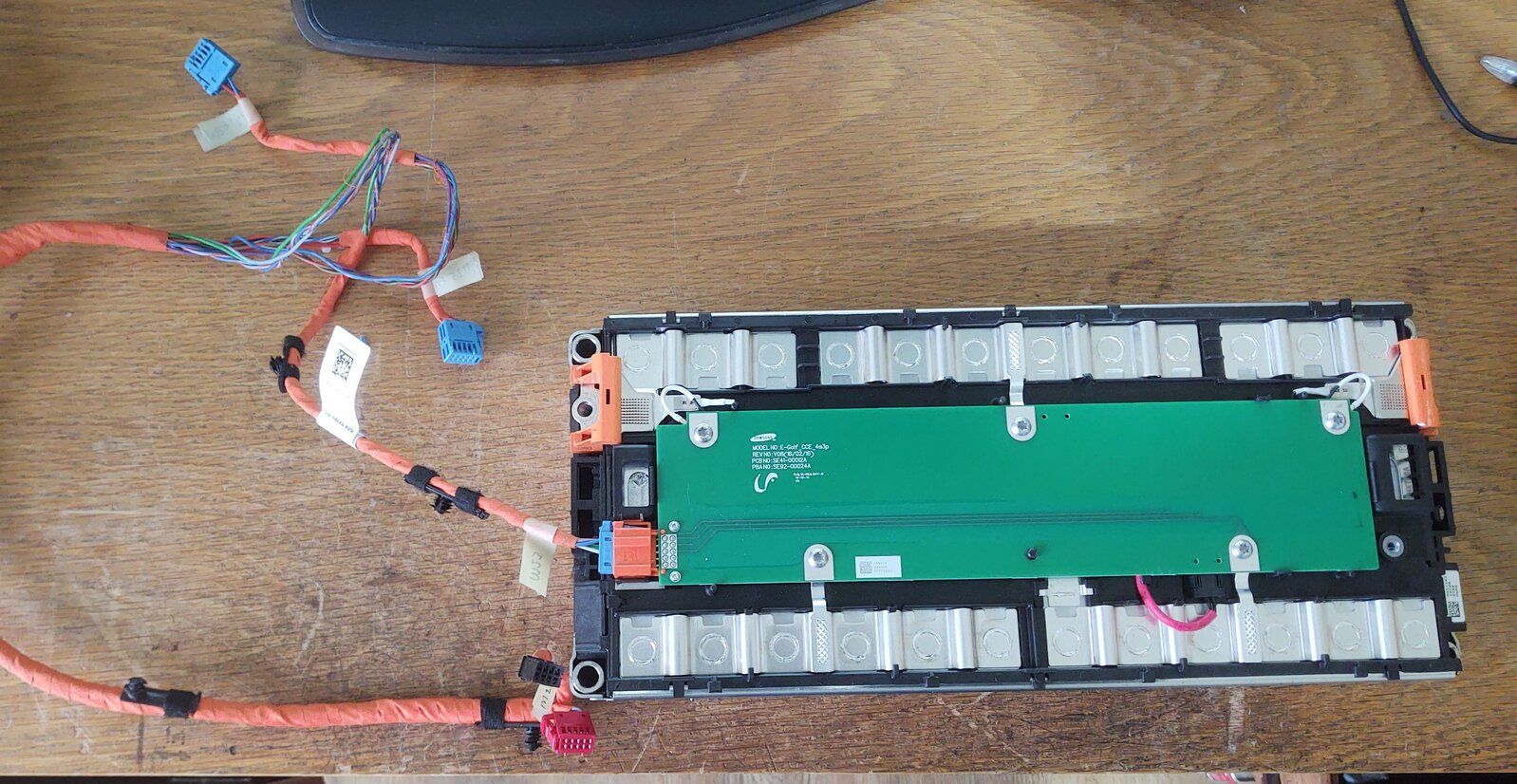

    This is a slave module with a portion of the loom attached.
    For the slave modules I can either remove the PCB and wire them up like the ones above or cut the VW loom a couple of inches from the module and add the same connectors.
    If I remove the PCB's then the loom will be kept intact and can be reused in the future if needed but this is much more work and I now have a second loom anyway.
    If I keep the PCB's and cut the loom I will have two connectors instead of one so maybe more potential for trouble. But will the OEM connections be better than my ring crimps?
    I think I'll just cut the loom. The chances of me needing it again are VERY small.

    I want to use the new connectors so that it is easier to build the pack in the office for testing, then move out to the car for installation.
    My intention for the battery boxes shown previously is they will have a 28 pin bulkhead connector which these internal connections will go to.

    Last edited: Jan 15, 2022
  15. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    That explains things better Ali.

    Do you need to keep the battery master and slave module's for your installation? I figured the Leaf BMS would simply connect directly to the cells in sequence, so it can monitor/balance them, as it would if the cells came from a Nissan?

  16. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    I am keeping the master module PCB's but they will not be used in this build.
    This means all modules are now slaves to the Leaf BMS. ;)

    Nodge68 likes this.
  17. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,914
    Likes Received:
    7,424
    Location:
    Near Newquay
    Cool.

    Have you worked out what the battery capacity will be, with the extra modules needed to bring it up to the 96 required by Leaf BMS.

  18. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    The original eGolf pack was just over 35kWh so with 88 cells each cell is approx 400wH.
    Each module is 4 x 400wH or 1.6kWh.
    35+1.6+1.6 = approx 38.2kWh.
    I'm hoping I can get around 3 miles to the kWh so hoping for a range just over 100 miles. With careful driving maybe 120 - 140 miles.

    Nodge68 likes this.
  19. potus

    potus Well-Known Member

    Joined:
    Sep 22, 2011
    Posts:
    1,989
    Likes Received:
    1,307
    Location:
    South Devon
    Just as a matter of interest and apologies for being slightly off topic, have you been watching the Audi RS Q E-tron at the Dakar rally this year? what an amazing piece of kit!

  20. Alibro

    Alibro Well-Known Member Full Member

    Joined:
    Jan 5, 2015
    Posts:
    6,026
    Likes Received:
    1,836
    Location:
    Northern Ireland
    I haven't seen any Dakar yet but will take a look thanks.
