I was wondering if anyone can identify what part the oil leak is coming from.
Been to look at this morning and the only fault I can find is this oil leak.
Is this something to be concerned about?
Thanks in advance.
Andy


Attachments

  • 20200321_100428.jpg
    1.2 MB · Views: 230

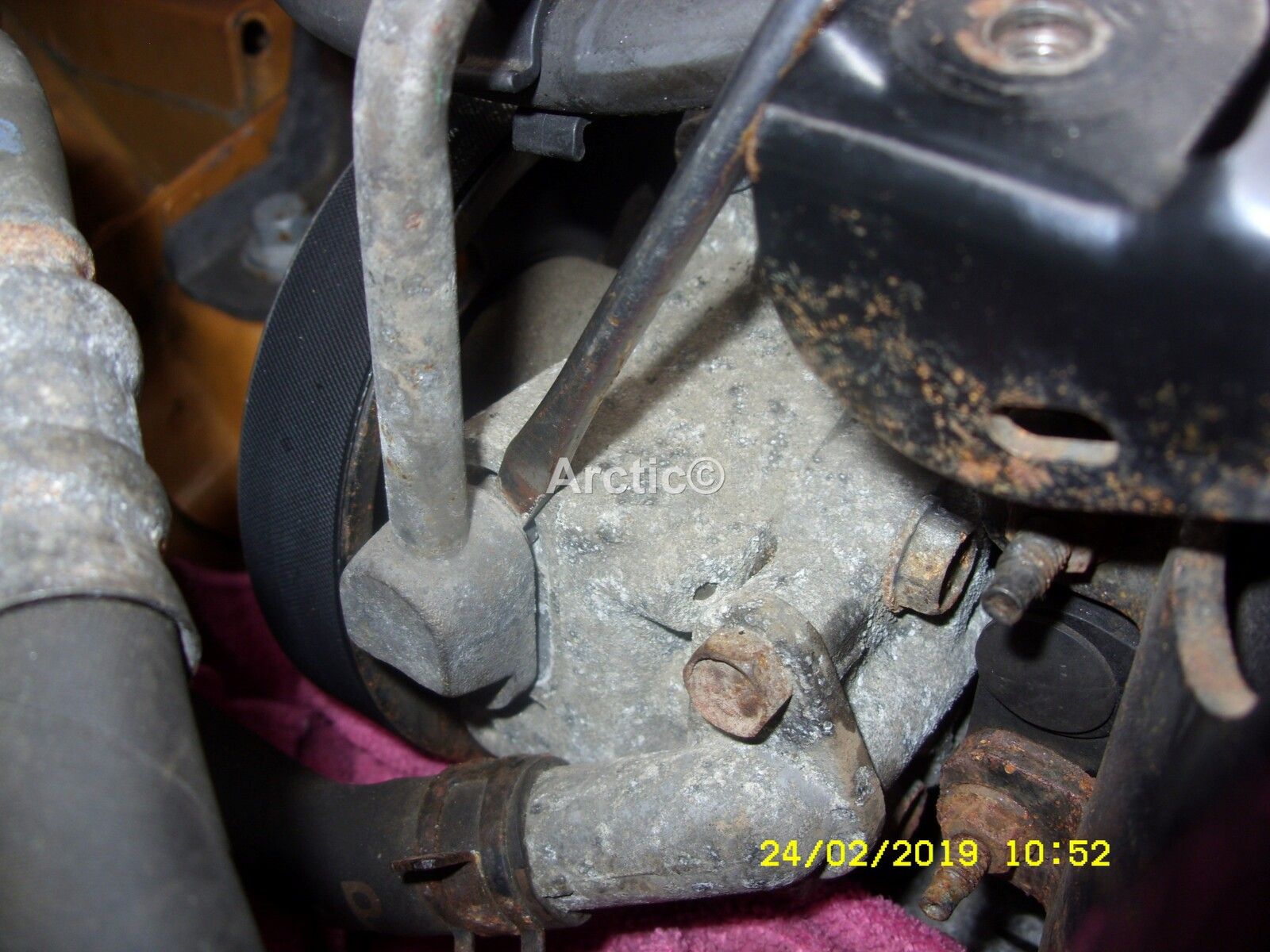

What reg is the FL, I think it is a FL1 not an FL2 and looks like a little leak from the banjo going to the power steering pump picture not the best to be honest.

What reg is the FL, I think it is a FL1 not an FL2 and looks like a little leak from the banjo going to the power steering pump picture not the best to be honest.
Thanks for reply
It's a 2013 hse sorry about pic
The pulley you can see is on the left hand side looking from the front.
I've had a google and looks as though your right about the pas pump
hopefully an easy fix
Thanks

Thanks for reply
It's a 2013 hse sorry about pic
The pulley you can see is on the left hand side looking from the front.
I've had a google and looks as though your right about the pas pump
hopefully an easy fix
Thanks

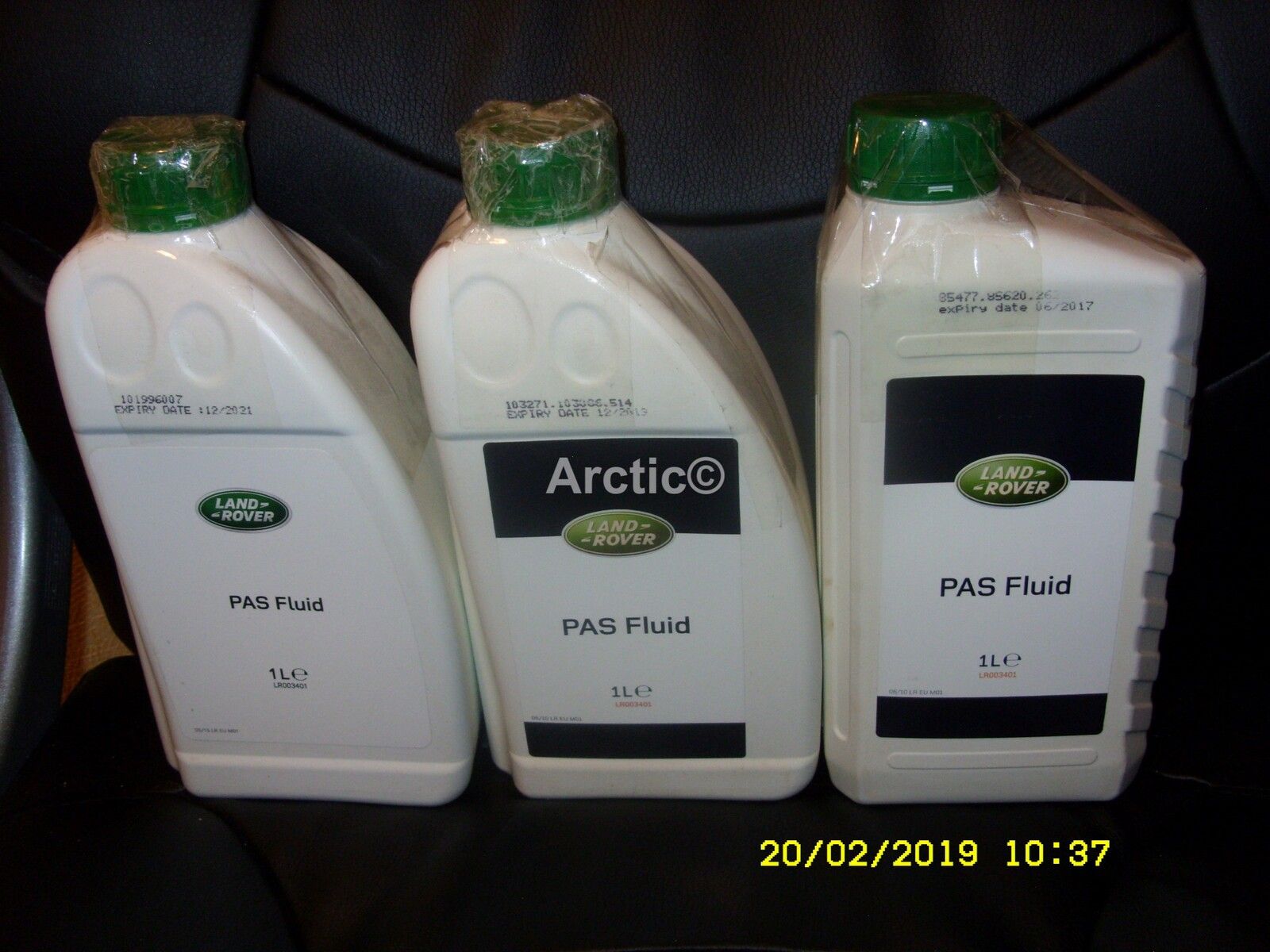

My advice would be to clean the area up with some carb cleaner, wipe it all dry then see if you can find the source of the leak, if it is the hose it's self they are not cheap, £100.00 plus, then you will have to drain the power steering fluid, so you will need new fluid, only use the genuine stuff green, at the same time I would change the power steering reservoir as the built in filter can not be changed after 7yrs I would say its not far from needing a change anyways, again only use genuine parts after market parts are crap.

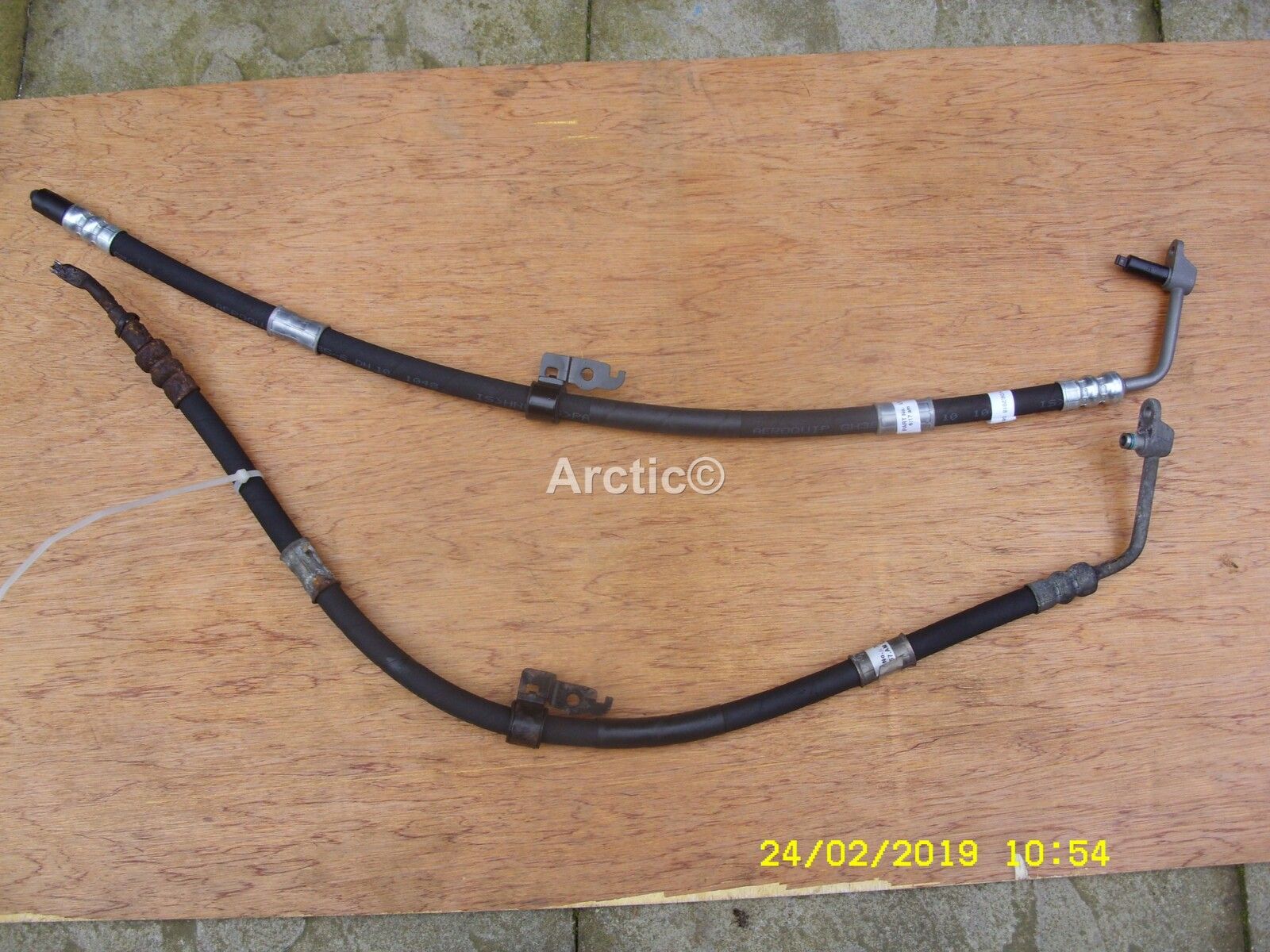

I had to change my hose and the pipe work to the steering column because of corrosion, it is not a straight forward job, once all the parts have been refitted you will need to bleed the power steering system.


Attachments

  • SDC19751.JPG
    275.5 KB · Views: 167
  • SDC19752.JPG
    251.8 KB · Views: 156
  • SDC19770.JPG
    198.2 KB · Views: 178
  • SDC19830.JPG
    263.4 KB · Views: 177
  • SDC19831.JPG
    218.2 KB · Views: 193
  • SDC19832.JPG
    214.6 KB · Views: 198
  • SDC19856.JPG
    241.9 KB · Views: 201
  • SDC19857.JPG
    312.6 KB · Views: 183
  • SDC19863.JPG
    302.1 KB · Views: 182
  • SDC19864.JPG
    144.5 KB · Views: 149
  • SDC19865.JPG
    251.9 KB · Views: 181
  • SDC19867.JPG
    253.6 KB · Views: 186
  • SDC19869.JPG
    330.6 KB · Views: 169
  • SDC19879.JPG
    286.3 KB · Views: 184
  • SDC19881.JPG
    251.3 KB · Views: 183
  • SDC19884.JPG
    295.2 KB · Views: 189
