Freelander 2 2008 starting issue

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
W

Wiper2001

Member
Posts
19
Location
Ilford
Hi All,

Please could anyone help? I have a 2008 Freelander 2 and I have had it on the drive for 8 months where it has not been used. I started it about 3 months ago OK. Yesterday, I found the battery completely flat. So, it's been on charge for 24 hours and is fully charged. When I press the start button, the dash and everything comes on as expected. I put my foot on the brake and press Start, there is clicking in the foot well and all the dash goes off and back on again. If the headlights are on, they go off and on again like there is a short circuit when I try to start the engine. Steering unlocks OK when the fob is put in.

Any ideas?

Cheers!

Steve

A broken battery can also have symptoms like this. What's the voltage on the battery and how old is the battery?

Wiper2001 said:
Thanks for confirming what I was dreading. I will look at that at the weekend.

Thanks again!
Click to expand...
repair kit.
www.ebay.co.uk

LAND ROVER FREELANDER 2 2.2 TD4 STARTER MOTOR SOLENOID REPAIR KIT AH52-11001-AC | eBay

LAND ROVER FREELANDER Mk2 2.2 TD4 2006 onwards STARTER MOTOR REPAIR KIT. FREELANDER TD4 SERIES 2 2.2 DIESEL engine. Nippon Denso starter motor's fitted to FREELANDER'S are prone to failure and are very expensive to replace.
www.ebay.co.uk

How many miles has the FL2 done is it the TD4 usually around the 65,000 mark the contacts will need changing to stop the starter motor from not working as it should, give the starter a tap with a wooden handle see if it starts.

The lights dimming indicates a drain on the battery, so starter is trying to turn and something stopping it. That could just be a failed battery. Standard car batteries don't like being fully discharged.

Wiper2001 said:
Hi All,

Please could anyone help? I have a 2008 Freelander 2 and I have had it on the drive for 8 months where it has not been used. I started it about 3 months ago OK. Yesterday, I found the battery completely flat. So, it's been on charge for 24 hours and is fully charged. When I press the start button, the dash and everything comes on as expected. I put my foot on the brake and press Start, there is clicking in the foot well and all the dash goes off and back on again. If the headlights are on, they go off and on again like there is a short circuit when I try to start the engine. Steering unlocks OK when the fob is put in.

Any ideas?

Cheers!

Steve
Click to expand...
I'd replace the battery. A lead acid battery is basically destroyed by going flat, and the FL2 needs a battery in perfect condition to prevent such issues.

Akroni said:
A broken battery can also have symptoms like this. What's the voltage on the battery and how old is the battery?
Click to expand...
Battery is about 6 years old. It's a Yuasa the AA sold me when I was desperate in the middle of nowhere with a dodgy battery.

I charge it and it looks like its OK but I have a tester connected to the test port in the dash and its saying 9 volts which is not good. So it could be battery. I have put it on charge again to see if it livens it up.

Cheers!

J_D said:
The lights dimming indicates a drain on the battery, so starter is trying to turn and something stopping it. That could just be a failed battery. Standard car batteries don't like being fully discharged.
Click to expand...
Yes, sounds like battery to me as well. All I can do is purchase a new one. Then find its the starter as well :).

Arctic2 said:
repair kit.
www.ebay.co.uk

LAND ROVER FREELANDER 2 2.2 TD4 STARTER MOTOR SOLENOID REPAIR KIT AH52-11001-AC | eBay

LAND ROVER FREELANDER Mk2 2.2 TD4 2006 onwards STARTER MOTOR REPAIR KIT. FREELANDER TD4 SERIES 2 2.2 DIESEL engine. Nippon Denso starter motor's fitted to FREELANDER'S are prone to failure and are very expensive to replace.
www.ebay.co.uk

How many miles has the FL2 done is it the TD4 usually around the 65,000 mark the contacts will need changing to stop the starter motor from not working as it should, give the starter a tap with a wooden handle see if it starts.
Click to expand...
OK, I will check this out as well. I think battery first and then this is the second thing on the list as it's never been done and well overdue. Thanks!

Wiper2001 said:
OK, I will check this out as well. I think battery first and then this is the second thing on the list as it's never been done and well overdue. Thanks!
Click to expand...
www.gsfcarparts.com

110 5000 Series Car Battery - 5 Year Warranty

UK Battery Ref 110
www.gsfcarparts.com www.gsfcarparts.com

Is your car stop start i don't think so but you will know.

www.tayna.co.uk

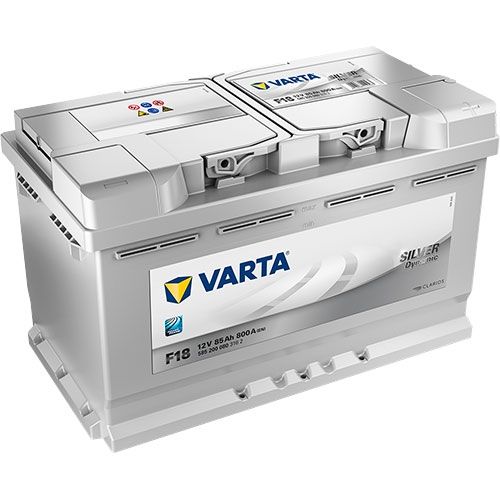

F18 Varta Silver Dynamic Car Battery 85Ah (585200080) (110)

F18 VARTA Silver Dynamic Car Battery <i>Innovation with Purpose, Premium Experience, Powerful History</i> VARTA was founded in 1887 Germany, and was established fully in 1904 by delivering the first electric vehicle battery, famously driven by Thomas Edison. Soon after, VARTA delivers the first...
www.tayna.co.uk www.tayna.co.uk

www.tayna.co.uk

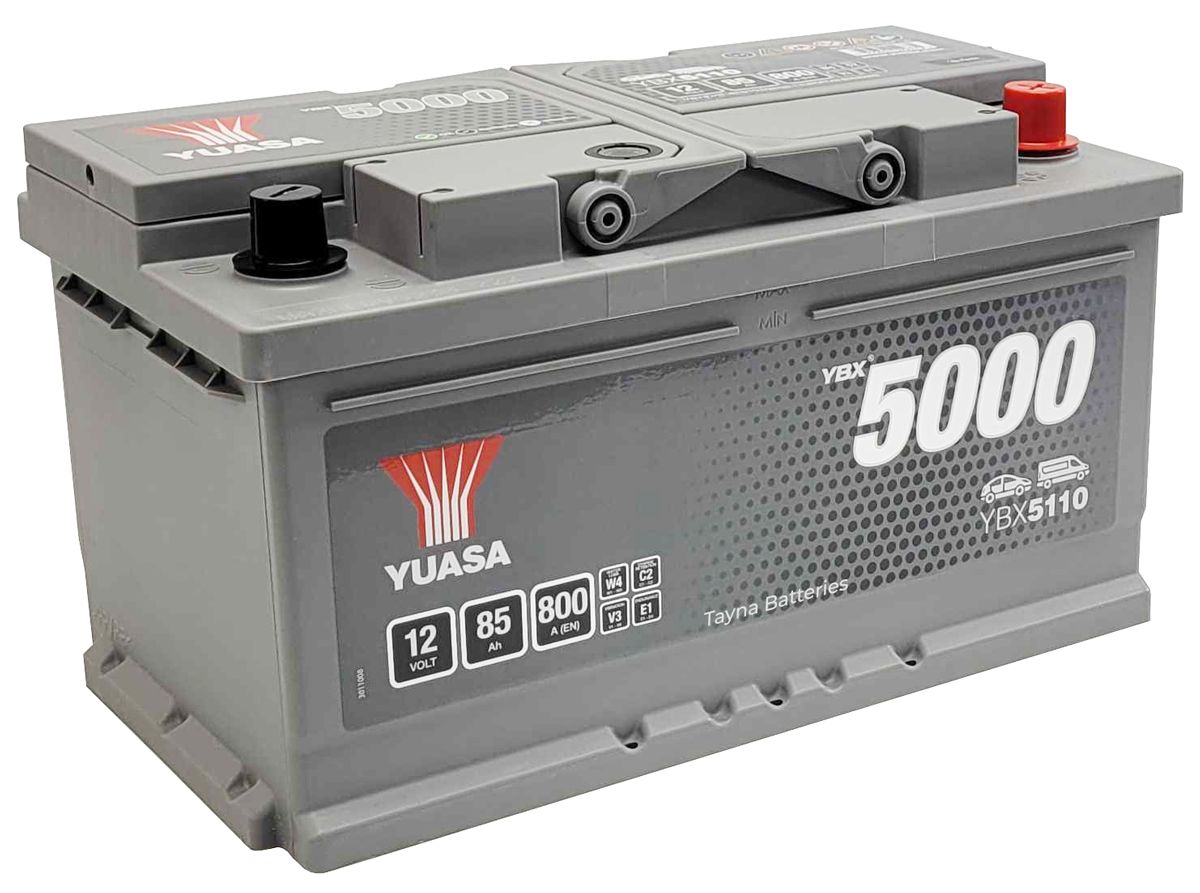

YBX5110 Yuasa Silver High Performance Car Battery 12V 85Ah HSB110 / AA4010

<h4>Yuasa</h4> <i>Advanced Engineering, Premium Quality, Unmatched Reliability</i> GS Yuasa located in Japan, all started in 1895 and is one of the biggest battery manufacturers in the world. Manufacturing batteries for the automotive, commercial and infrastructure markets. Yuasa Battery, Inc...
www.tayna.co.uk www.tayna.co.uk
